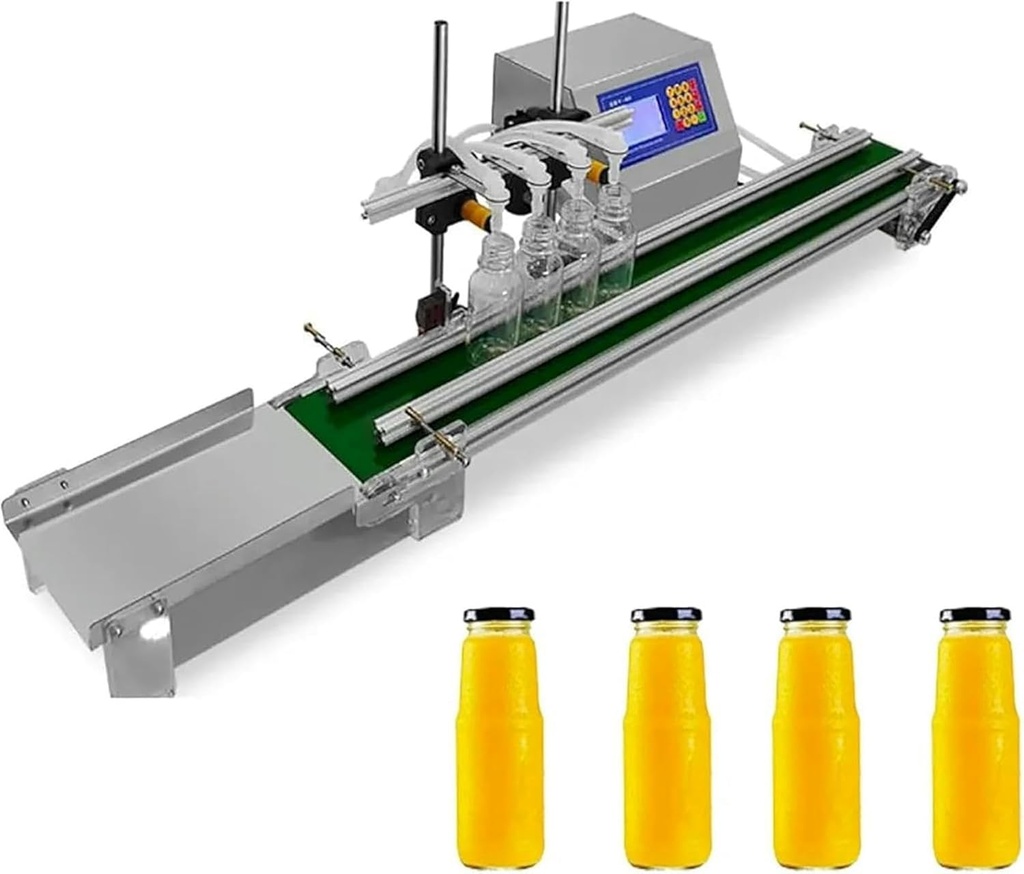

4-Head Electric Liquid Filling Machine, 6.5 Liters/Minute, Automatic Digital Control Bottling Machine for 10-5000 Milliliters, Suitable for Milk, Water, Juice, Essential Oils~/
10 sold in last 24 hours
- what?? (2 control methods) The 4-head closed-loop belt filling machine does not require placing bottles at any interval. There is also a probe and a robotic arm, which is the open circuit version and will automatically stop the bottle.
- what?? The built-in control module of the liquid filling machine's automatic line allows for personalized programming of 1-4 nozzles that can be simultaneously filled, which means you can change the number of bottles filled at the same time to adapt to different packaging speeds.
- what?? (High work efficiency) The filling machine adopts fully automatic belt conveyor to ensure efficient operation, and can produce 5-30 cans per minute. You can adjust the height of the filling nozzle according to the volume to be filled and the size of the bottle to fully meet different filling needs.

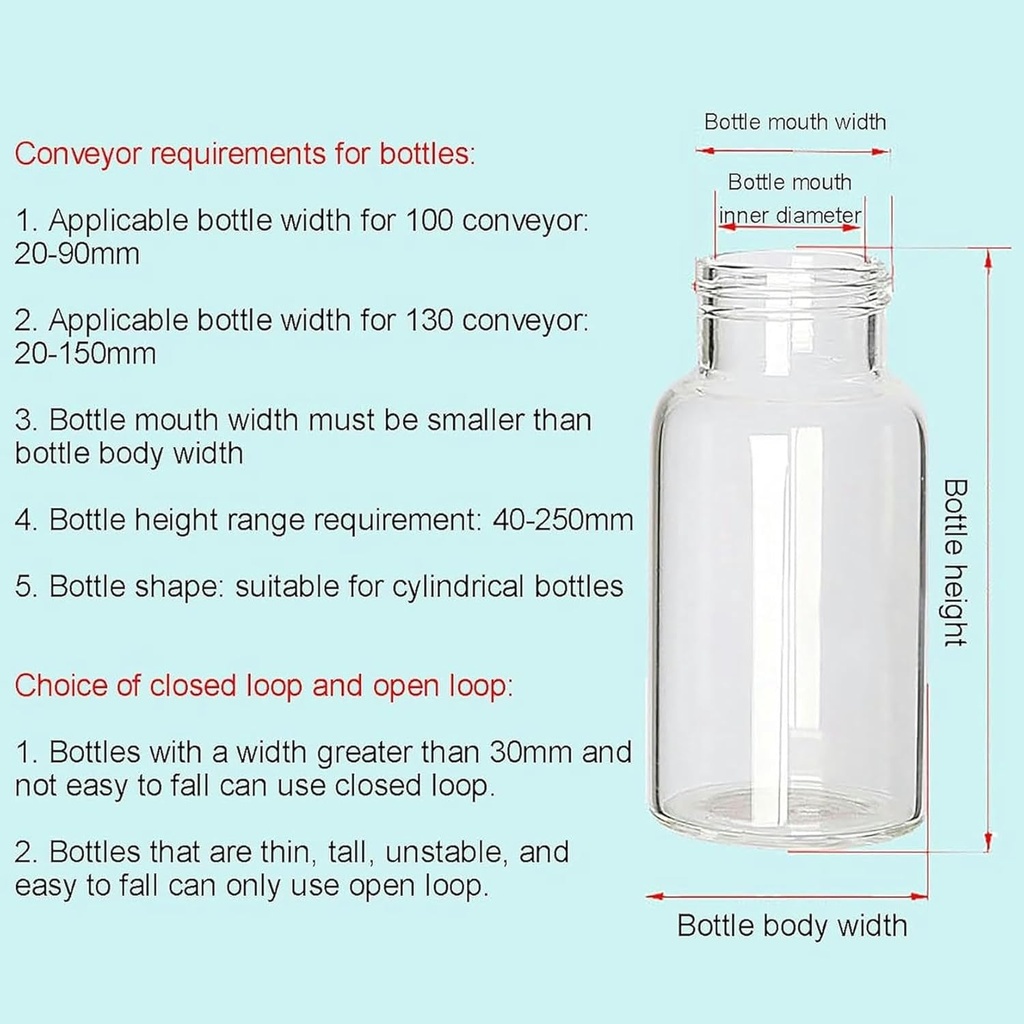

- what?? The diameter of the bottle must be within 20-90 millimeters, the inner diameter of the opening must be within 10-80 millimeters, and the height of the bottle must be within 40-250 millimeters. The shape of the bottle should usually be cylindrical. If your bottle is of any other shape, please confirm with us.

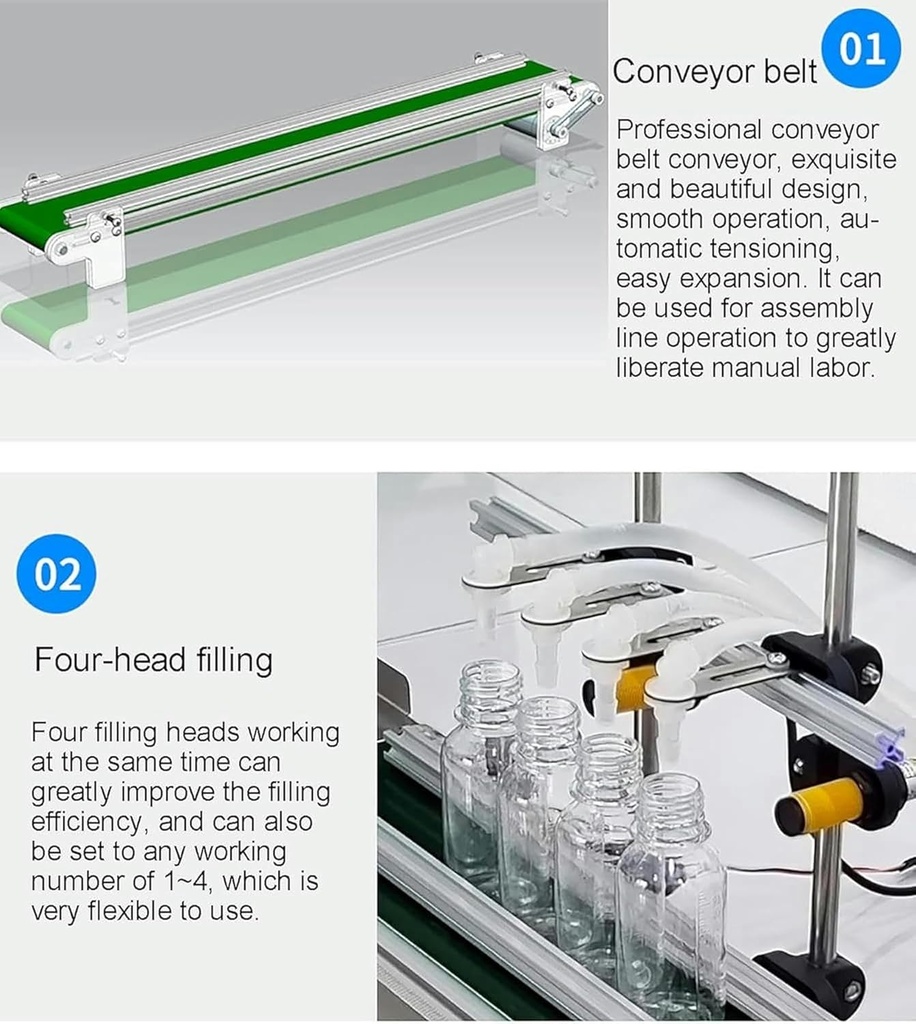

- what?? A professional belt conveyor with beautiful design, smooth operation, automatic tensioning, and easy development. When used for assembly line operations, it can greatly release work. Our brand's automatic liquid filling machines are supported by our strict quality assurance. If you have any questions about our products, please feel free to contact us at any time.
Tags |
Product Features

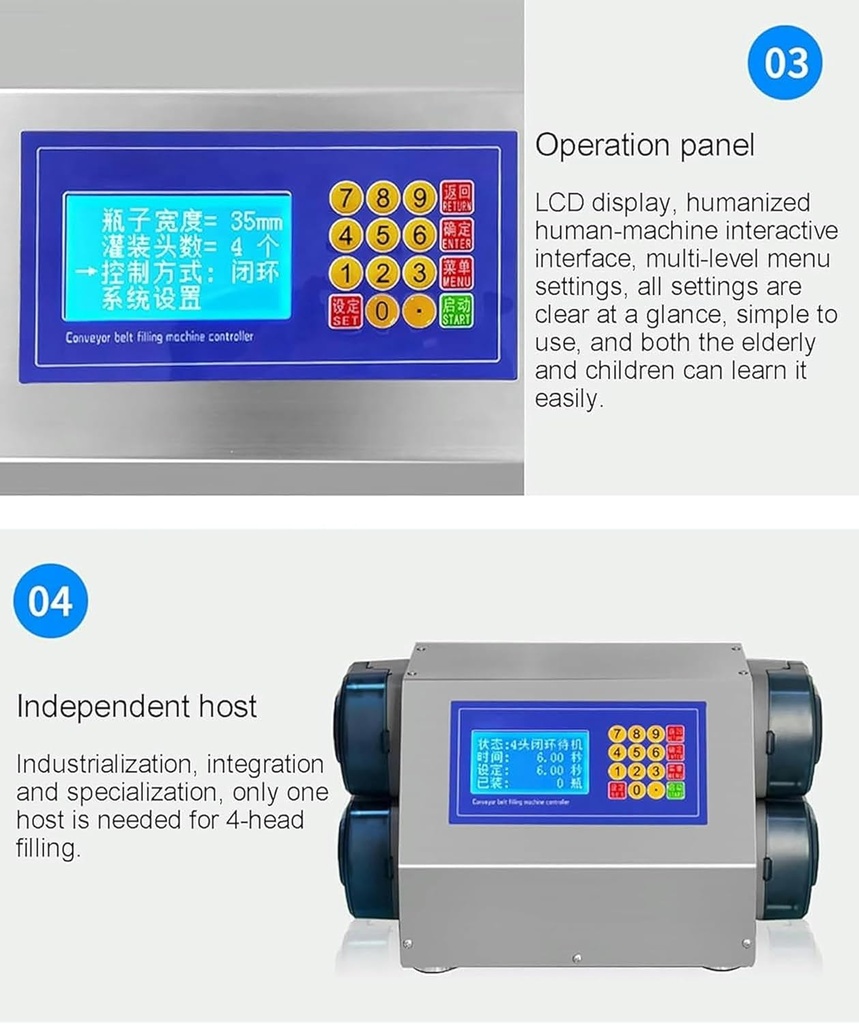

Error adjustment, speed adjustment, unit adjustment, other configurations
Speed setting, enter a value from 0-9, input value range: 1-100.
The conveyor belt speed can be adjusted from 10-100.
Language selection: You can choose between "CHN CHN" and "English"
Product parameters
Voltage/Power: 220V/400W
Filling range: 10-5000 milliliters
Water pump type: magnetic pump
Pump flow rate: 4 * 6.5L/min
Number of filling heads: 1-4 adjustable heads
Packing head diameter: 8mm
Filling height: adjustable from 4 to 35cm
Water pipe material: Silicone pipe
Water pipe specification: inner diameter 7 x outer diameter 11mm
Water pipe length: inlet 2m/outlet 1m
Host size: 24 * 24 * 21 centimeters
Host packaging: 50 * 30 * 25cm, 11kg
Conveyor size: 130 * 180 * 9cm
Conveyor packaging: 110 * 24 * 16cm, 9kg
Open loop version: Bottles must be placed together.
Closed circuit version: You can place bottles at any interval. It has an additional probe and a larger electric deflector than the open circuit version, which will automatically stop the bottle.
Language selection: switchable between Chinese and English
Applicable scenarios: liquid filling, essential oil, essence, Baijiu, etc.

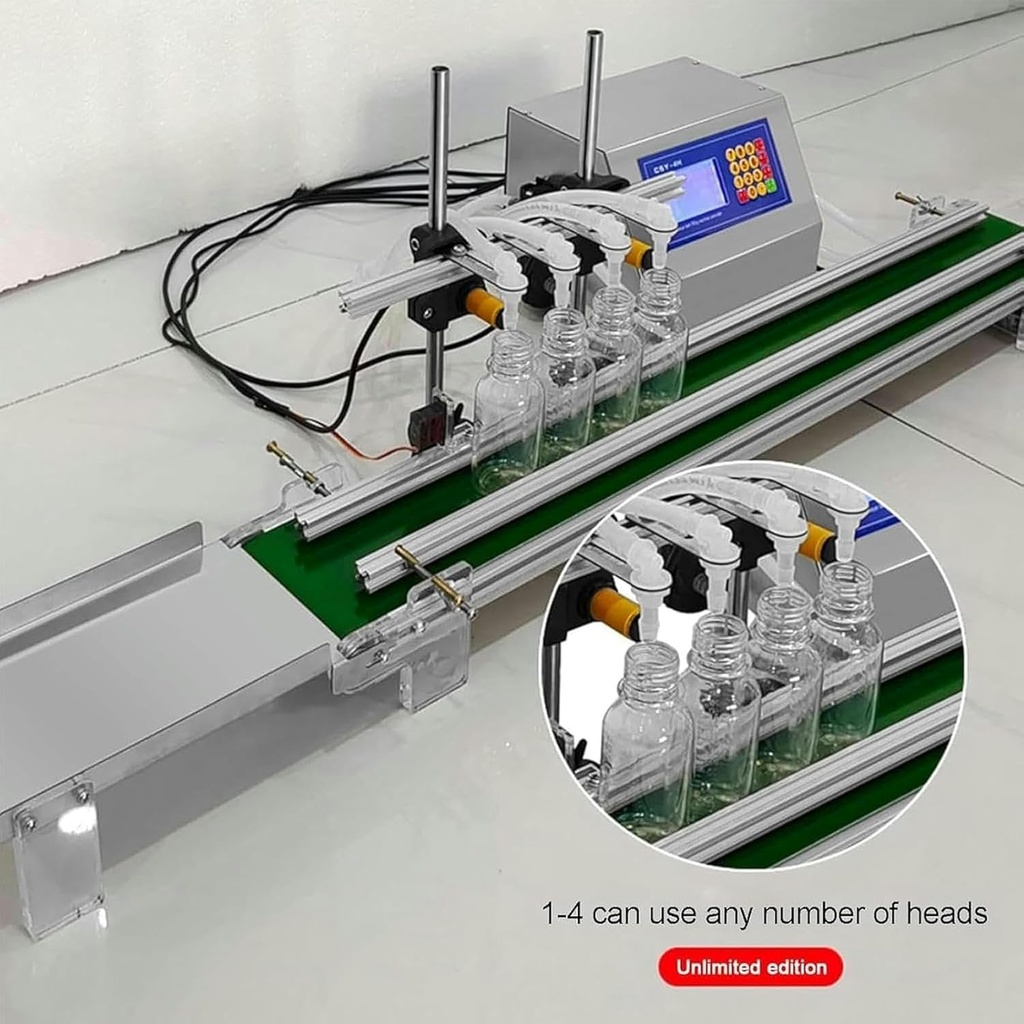

Four filling heads working simultaneously can greatly improve filling efficiency. It can also be set to any number between 1 and 4, making it very flexible to use.
| Main Specification | |
|---|---|
| Brand | Xfygqtom |
| Product information | |
| Manufacturer | Xfygqtom |
