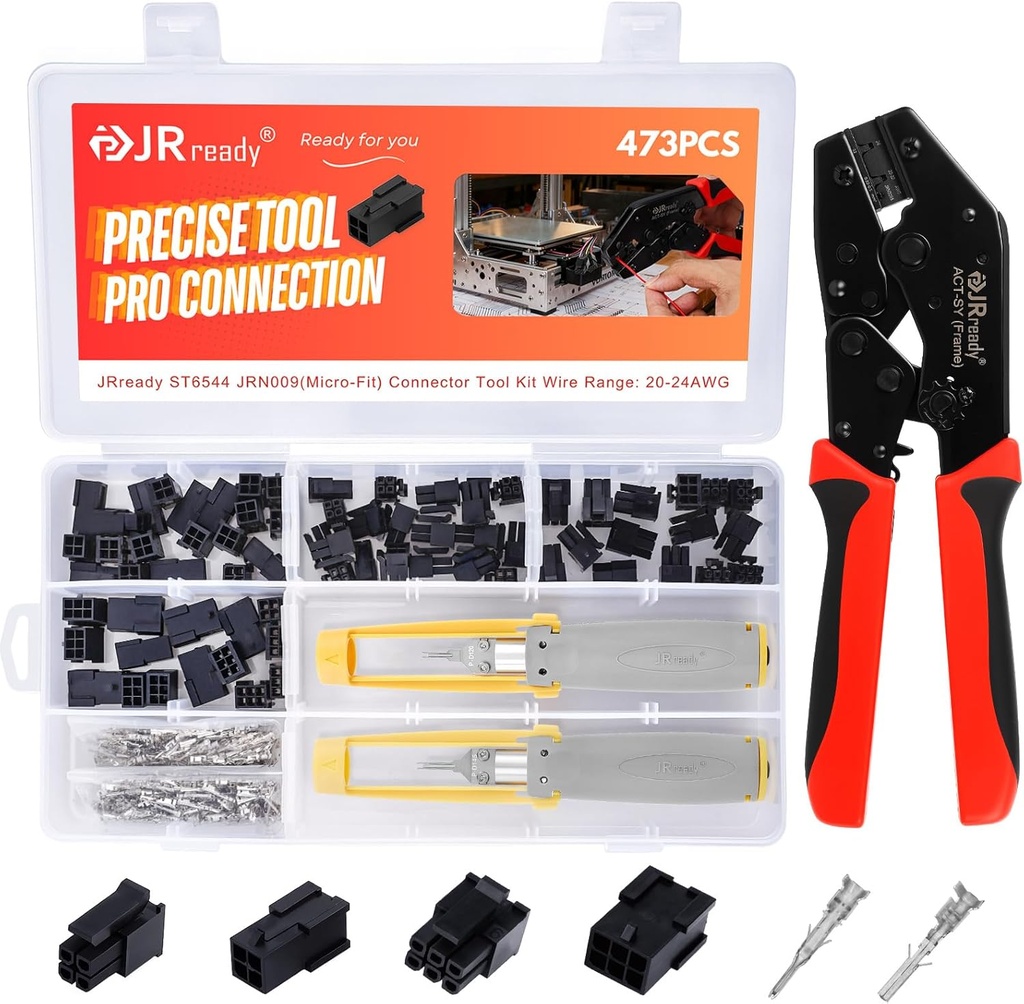

JRready ST6544 Micro-fit 3.0 4pin 6pin Connector Kit Crimper Pin Removal Tool Electrical Power Wire Crimps Contact 20-24AWG Standard Molex 3.0mm Pitch Connectors
14 sold in last 24 hours

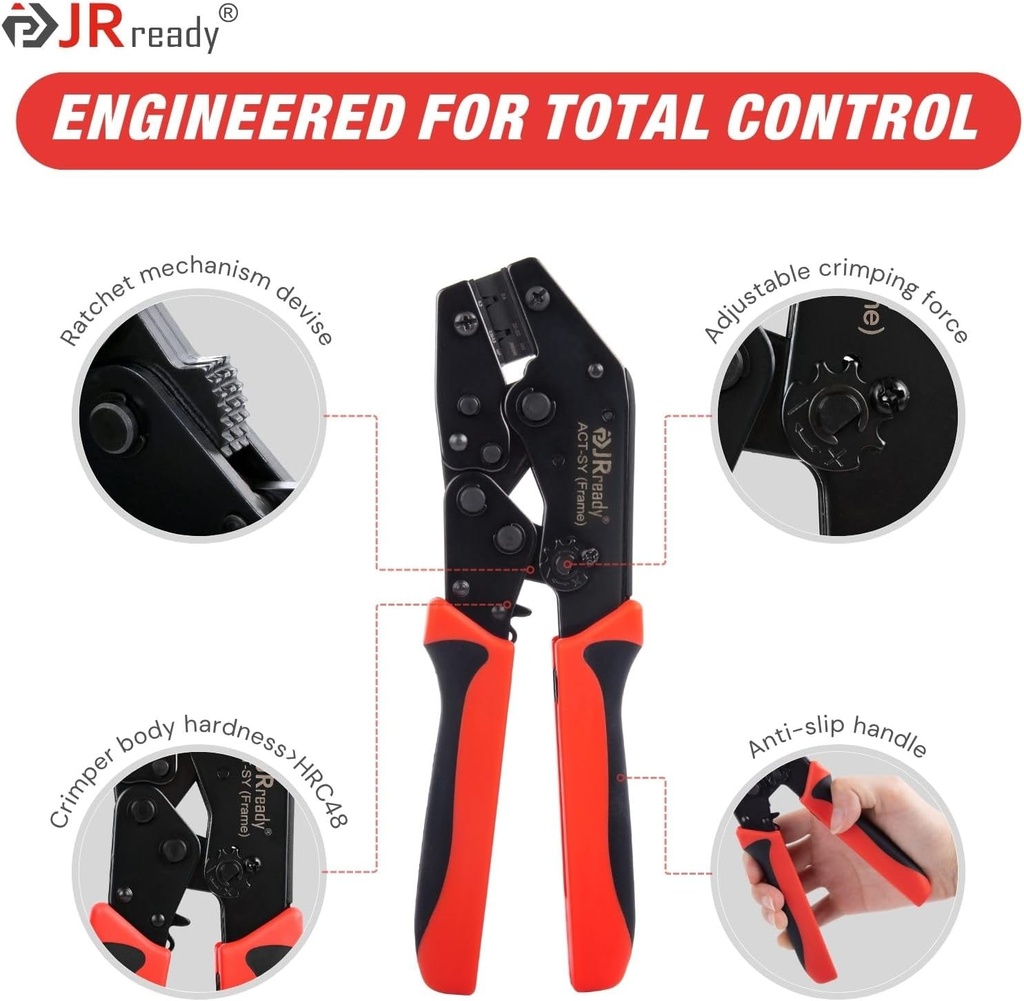

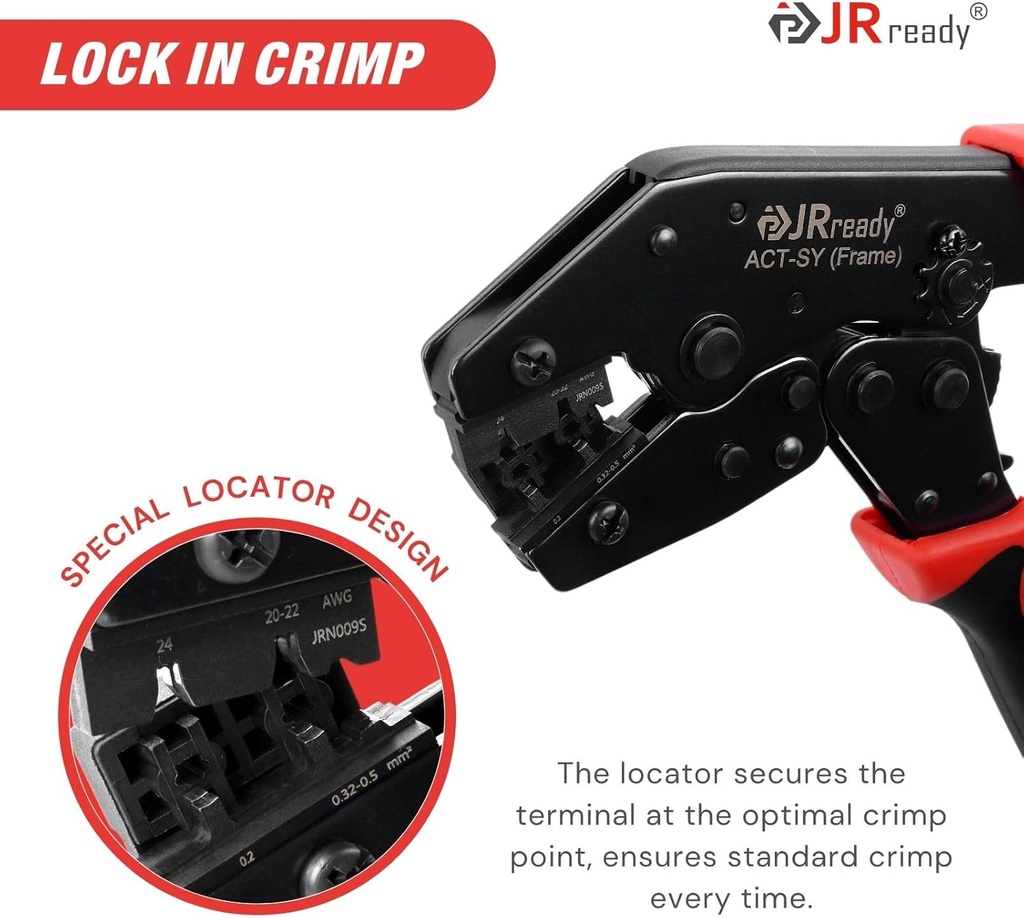

- [Professional Crimper] ACT-SY-JRN009S is tailor-made for MOLEX Micro-Fit 3.0 series terminals, covering the 20-24 AWG wire range. Precision-machined dies ensure every crimp is uniform, secure, and meets factory specifications, giving your PC mods, drone builds, or electronic repairs the reliable, high-quality connections they deserve.
- [Pin Removal Tool]The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness. JRconDRK-D145P is suitable for Micro-Fit male pins. JRconDRK-D120P is suitable for Micro-Fit female pins.

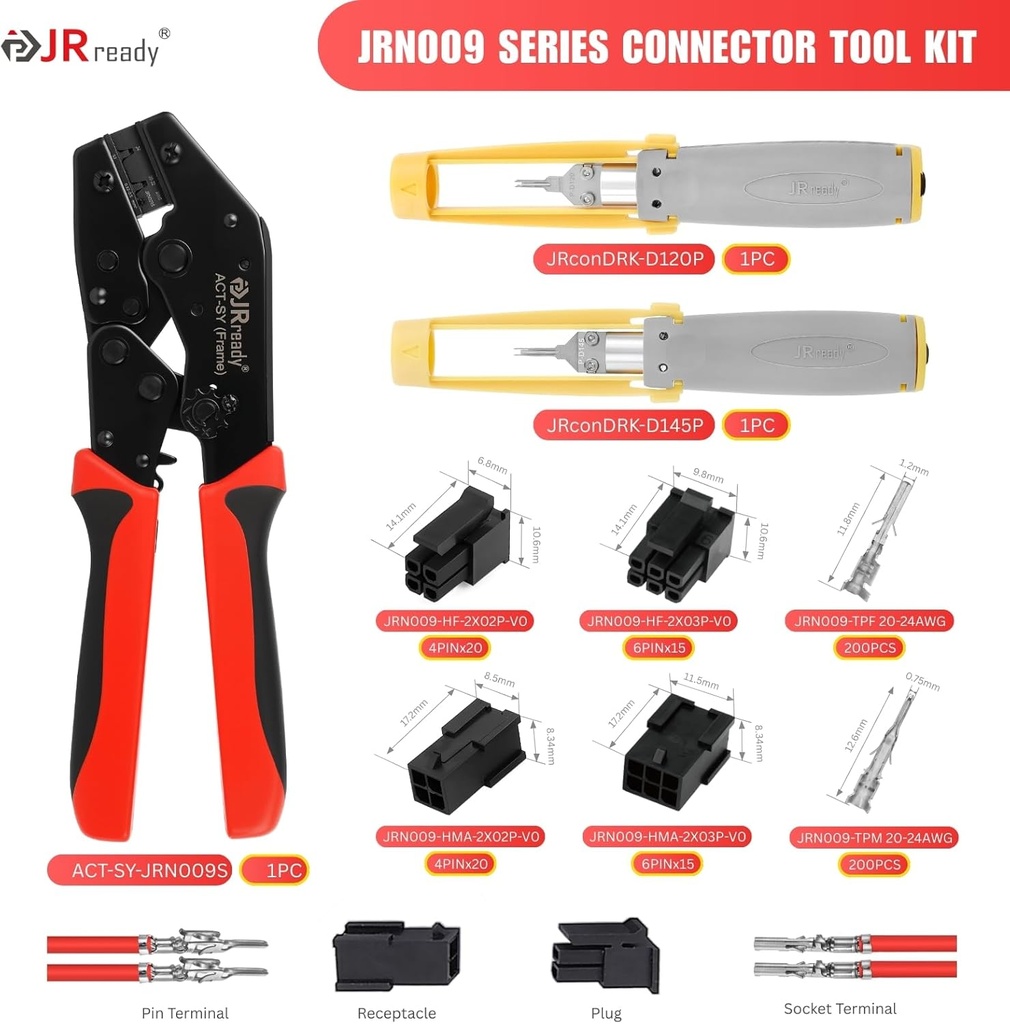

- JRN009 SERIES CONNECTOR: 3.0mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 7A current is no more than 30℃. The connector can be mated and unmated over 50 times.

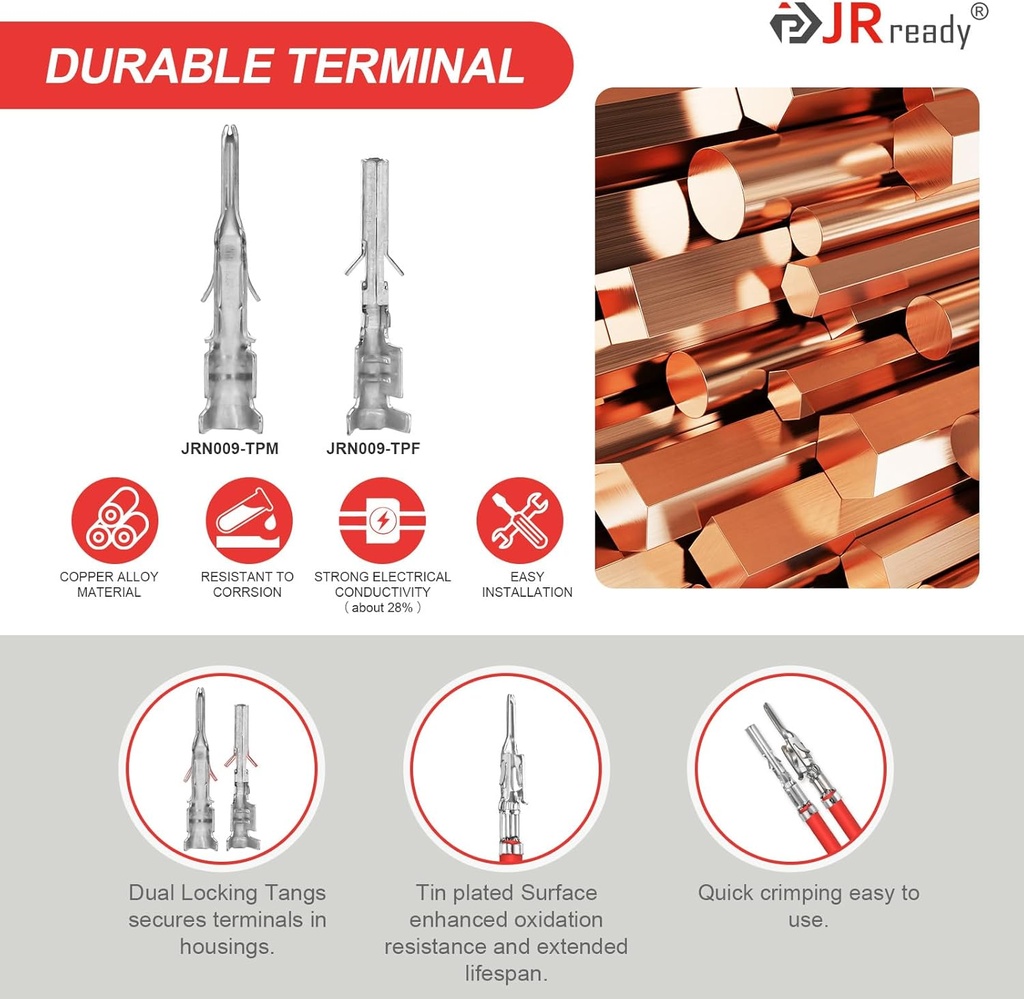

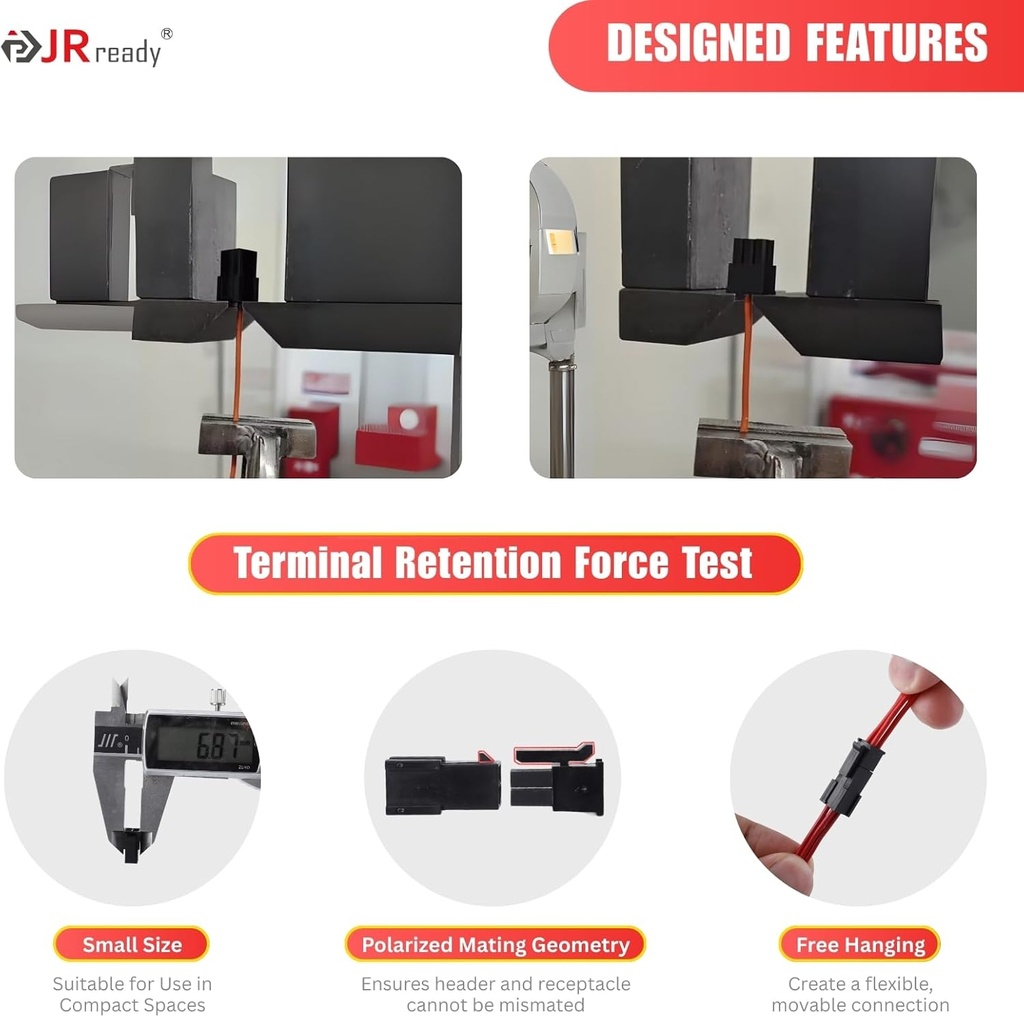

- [Contact Desig] The 20-24AWG contact is made of tin-plated phosphor bronze,rated current is 7A MAX, rated voltage is 250V AC,DC，featuring a dual-point contact design and secure locking mechanism to reduce detachment risks from vibration and external forces. It is easy to install with crimping, highly durable, and ensures low contact resistance and excellent electrical performance.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experience, especially for beginners.
- [Application] Widely used in automotive, consumer electronics, industrial automation, communication, medical, power & energy, aerospace, and LED lighting applications. With a compact design, high current capacity (7.0A), and reliable performance, they are ideal for high-density, high-power connections in demanding environments.
Tags |
Technical Details
| Manufacturer | JRready |
|---|---|
| Part Number | ST6544 |
| Item Weight | 2.05 pounds |
| Package Dimensions | 9.76 x 8.7 x 2.6 inches |
| Item model number | Micro-Fit Pin Connector Tool Kit |
| Material | PA66, tin-plated phosphor bronze, HV500 material |
| Handle Material | Stainless Steel |
| Usage | automotive, consumer electronics, industrial automation, communication, medical, power & energy, aerospace, LED lighting |
| Batteries Included? | No |
| Batteries Required? | No |
| Main Specification | |
|---|---|
| Manufacturer | Jrready |
| Handle Material | Stainless Steel |
| Brand | Jrready |
| Grip Type | Ergonomic |
| Others | |
| Product Type | Crimping Pliers |
