110V Explosion-Proof Axial Flow Fan, 250W Pipeline Exhaust Fan, 1450RPM Utility Blower Ventilation Fan with 3 Blades for Factories and Enterprises
5 sold in last 24 hours
- High Working Efficiency: The explosion proof exhaust fan boasts a power of 250w, a rotation speed of 1450rpm, a wind pressure of 74pa, and an air volume of 2880m³/h, which can effectively blow harmful gases away with strong wind power, maintaining a fresh and safe working environment.
- Clear product identification and safety measures: The fan is clearly labeled with product identification, explosion-proof safety signs, and safety precautions for easy and safe operation.
- Safer to Use: The explosion-prevention mark of ExdⅡBT4Gb and protective meshes on both ends can ensure safety in flammable and explosive environments and prevent debris from being sucked into the fan.

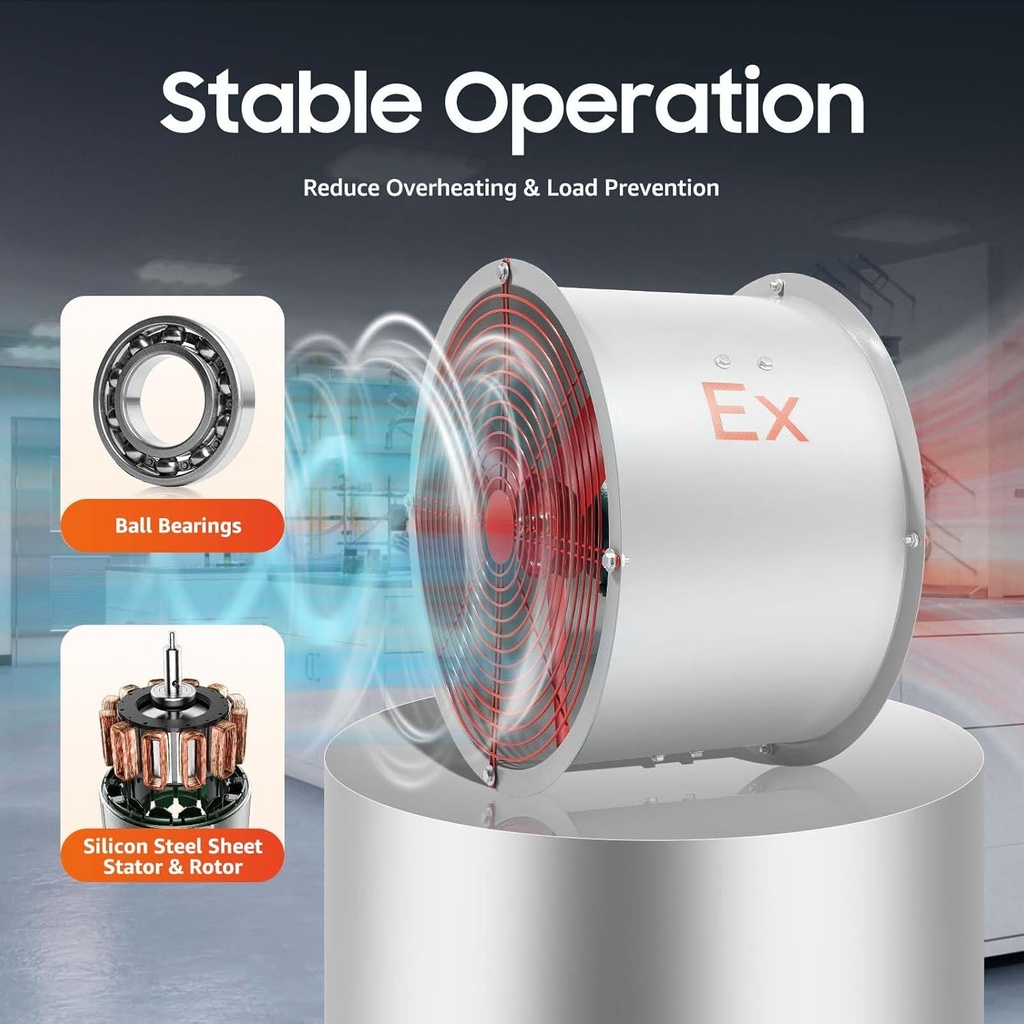

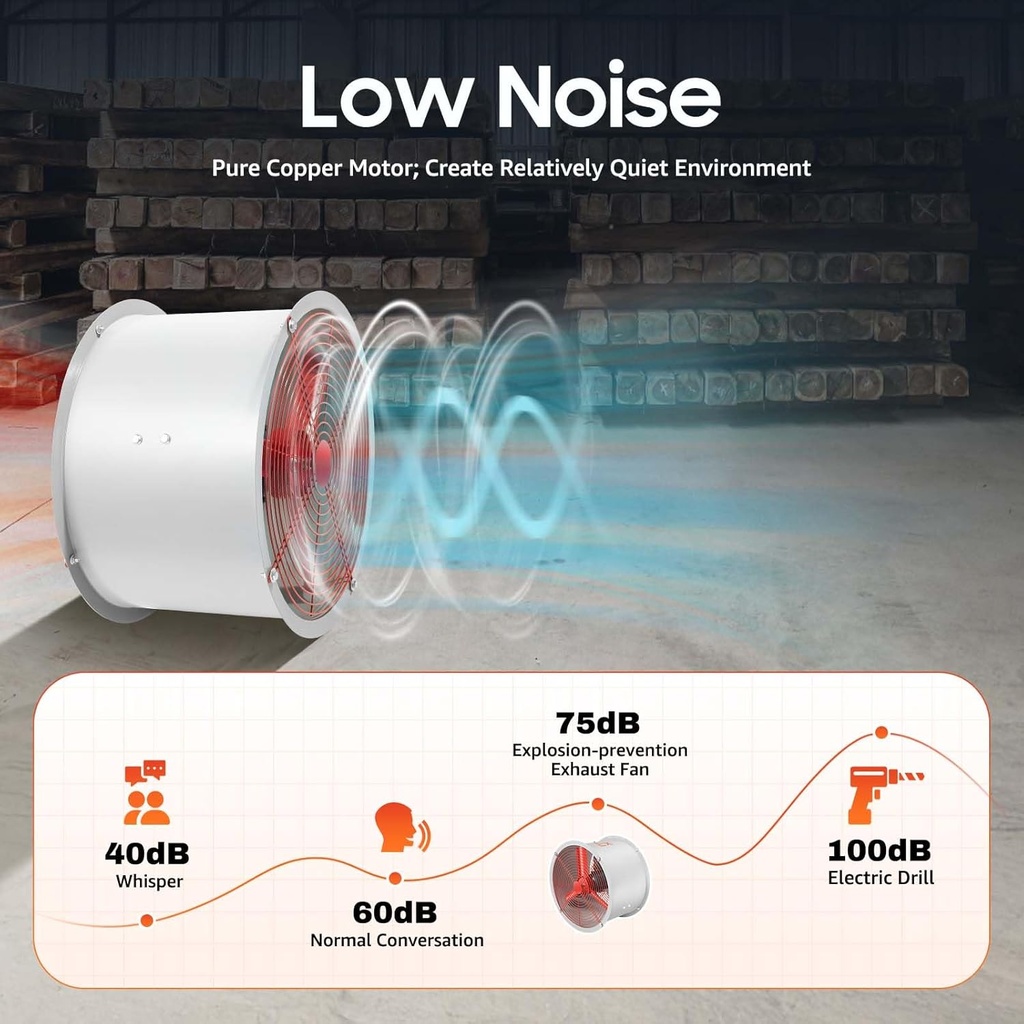

- Low Noise: The excellent pure copper motor ensures sufficient wind power without producing too much annoying noise (75dB), creating a relatively quiet environment while protecting your hearing.
- Application: The indoor ventilator fans is suitable for environments with IIA, IIB, IIC, and T1-T4 types of explosive gas or steam. Also, it can be used for ventilating or dissipating heat in metallurgy factories, kiln factories, canteens, shopping malls, tunnels, warehouses, kitchens, laboratories, machine shops, pharmaceutical plants, etc.
Tags |
Description
The explosion-prevention exhaust fan is ventilation equipment, specially designed for special spaces with harmful gases, dust, or explosive gas mixtures. It combines efficient ventilation capabilities with safety protection features, ensuring both air circulation and the safety of the operating environment. Whether in industrial production or special workplaces, providing a safe and quiet working environment is an important thing for ensuring production and personnel safety. You deserve it!
Specification
Color: Grey, Red
Material: Carbon Steel, Cast Iron, Aluminum
Treatment: Integrated Molding, Electrostatic Spray
Motor Type: Pure Copper

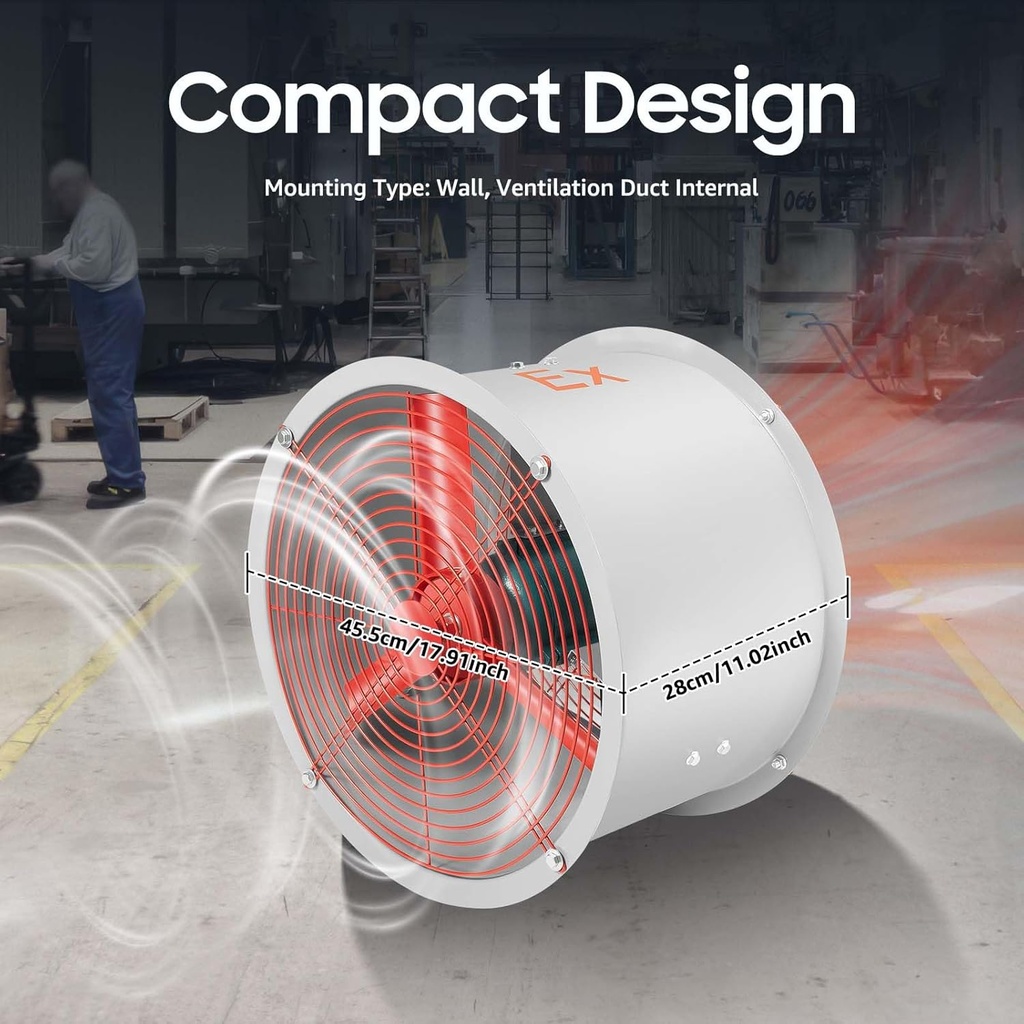

Mounting Type: Wall, Ventilation Duct Internal
Noise: 75dB
Voltage: 110V
Power: 250W
Rotation Speed: 1450rpm
Air Volume: 2880m³/h
Wind Pressure: 74pa
Number of Fan Blades: 3
Cable Outer Diameter Outlet Thread Size: 1/2''
Explosion-prevention Mark: Exdll BT4Gb
Edge Width: 2.5cm/0.98inch
Gross Weight: 12.7kg/28lbs
Net Weight: 11.4kg/25.13lbs
Product Size (D*H): 45.5*28cm/17.91*11.02inch
Package Size: 46*47*32cm/18.11*18.5*12.6inch
Package Included
1*Explosion-prevention Exhaust Fan
1*Chinese Manual
| Main Specification | |
|---|---|
| Noise Level | 75 Decibels |
| Electric fan design | Exhaust Fan |
| Product information | |
| Product Dimensions | 11.02"D X 17.91"W X 17.91"H |
| Speed | 1450 Rpm |
| Technical Details | |
| Color | Red or Grey |
| Special Feature | Low Noise |
| Power Source | Ac |
| Voltage | 110 Volts |
| Wattage | 250 Watts |
| Brand | Haivenliuy |
| Item details | |
| Recommended Uses For Product | Factories And Warehouses |
| Room Type | Factories And Warehouses |
| Others | |
| Product Type | Electric Fan |
