$ 39.983321-230 Industrial Electrical Cabinet Fan Filter 92 mm Ventilation Set Shutter Cover Cooling Radiator Serve Air System 230V
13 sold in last 24 hours
- Radiator Fan
- 3321-230 Industrial Electrical Cabinet Fan Filter 92 mm Ventilation Set Shutter Cover Cooling Radiator Serve Air System 230V
Radiator Fan
3321-230 Electrical Cabinet Air Fan Filter
DESCRIPTION
The Filter of the Fan can prevent rainwater along the filter into the control cabinet, especially with the curved surface structure cascade from the openings to prevent rainwater from entering. The non-woven fiber filter are special for preventing the dust run into the enclosure.
Body material is made from heat resistance and anti-flame ABS.
Powerful Axial Fans can be fitted to operate in a BLOWING or EXTRACTING Mode.
The enclosure interior is cooled through the in-feed of filtered external air.
Widely used for installations in industrial fields like Electronic, Electrical, Engineering, Electric Panel Assembly and more.
Fully compatible with the cut outs and fixing holes of all the existing fan modules available in the industry.
The Quick assembly design reduce the installation time and cost.
The Filter for cleaning purpose is accessible from outside of enclosure with Systems in Working Condition.
The Filter pads are quickly changed with no need for Tools, also can be changed during the fan is operation.
TECHNICAL PARAMETERS
Filter unit Part No.
3321-300
Fan with filter unit Part No.
3321-230
Unimpeded air flow
20m³/h
Noise level
41dB

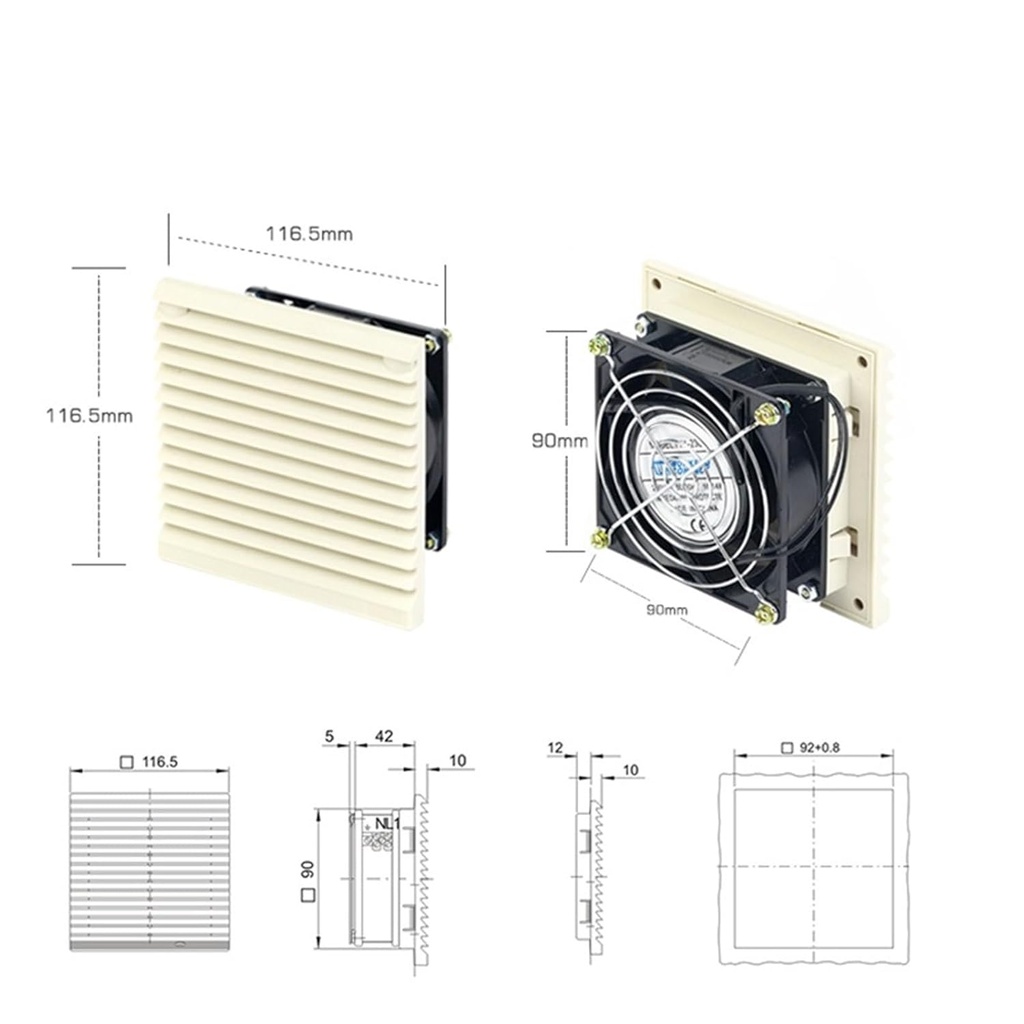

Surface dimension (mm)
116.5x116.5
Installation hole size (mm)
92x92
Voltage/Current
230V/80mA
Input Power Rating
16W
Temperature range
-10°C~+55°C
Packing detail: 3321-300 (Filter unit)
0.069kgs/pc
Packing detail: 3321-230 (Fitler with Fan)
0.340kgs/pc
Certificate
, , CQC
Other size available
Filter UnitItem No.
Installation hole
size(mm)
Distance between hole (mm)
Overall size
L/H/W(mm)
Matched Fan size(mm)
3321-300
92x92
102x102
116.5x116.5
92x92x25
3322-300
124x124
132x132
148.5x148.5
120x120x38
3323-300
177x177
185x185
204x204
120x120x38
3325-300
224x224
234x234
255x255
172x150x51
3326-300
290x290
300x300
320x320
225x225x80
==========
Model Number : FK 3321 230
Type : Ventilation
Origin : Mainland
Certification : ,
Installation size : 92x92 mm
Item1 : Fan
Item2 : Exhaust fan filter
Item3 : Garage fan
Item4 : Ventilation grille
Item5 : Ventilation filter
Item6 : Ventilatie roosters
Item7 : Grille ventilation
Item8 : Filter ventilation
Item9 : Ventilator filter
Item10 : Ventillation grill
Item11 : Ventilation system
Item12 : Air filter ventilation
Item13 : Grelha ventilacao
Item14 : Ventilation grill
Item15 : Cabinet fan
Item16 : Exhaust shutter
Product Dimensions
0.39 x 0.39 x 0.39 inches; 1.76 ounces
Product details
| Product Dimensions | 0.39 x 0.39 x 0.39 inches; 1.76 ounces |
|---|---|
| Item model number | JDOUNFMO |
| Manufacturer | JDOUNFMO |
| Main Specification | |
|---|---|
| Manufacturer | Jdounfmo |
| Brand | Jdounfmo |
| Number of Items | 1 |
| Others | |
| Product Type | Electronic Component Fan |
