Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3AT-16 (Downward Compatible with KW3A-16), Compatible with LG GE Samsung Microwave Oven, Normally Open + Normally Closed

http://gofinchkart.com/web/image/product.template/10391/image_1920?unique=b33a825
9 sold in last 24 hours

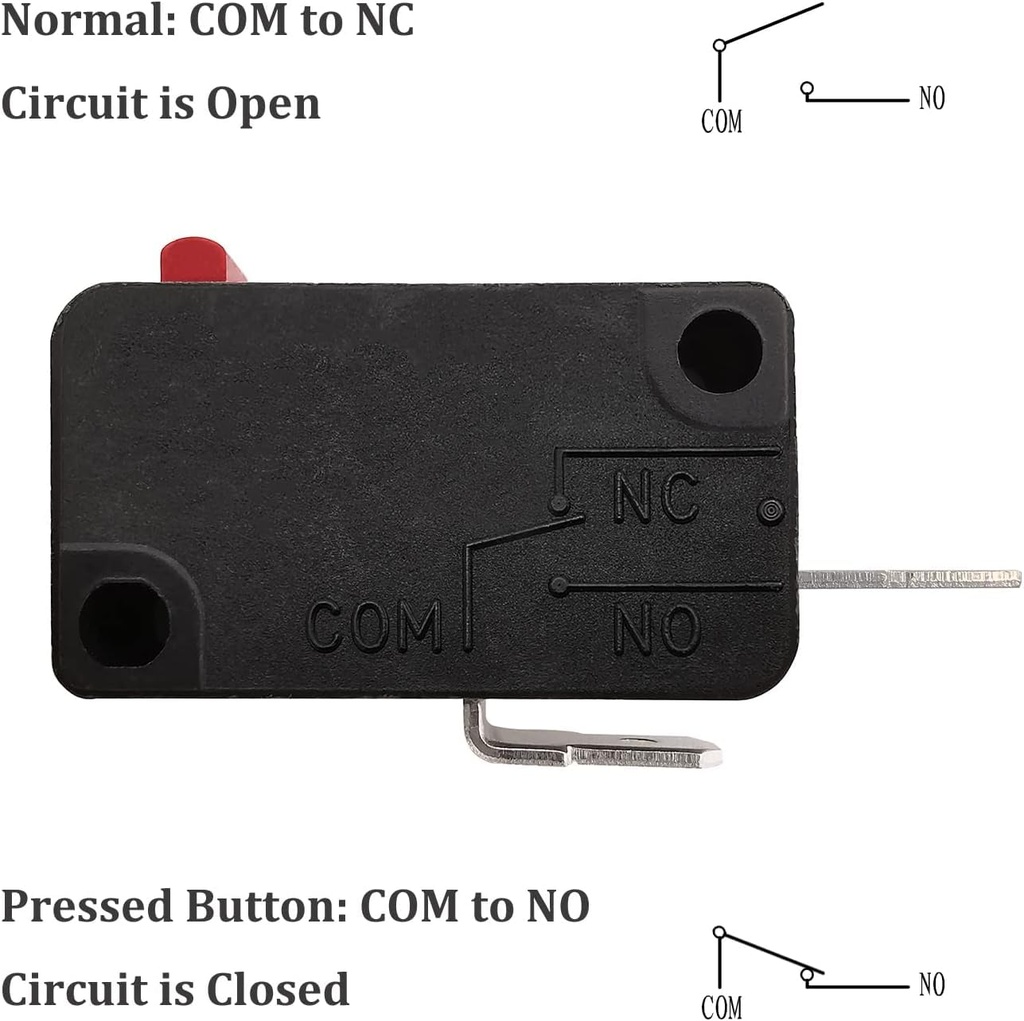

  • Normally Open Switch - Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed), Compatible M/N: KW3A-16 SZM-V16-FD-63 SZM-V16-FA-63 3B73362F PS3522738.

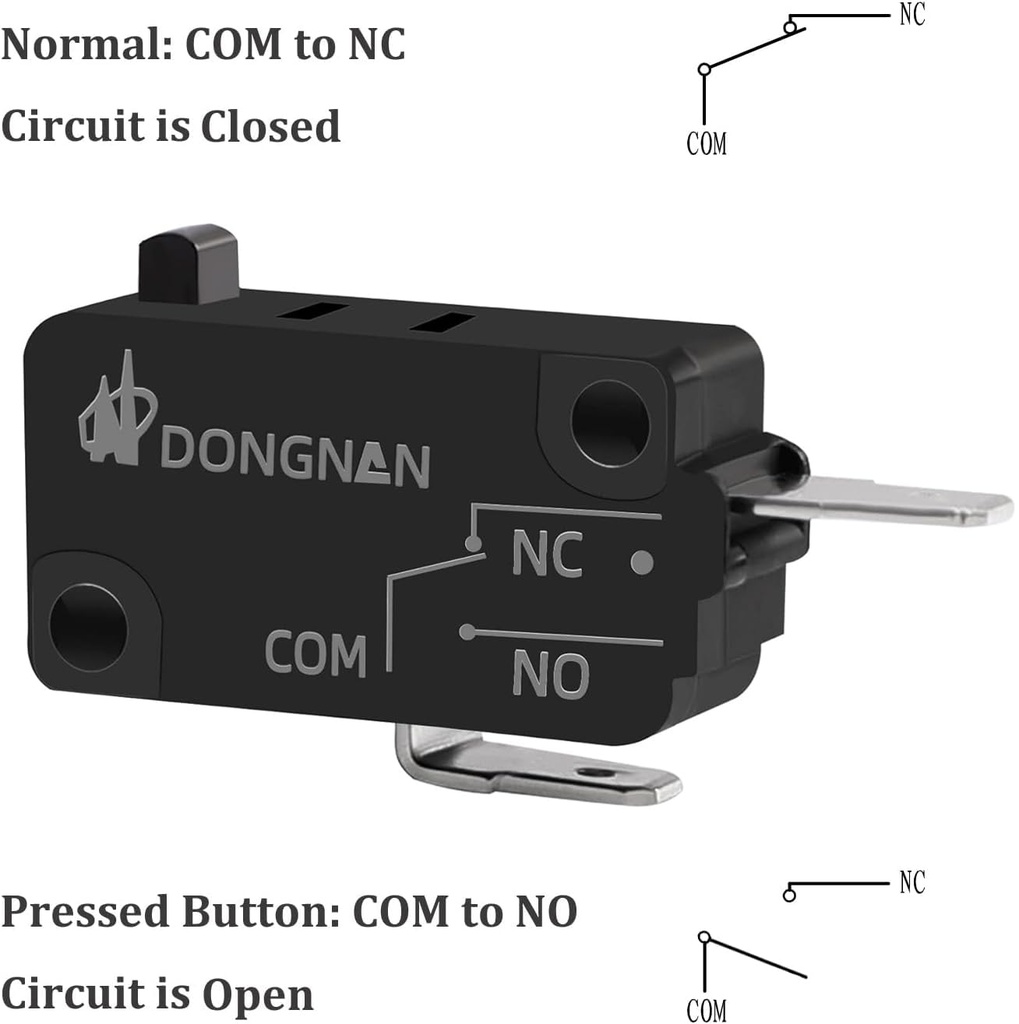

  • Normally Closed Switch - Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open).

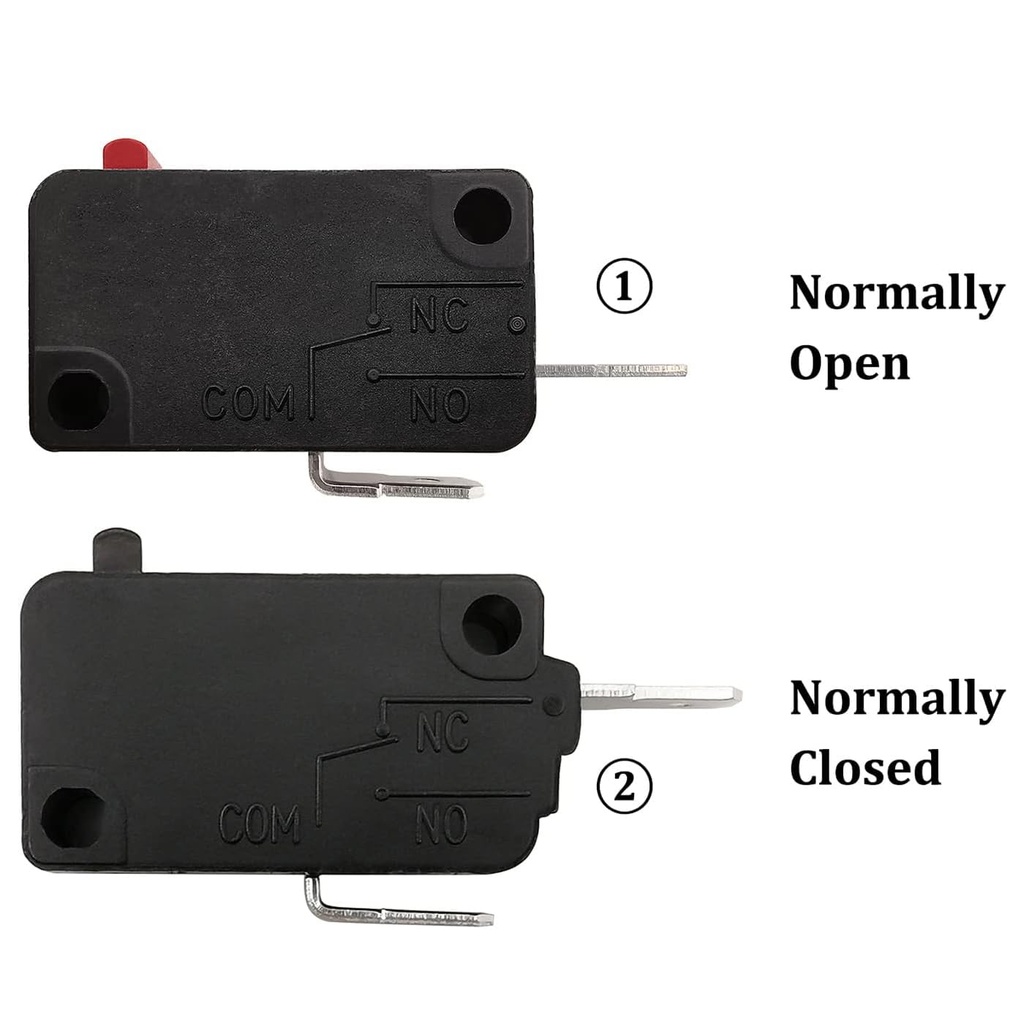

  • How to Distinguish - Normally Open Switch is Flat Terminal, Relatively Short; Normally Closed Switch is Basic Form, Relatively Long.
  • Upgraded Version - KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16.

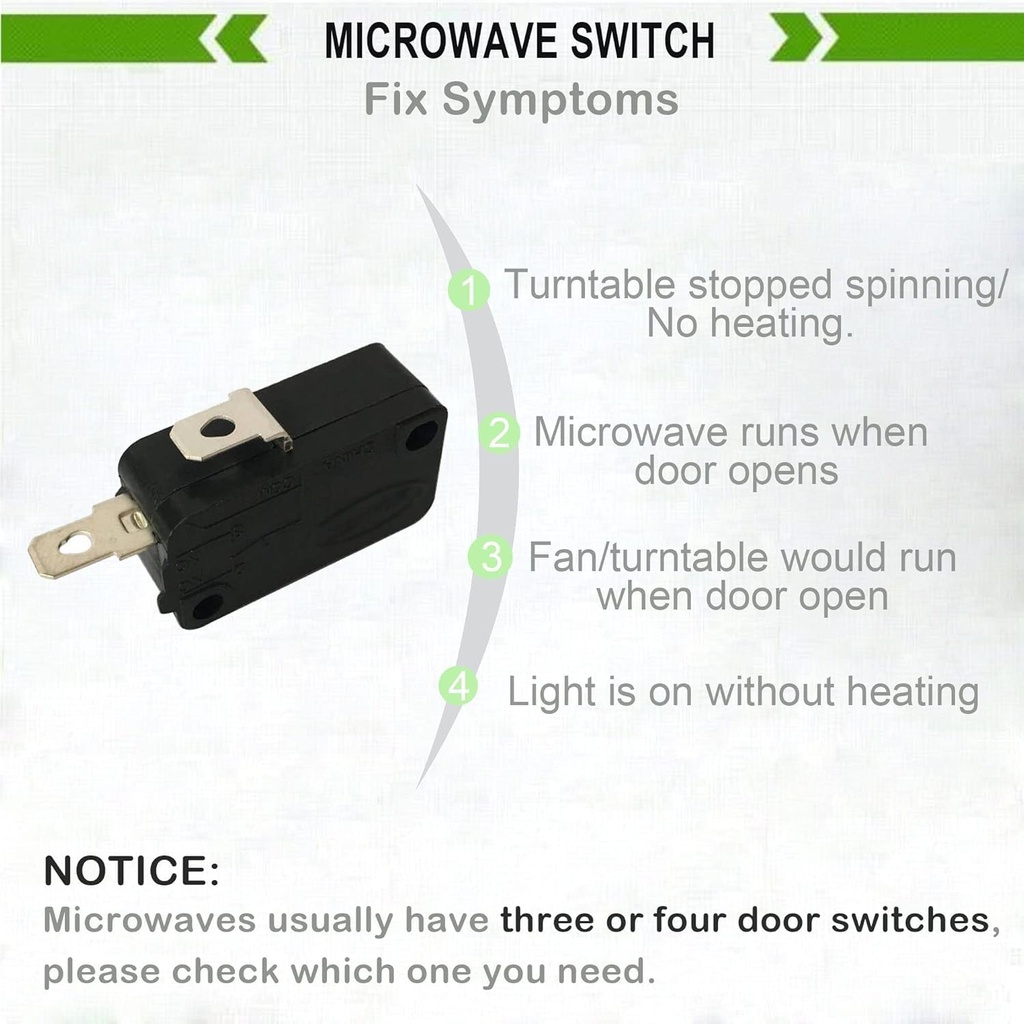

  • Compatible with Most of Microwave Oven - If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation; Package includes: 1x Normally Open Switch + 1x Normally Closed Switch

$ 23.98 23.98 USD $ 23.98

Not Available For Sale

($ 23.98 / Units)
5 people are viewing this right now
  • Controller Type
  • Contact Type
  • Current Rating
  • Operating Voltage
  • Operation Mode
  • Connector Type
  • Color
  • Material
  • Wattage
  • Brand
  • Product Type

This combination does not exist.

Kitchen & Dining Electronic Switch
Contact Us
Tags

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

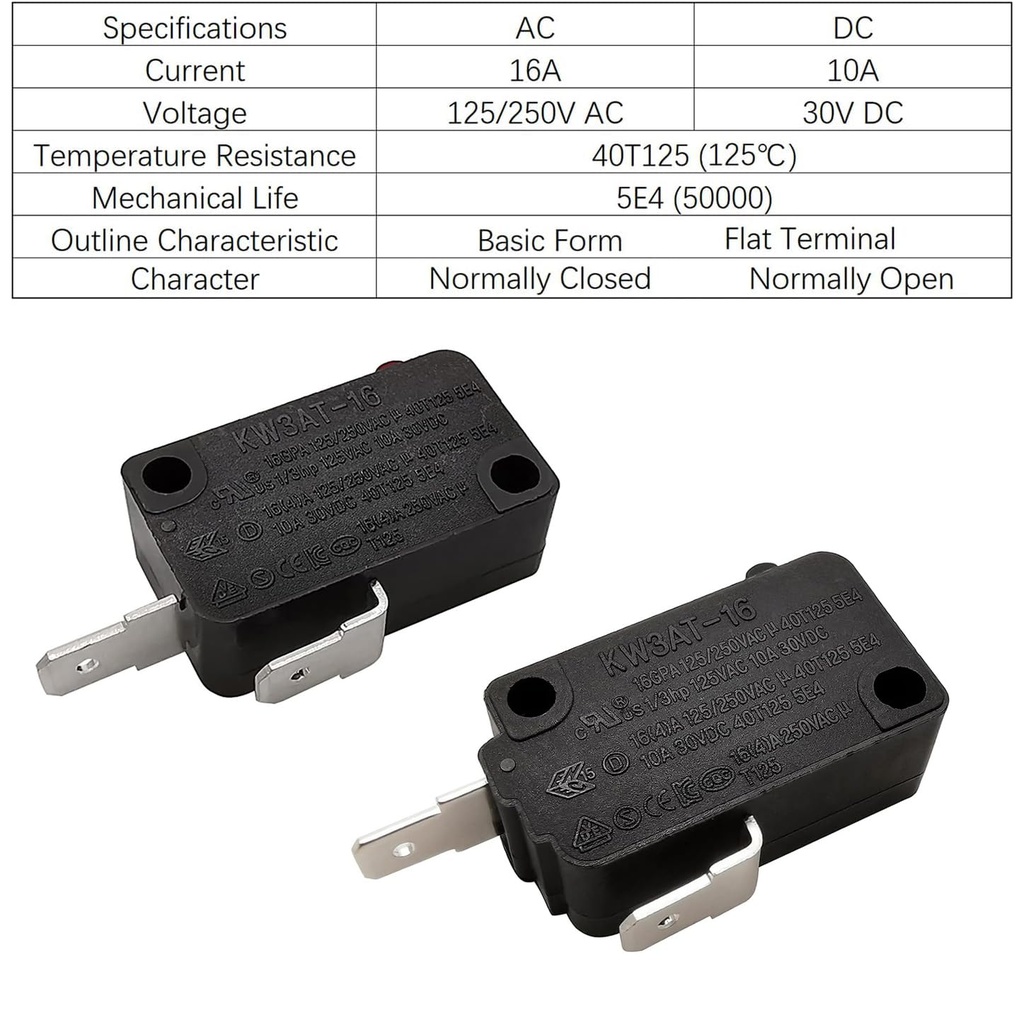

Normally Open Switch - Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed).
Normally Closed Switch - Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open).
Package includes: 1x Normally Open Switch + 1x Normally Closed Switch

Package Dimensions

4.92 x 3.14 x 0.39 inches; 0.64 ounces

Main Specification
Controller Type Push Button
Contact Type Normally Open
Current Rating 16 Amps
Operating Voltage 125 Volts
Product information
Operation Mode On-Off-On
Connector Type Plug In
Technical Details
Color Black
Material Plastic
Wattage 50 Watts
Brand Wanty
Others
Product Type Electronic Switch
