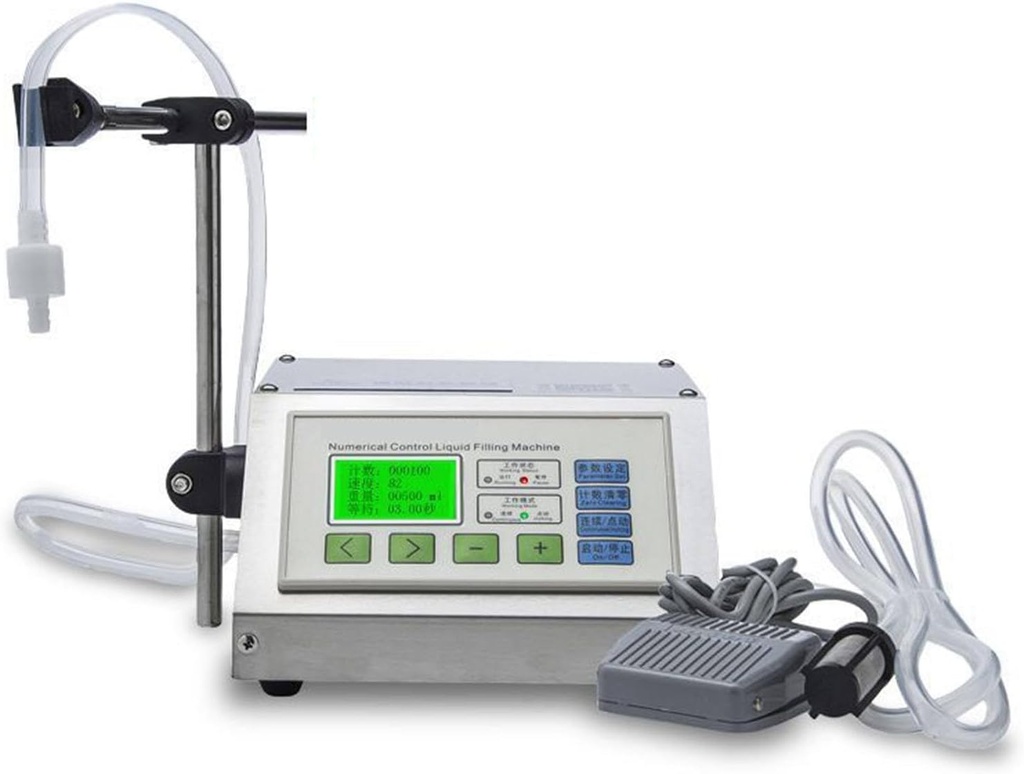

Fully Automatic Filling Machine Liquid Automatic Quantitative CNC Filling Machine Mineral Water Edible Oil Liquor Canning Machine,3.2L/min
15 sold in last 24 hours
- 【Precise quantitative measurement】The fully automatic filling machine adopts an advanced metering system, which can accurately control the filling amount of the liquid, ensure the consistency of the liquid amount filled each time, and avoid waste caused by inaccurate filling amount.
- 【Two modes】The fully automatic filling machine usually has two operating modes: manual and automatic. In manual mode, the user can directly set the filling amount through the control panel; in automatic mode, the filling machine can set the filling amount according to the pre-set program and automatically complete the filling process.
- 【Visual weight input】Unlike traditional liquid filling machines that need to calculate filling time and speed, this weight version filling machine allows you to directly enter the weight of the liquid to be filled. No more troubles for unstable liquid flow and repeated calculations.
- 【Suitable for low viscosity liquids】This liquid filling machine can be applied to a variety of liquids, such as wine, glass detergent, liquid detergent, etc. Note: The liquid should be of particles, non-corrosive or weakly corrosive, and low viscosity.
- 【Our service】Your needs are our pursuit. If you have any questions about the product, please feel to contact us, we will reply within 24 hours and solve it for you as soon as possible.
Tags |
Features:

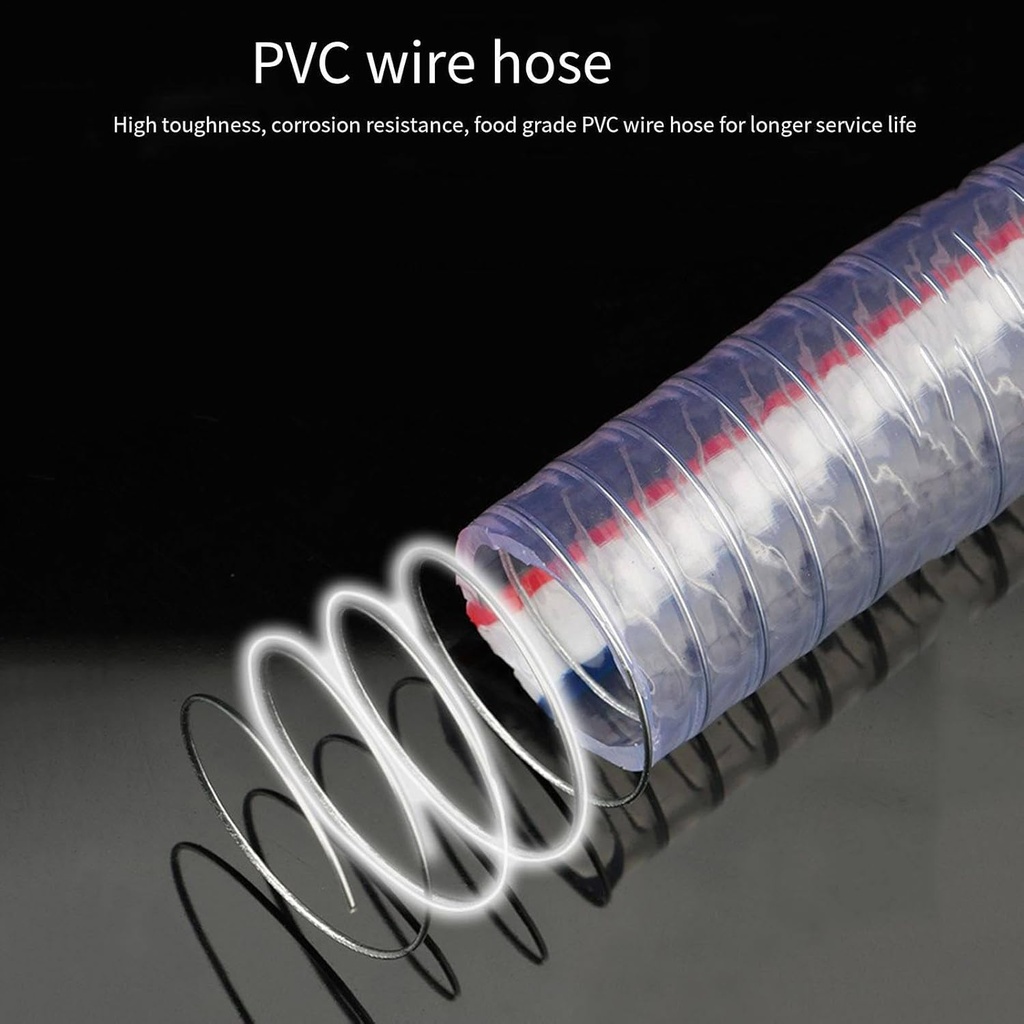

1. High toughness, corrosion resistance, food grade PVC steel wire hose with longer service life.

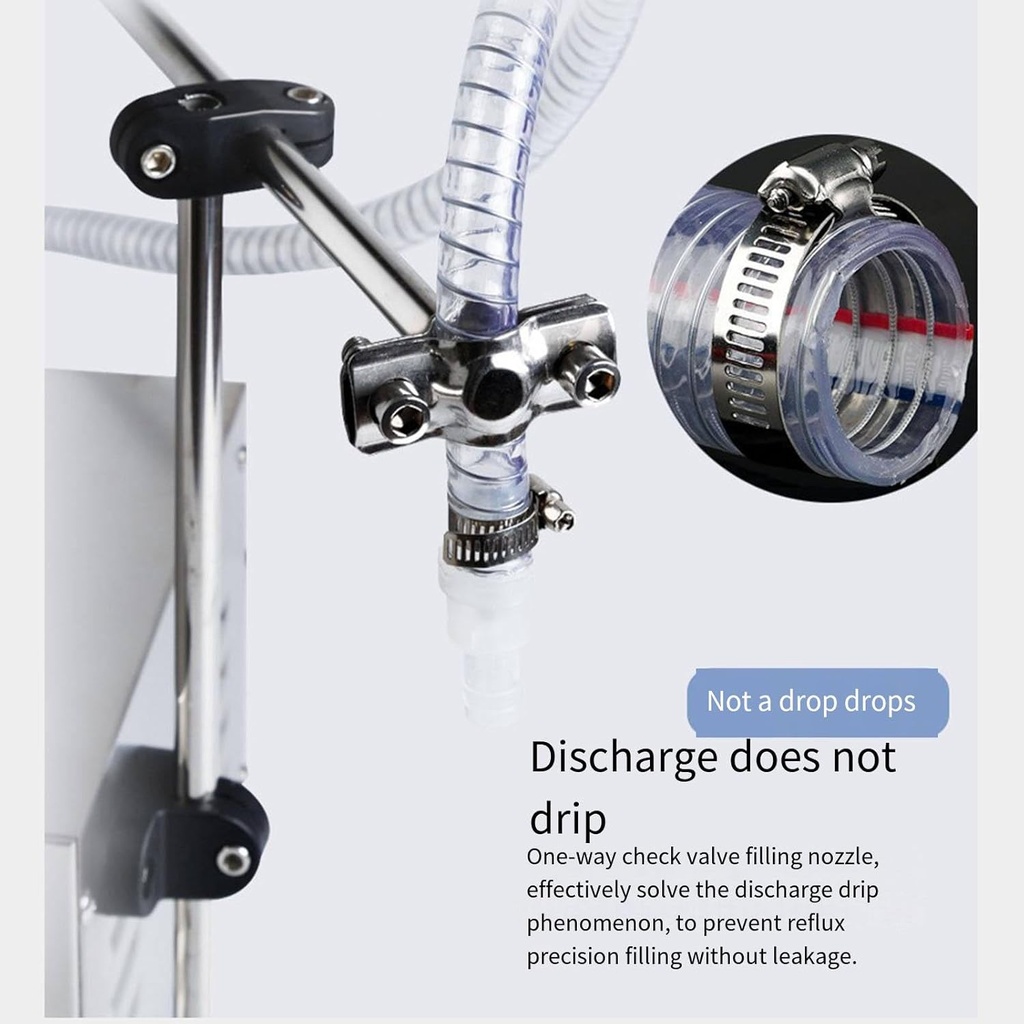

2. The one-way check valve filling nozzle effectively solves the problem of dripping during discharging and prevents backflow for precise filling without leakage.
3. Upgrade the large filter, the high-speed filling flow rate is more stable, and the dense-pore filter effectively removes various impurities to ensure worry-free filling.

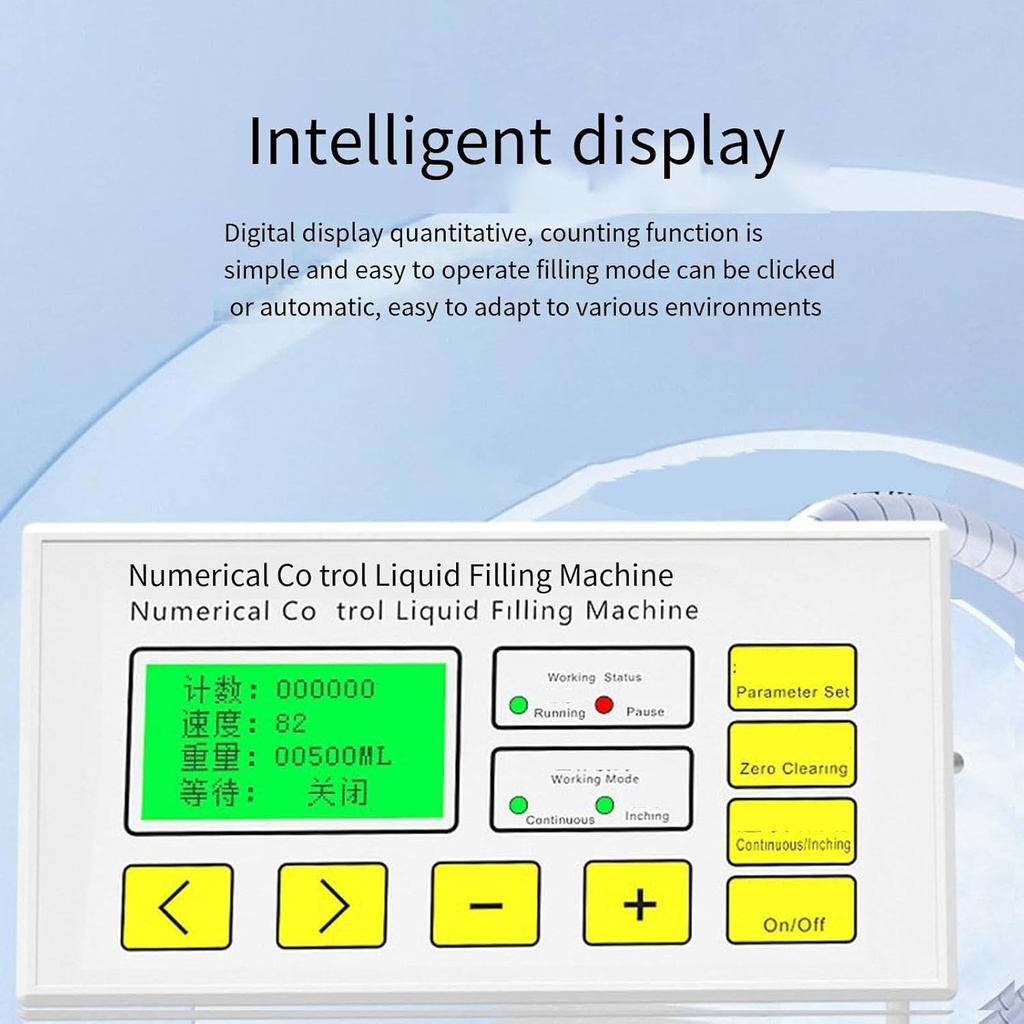

4. The digital display quantitative and counting functions are simple and easy to operate. The filling mode can be inching or automatic, easily adapting to various environments.
Specification:
Machine name: Liquid Filling Machine
3.2L/min
Machine flow: 3.2 liters/minute
Pump body: diaphragm pump
Pipe material: silicone tube
Minimum filling range: 10ml
Discharge diameter: 6 mm
2.6L/min
Machine flow: 2.6 liters/minute
Pump body: gear pump
Pipe material: silicone tube
Minimum filling range: 1 ml
Discharge diameter: 4mm
Packing list:
Liquid Filling Machine*1
User Manual*1
Note:
1. Due to manual measurement, please allow 2-3cm deviation.
2. Due to monitor calibration, the color of the items shown in the photo may be slightly different from the actual items. Please refer to the actual product for details.
| Main Specification | |
|---|---|
| Brand | Ydbmy |
| Technical Details | |
| Manufacturer | Ydbmy |
