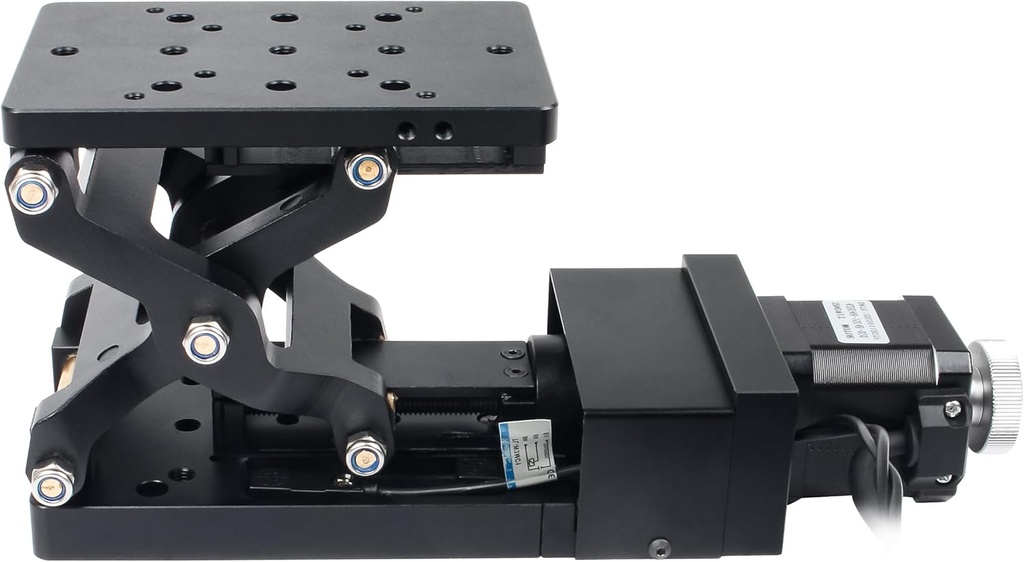

RATTMMOTOR Motorized Lifting Platform, 60mm Stroke Z-Axis Electric Slide Stage Optical Vertical Lift Table with Nema17 Stepper Motor (HTZ120-42P)

✅【Simple Parameters】- Overall dimension: 244*80*66mm; Table size 80*120mm; Height 66-126mm; Stroke 60mm; Center load capacity: 5KG; Repeat positioning accuracy: 10μ; Lifting speed: the fastest 1 minute about 1000mm, the slowest 1 minute about 1mm.

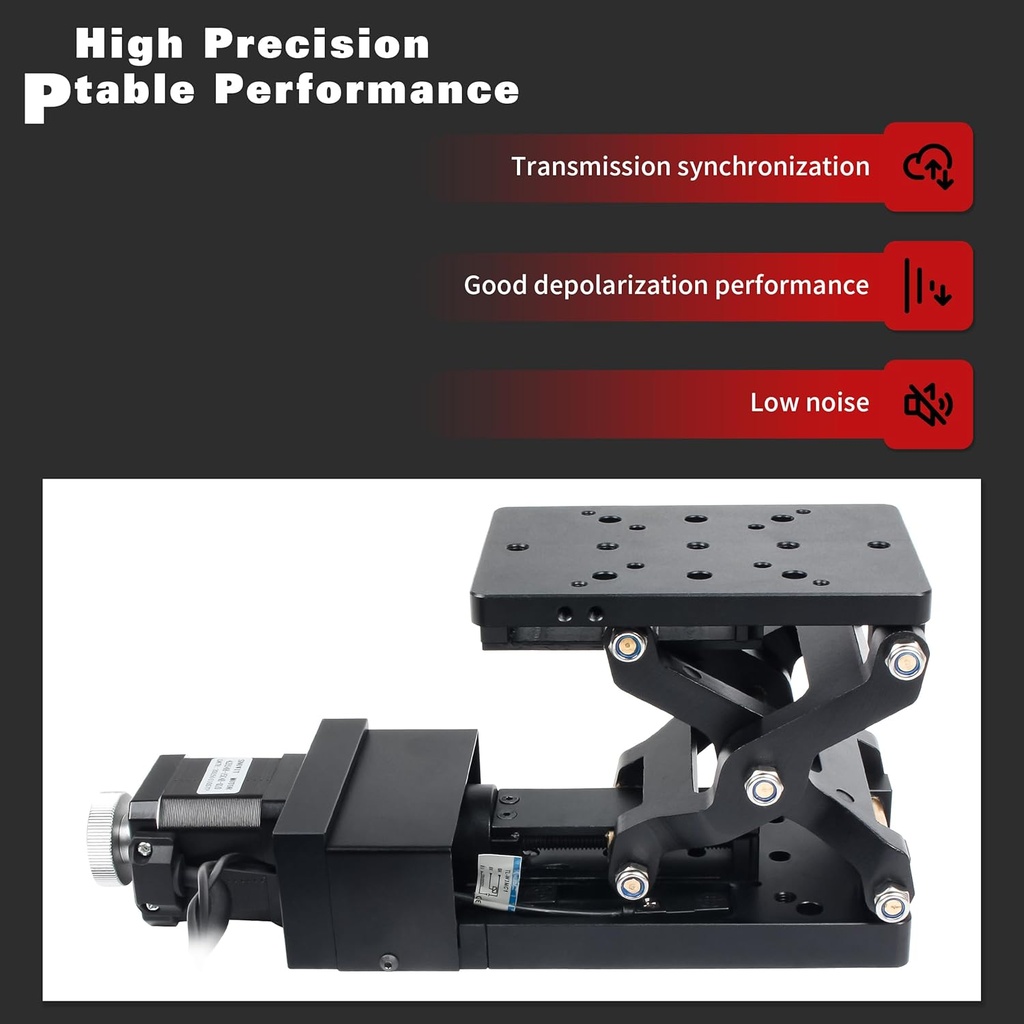

✅【High precision and stable performance】-42 stepper motor, which can be controlled automatically. Stepping motor and screw are connected by high-quality elastic coupling, transmission synchronization, good deflection performance, reduced eccentricity disturbance and low noise.
✅【Durable precision-researched screw drive】- Adopting shear type lifting and lowering support, precision screw drive, double guide rail and five-axis overdetermination mechanism to ensure absolutely smooth movement, high precision and high load bearing.
✅【Highly compact aluminum alloy】- Adopting high compact aluminum alloy plate, hardness anodic oxidation, light weight, durable and stable.
✅【Multi-hole and handwheel design】- Multi holes on both top and bottom sides, strong applicability, both can be used as mounting surface; Add manual adjustment knob, convenient for position adjustment.

6 people are viewing this right now

This combination does not exist.

Lift Tables

Tags	Lift Tables

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Manufacturer	RATTMMOTOR
Part Number	HTZ120-42P
Item Weight	4.63 pounds
Product Dimensions	11.22 x 3.15 x 2.6 inches
Item model number	HTZ120-42P
Color	Black
Material	aluminum alloy
Included Components	60mm Stroke Z-Axis Electric Slide Stage Optical Vertical Lift Table
Batteries Included?	No
Batteries Required?	No

Brand

Rattmmotor
