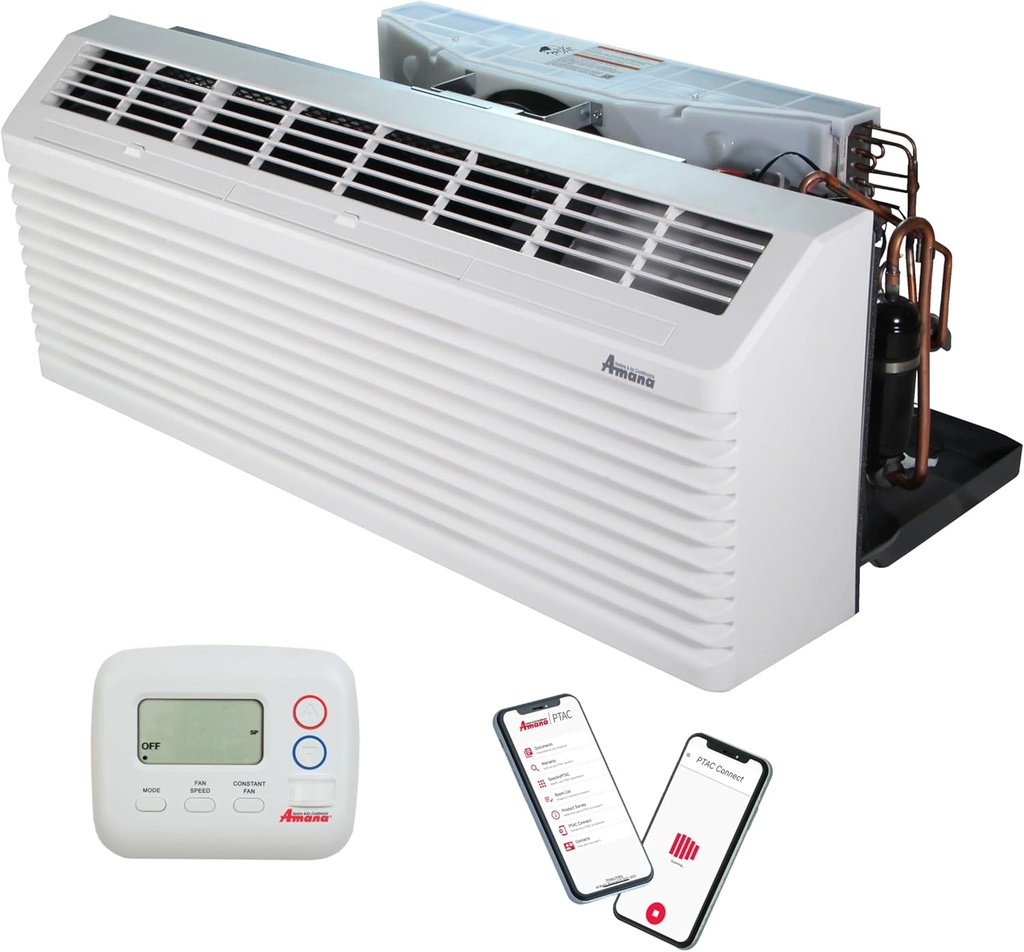

11,700 BTU PTAC Wall Air Conditioner with 2.5 kW Heater with, 58 inches power cord 15 amp plug. (NEMA 6-15P configuration) in Quiet White
12 sold in last 24 hours
- Our whisper-quiet PTAC is now redesigned to be our quietest model ever, featuring two fan motors (indoor/outdoor), an indoor tangential fan for silent operation, and a remarkable Sound Transmission Class (STC) of 29, creating a peaceful haven for sleep-filled nights.
- With cooling power of 11700 BTUs and heating power of 8,500 / 6,800 BTUs, the PTC123J25AXXX delivers powerful performance. Ideal for cooling during the hot seasons and keeping cozy during the colder months, making it the best choice for year-round comfort for your guests.
- The PTC123J25AXXX is a 230/208 volt unit, with 15 amp max overcurrent protection. The power cord is 58 inches in length, and the plug is configured to match NEMA 6-15P outlets.
- This listing is for a single PTC123J25AXXX ptac unit, and thermostat. Please be advised that brand-new installs may require a separate purchase of a wall sleeve (part number WS900QW), Outdoor Grille (part number SGK01QW), and condensate drain kit (part number DK900QW).
- The PTC123J25AXXX meets the industry standard for PTAC Dimensions at 16 1/16 inches high, 42 inches wide with a standard depth of 21 inches and will fit a 14 1/8 inch deep wall sleeve. This unit has been tested and certified for performance, AHRI Certificate number 210540023
Tags |
Upgrade your residential or commercial space with the Amana PTC123J25AXXX PTAC, designed for 208/230 volt electricity. With 11,700/11,900 BTUs of cooling power and a 2.5 kW electric heater providing approximately 6,800/8,500 BTUs of electric backup heat, this unit ensures efficient and versatile climate control. Complete with a 15 amp power cord, it combines power and convenience. The latest Amana PTAC series features RF and Bluetooth connectivity, requiring a wall thermostat for seamless operation. Boasting an EER of 11.5/11.4, it effectively cools spaces ranging from 300 to 525 sq. ft. The "J" Series units use eco-friendly R32 refrigerant. True to the Amana legacy, these units are remarkably quiet, thanks to an improved design that minimizes operating noises and achieves an impressive Sound Transmission Class (STC) of 29. Experience tranquility in your guest rooms with less outside noise, and rest assured knowing Amana PTAC units are built to last and proudly made in the United States.
| Main Specification | |
|---|---|
| Cooling Power | 11900 British Thermal Units |
| BEE Star Rating | No |
| Noise Level | 63 Decibels |
| Refrigerant | R-32 |
| Product information | |
| Item model number | Ptc123j25axxx or Dsan020 |
| Product Dimensions | 21 X 41.98 X 16 Inches |
| Capacity | 1 Tons |
| Technical Details | |
| Special Feature | Dehumidifier or Remote Controlled or Heating And Cooling Function |
| Part Number | Ptc123j25axxx or Dsan020 |
| Model Info | Ptc123j25axxx or Dsan020 |
| Special Features | Dehumidifier or Remote Controlled or Heating And Cooling Function |
| Material Type | Plastic or Metal |
| Color | White |
| Item Weight | 125 Pounds |
| Installation Type | Packaged |
| Voltage | 230 Volts |
| Brand Name | Generic |
| Annual Energy Consumption | 104244 Kilowatts |
| Noise | 63 Decibels |
| Wattage | 1080 Watts |
| Brand | Generic |
| Item details | |
| Included Components | 1 Ptac Air Conditioner or 1 Wireless Thermostat |
| Others | |
| Product Type | Air Conditioner |
