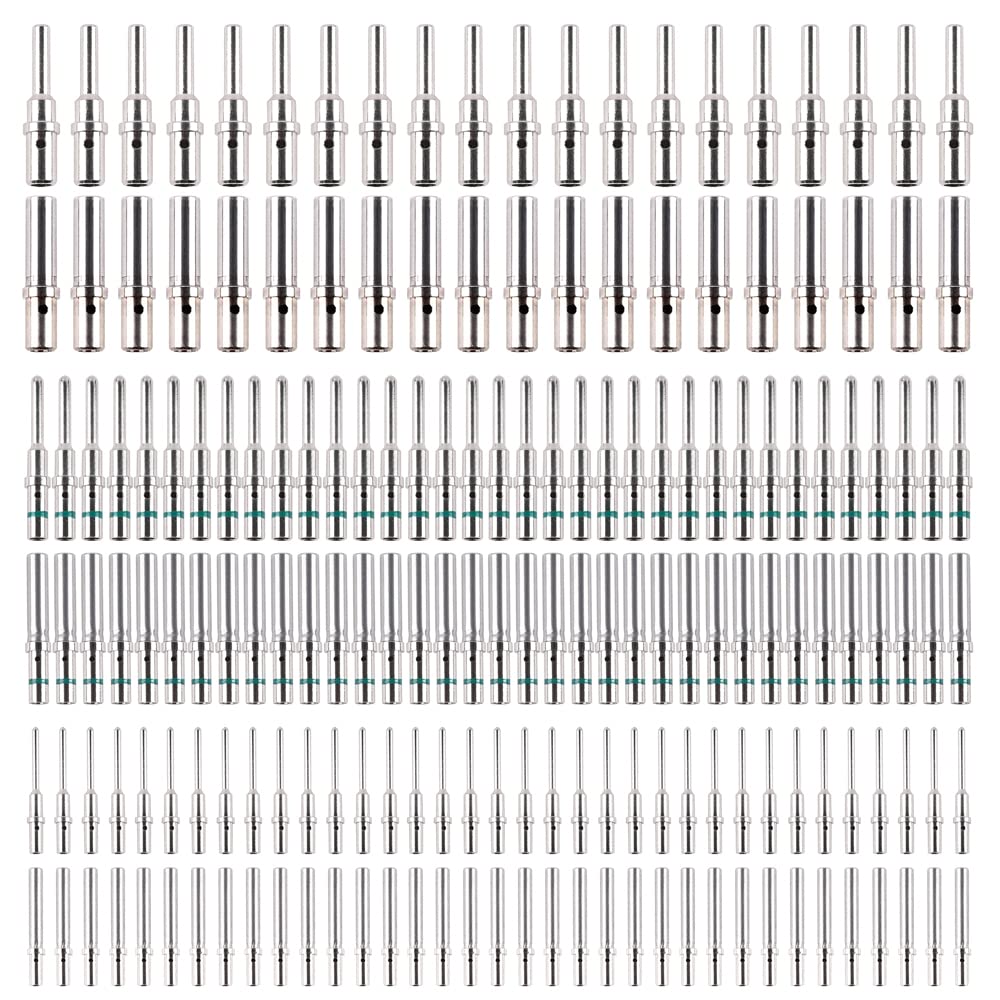

JRready ST6289 Deutsch Solid Pin, Deutsch Connector Pins, Closed Barrel Contacts Kit Size 12 16 20 Male Pins and Female Sockets Support Wire Guage 22-12AWG for DTP, DT, DTM Series Connectors
15 sold in last 24 hours

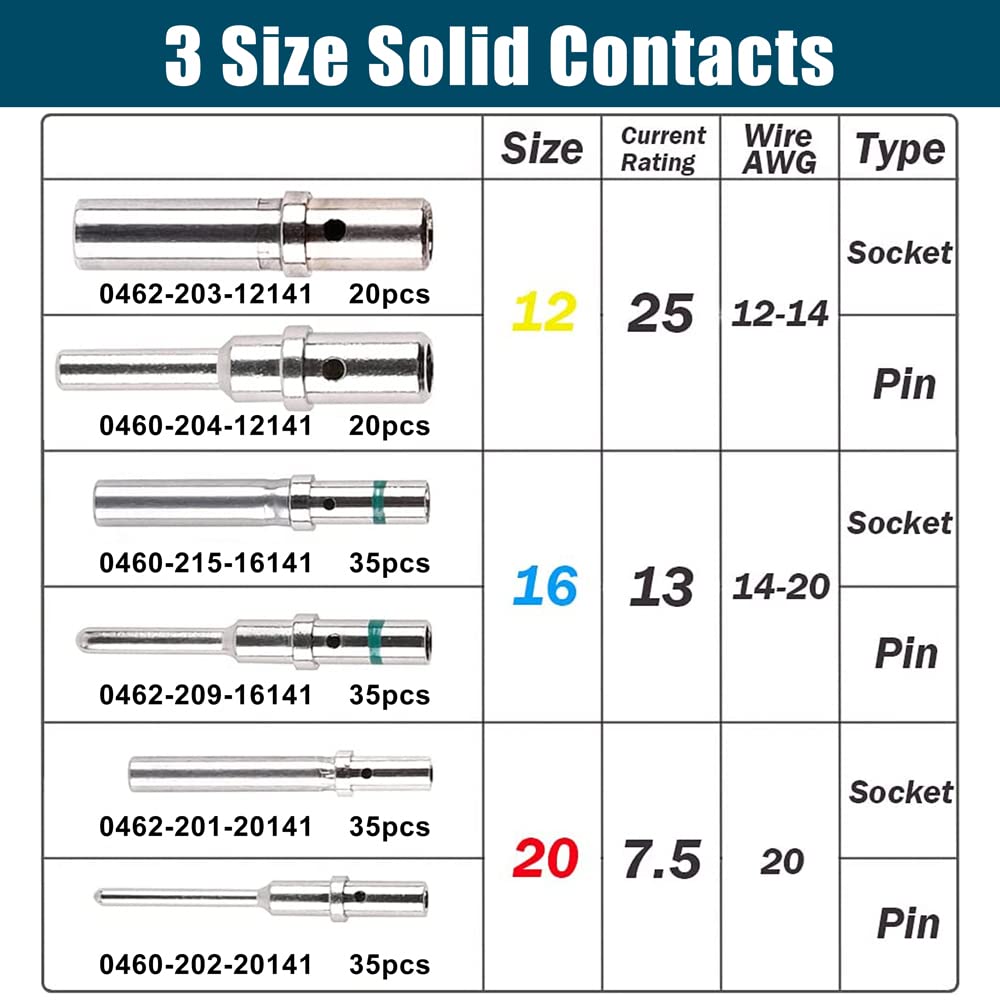

- Size 12: Male and female terminals,20 pairs,crimp wire range 14-12 AWG; pin contact 0460-204-12141,socket contact 0462-203-12141,max current rating 25A
- Size 16: Male and Female terminals,35 pairs,Wire Range 20-14 AWG；Pin contact 0460-215-16141, socket contact 0462-209-16141,max current rating 13A
- Size 20:Male and Female terminals ,35 pairs,Wire Range 22-20 AWG;Pin contact 0460-202-20141,Socket contact 0462-201-20141,max current rating 7.5A
- Feature of product:Material tin bronze,better conductivity and stability than brass，nickel plating also makes terminals resistant to corrosion and wear
- Adapter connector:Suitable for Deutsch series connectors,DTP,DT,DTM Series,HD30 Series, HDP20 Series, DRC Series,DRB Series，HD10 Series ,DTHD Series, JIFFY SPLICE Series etc
Product Dimensions
4.49 x 3.94 x 0.55 inches; 5.11 ounces
Product details
| Product Dimensions | 4.49 x 3.94 x 0.55 inches; 5.11 ounces |
|---|---|
| Item model number | X.02.01.ST.04.127-756-1439117901 |
| Department | unisex-adult |
| Manufacturer | JRready |
| Main Specification | |
|---|---|
| Connector Type | Crimp or Pin |
| Contact Material | Bronze |
| Terminal | Pin Terminal |
| Brand | Jrready |
| Insulation Material | Rm |
| Color | Neutral |
| Others | |
| Product Type | Electronic Component Terminal |
