MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White 10 Pair
3 sold in last 24 hours

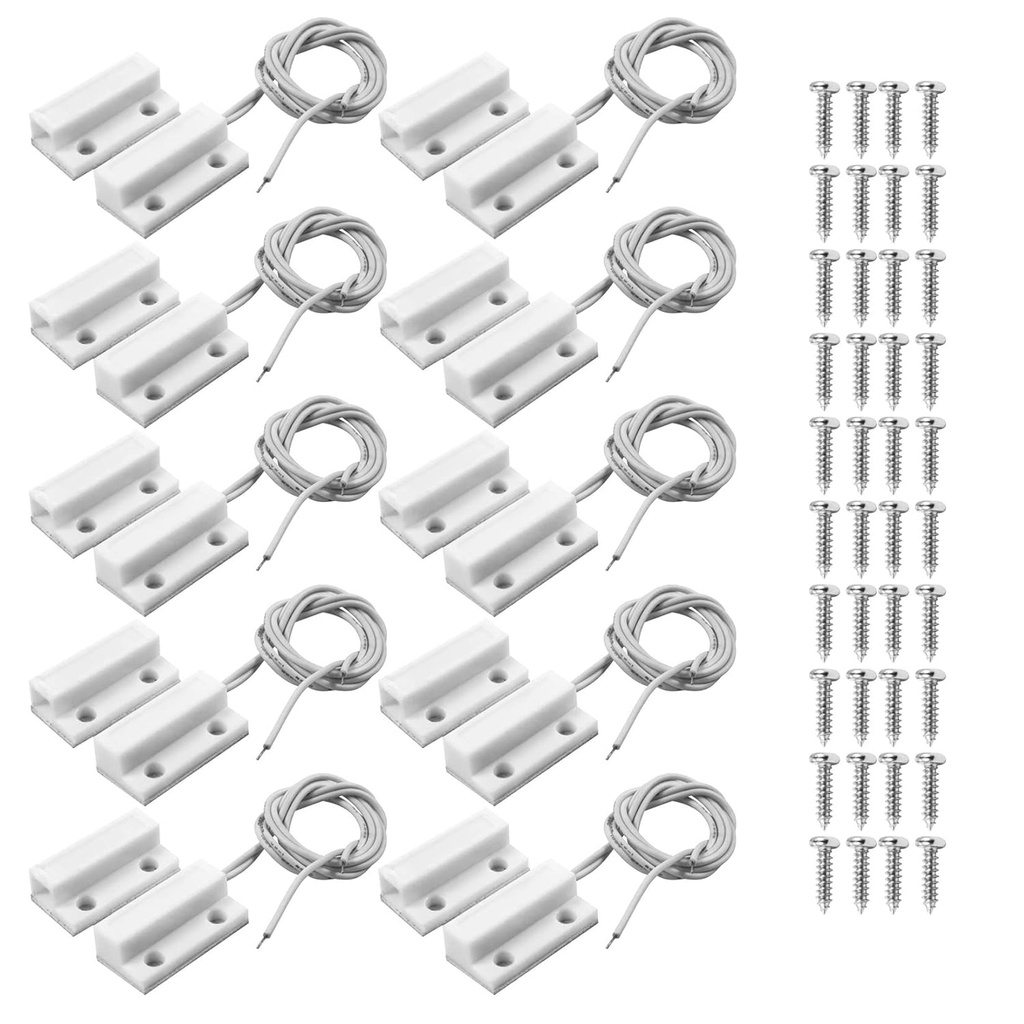

- Product Name: Magnetic Door Switch ;Model: MC-38;Package Content: 20 x Magnetic Door Switch, Some Install Parts;Normally closed: the magnet is close to conducting, and the magnet is open when leaving
- Contact Type: NC (Normally Closed) ;Actuation Distance: 18 mm ± 6 mm;
- Max. Current: 0.5 A ;Max. Power: 10 W; Working Voltage: DC0-100 V
- Each Size(Approx): 27 x 14 x 7.8 mm / 1.06-inch x 0.55-inch x 0.31-inch (L*W*H) ;Mounting Hole Diameter: 4 mm/0.16-inch
- Cable Length(Each): 26 cm / 10.24-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG Color: White Net Weight: 120 g
Tags |

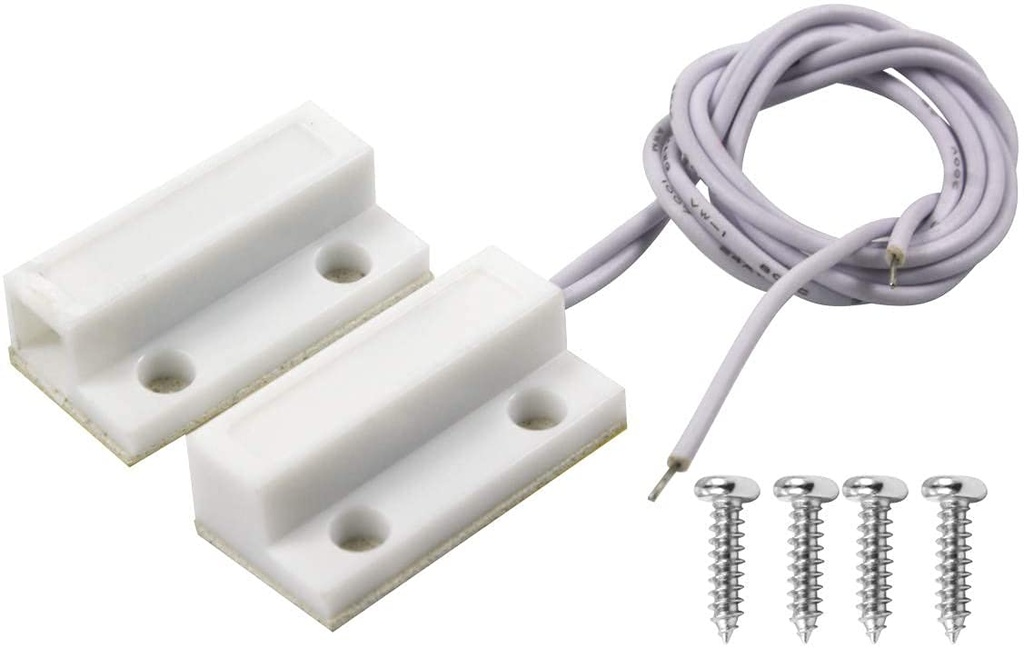

1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.
2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
3.Work as an anti-theft alarm, ideal for wood door and window.

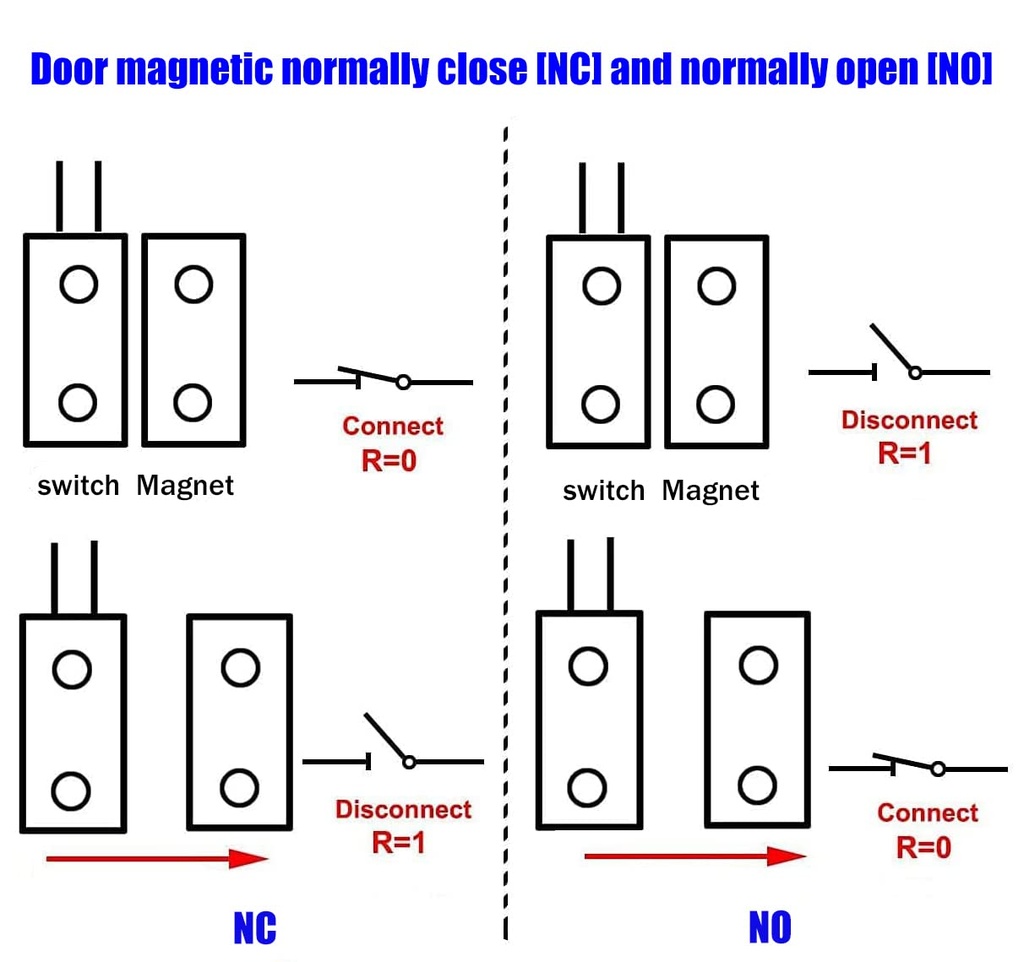

Nc: when the magnet is near, the circuit is on;
When the magnet moves away and the circuit is Off.
No: When the magnet is near, the circuit is off,
When the magnet moves away and the circuit is ON.
Product Dimensions
1.06 x 0.55 x 0.31 inches; 3.84 ounces
| Main Specification | |
|---|---|
| Item dimensions L x W x H | 1.06 X 0.55 X 0.31 Inches |
| Current Rating | 0.5 Amps |
| Brand | Dairzitv |
| Product information | |
| Style | Magnet or Magnetic |
| Technical Details | |
| Material | Acrylonitrile Butadiene Styrene |
| Others | |
| Product Type | Electronic Sensor |
