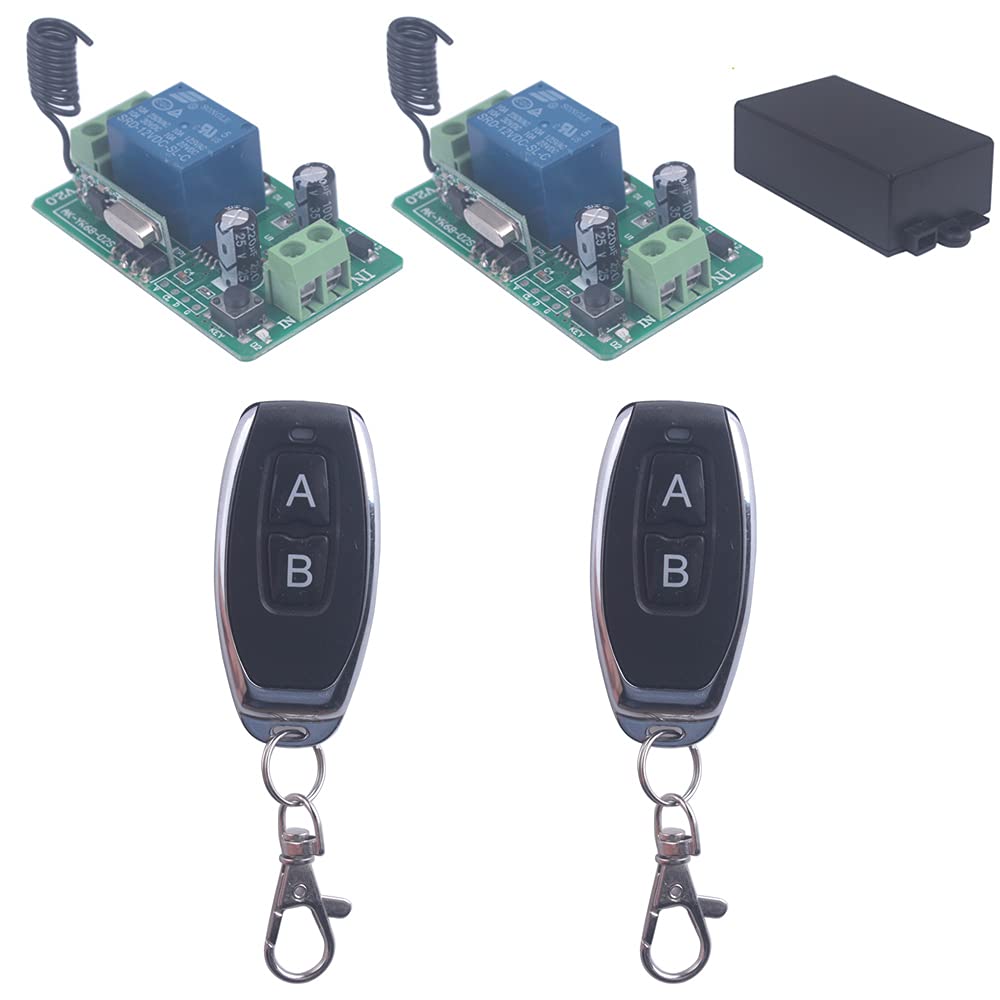

DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary/Toggle Switch 12V Opener Garage Door keypad Universal Wireless ON Off (2* Control+2* Receiver)

Price:

$ 43.92
  2. Shop
  3. DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary/Toggle Switch 12V Opener Garage Door keypad Universal Wireless ON Off (2* Control+2* Receiver)
Matte Black Bathroom Faucet Waterfall Single Hole Single Handle with Pop Up Drain with Overflow Modern Lavatory Vanity Sink 1 or 3 Hole Deck Mount
Matte Black Bathroom Faucet Waterfall Single Hole Single Handle with Pop Up Drain with Overflow Modern Lavatory Vanity Sink 1 or 3 Hole Deck Mount
$ 104.53
$ 104.53
R and R Imports Old Town Alexandria Virginia Houses on the River Design Souvenir 15 oz Wine Glass 2-Pack
R and R Imports Old Town Alexandria Virginia Houses on the River Design Souvenir 15 oz Wine Glass 2-Pack
$ 53.98
$ 53.98

DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary/Toggle Switch 12V Opener Garage Door keypad Universal Wireless ON Off (2* Control+2* Receiver)

http://gofinchkart.com/web/image/product.template/61747/image_1920?unique=609f51b
12 sold in last 24 hours
  • 🏠 [Control Voltage: DC 12V,Low volt Control High Volt Switch,Relay load: 10A 1V-250V,10A.
  • 🏠[Multi-Function] Is the learn code switch, compatible and remove control code,randomly combination control

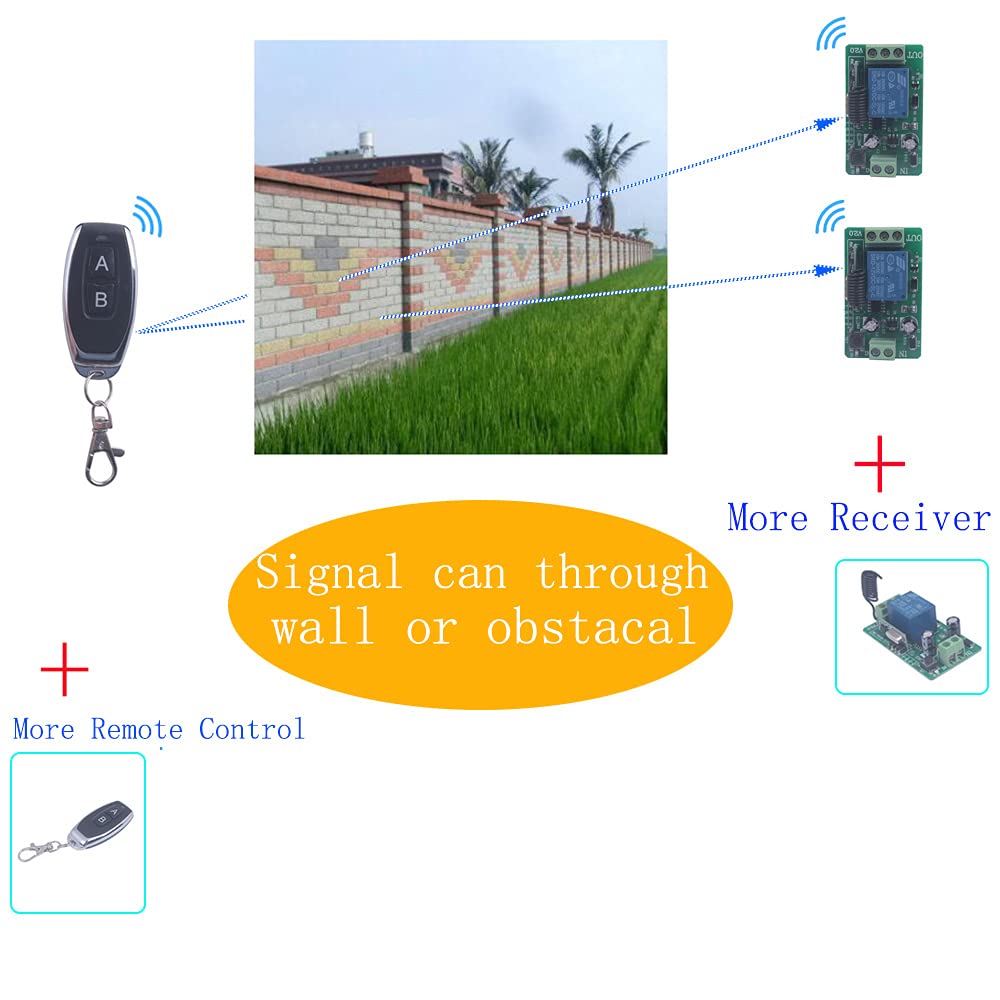

  • 🏠 [Easy to install and use]. The wireless signal can pass through walls, floors and doors
  • 🏠[Multi-function circuit switch] can be modified for multi-purpose circuit to control other circuit road.
  • 🏠[wide applications range]The remote switches are used in industrial homes, farms, factories, offices, laboratories, supermarkets fields etc.

$ 43.92 43.92 USD $ 43.92

Not Available For Sale

($ 7.32 / Units)
10 people are viewing this right now
  • Contact Material
  • Contact Type
  • Current Rating
  • Operating Voltage
  • Terminal
  • Circuit Type
  • Actuator Type
  • Brand
  • Operation Mode
  • Connector Type
  • Product Type

This combination does not exist.

Keypads & Remotes Electronic Switch
Contact Us
Tags

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Descriptions:

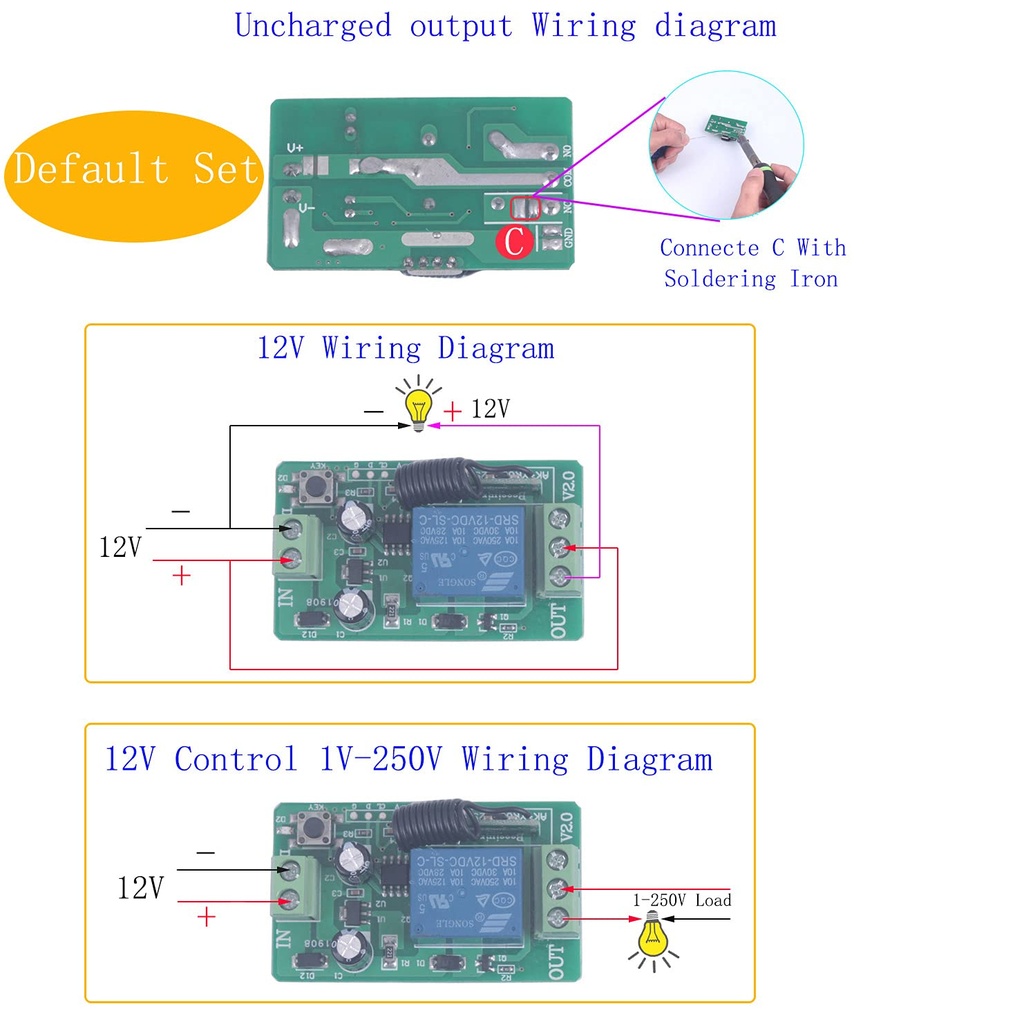

Toggle: pin1+pin 2
Momentary:pin2+pin3
Latched: pin3
Remote Switch:
Transmitter
Channel:1CH
Remote Control Distance: 50 meter(open) in theory, 10%-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, soldering
Operating Frequency: 433MHZ
Reciever
Channel:1CH
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Sensitivity: -105 dBm
Operating Temperature: -40'C~+80'C

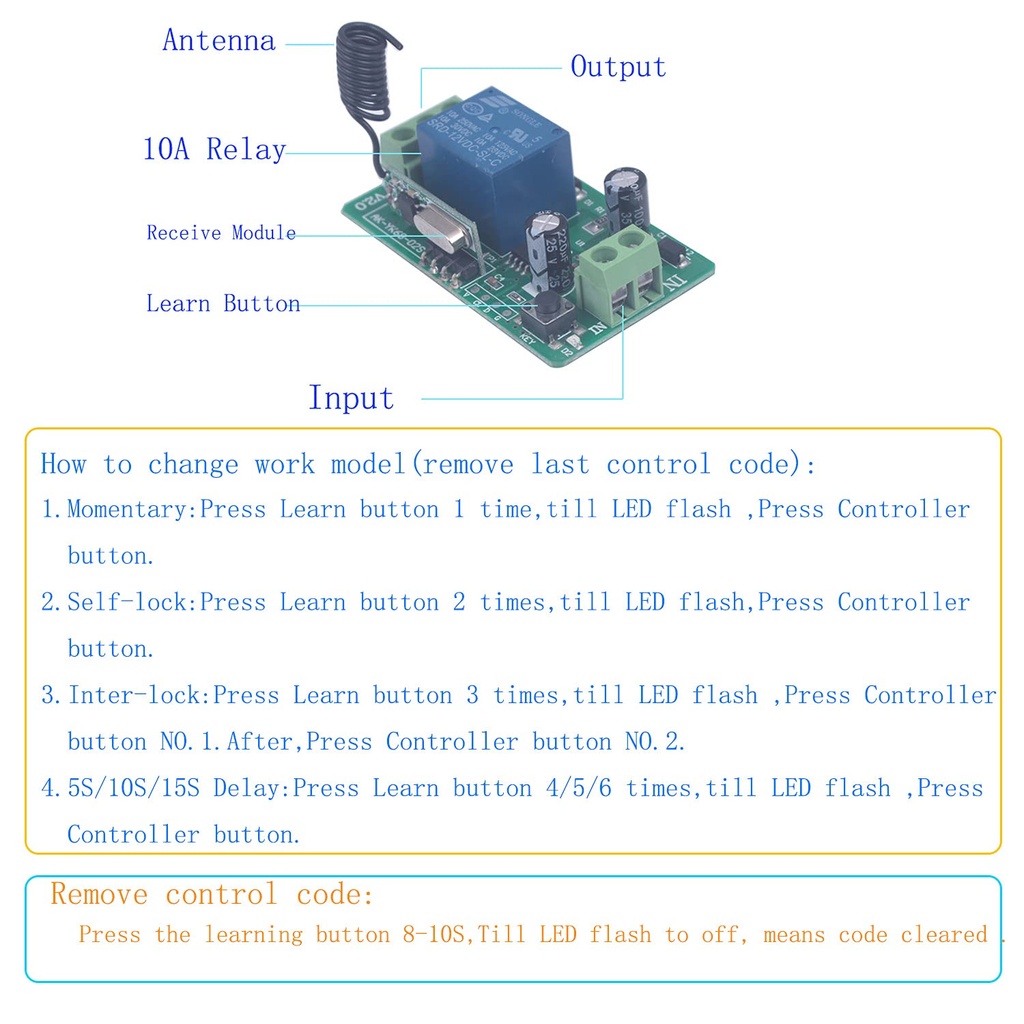

Working way:
Toggle/Self-Lock: Press->On; Press again->Off
Press one button for one time is working/ON. Press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter). Latched/Inter-Lock: Press->On; Press other button->Off
Press one button is working/ON, press another button is stop/OFF. (1 channel switch( receiver) need 2 buttons remote control (transmitter).
Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. Loosen your finger is stop/OFF. (1 channel switch(receiver) need 1 button remote control (transmitter).
Learn code and Remove Code
1. Learn: Press the learning code, the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it mean you learn it successfully .
2. Remove: Press the learning button about 8 seconds, the indicator turn on to off, it means the Code had been removed successfully.
Package:
1/2 x Remoter control transmitter( CR 2016 button cell battery Includes )
1/2/3/4 x receiver
1X Manual

Package Dimensions

4.57 x 2.76 x 1.54 inches; 4.66 ounces

Main Specification
Contact Material Copper
Contact Type Normally Open
Current Rating 10 Amps
Operating Voltage 12 Volts
Terminal Solder
Circuit Type Parallel
Actuator Type Push Button
Brand Mangood
Product information
Operation Mode Automatic
Connector Type Wireless
Others
Product Type Electronic Switch
