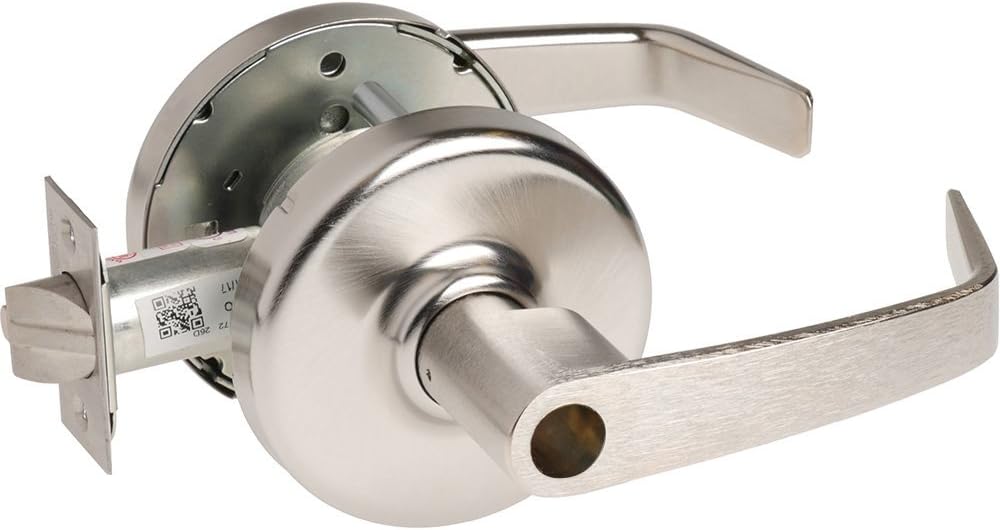

Corbin Russwin CL3300 Series Grade 1 Satin Chromium Plated Extra Heavy Duty Entrance/Office Less Cylindrical Lever Lock, 1-3/4" to 2" Door Thickness (Pack of 1)
13 sold in last 24 hours
- Grade 1 cylindrical lever
- 2-3/4-inches standard backset
- Satin chromium plated finish
- Deadlocking latch bolt prevents manipulation when door is closed
- 7 year limited warranty
Tags |
Corbin Russwin CL3300 series is a grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Newport NZD die-cast zinc lever and wrought brass rose. Non-handed. 1-3/4-inches to 2-inches standard door thickness. Steel, zinc dichromated lock chassis for corrosion resistance. 2-3/4-inches standard backset. Stainless steel latch bolt, 1/2-inches throw. Auxiliary latch bolt: deadlocking latch bolt prevents manipulation when door is closed. Wrought brass, bronze, or stainless steel, 2-1/4-inches by 1-1/8-inches. Accommodates flat doors and doors beveled 1/8-inches in 2-inches. Cylinder: brass, 6-pin l4 keyway, 0-bitted standard. Two nickel silver standard key. Certification/compliance: ANSI meets A156.2 series 4000, Grade 1; meets A117.1 accessibility code. Federal: meets FF-H-106C. Deadlocking latch bolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position). Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free.
| Main Specification | |
|---|---|
| Metal Type | Zinc or Bronze or Alloy Steel or Brass |
| Unit Count | 1.0 Count |
| Handle Material | Stainless Steel |
| Exterior Finish | Chrome |
| Product information | |
| Package Dimensions | 9.8 X 7.5 X 4.7 Inches |
| Item model number | Cl3351 Nzd 626 Lc |
| Number of Items | 1 |
| Technical Details | |
| Color | Silver or Bronze or Satin or Rose |
| Item Weight | 1 Pounds or 16 Ounces |
| Material | Alloy Steel |
| Special Feature | Easy To Install |
| Part Number | Cl3351 Nzd 626 Lc |
| Finish | Plated |
| Item Package Quantity | 1 |
| Number Of Pieces | 1 |
| Special Features | Easy To Install |
| Batteries Required? | No |
| Brand | Corbin Russwin |
| Manufacturer | Corbin Russwin |
| Item details | |
| Included Components | Lock or Latch or Lock And Key |
| Others | |
| Product Type | Hardware Handle |
