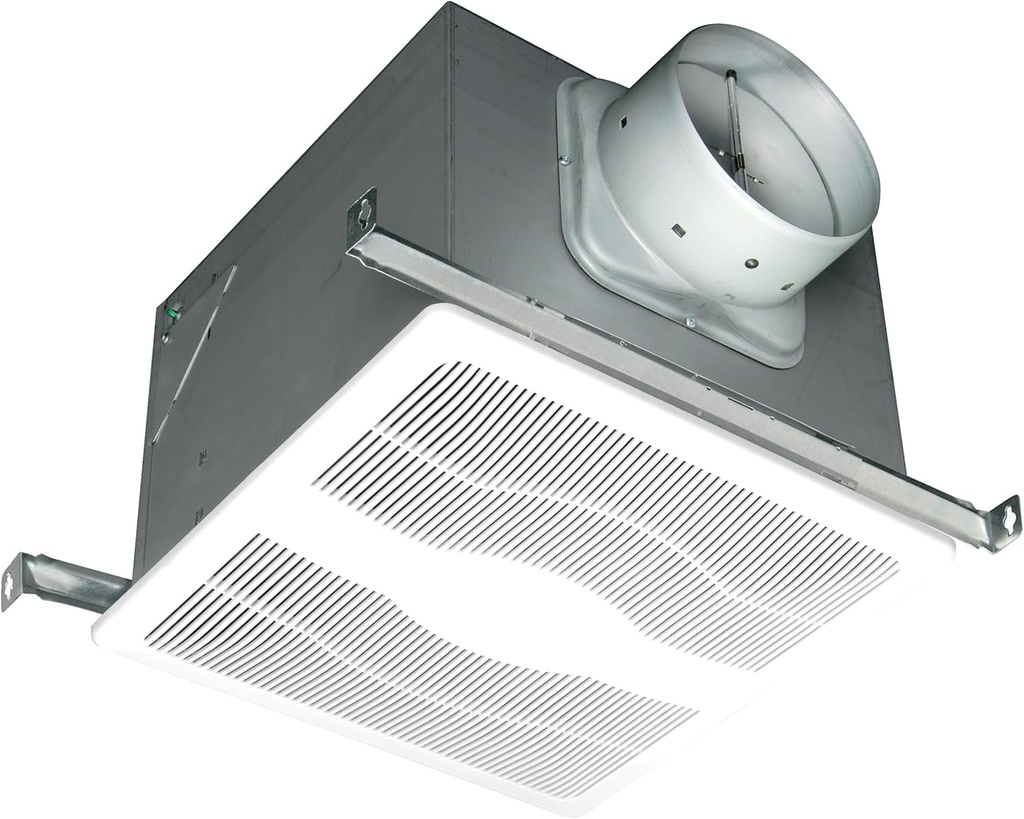

$ 50.98Air King E80S One Speed Eco Exhaust Fan
13 sold in last 24 hours

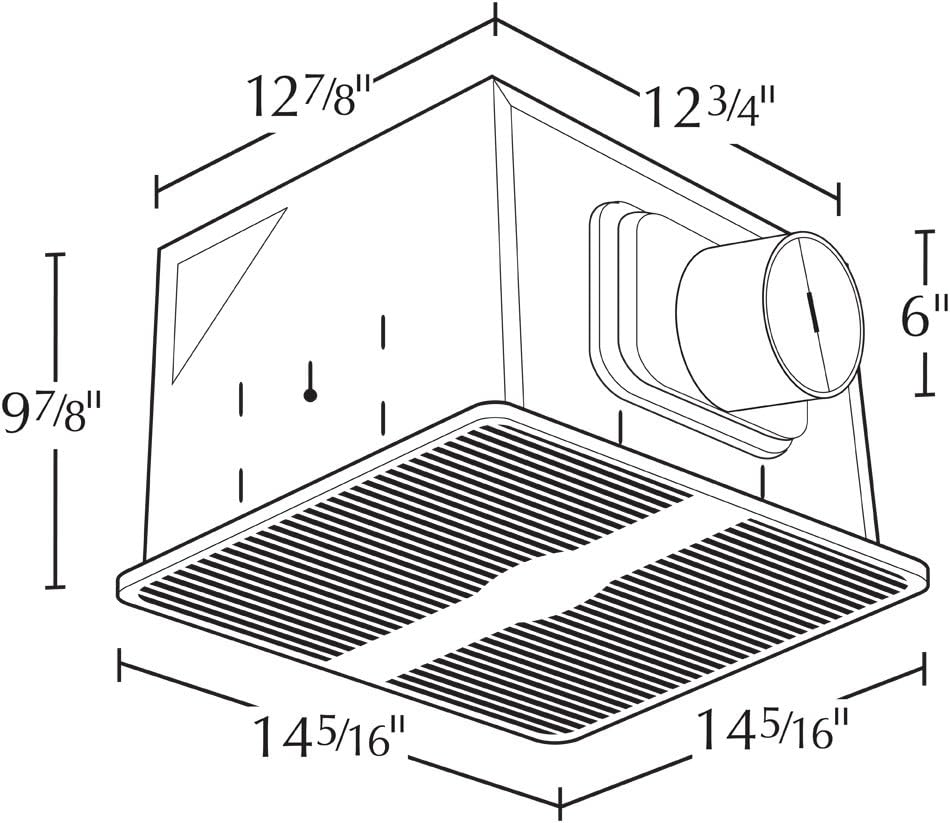

- Bath fan housing size measures 12-7/8" W x 12-3/4" D x 9-7/8" H and has 3 main components: source control, local exhaust and whole house ventilation
- Operates at 80 CFM at less than 0.3 sones
- Offers the lowest possible HVI-certified sound rating thanks to motor's large and quiet centrifugal blower wheel
- Comes with a 6" round duct connector with a spring-loaded metal damper for back draft protection, and has a side access panel that enables you to wire the fan from inside or outside the housing
- Fan is almost unnoticeable in your ceiling thanks to its low-profile grill, and its energy-efficient motor allows it to run continuously
- Energy star rated and ashrae 62.2 compliant
- Powerful single speed 80-CFM blower
Tags |
Product Description Remove humidity from your bathroom quietly and efficiently with Air King's ECO E Series #E80S 80 CFM exhaust fan. 23 gauge galvanized steel housing. Overall dimensions 12 7/8" x 12 3/4" x 9 7/8". Housing will mount between either 16" or 24" on center joists using the 2 supplied adjustable housing mounting brackets through drywall up to 3/4" thick. 6" round, zinc plated metal collar adapter. Enclosed 4 pole high efficiency permanently split capacitor motor is rated at 115/120 volts, 60 Hz. Lifetime lubrication bearings are suitable for continuous operation. Boost setting option available at installation. Spring loaded gasketed aluminum backdraft damper protects against backdrafts and seals the duct better than any other damper on the market today. Grill is secured in place with torsion springs. Can be used to comply with California Title 24 requirements. Meets Made in America requirements of the American Recovery and Reinvestment Act. Can be used to comply with the ventilation standards required by LEED for homes. Perfect ventilation solution for Weatherization Assistance Program. HVI Certified performance. Excellent ASHRAE 62.2 solution. Enjoy made in America Air King quality and performance! From the Manufacturer The cost effective, and energy efficient Air King energy star eco-exhaust single speed series provides solutions for areas needing a higher volume of ventilation while operating at barely audible sound levels. This series features a low-profile grill that almost disappears into the ceiling, and a motor with a large, quiet, centrifugal blower wheel that assures proper ventilation with minimal sound. Model E80S provides the lowest possible HVI certified sound rating - less than 0.3 sones. It installs easily using the included adjustable hanging brackets. The motor is suitable for continuous operation and the extremely low sound levels make it perfect for continuous usage. A 6-Inch round duct connector with a spring-loaded metal damper protects against back drafts. This unit is listed for use over a tub or shower when installed on a GFCI circuit. The side access panel allows wiring the fan from inside or outside the housing.
The air king energy star eco-exhaust single speed series provides solutions for areas needing a higher volume of ventilation while operating at barely audible sound levels, being cost effective, and energy efficient. This series features a low profile grill that almost disappears into the ceiling, and a motor with a large, quiet, centrifugal blower wheel that assures proper ventilation with minimal sound. Model ES80S provides the lowest possible HVI certified sound rating - less than 0.3-Sone. It installs easily using the 4 included adjustable hanging brackets. The motors are suitable for continuous operation and the extremely low sound levels make it perfect for continuous usage. A 6-Inch round duct connector with a spring loaded metal damper protects against back drafts. This unit is listed for use over a tub or shower when installed on a GFCI circuit. The side access panel allows wiring the fan from inside or outside the housing. The standard has three main components: source control - preventing or limiting the introduction of pollutants, local exhaust - removing high concentrations of contaminants in the rooms where they occur (kitchens and bathroom) , and whole house ventilation - diluting the air in the main living spaces to remove unavoidable contaminants from people, pets, cleaning, off gassing, etc. The standard provides many alternative methods for good design as well as requirements for extreme environments, high density occupancies, and other special situations. This fan provides practically silent (less than 0.3-Sone) whole house ventilation. For local exhaust in the bathroom install energy star qualified BFQ 50 or BFQ 75 models with an akedt1 control to automatically turn off the fan after selected time period. Model ES80S is energy star rated and provides 80-CFM of ventilation at <0.3-Sone with a 6-Inch duct. Housing size: 12-7/8-Inch wide-by-12-3/4-Inch deep-by-9-7/8-Inch high.
Product Dimensions
9.88 x 14 x 14 inches; 14.2 Pounds
Technical Details
| Brand | Air King |
|---|---|
| Color | White |
| Electric fan design | Exhaust Fan |
| Power Source | ac |
| Style | ECO Exhaust |
| Product Dimensions | 1"D x 1"W x 1"H |
| Room Type | Bathroom |
| Recommended Uses For Product | Exhausting |
| Noise Level | 0.3 Sones |
| Wattage | 28.1 watts |
| Finish Type | White |
| Voltage | 120 Volts |
| Item Weight | 14.2 pounds |
| Included Components | Air King FAN BATH SINGLE SPEED 80CFM ES80S |
| Indoor/Outdoor Usage | Indoor |
| Model Name | E80S |
| Specification Met | Energy Star |
| Control Method | Remote |
| Efficiency | High Efficiency |
| Is Cordless? | No |
| Number of Power Levels | 1 |
| Manufacturer | Air King |
| UPC | 083162941305 |
| Global Trade Identification Number | 00083162941305 |
| Size | 80 CFM |
| Part Number | ESB80S |
| Item model number | E80S |
| Item Package Quantity | 1 |
| Collection | ECO Exhaust |
| Finish types | White |
| Batteries Required? | No |
Product details
| Product Dimensions | 9.88 x 14 x 14 inches; 14.2 Pounds |
|---|---|
| Item model number | E80S |
| Manufacturer | Air King |
| Main Specification | |
|---|---|
| Noise Level | 0.3 Sones |
| Electric fan design | Exhaust Fan |
| Room Type | Bathroom |
| Brand | Air King |
| Recommended Uses For Product | Exhausting |
| Power Source | Ac |
| Product Dimensions | 1"D X 1"W X 1"H |
| Color | White |
| Wattage | 28.1 Watts |
| Style | Eco Exhaust |
| Others | |
| Product Type | Electric Fan |
