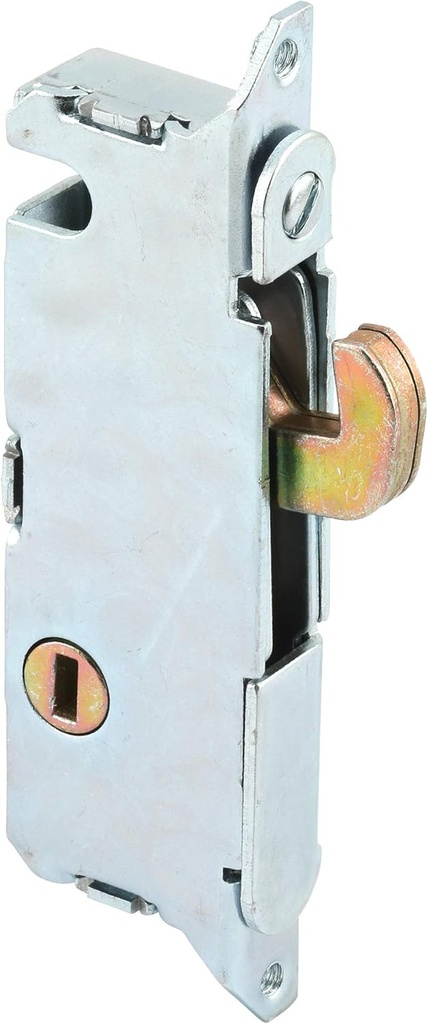

$ 42.18Prime-Line E 2013 Stainless Steel Mortise Lock for Patio Sliding Doors Constructed of Wood, Aluminum, and Vinyl, 3-11/16 Inch, Vertical Keyway , Silver (Single Pack)
13 sold in last 24 hours
- REPLACE OLD OR BROKEN DOOR LOCKS – When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise door lock
- FOR SLIDING DOORS – This mortise lock replacement can be used on sliding patio doors constructed of wood, aluminum and vinyl, and fits on W and F manufactured handles
- VERTICAL DEGREE KEYWAY - This E 2013 mortise lock has a vertical keyway position when in the locked position.
- STRONG AND DURABLE – This patio door mortise lock set is constructed of a corrosion-resistant stainless steel housing and stainless steel faceplate

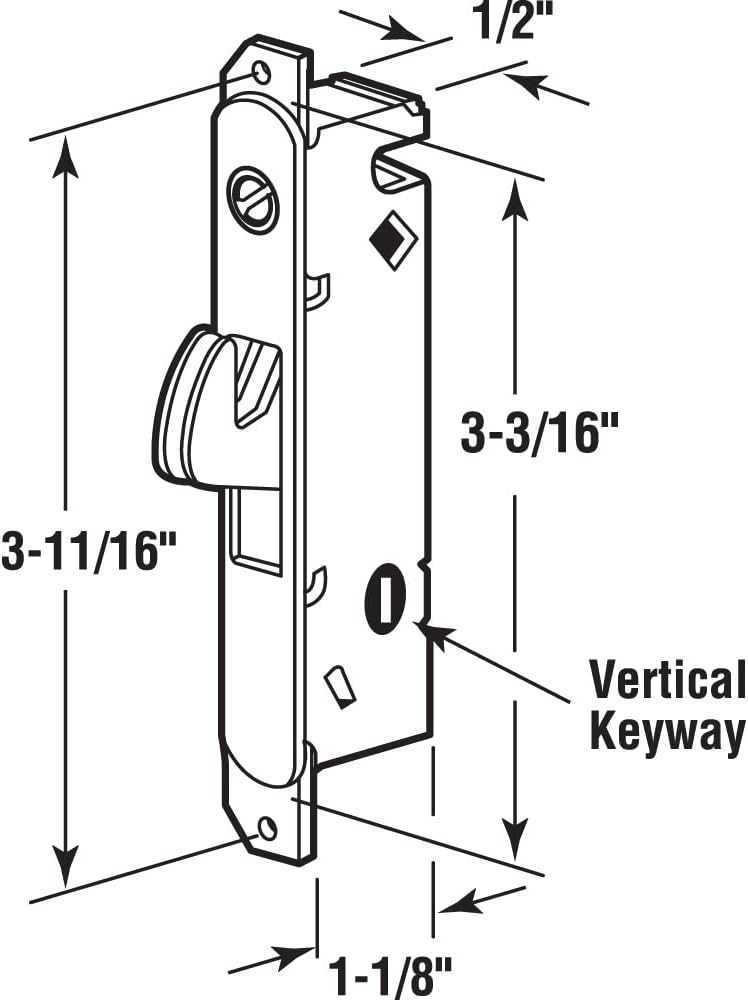

- DIMENSIONS – The mounting holes of the mortise latch are spaced apart at 3-11/16 inch on center; for all dimensional information please refer to the line art and compare to your needs before purchasing
Tags |

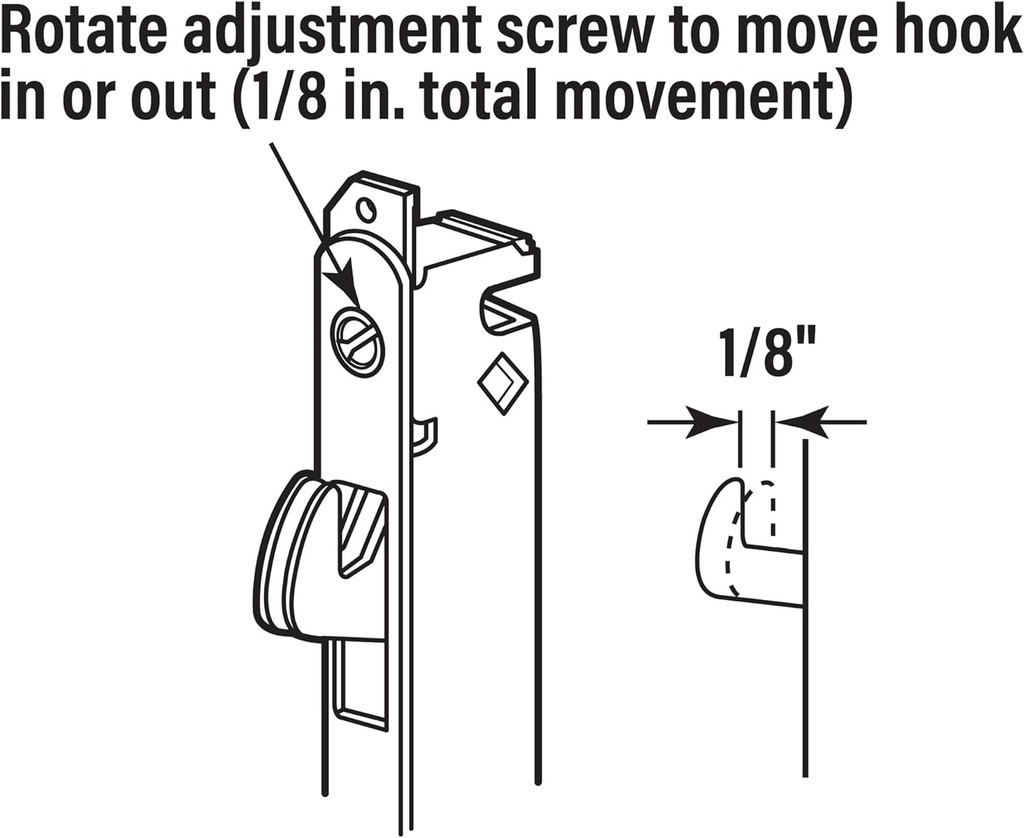

When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise lock! This E 2013 Mortise Lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 inch from center to center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer’s How-To Video that is linked to this item page.
Technical Details
| Brand | PRIME-LINE |
|---|---|
| Special Feature | Mortise Lock |
| Lock Type | Deadbolt |
| Item dimensions L x W x H | 1.12 x 0.5 x 3.18 inches |
| Material | Alloy Steel |
| Style | Vertical Keyway |
| Color | Zinc |
| Number of Pieces | 1 |
| Finish Type | Granite |
| Included Components | Mortise Lock |
| Controller Type | Mechanical knob |
| Shape | Triangle |
| Item Weight | 4.54 g, 0.16 ounces |
| Control Method | Touch |
| UPC | 049793020130 |
| Model Name | Mortise Lock |
| Global Trade Identification Number | 00049793020130 |
| Manufacturer | Prime-Line Products |
| Part Number | E 2013 |
| Product Dimensions | 1.12 x 0.5 x 3.18 inches |
| Item model number | E 2013 |
| Size | 1.125"(D)x0.5"(W)x3.688"(H) |
| Finish | Granite |
| Pattern | Lock |
| Power Source | power_source_type |
| Item Package Quantity | 1 |
| Mounting Type | Door Mount |
| Special Features | Mortise Lock |
| Usage | specific_uses_for_product |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Main Specification | |
|---|---|
| Lock Type | Deadbolt |
| Item dimensions L x W x H | 1.12 X 0.5 X 3.18 Inches |
| Brand | Prime-Line |
| Material | Alloy Steel |
| Special Feature | Mortise Lock |
| Others | |
| Product Type | Lock |
