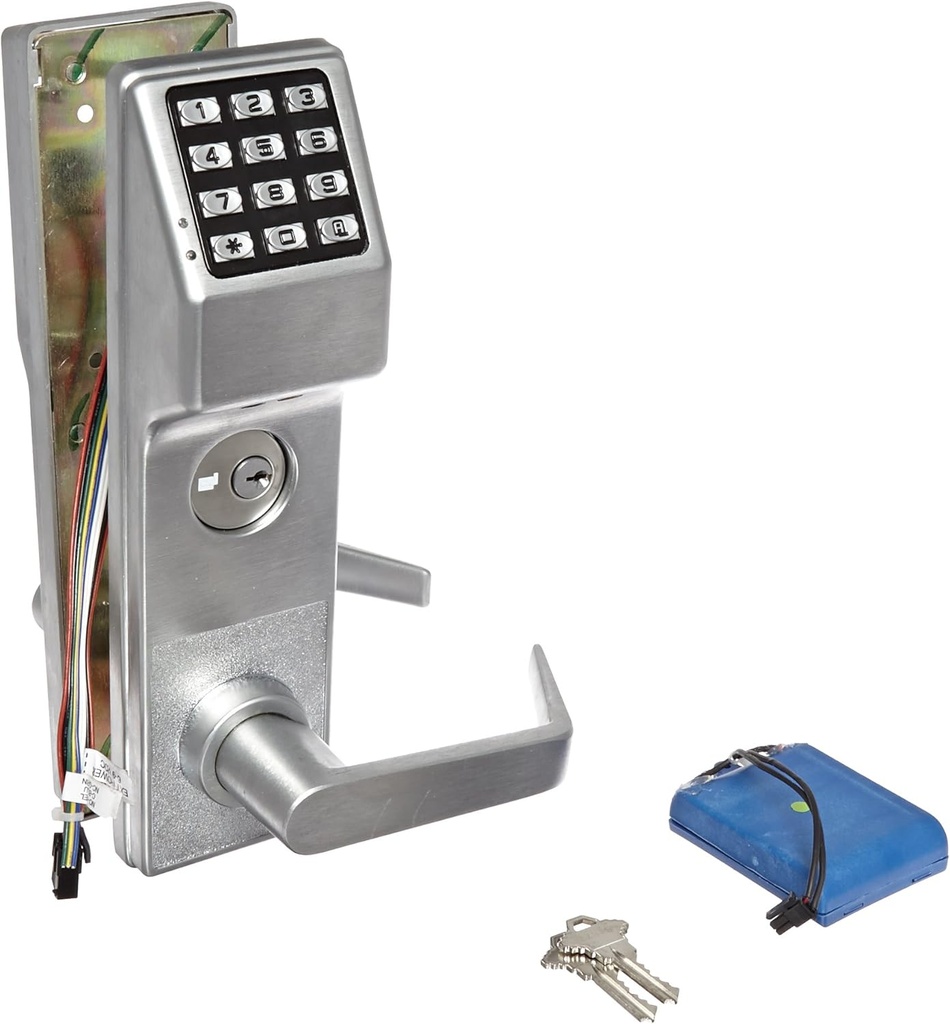

Alarm Lock Stainless Steel Trilogy T3 300-User Weatherproof Electronic Digital Keypad Classroom Mortise Lock Leverset, Left Hand, Straight Lever Classroom Function, Satin Chrome Finish
4 sold in last 24 hours
- Electronic digital lock leverset is programmable through keypad or PC to create 300 user entry codes for secure keyless entry, schedule 500 lock/unlock events, retrieve and print 40,000-event audit trail, with automatic keypad lockout
- Mortise lock mechanism with classroom function latch fits recess in standard-width door stile
- For installation on exterior and interior doors and rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C)
- Lever handle for left-hand operation
- Stainless steel trim with satin chrome finish resists corrosion
Tags |
The Alarm Lock Trilogy T3 weatherproof electronic digital keypad mortise lock leverset supports up to 300 user entry codes for secure keyless entry, is for installation on exterior and interior doors, has a satin chrome finish and a lever handle for left-hand operation. The leverset can be manually programmed through the keypad or a computer to recognize up to 300 user entry codes of 3 to 6 digits, and can store up to 500 lock/unlock events grouped into schedules to permit or deny access at specified times and days. It maintains a time-stamped audit trail record of the last 40,000 occurrences of successful and unsuccessful entry, which can be retrieved to a computer or printed to an infrared printer (sold separately). An automatic lockout disables the keypad up to 60 seconds after multiple failed code inputs, to discourage unauthorized access. LED indicators and sound provide feedback for code entry and manual programming. Programming through a Windows-compatible computer requires the Trilogy PC Software Kit (sold separately).
The leverset has a mortise lock mechanism that fits in the recess of a standard door stile. The classroom function latch locks the exterior handle for secure entry, while the interior handle remains unlocked for egress. A solid brass fixed key cylinder provides a key override to engage or release the lock. The leverset is rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C) for use on exterior, as well as interior doors. The leverset trim is made of stainless steel with a satin chrome finish to resist corrosion. The leverset is powered by 5 AA batteries (included). It meets American National Standards Institute (ANSI)/ Builders Hardware Manufacturers Association (BHMA) grade 1 standards for commercial buildings, and standards that can help comply with the Americans with Disabilities Act (ADA) when properly installed. It is also Underwriters Laboratories (UL) listed for a 3-hour fire rating and Federal Communications Commission (FCC) certified.
Access control keypads for doors limit entry to authorized users. The door remains locked until a recognized code is entered through the numeric keypad and returns to the locked state when the door is closed after passage. Many units include a leverset with a lock mechanism for key override to bypass the keypad. The lock mechanism may be a fixed key cylinder installed by the manufacturer, or it may accept an interchangeable core that can be replaced if security is compromised. A cylindrical lock mechanism requires two bored perpendicular holes in the door for installation, one in the door face and a crossbore hole in the door edge. A mortise lock mechanism fits into a pocket recess in the door edge.
Alarm Lock Systems manufactures mechanical and electronic access controls for secure entry and egress. The company, headquartered in Amityville, NY, meets International Organization for Standardization (ISO) standard 9002.
| Main Specification | |
|---|---|
| Item dimensions L x W x H | 13.1 X 11.5 X 4.8 Inches |
| Brand | Alarm Lock |
| Technical Details | |
| Special Feature | Auto-Lock |
| Lock Type | Keypad |
| Others | |
| Product Type | Lock |
