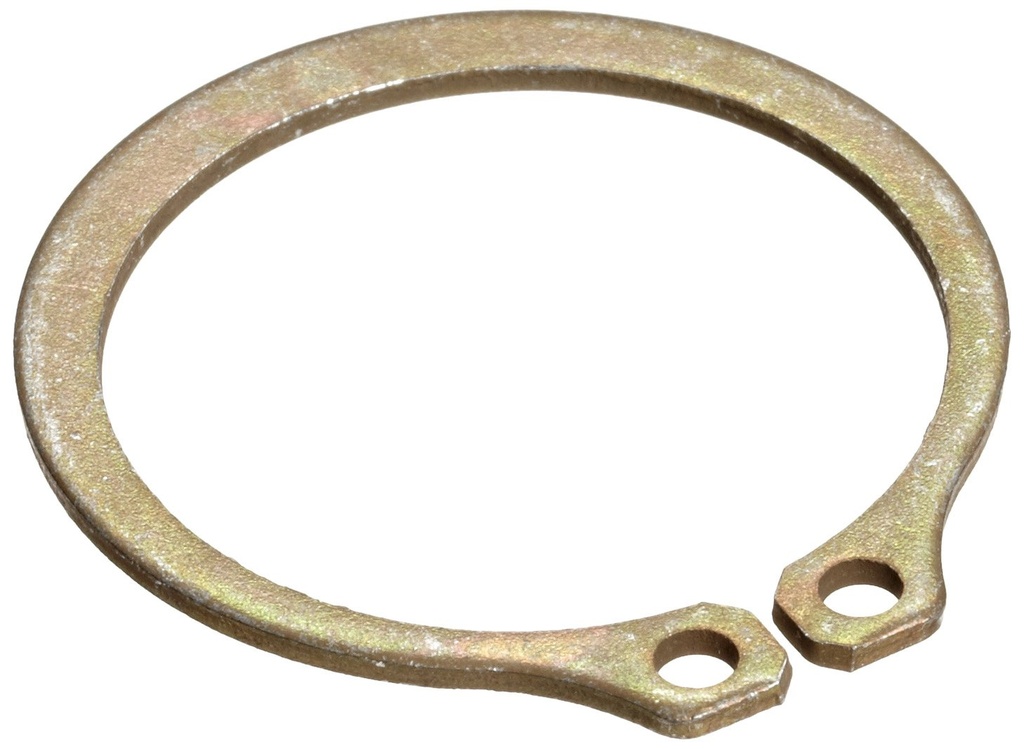

$ 43.90Standard External Retaining Ring, Tapered Section, Axial Assembly, 1060-1090 Carbon Steel, Zinc Yellow Chromate Plated Finish, 1/32" Shaft Diameter, 0.025" Thick, Made in US (Pack of 100)
6 sold in last 24 hours
- Standard round shape has lug holes on each end for installing with a tool
- Tapered section construction provides flexibility to facilitate installation
- Axial assembly mounting style has the ring install by sliding onto a shaft from the end
- 1060-1090 carbon steel is often used in applications where strength is the primary consideration, and the zinc yellow chromate plating offers good corrosion resistance
- Made in USA

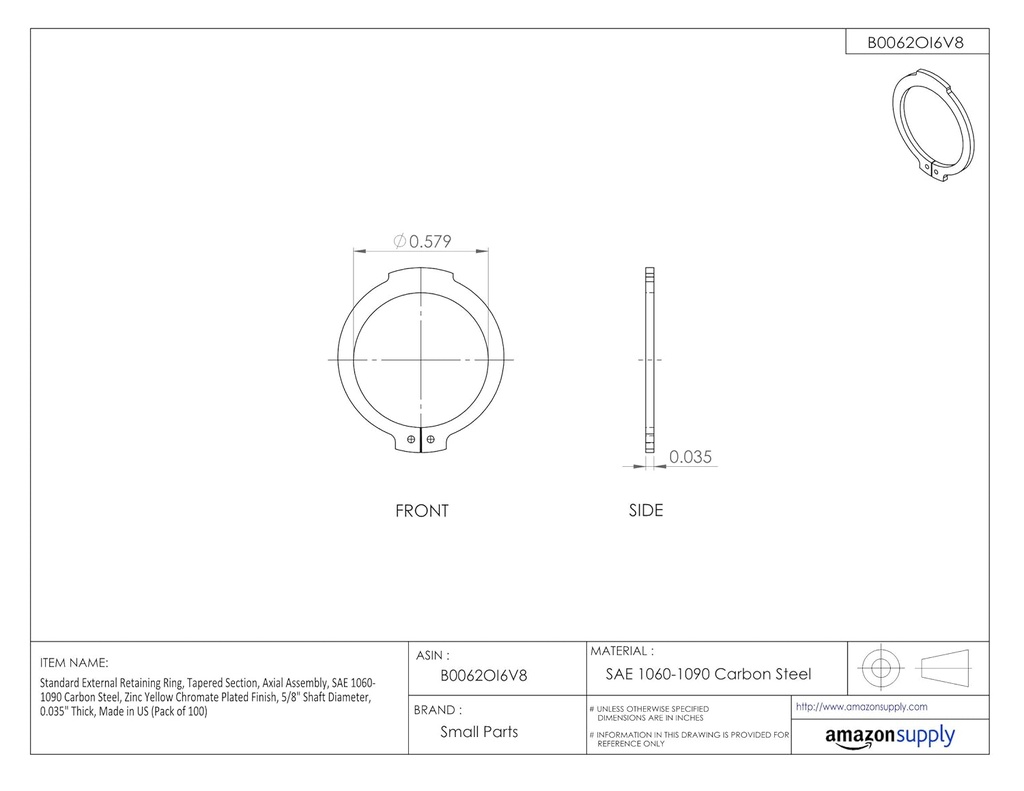

The standard external retaining ring has a tapered section, assembles axially, is made of zinc yellow chromate plated 1060-1090 carbon steel, and is made in USA. The ring has a standard round shape with a lug hole on each end for installing onto the shaft with a tool. The ends pry apart with the installation tool and snap back towards each other when installed on the shaft for a tight grip. The tapered section style provides the ring with flexibility to facilitate installation and typically withstands higher thrust loads than constant section and spiral rings. The ring installs by sliding onto a shaft from the end, also called axial assembly. Axially installed rings reach further around the outside diameter of the shaft than radially installed rings. The 1060-1090 carbon steel is often used in applications where strength is the primary consideration, and the zinc yellow chromate plating offers good corrosion resistance.
Retaining rings attach to a shaft (external) or install in a bore (internal), creating a shoulder to maintain component positioning within an assembly. While most rings install into a machined groove either on the inside or outside diameter of a shaft, self-locking rings attach to a shaft by using friction from means such as teeth and notches to maintain placement. Retaining rings should fit tightly enough into the groove or onto the shaft so they won't experience any movement.
Package Dimensions
2 x 1 x 0.2 inches; 0.8 ounces
| Main Specification | |
|---|---|
| Brand | Small Parts |
| Product information | |
| Finish Type | Zinc |
| Shape | Standard |
| Technical Details | |
| Fastener Type | Standard |
| Material | Carbon Steel |
| Others | |
| Product Type | Mechanical Fasteners |
