Mini Refrigerator Compressor Mini Compressor DC 24V 70-550W R-134a Refrigeration & Freezing System Miniature Variable Speed Inverter Compressor Portable and Compact Circulatory Compression Cooling Sys
9 sold in last 24 hours

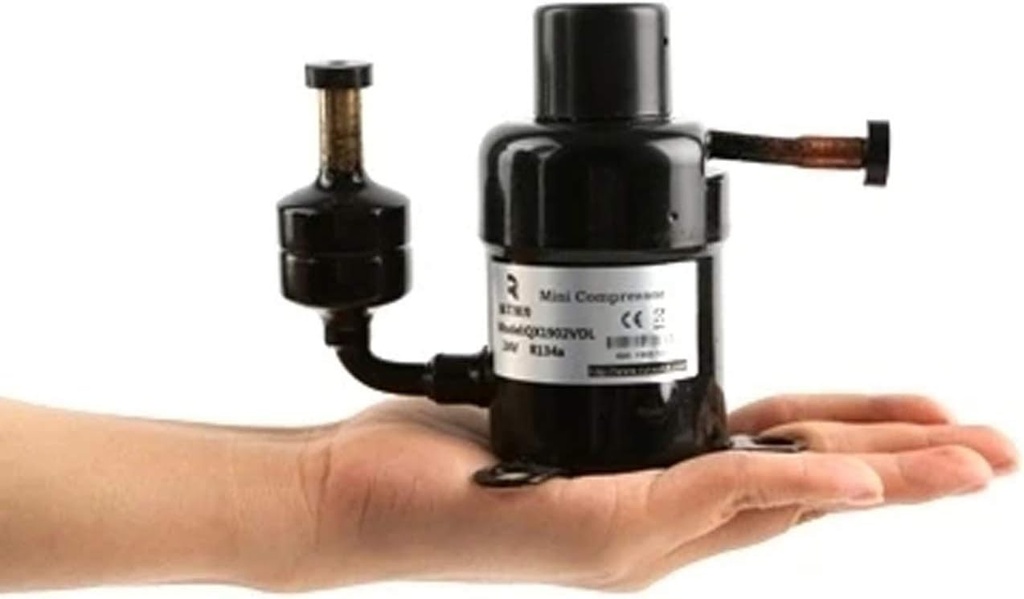

- Product: Miniature Variable Speed Compressor QX1402VDL (24V)
- Voltage: DC 24V Capacity: 100-280W Refrigerant: R134A
- Miniature Refrigeration & Freezer System; Portable Cooling System.
- Compact and achieve extraordinary power density, low noise：(≤40dB),Super light weight：700g (1.54lbs),Super compact size：5.6 x 7.8 cm (2.3 x 3.07 inch)
- Mini Refrigeration compressors can be used in a wide range of Refrigeration and Air Conditioning conditions in LBP, MBP, and HBP applications.Widely applied to many small refrigeration facilities like ice maker(ice machine),water dispenser,small refrigerator,small freezers,wine cellar and other small cooling applicances like car ship camping motor RV. Etc
Compressor Type：Hermetic & Rotary
Displacement (cc/rev)：3.25
Application：LBP & HBP
Motor Type：DC Brushless
Rated Voltage (V)：DC 24
Voltage Range (V)：DC 20 ～ 32
Rated Speed (rpm)： 2000 ～ 4500
Working Current (A)：2.1 ～ 8
Max Current (A)：12
Winding(20℃) Ω：0.7
Refrigerant Type：R134a
Oil Type & Amount (ml)：RL-32H, RB68EP & 55
Compression Ratio：≦8
Compressor weight (include oil)Kg：0.69
Compressor Capacity Speed Range (rpm)：2000 ～ 4500
Cooling Capacity(W)：70 ～ 550
Evaporating Temp (℃)：-23.3 ～ 7.2
Condensing Temp (℃)：27 ～ 65
Max Compressor Temp (℃)：120
Ambient Temp (℃)：5 ～ 43
Noise dB:≤40
Controller Driver Board:DB3010-1
