Explosion Proof Fan 110V Axial Flow Fan Exhaust Fan 12 Inch 300mm Utility Blower Speed 1450RPM for Extraction Ventilation USA STOCK
15 sold in last 24 hours
- 【12" EXPLOSION PROOF FAN】Fan Diameter: 12"(300mm), perfect connect to anti static flexible air duct hose in 12".
- 【EXCELLENT PERFORMANCE MOTOR】Axial blower features 180W explosion proof motor with high speed: 3450Rpm fit long time ventilation work, low noise 62dB. Reliable and built to last.
- 【SOLID CONSTRUCTION】This axial blower equipped with an explosion-proof special cast iron motor housing. Hard and firm, strong corrosion resistance, not easy to oxidize.
- 【MESH METAL PROTECTIVE NET】It is safer to prevent the fan blades from being damaged after sundries are inhaled into the fan.
- 【EXTENSIVE USE】Our heavy-duty 12 inches industrial blower is highly versatile with high performance, super ideal for air exhausting in factories, warehouse, kitchen, office, workshops, laboratories, etc.
Tags |
Note: in order to meet the different needs of customers, our products do not come with plug, and need to be connected by customers themselves
Description:
CBF series flameproof and explosion-proof axial-flow fans (hereinafter referred to as axial-flow fans) meet the standards and are suitable for factories and enterprises: containing. IIA, lIB, T1-T4 groups of explosive gas or vapor environment, as the ventilation and ventilation of factories and warehouses or to enhance heat dissipation.
Specification:
Model: CBF-300
Rated voltage: AC 110V
Power: 180W
Impeller diameter: 300MM
Spindle speed: 1450RPM
Air volume: 2280m3/h
Cable outer diameter outlet thread: 1/2
Explosion-proof mark: Exdll BT4Gb
Wind pressure: 60
Noise: 62dB
Weight: 10KG
Packing Size: 48x48x35CM
Operation note:(Axial fan can be used reliably in the following environments)
A) not exceeding 2000 m above sea level;
B) operating ambient temperature - generally not lower than - 20C, not higher than + 40C;
C) the relative humidity of the surrounding air is not more than 50% (+ 25C);
D) in the factory with class II B explosive gas environment;
E) no rain, snow and other liquid invading environment;
F) Vertical or parallel to the horizontal surface to prevent tilt and rollover
G) Axial fan should be stored in warehouse with good ventilation system
H) Prevent rain and strong vibration during transportation
Package:
1 x 300mm Explosion-proof Axial Flow Fan

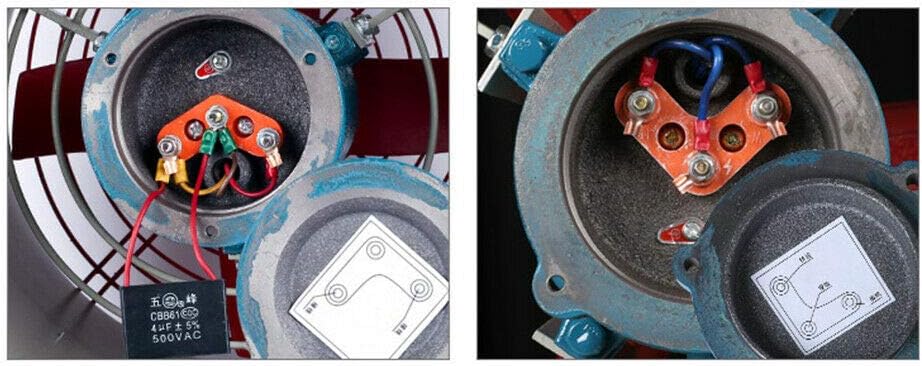

How to connect the wire(As blow picture)
| Main Specification | |
|---|---|
| Room Type | Kitchen or Office |
| Manufacturer | Monipa |
| Noise Level | 62 Decibels |
| Electric fan design | Exhaust Fan |
| Brand | Monipa |
| UPC | 738627825040 |
| Voltage | 110 Volts |
| Wattage | 180 Watts |
| Technical Details | |
| Material | Metal or Iron |
| Material | Iron or Metal |
| Others | |
| Product Type | Electric Fan |
