$ 1,337.33Commercial Garage Door Opener - 3 Button Wall Mount LCE - 3 - Control Station - 3 Button Control Station
9 sold in last 24 hours
- INDUSTRIAL GARAGE DOOR OPENER: LCE-3 Nema 1 OPEN / CLOSE / STOP Three Button Interior Control Station In Traditional Single Gang Box.
- WALL MOUNT GARAGE DOOR OPENER: This is a momentary-contact station, which means the door only moves when the button is pressed and disengages, returning to its initial position, when the button is released.
- BUTTON SWITCH GARAGE DOOR: For garage doors, Gates and any other device up to 110V where open close & Stop functionality is required. Works on any commercial overhead door, garage door opener.
- GARAGE DOOR OPENERS: This control is for indoor use only. Can be surface mounted or mounted in the wall or structure.
- SWITCH WALL MOUNT: Measurements: Faceplate: H=4-1/2", W=2-3/4" Back Box: H=4-1/4", W=2-1/2" Button: 5 amp, 125VAC.

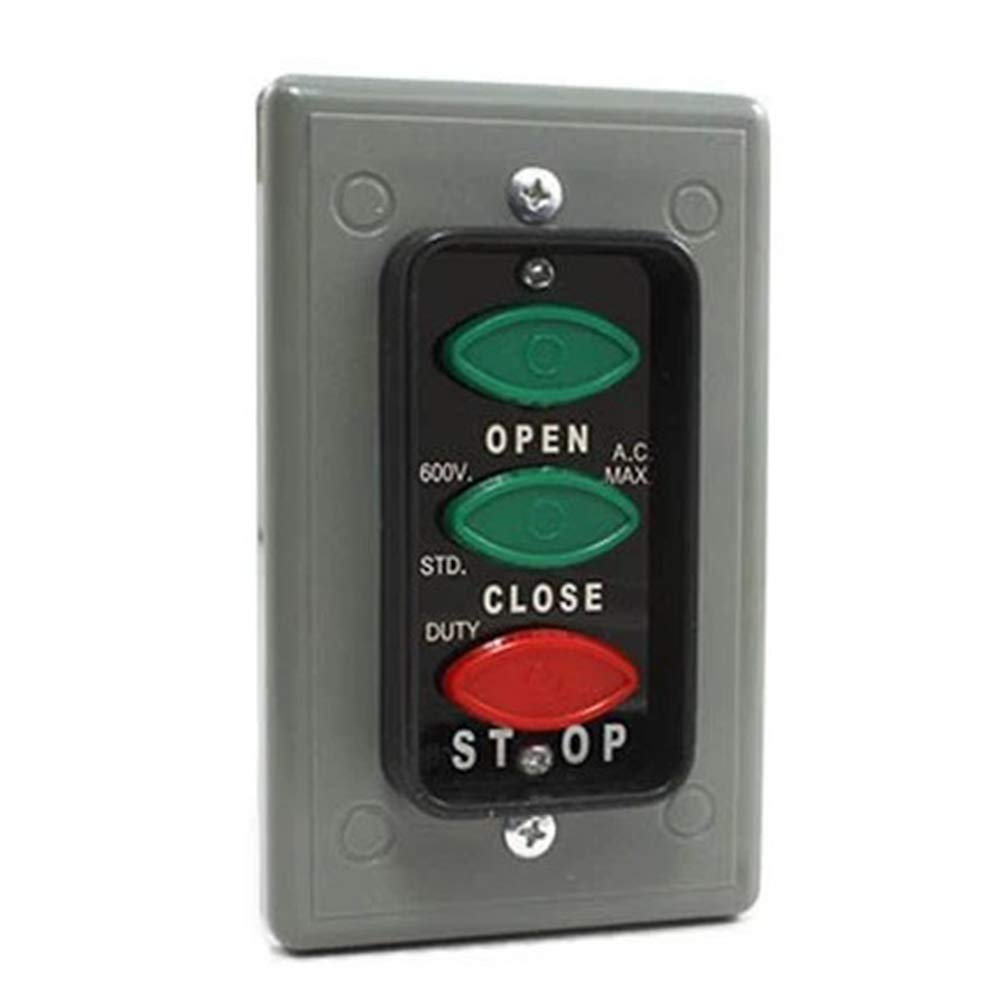

Commercial Garage Door Opener 3 Button Wall Mount LCE- 3 Control Station
3 Button Control Station
Commonly referred to in the garage door industry as LCE-3
For garage doors, Gates and any other device up to 110V where open close & Stop functionality is required.
Typically low voltage wires are ran from the terminals on the opener or device to this control station.
Works on any commercial overhead door, garage door opener.

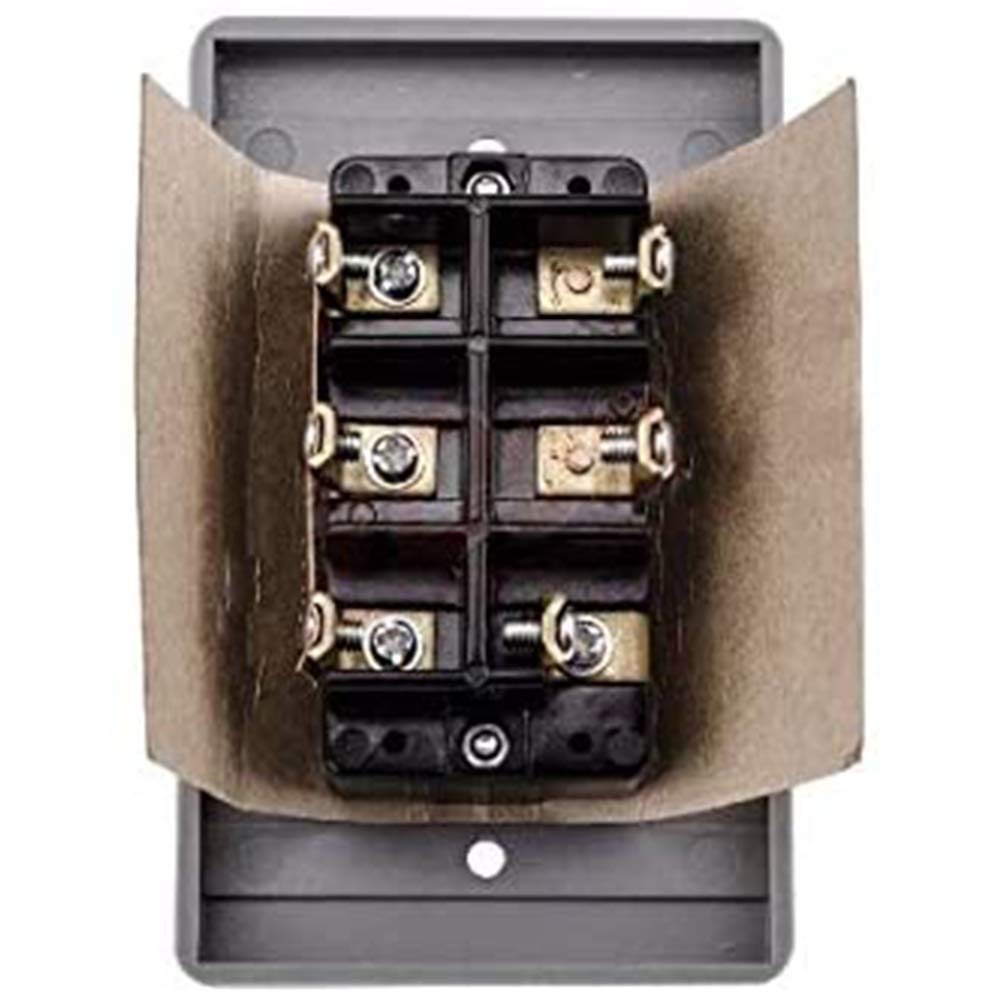

Knockouts on all four sides for wiring and conduit.

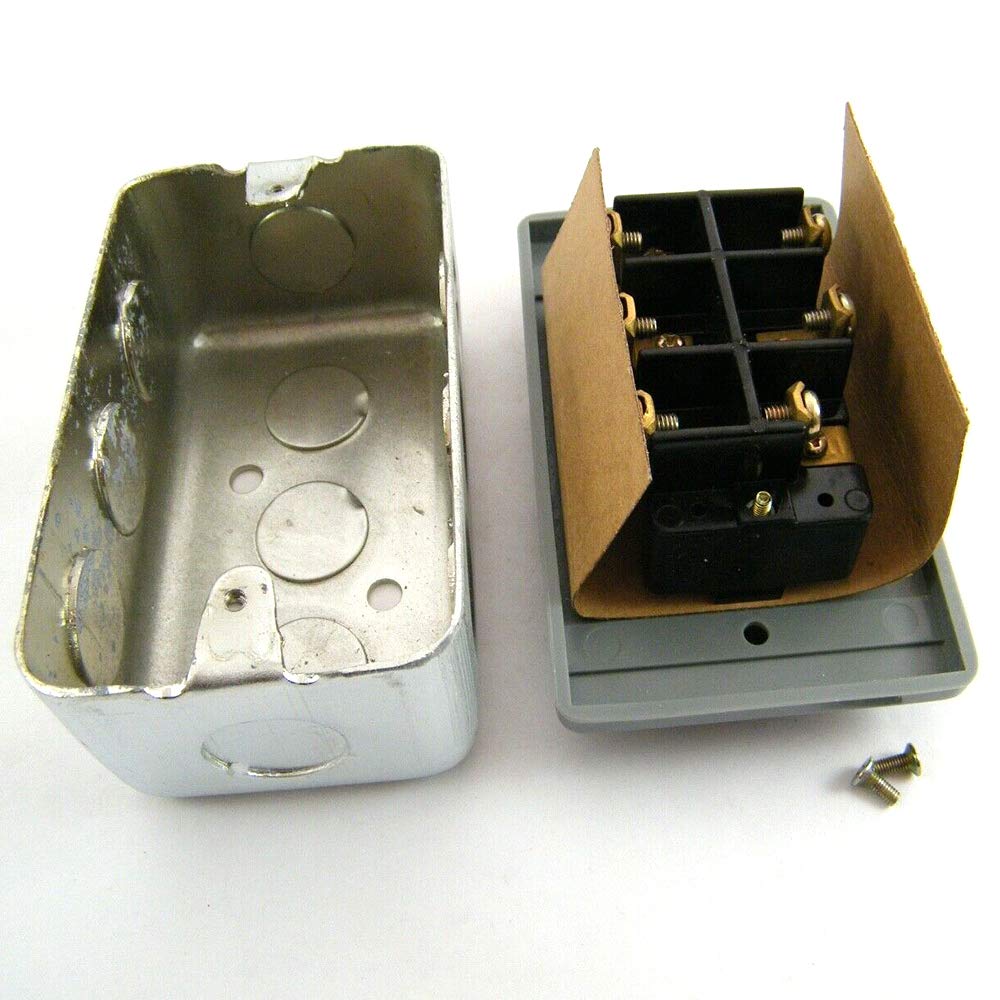

Comes with a standard sized metal electrical box.
Can be surface mounted or mounted in the wall or structure.
This control is for indoor use only.
We carry several other types and styles of control stations.
Many other control stations are available, and we can get any of them to you quickly.

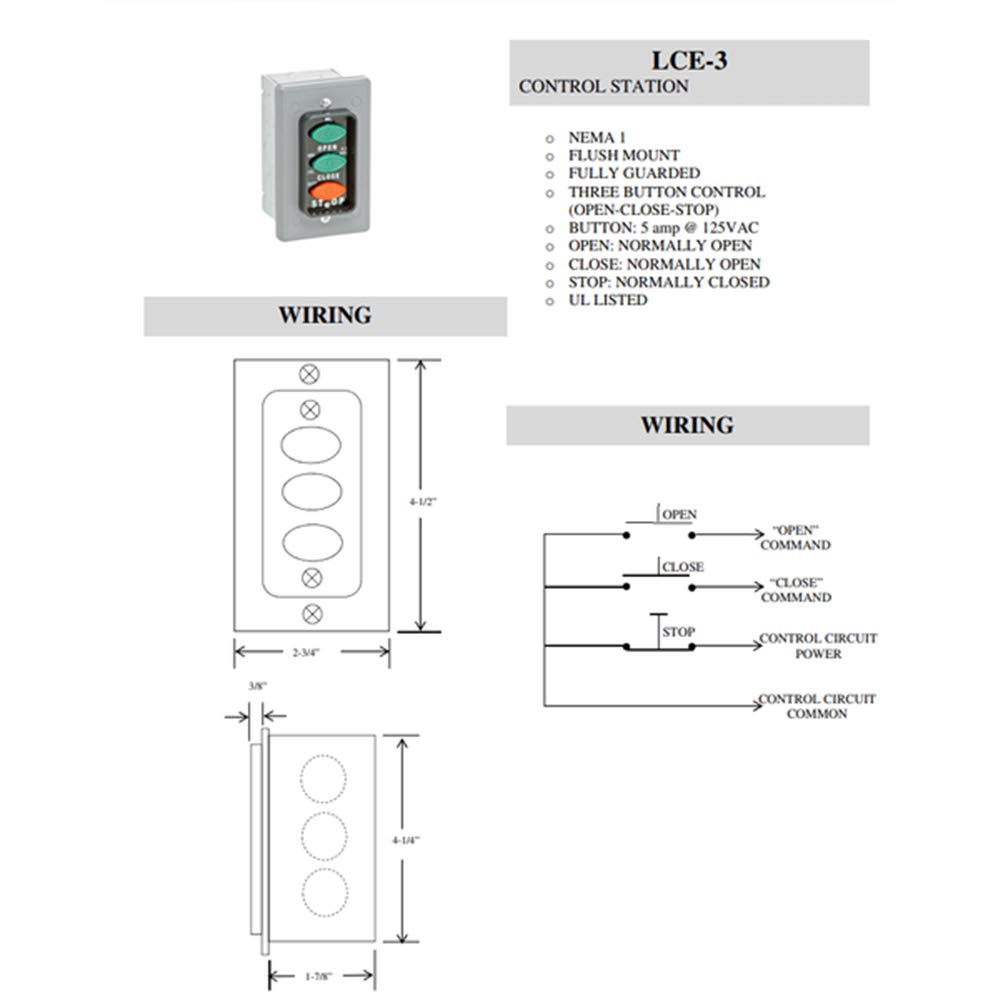

Face measurements:
4-1/2″ High X 2-3/4″ Wide
Button: 5 amp @ 125VAC
Open: Normally Open
Close: Normally Open
Stop: Normally Closed
| Main Specification | |
|---|---|
| Control Method | Push Button |
| Contact Type | Normally Closed |
| Operating Voltage | 110 Volts |
| Terminal | Screw |
| Circuit Type | 3-Way |
| Brand | Granatan |
| Product information | |
| Connector Type | Screw Terminals |
| Technical Details | |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| Wattage | 625 Watts |
| Others | |
| Product Type | Electronic Switch |
