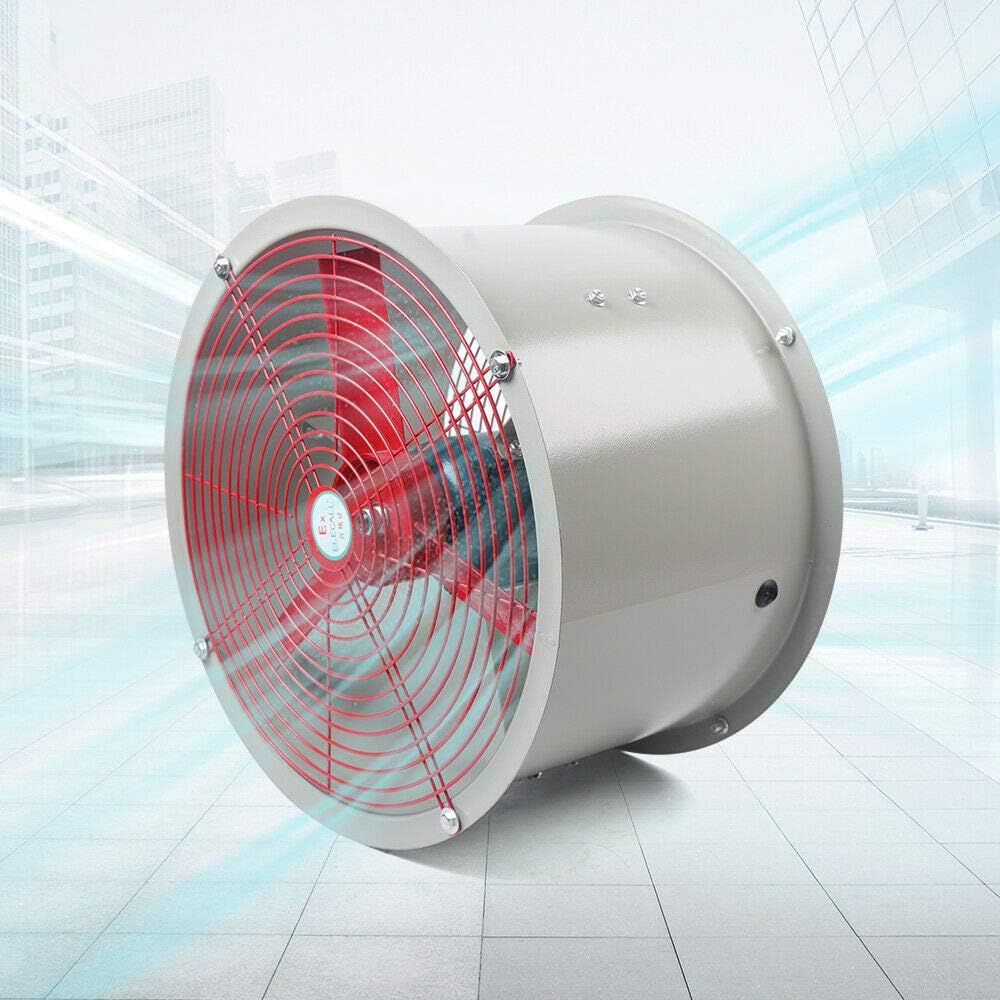

Gdrasuya10 Explosion Proof Axial Flow Fan, Extractor Fan Blower Cylinder Pipe Fan 2880m³/H 1450RPM
7 sold in last 24 hours
- 【Strong Explosion-Proof Motor】Strong explosion-proof motor. Pure copper coil, strong sealing, high-speed operation, enough power to ensure fan blade outflow.
- 【High Quality】Explosion-proof special cast iron motor housing. Hard and firm, strong corrosion resistance, not easy to oxidize.
- 【Mesh Metal Protective Net】Mesh metal protective net. It is safer to prevent the fan blades from being damaged after sundries are inhaled into the fan.
- 【Low Noise】Cast aluminium fan blade design. Smooth operation, large air volume, low noise.
- 【Clear Identification】Product identification is clear. Clear identification of product label, explosion-proof safety sign and safety precautions.
Tags |
Description:
CBF series flameproof and explosion-proof axial-flow fans (hereinafter referred to as axial-flow fans) meet the standards and are suitable for factories and enterprises: containing. IIA, lIB, T1-T4 groups of explosive gas or vapor environment, as the ventilation and ventilation of factories and warehouses or to enhance heat dissipation.
Specification:
Model: CBF-400D
Rated voltage: AC 110V
Power: 370W
Impeller diameter: 400MM
Spindle speed: 1450RPM
Air volume: 2880m3/h
Cable outer diameter outlet thread: 1/2
Explosion-proof mark: Exdll BT4Gb
Wind pressure: 60
Noise: 62dB
Weight: 15KG
Features:
Cast aluminium fan blade design. Smooth operation, large air volume, low noise
Installation with base, more stable operation and more convenient use.
Operation note:(Axial fan can be used reliably in the following environments)
A) not exceeding 2000 m above sea level;
B) operating ambient temperature - generally not lower than - 20C, not higher than + 40C;
C) the relative humidity of the surrounding air is not more than 50% (+ 25C);
D) in the factory with class II B explosive gas environment;
E) no rain, snow and other liquid invading environment;
F) Vertical or parallel to the horizontal surface to prevent tilt and rollover
G) Axial fan should be stored in warehouse with good ventilation system
H) Prevent rain and strong vibration during transportation
Note: in order to meet the different needs of customers, our products do not come with plug, and need to be connected by customers themselves
Package:
1 x Explosion-proof Axial Flow Fan
| Main Specification | |
|---|---|
| Electric fan design | Blower |
| Brand | Gdrasuya10 |
| Product information | |
| Style | Cbf-400d |
| Others | |
| Product Type | Electric Fan |
