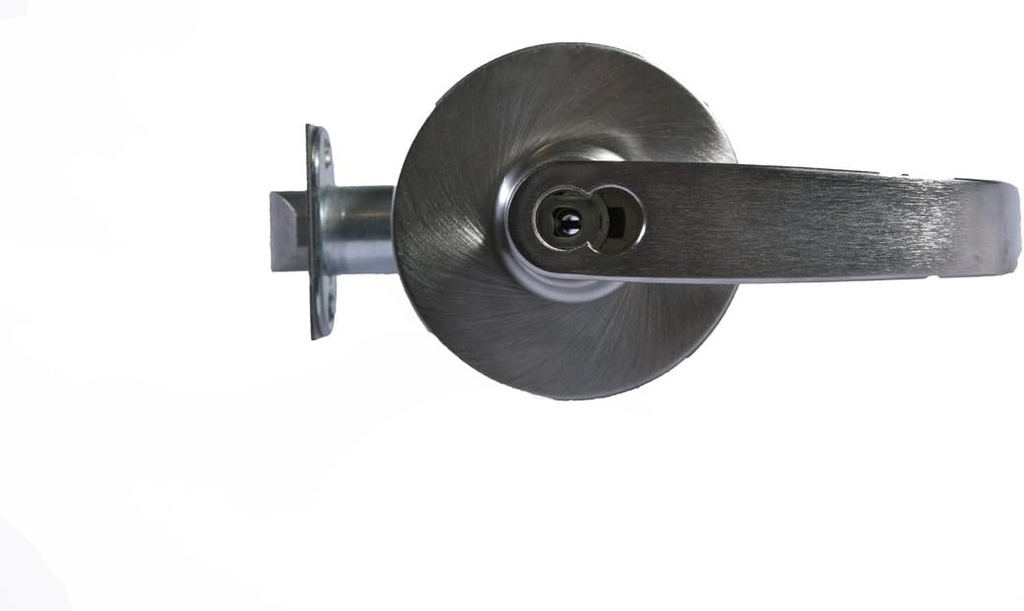

Sargent 10-Line Satin Chrome Grade 1 Storeroom/Closet Cylindrical Lock with Heavy Wrought Rose and Solid Cast Lever, LFIC Prep, 1-3/4" to 2" Door Thickness (Pack of 1)
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever rigid at all times
- Heavy duty commercial and institutional interior and exterior doors
- Designed to conform to national and state fire and handicapped requirements
| Exterior Finish | Stainless Steel, Zinc, Bronze, Brass, Chrome, Nickel |
| Metal Type | Stainless Steel, Zinc, Bronze, Alloy Steel, Brass |
| Unit Count | 1.0 Count |
| Lock Type | Key Lock |
| Handle Material | Stainless Steel |
| Brand | Sargent |
| Number of Items | 1 |
| Item Package Quantity | 1 |
| Package Dimensions | 8.6 X 7.5 X 4.1 Inches |
| Item model number | 2860-10g04 Ll 26d |
| Color | Multicolor |
| Finish | Satin, Chrome Finish |
| Number Of Pieces | 10, 7, 19 |
| Material | Zinc, Stainless, Stainless Steel, Chrome, Nickel, Bronze, Steel, Brass |
| Material | Stainless Steel, Zinc, Brass, Stainless, Chrome, Nickel, Bronze, Steel |
| Item Weight | 3.9 Pounds |
| Part Number | 2860-10g04 Ll 26d |
| Special Features | Heavy Duty |
| Batteries Required? | No |
| Special Feature | Heavy Duty |
| Special Feature | Heavy Duty |
| Manufacturer | Sargent |
| Included Components | Hardware |
| Product Type | Hardware Handle |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
SKU |
BRSWIFYTCAPRCFY5 |
Category |
Tools & Home Improvement , Hardware , Door Hardware & Locks , Door Levers |
Tags |
Sargent single storeroom/closet cylindrical lever lock deadlocking latch. Latch by lever inside or key outside. Outside lever rigid at all times. ANSI F86. Satin chrome finish. Single in swing 3 feet by 7 feet door size for doors 1-3/4-inches thick door adjusts to 2-inches standard, 1-3/8-inches thick door, 1-Option for adapter plates backsets 2-3/4-inches backset with 1-1/8-inches front 2-3/8-inches backset with 1-inches wide front 3-3/4-inches backset with 1-1/8-inches front 5-inches backset with 1-1/8-inches front cylindrical housing steel, zinc dichromate finish front wrought brass, bronze and stainless steel 2-1/4-inches by 1-1/8-inches fixed bevel 2-1/4-inches by 1-inches. Strike wrought brass, bronze and stainless steel 800 curved lip strike - standard 808 curved lip ANSI strike wrought box strike available hand all 10 line locks are non-handed except for the G and Y levers roses heavy wrought brass and bronze latch stainless steel 1/2-inches throw Brass 3/4-inches throw for pairs of doors, cylinder brass, 6 pin, LA keyway standard keys two, nickel silver masterkeying can be master keyed or grand master keyed Construction key systems. ANSI/BHMA certified ANSI A156. 2-Series 4000 - Grade 1, UL listed to USA and Canadian safety standards listed for 3 hour doors. Positive pressure meets UL 10C and UBC 7-2 ADA All levers conform to ADA requirement for barrier-free accessibility California code levers conform to California administrative code title 19 and 24 Hurricane code all individual components of a total door opening are required to comply for specific code compliance listings for both the lock hardware and other door components. Strike #808. 7 year limited warranty no service required to maintain warranty. Fits a variety of door preparations with adaptable through-bolt positioning. 6 ADA lever styles to complement a wide array of design applications. Designed to conform to national and state fire and handicapped requirements.
