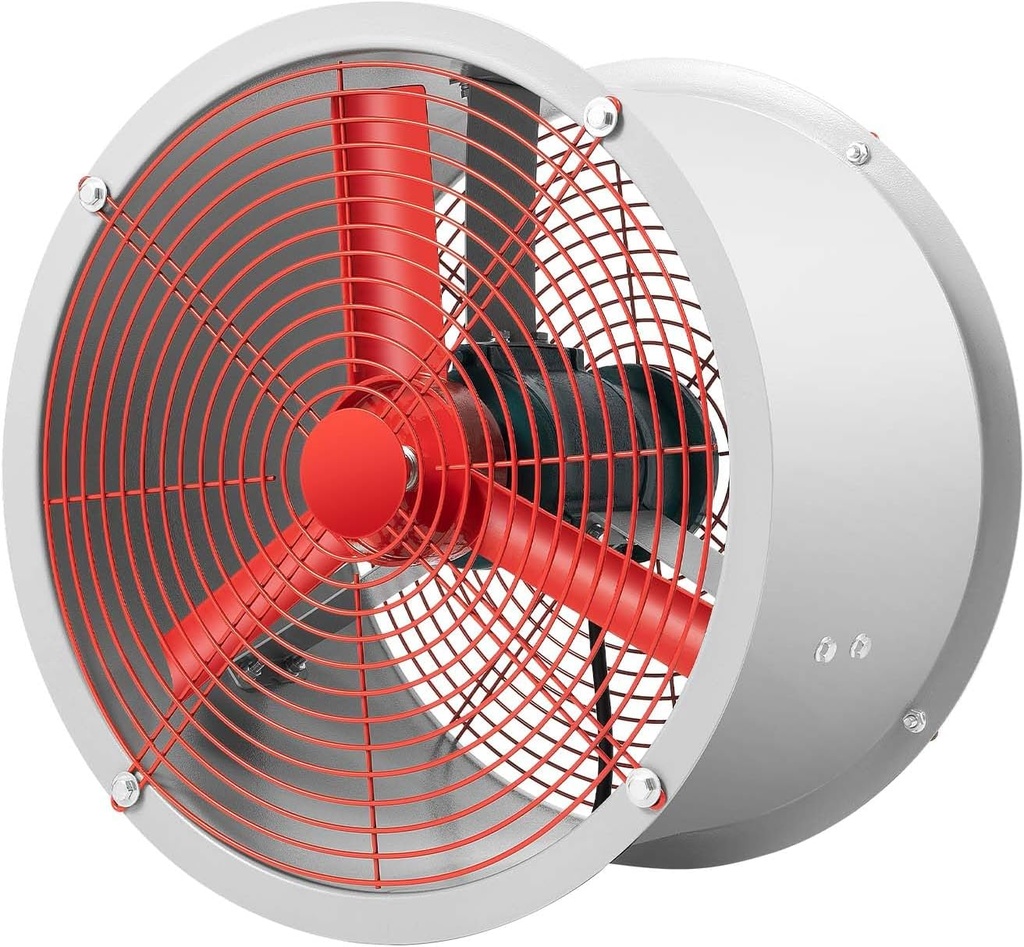

Explosion Proof Fan, 16 Inch Utility Blower Fan, Axial Fan Cylinder Pipe Explosion-proof Spray Booth Paint Fumes Exhaust Fan, 250W 1450 RPM High Velocity Ventilator Fume Extractor
15 sold in last 24 hours
- Durable & Sturdy: The carbon steel shell combined with integrated molding and electrostatic spray, the cast iron motor's shell, and the aluminum blades make this product more corrosion-resistant and wear-resistant, providing good long-term performance
- High Working Efficiency: It boasts a power of 250w, a rotation speed of 1450rpm, a wind pressure of 74pa, and an air volume of 2880m³/h, which can effectively blow harmful gases away with strong wind power, maintaining a fresh and safe working environment
- Compact Design: It measures 17.91*11.02 inches (D*H) with lower space requirements, which can be installed on the wall or inside of the ventilation duct without taking up much floor space
- Stable Operation: The ball bearings, silicon steel sheet stator and rotor, and pure copper motor can reduce friction and temperature during use, ensuring stable operation and reducing overheating and load resistance
- Safer to Use: The explosion-prevention mark of ExdⅡBT4Gb and protective meshes on both ends can ensure safety in flammable and explosive environments and prevent debris from being sucked into the fan
- Low Noise: The excellent pure copper motor ensures sufficient wind power without producing too much annoying noise (75dB), creating a relatively quiet environment while protecting your hearing
- Multifunctional: The three large blades and ultra-large wide-angle outlet can quickly circulate air to achieve the functions of ventilation, dust removal, and room temperature regulation
Tags |
Details
Widened Edge: Not only is it easy to fix the protective meshes, but it also provides the point of application of force to move
Standard Thread Size: The standard 1/2'' cable outer diameter outlet thread size makes the whole product easier to install
Motor Supports: The three support sheets form a stable triangle to lift the motor steadily
Application
It is suitable for environments with IIA, IIB, IIC, and T1-T4 types of explosive gas or steam. Also, it can be used for ventilating or dissipating heat in metallurgy factories, kiln factories, canteens, shopping malls, tunnels, warehouses, kitchens, laboratories, machine shops, pharmaceutical plants, etc.
Specification
Color: Grey, Red
Material: Carbon Steel, Cast Iron, Aluminum
Treatment: Integrated Molding, Electrostatic Spray
Motor Type: Pure Copper
Mounting Type: Wall, Ventilation Duct Internal
Noise: 75dB
Voltage: 110V
Power: 250W
Rotation Speed: 1450rpm
Air Volume: 2880m³/h
Wind Pressure: 74pa
Number of Fan Blades: 3
Cable Outer Diameter Outlet Thread Size: 1/2''
Explosion-prevention Mark: Exdll BT4Gb
Edge Width: 2.5cm/0.98inch
Gross Weight: 12.7kg/28lbs
Net Weight: 11.4kg/25.13lbs
Product Size (D*H): 45.5*28cm/17.91*11.02inch
Package Size: 46*47*32cm/18.11*18.5*12.6inch
Package Included
1*Explosion-prevention Exhaust Fan
1*Chinese Manual
Notes
1.It should be used in conditions with -20-40 centigrade ambient temperature, less than or equal to 50 percent humidity, and less than 2000 meters altitude.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
| Main Specification | |
|---|---|
| Electric fan design | Exhaust Fan |
| Product information | |
| Product Dimensions | 17.19"D X 17.19"W X 11.02"H |
| Item model number | Qq#2136 |
| Technical Details | |
| Color | Red or Grey |
| Size | Large |
| Special Feature | Durable |
| Power Source | Electric |
| Item details | |
| Recommended Uses For Product | Ventilating or Exhausting |
| Model Name | Explosion Proof Fan |
| Room Type | Garage |
| Others | |
| Brand | Kumoyou |
| Product Type | Electric Fan |
