Universal Garage Door Lock Kit with Spring Latch and Keyed Handle for Single/Double Garage Door 7' - 18' Wide
11 sold in last 24 hours
- DURABLE CONSTRUCTION: Our grarage lock kit are made of high quality steel, ensuring durability for your daily use.
- HIGH COMPATIBILITY: Our garage lock with T-Handles are suitable for single and double car door size: 7' - 18' Width. Fits garage doors with a thickness ranging from 1-3/8" to 2"
- TOP SECURITY PROTECTION: Designed for manual locking and unlocking of garage doors with Keys.Including 2 keys(1 spare) in case of loss. Besides, the internal release lever allows for easy exit, preventing accidental "locked-in".
- EASY INSTALLATION: Our garage lock are easy to install. You can easily install it by replacing the older components. If not for replacement, you need drill the holes and install according to the attached instructions.
- PACKAGE INCLUDES: Installation Instruction, two 9-foot security cables, lock cylinder with t-handle, internal release lever, spring latches, striker plates, screws and fasteners that needed.
Tags |
Features
Crafted from high-quality steel and built for strength, reliability, ensuring your daily using.
Suitable for single and double car door size: 7' - 18' Width
Fits door thickness ranging from 1-3/8" to 2"
Diameter of the steel cable:3.2mm
2 Keys (1 spare) prevent being locked outside.
If locked in, you can turn the internal release lever to open the door.

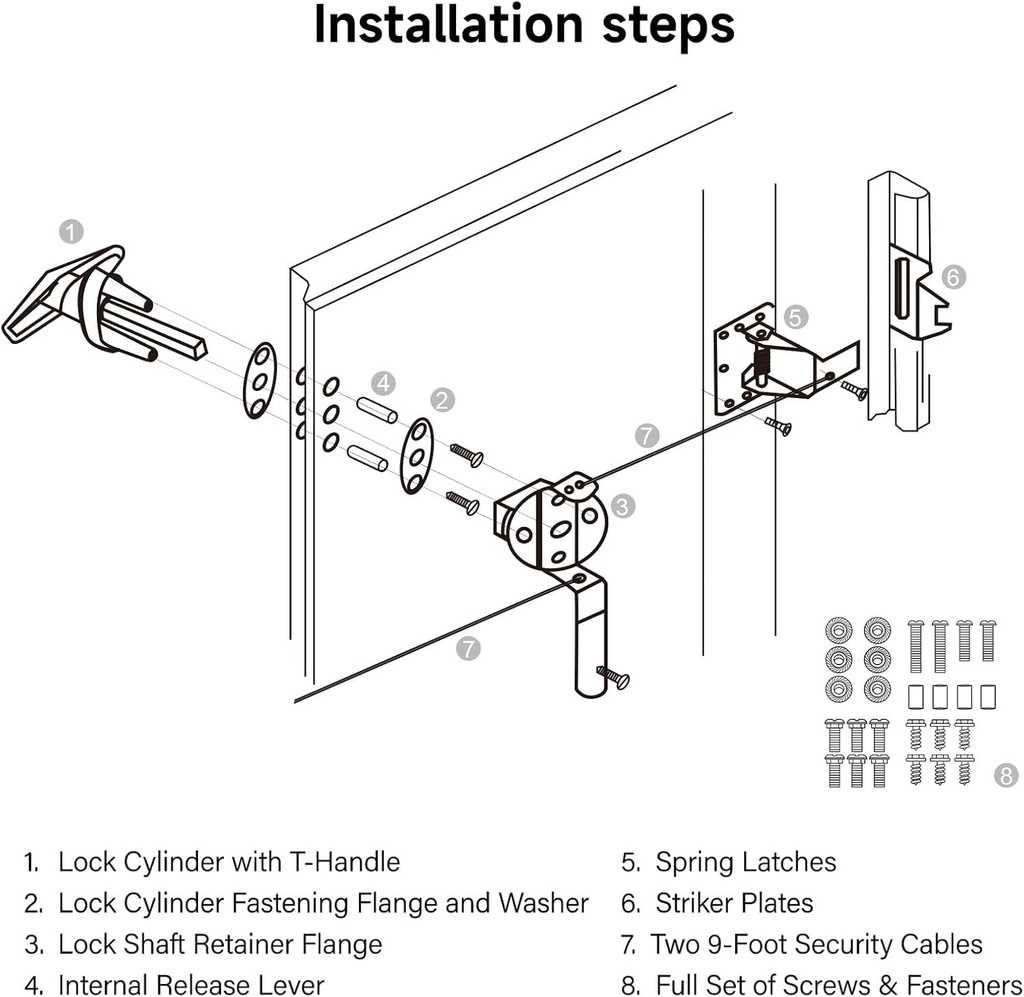

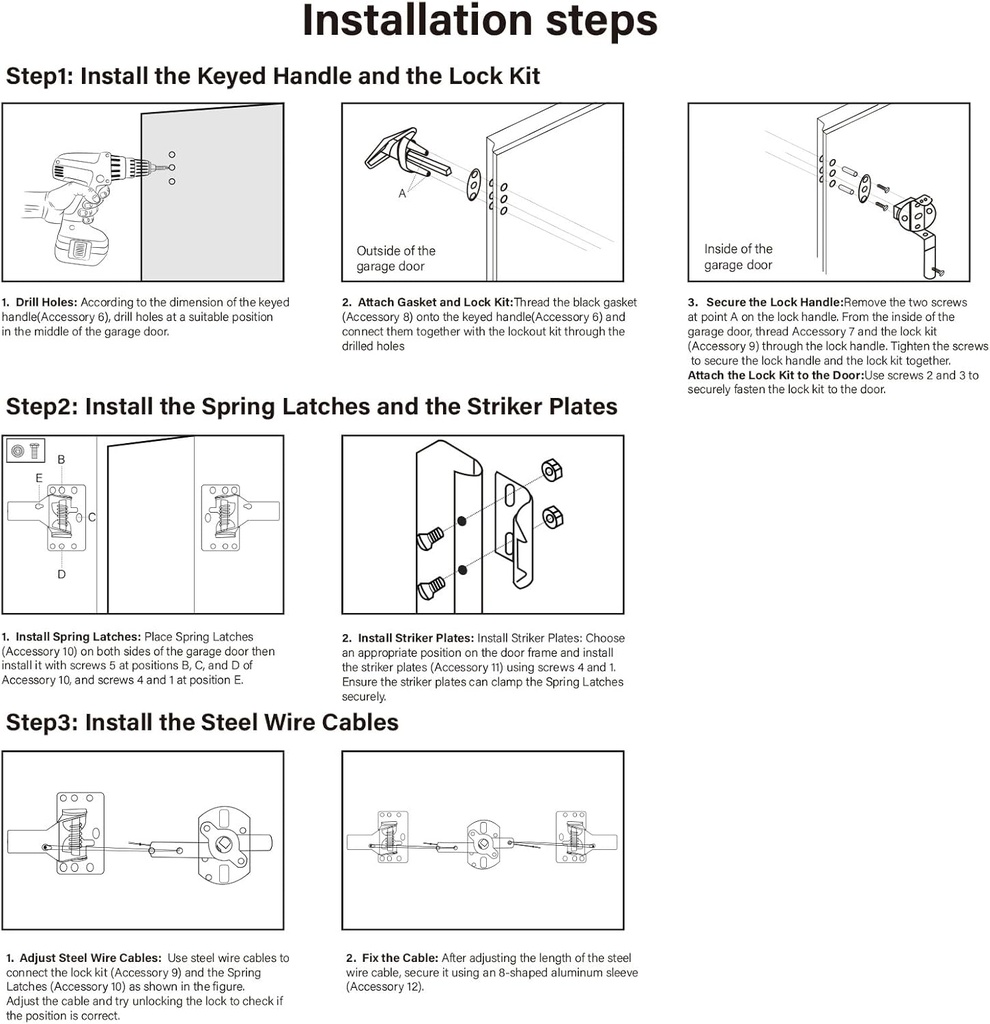

Installation: Need drill two 1/3" holes spaced 1-1/2" apart at the appropriate positions on the door. Then Drill an additional 7/16" hole centered between the two previous holes.

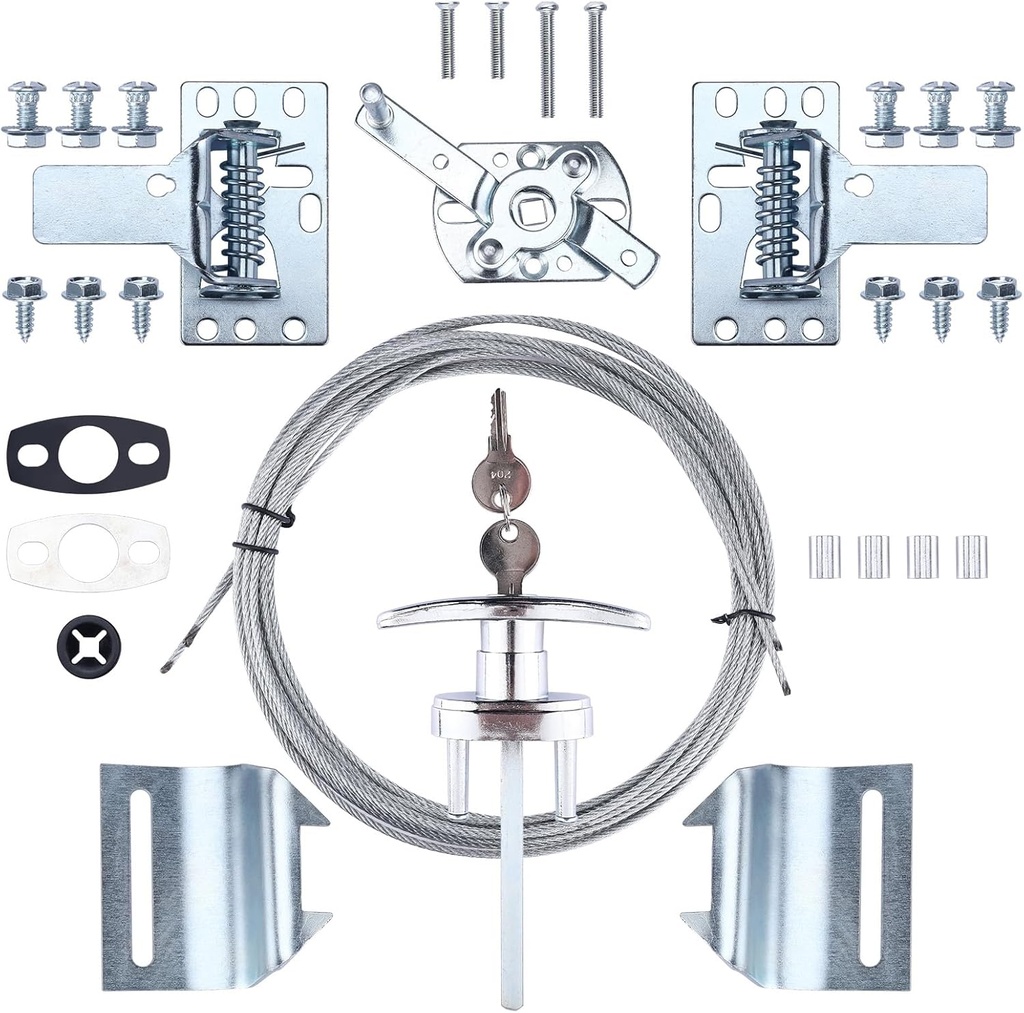

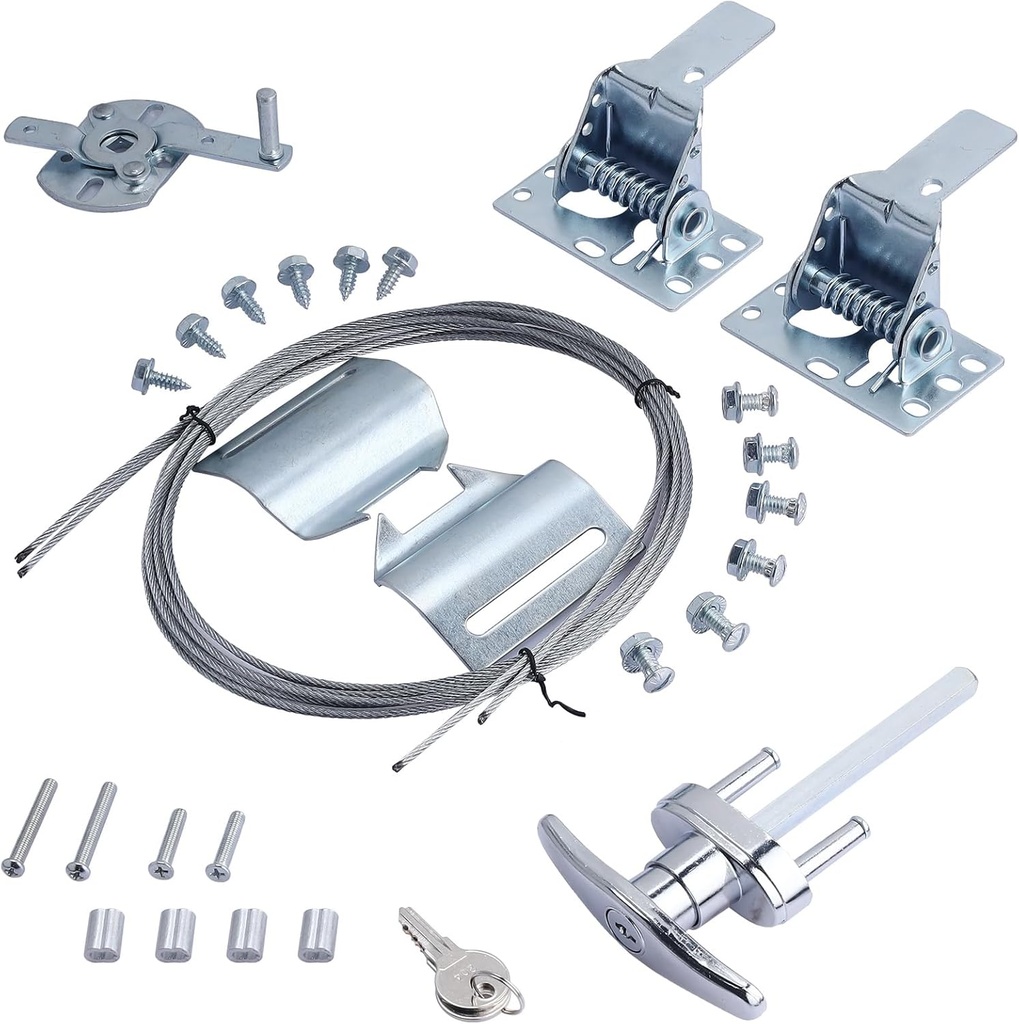

Package Includes
2x 9-Foot Security Cables

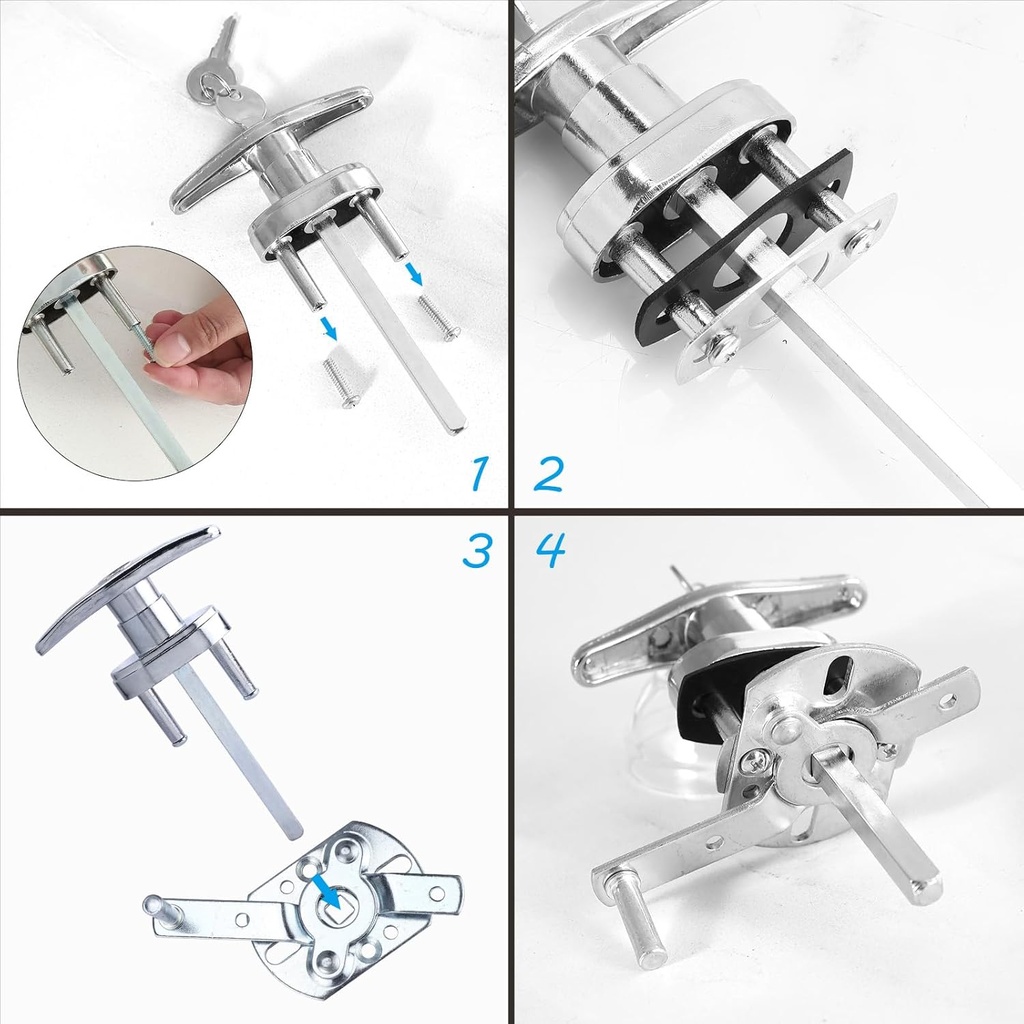

1x Lock Cylinder with T-Handle
1x Internal Release Lever
1x Lock Cylinder Fastening Flange and Washer
1x Lock Shaft Retainer Flange

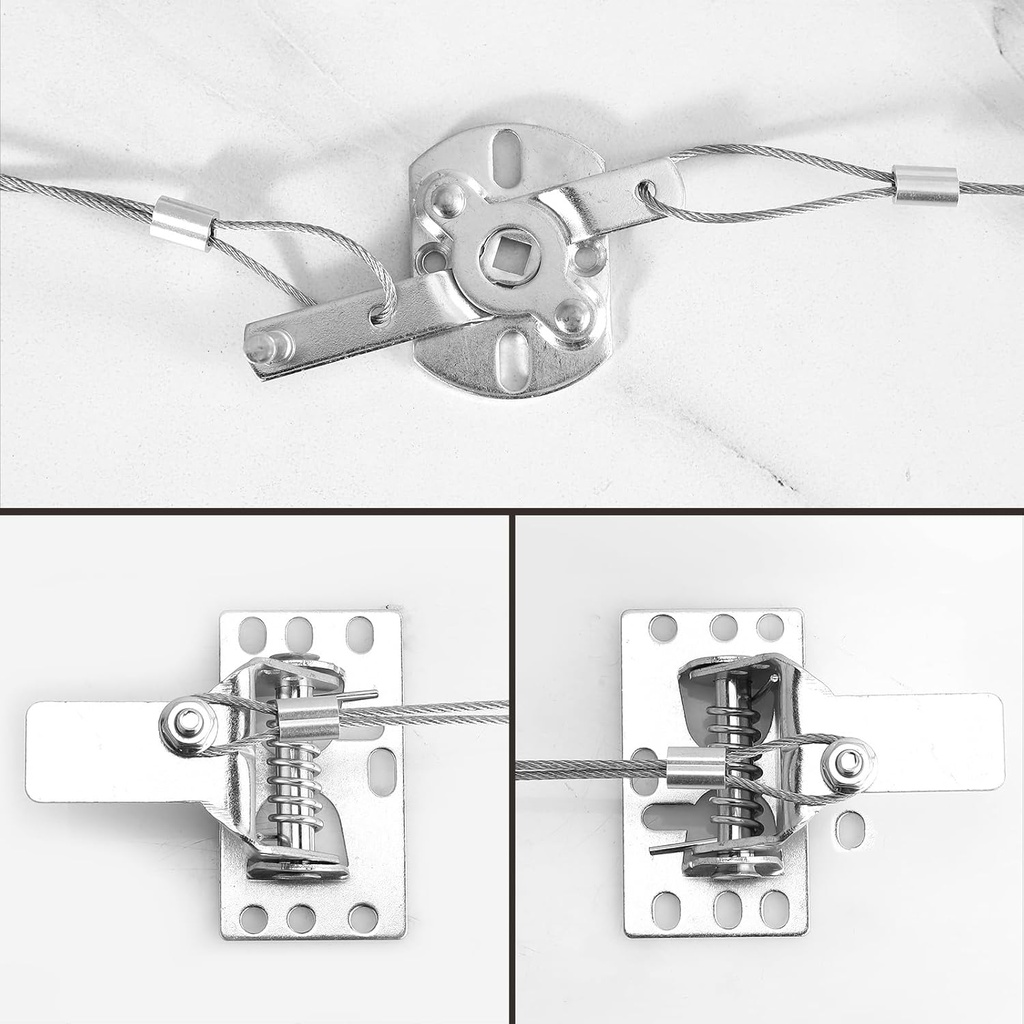

2x Spring Latches
2x Striker Plates
16x Screws
4x 8-Shaped Aluminum Wire Rope Sleeve
Technical Details
| Brand | Patioer |
|---|---|
| Special Feature | Key Lock |
| Lock Type | Key Lock |
| Item dimensions L x W x H | 6 x 4 x 2 inches |
| Style | Modern |
| Color | Silver |
| Number of Pieces | 1 |
| Included Components | Screws, Keys |
| Item Weight | 1.18 Kilograms, 2.6 pounds |
| Model Name | Garage door lock kit |
| Manufacturer | Southmanage Trading Co.,Ltd |
| Product Dimensions | 6 x 4 x 2 inches |
| Item model number | S-1521 |
| Item Package Quantity | 1 |
| Special Features | Key Lock |
| Batteries Included? | No |
| Batteries Required? | No |
| Main Specification | |
|---|---|
| Lock Type | Key Lock |
| Item dimensions L x W x H | 6 X 4 X 2 Inches |
| Brand | Patioer |
| Style | Modern |
| Special Feature | Key Lock |
| Others | |
| Product Type | Lock |
