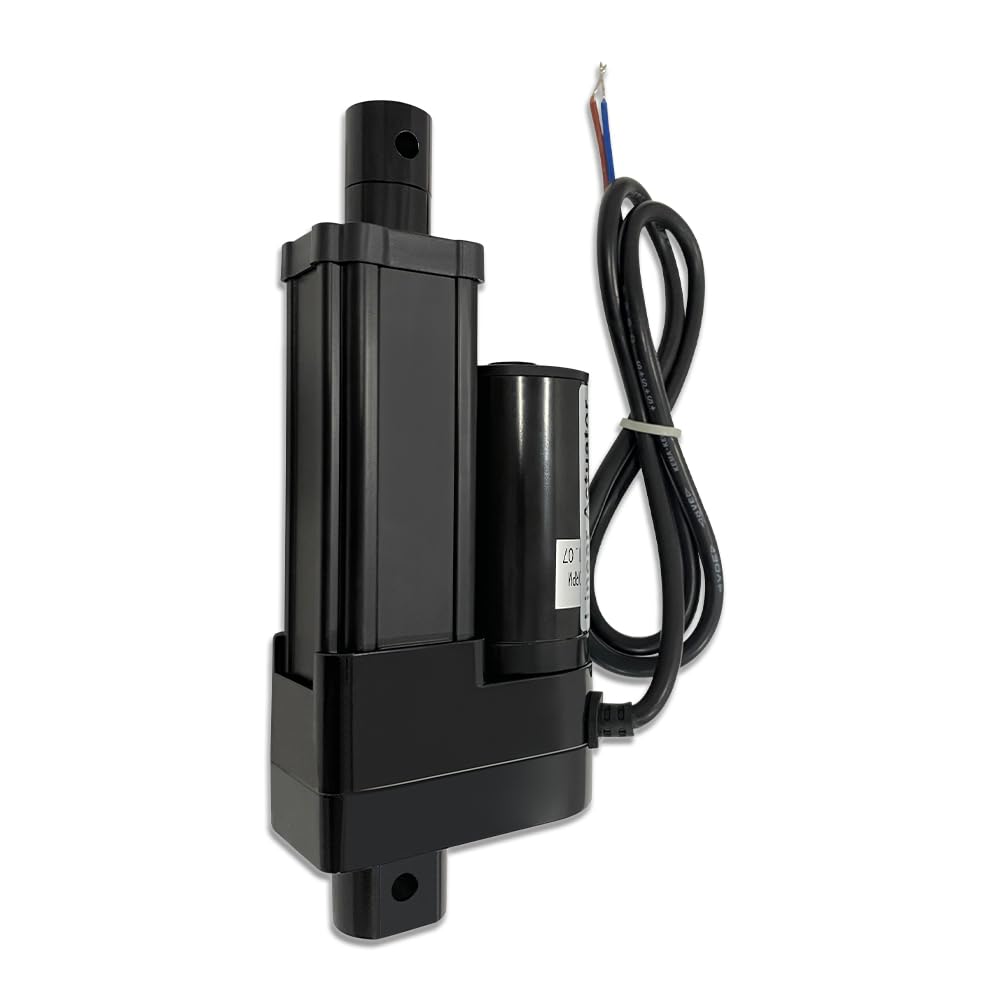

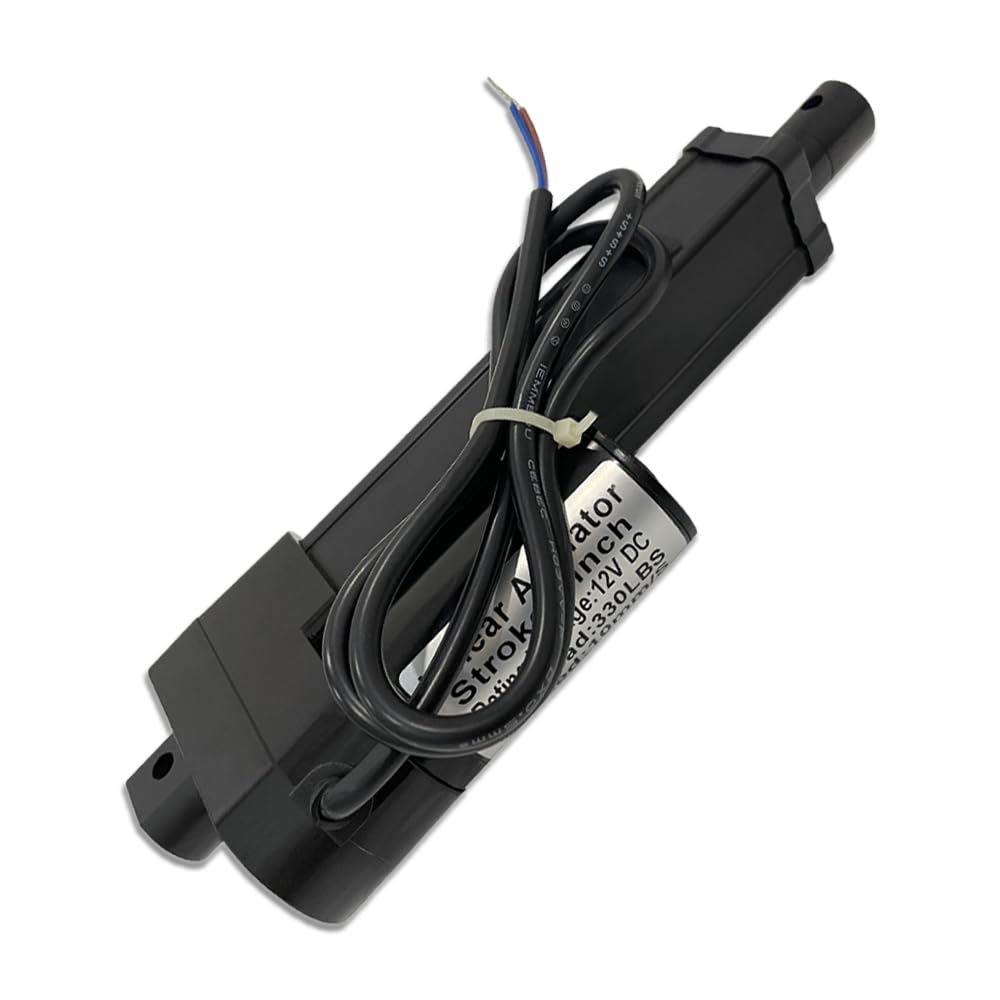

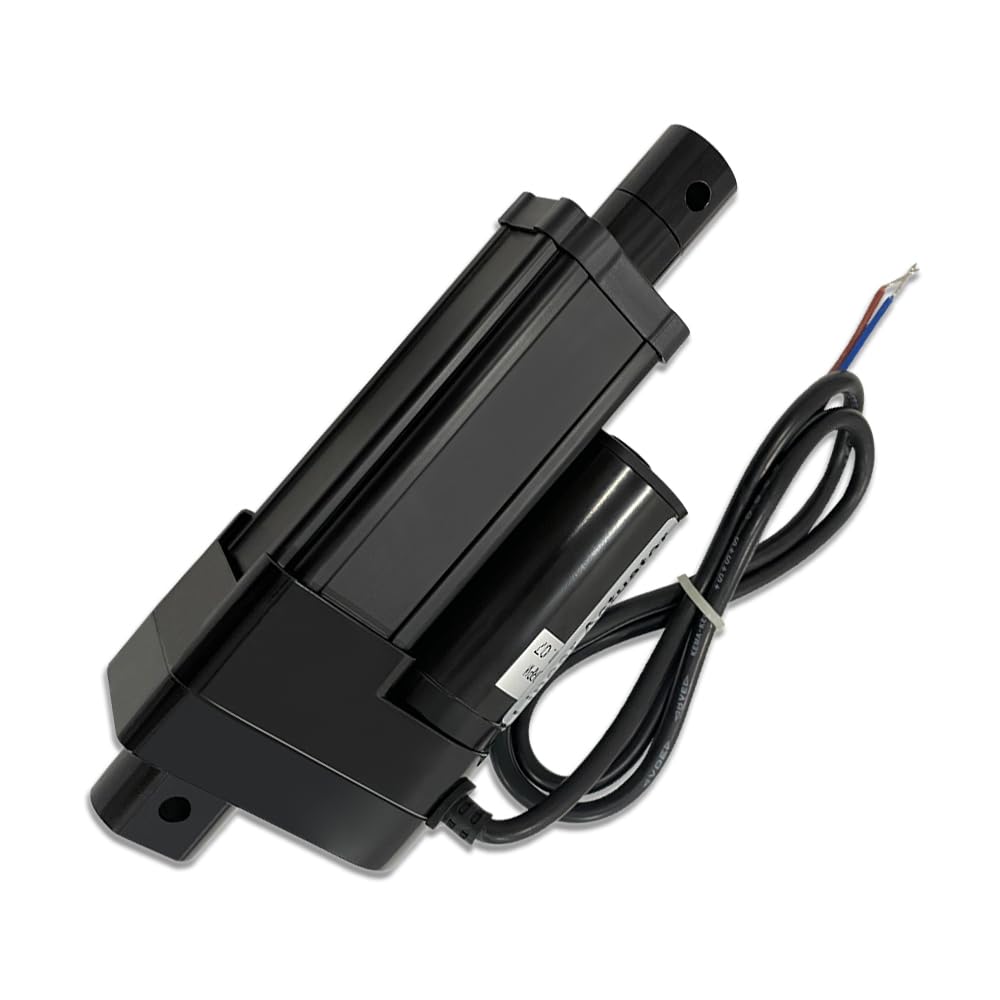

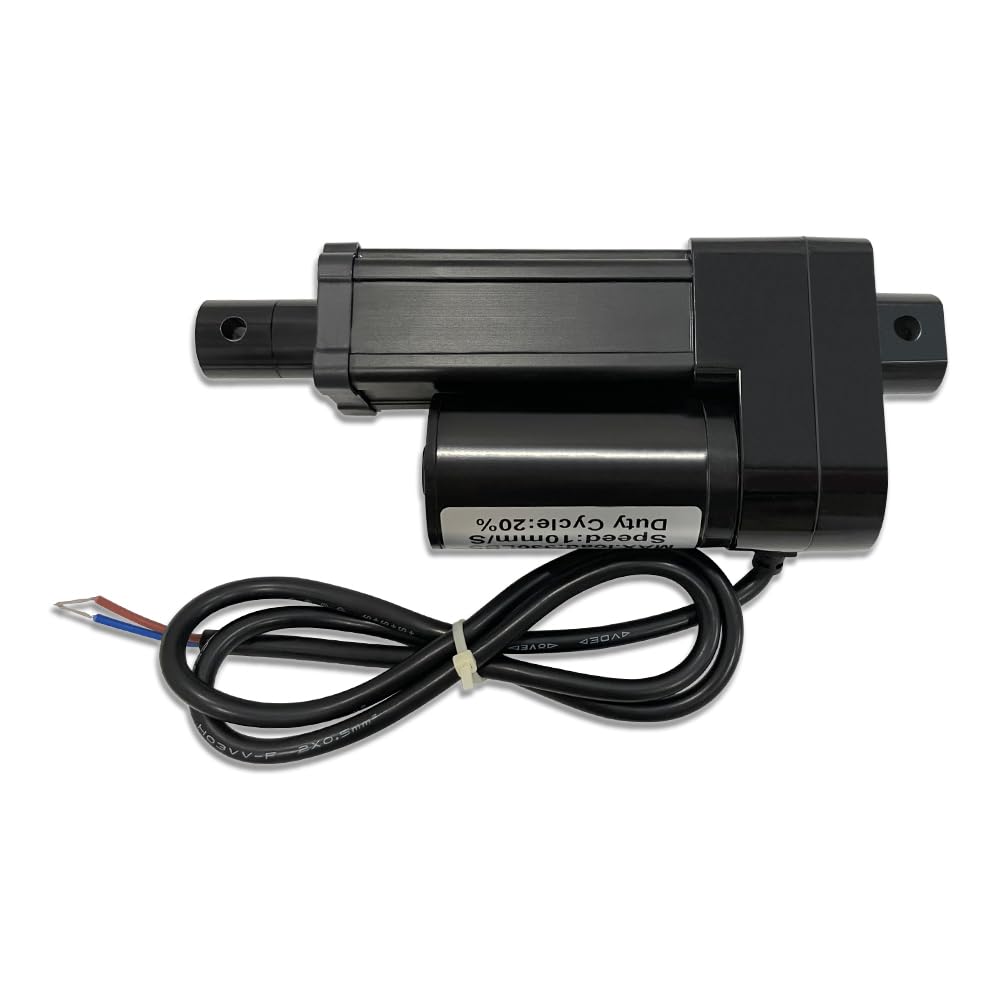

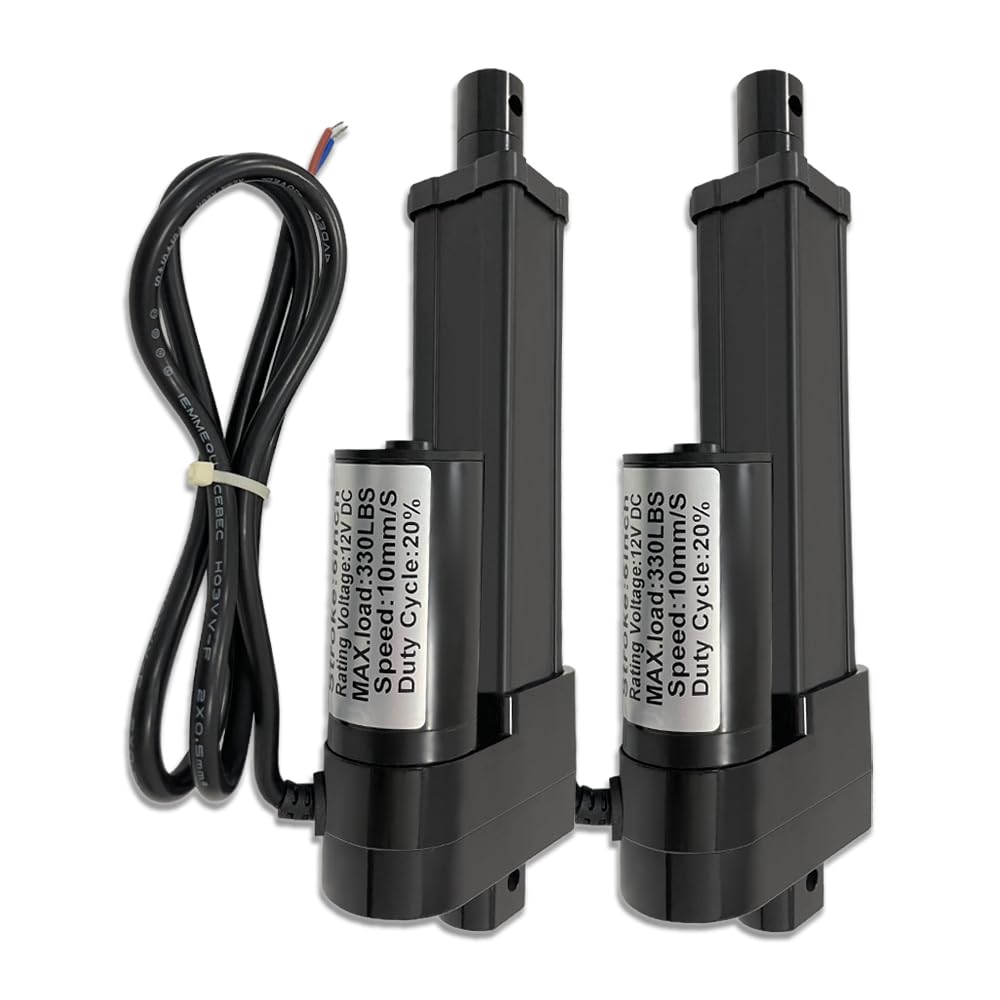

2" (50mm) Stroke 12V Silent Electric Linear Actuator Black
- Stroke length: 2" (50mm), retracted length: 6" (150mm), extended length: 8" (205mm).
- Maximum dynamic load capacity of 330lbs (1500N).

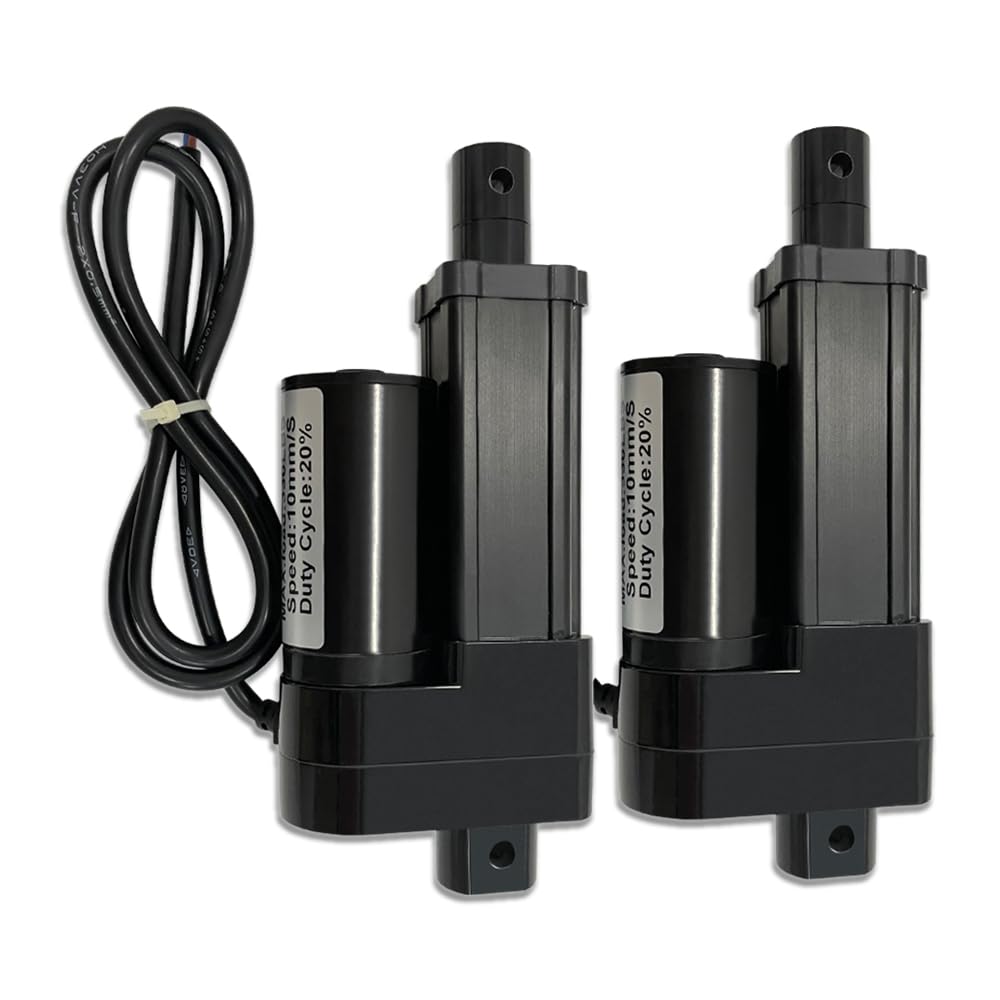

- Travel speed of 10mm/s with a 20% duty cycle, providing efficient and consistent performance.

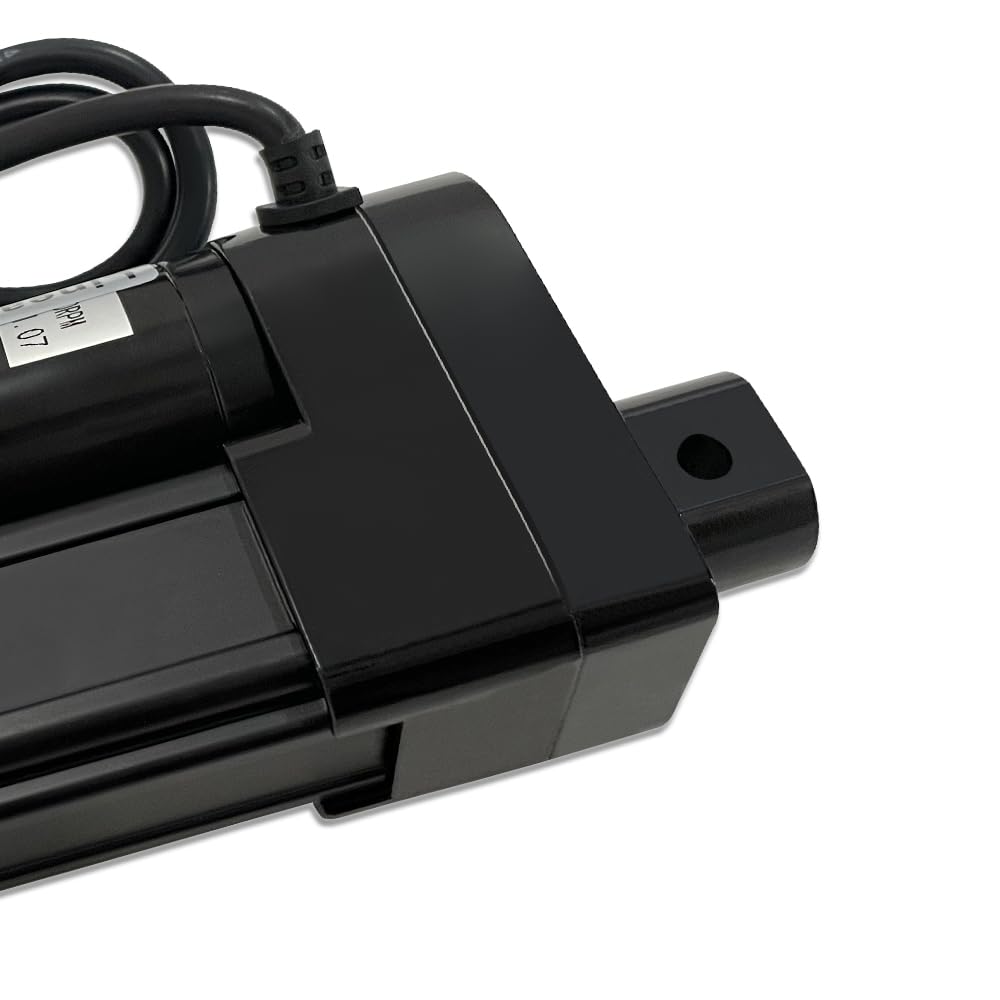

- Diameter of mounting hole: 0.236" (6mm), diameter of shaft: 0.79" (20mm).
- Quiet operation with 35~40 dB noise level.
| Manufacturer | Aflle Racing |
| Brand | Aflle Racing |
| Item Weight | 2.09 pounds |
| Package Dimensions | 8.82 x 3.54 x 2.13 inches |
| Item model number | N8596-Z00050 |
| Date First Available | 2025, February 22 |
| Product Type | Linear Motion Actuators |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRAC32C57BSHTH |
Category |
Power Transmission Products , Linear Motion Products , Linear Motion Actuators |
Tags |
Estimated shipping
Select a product to estimate shipping.Fitment:
Universal
Features:
Made from durable aluminum alloy, ensuring sturdiness and long-lasting performance.
Operating at a noise level of just 35~40 dB. Operating Temperature: -20°C~75°C.
Features a 0.79" (20mm) diameter shaft and 0.236" (6mm) mounting holes for easy installation.
It delivers a maximum dynamic load capacity of 330lbs (1500N) and a travel speed of 10mm/s.
No-load current: 0.5A, max load current: 2.5A.
Features a pre-installed limit switch to stop the actuator at the end of its stroke automatically.
IP55-Rated making it suitable for various weather conditions, ensuring durability and longevity.
How to install the Linear Actuator?

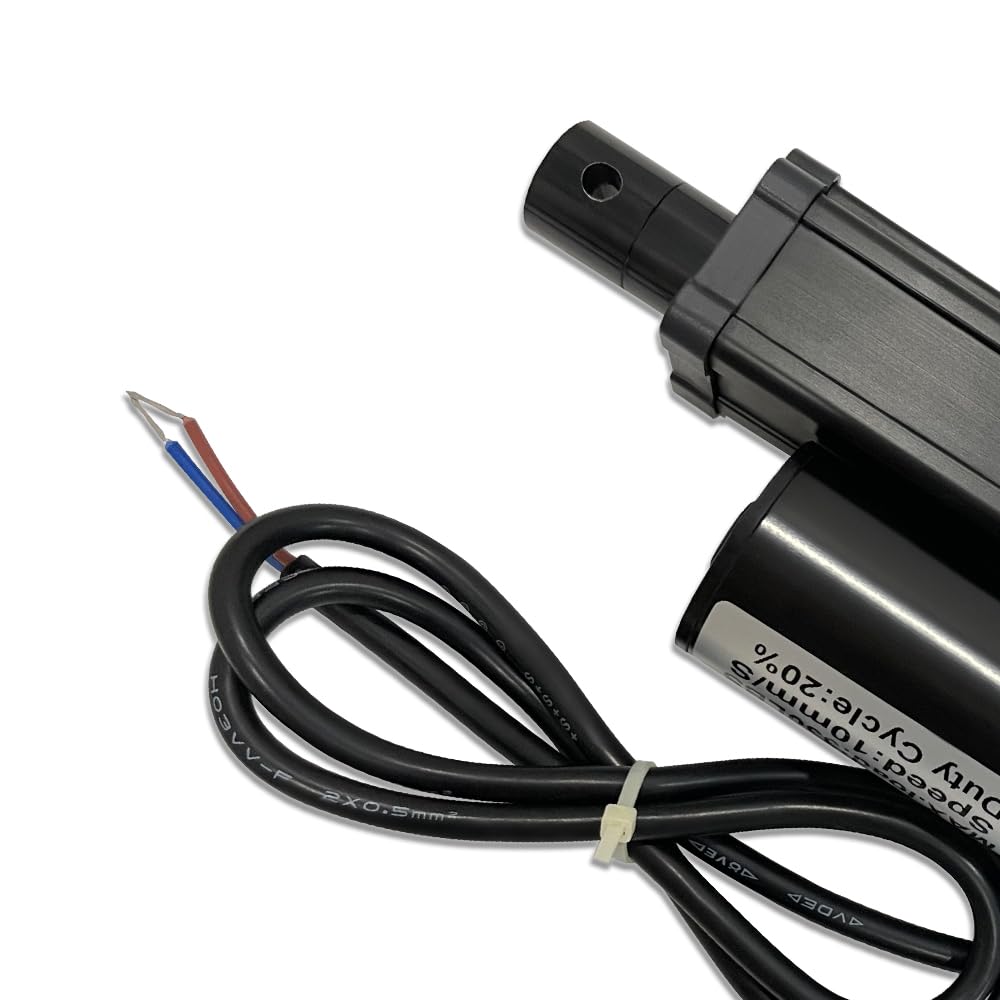

● Attach the blue wire to the positive terminal and the red wire to the negative terminal of a 12V battery to make the actuator extend. To retract the actuator, simply reverse the connections (blue to negative, red to positive).
● For easier operation, you can install a reverse polarity relay or switch. This allows you to extend or retract the actuator by simply pressing the switch, eliminating the need to manually swap wires.
● The actuator will hold its position when power is disconnected. It will automatically stop when it reaches the end of its stroke.
● The actuator comes with pre-installed internal limit switches, which are fixed and cannot be adjusted.
