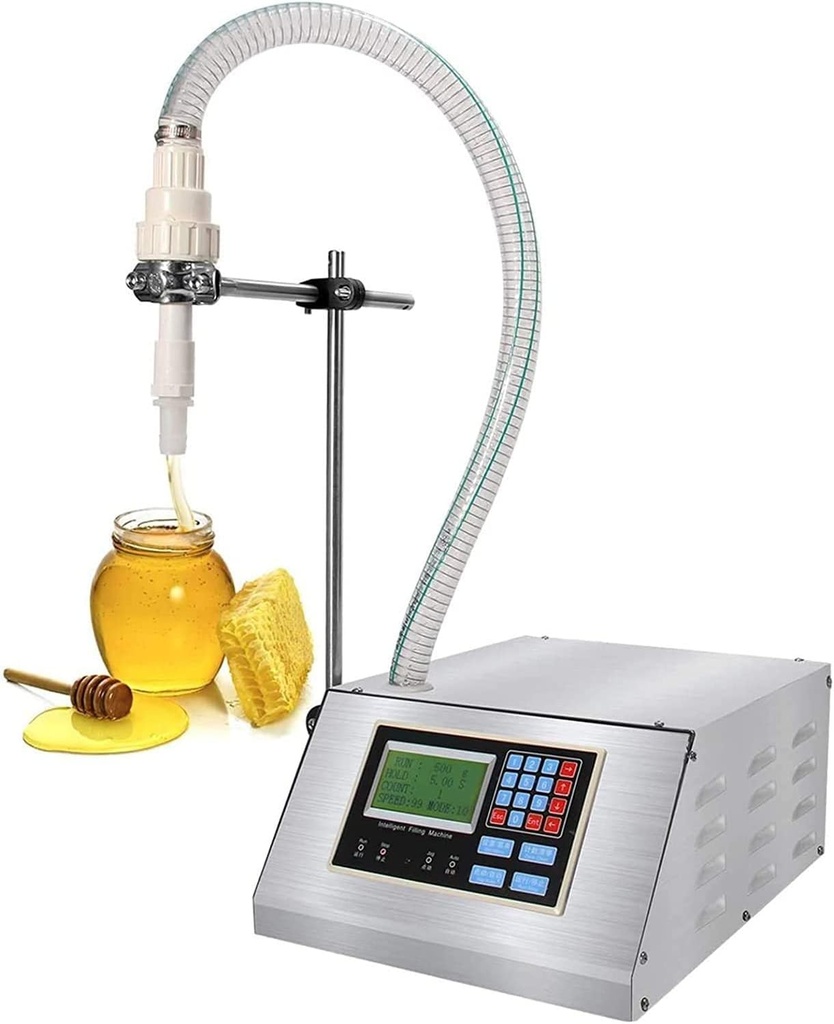

Liquid Filling Machine 17L Bottle Filler Machine Electric Digital Control Diaphragm Pump with Anti-drip Nozzle&Food-Grade Silicone Tube for Perfume/Essential Oil/Juice
4 sold in last 24 hours
- 【Easy to operate】The automatic liquid filling machine only needs to input the required filling weight/volume, and the machine can perform accurate filling work. A certain amount can be achieved without adjusting the flow and time.
- 【Fully Automatic Diaphragm Pump】The liquid filling machine is suitable for filling ordinary liquids and viscous liquids. Oil resistance, heat resistance, weak acid resistance, weak alkali resistance. When filling viscous liquids, do not install filter fittings in the pipeline and make sure that there are no other particles in the liquid that may cause the pump to block.
- 【Filling machine parameters】: Ordinary liquid filling (water, wine, milk, soybean milk, soup, etc.): 17L/min; viscous filling (vegetable oil, yogurt, detergent, shower gel, washing powder, shampoo, honey , color paste): about 7 liters/minute.
- 【Filling】This electric liquid filling machine uses a diaphragm pump. Filling range: 0.5-999.99kg (water: 0.05-999.99L), counting range: 1-99999, filling accuracy: ±1% (with deviation correction function).
- 【Honey Filling Requirements】: ≤39°Bé (Baume degree). Filling speed: 5 kg/min. The blisters will disappear after a few hours.
Tags |
Specification:
Liquid temperature: ≤60°
Liquid type: non-corrosive
Filling range: 0.5-999.99kg (0.05-999.99L for water)
Counting range: 1-99999
Filling speed: ordinary liquid 17L/min (adjustable), 7L/minimum viscous liquid
Filling accuracy: ±1% (with deviation correction function)
Tube length: 2m
Power: 210W
Outlet pipe: φ25mm (diameter) 0.6m (length)
Suction pipe: φ25mm (diameter) 2.0m (length)

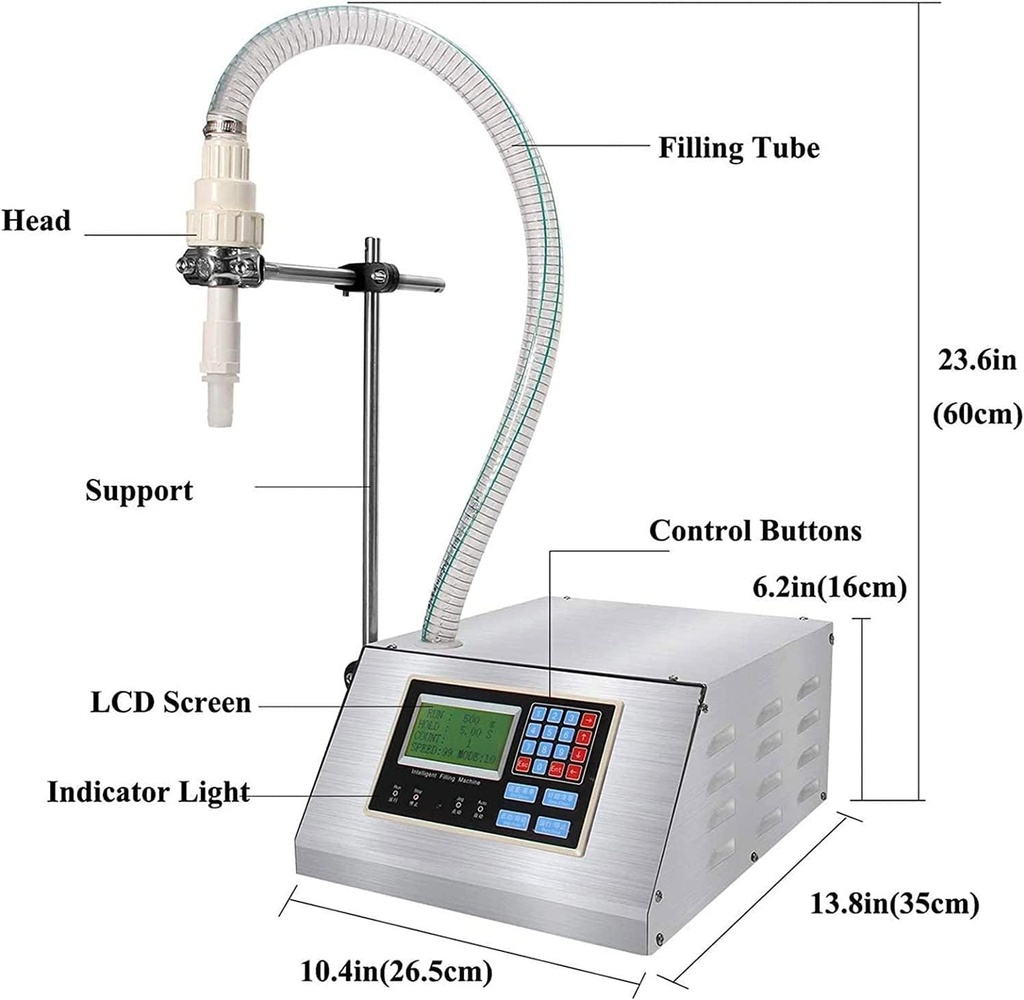

Dimensions: 360 x 300 x 156mm
Weight: 8.5 kg
Package includes:
1 * Liquid Filling Machine
Additional Information
| Manufacturer | XYIANG |
|---|
| Brand | Xyiang |
