BGD 812-4470 14 Inch Thermocouple Fit for Heatilator Eco-Choice & Quadra-Fire Pellet Stoves Thermocouple Castile, Contour, Mt Vernon, Santa Fe
11 sold in last 24 hours

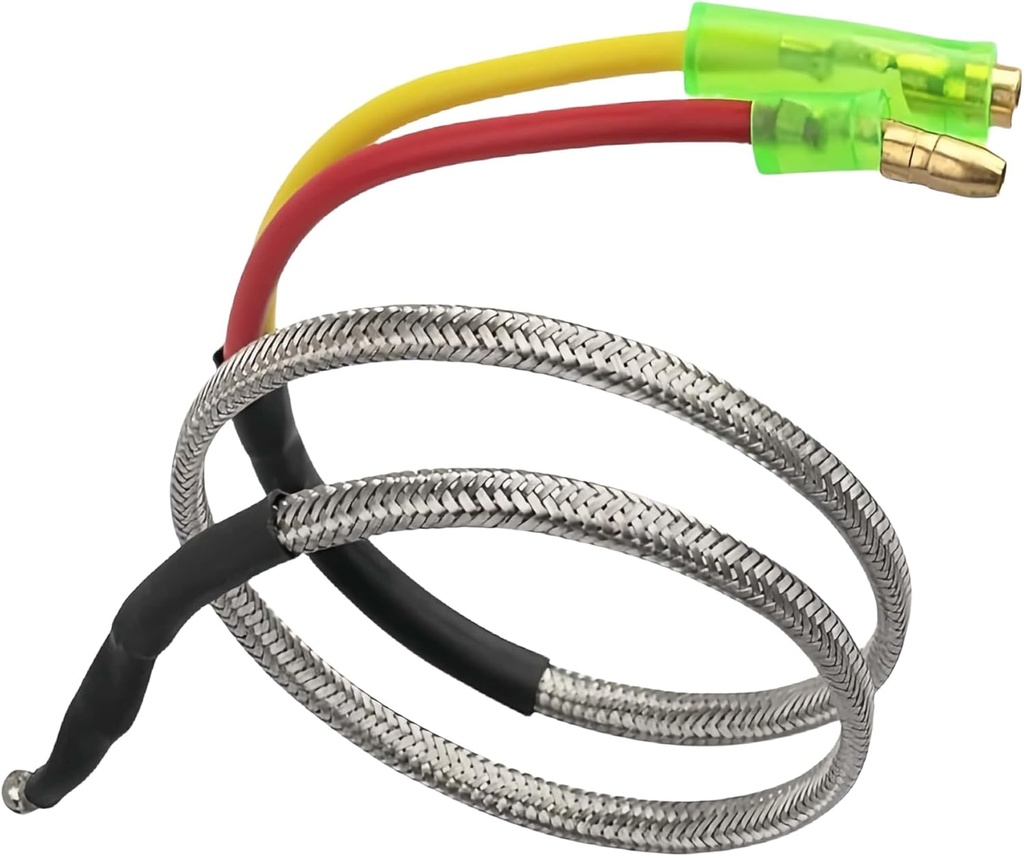

- 812-1322 812-4470 compatible model 812-4470-AMP Pellethead PH-20154 Approximately 14 3/4 inches in length, with green transparent terminals and metal joints, and an outer layer of braided metal sheath
- Applicable equipment: Heatilator Eco Choice PS35, PS50, Cab50, as well as Quadra Fire Castile, Santa Fe, Mt. Vernon and other models of pellet furnaces; Note!!!:This does not fit the Mt. Vernon AE or CB1200, CB1200I
- What are the reasons for repeated wire breakage Metal fatigue: Repeated thermal expansion and contraction of wires under high temperature for a long time, or excessive bending during installation, leading to internal stress accumulation; Bracket damage: The matching thermocouple bracket deformed due to high temperature and was unable to fix the wire, resulting in excessive stress and fracture.
- When the temperature reaches about 300 ° F, a voltage of 2.5-3 mV is generated, and the control box will light up a green light to confirm that the "flame has been established"; When the temperature rises to about 600 ° F, a voltage of 12-13 mV is generated, and the control box switches to a red light, allowing the furnace to enter normal combustion mode (continuous feeding); If the thermocouple breaks or fails, it will not be able to generate voltage, and the furnace will automatically shut down due to "no flame detected" to prevent safety hazards.

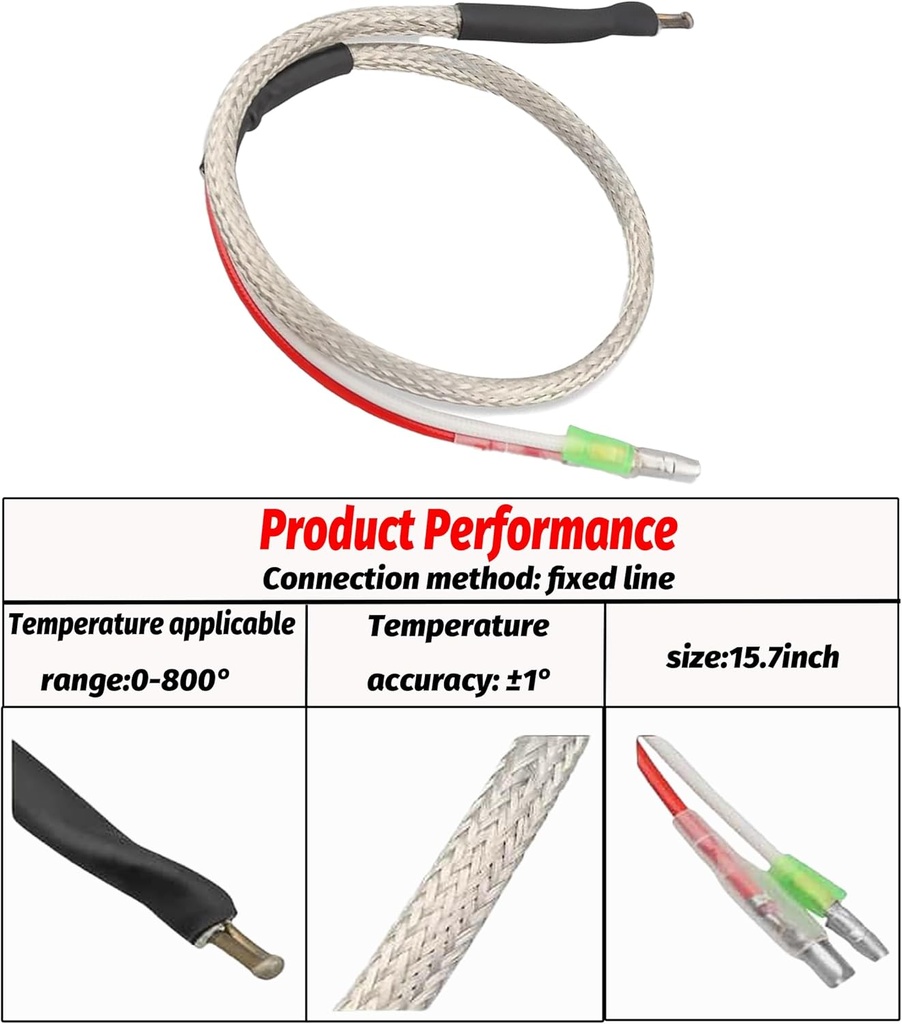

- Thermoelectric electrode material: Positive electrode: Nickel chromium alloy/Negative electrode: Nickel silicon alloy Insulation layer material: Magnesium oxide (MgO) powder (filled in stainless steel protective tube) Protective sheath made of 304 stainless steel woven mesh Green transparent insulation sleeve material: polycarbonate (PC) Metal joint material: brass
Product Summary:
Our PH-20154 is a premium quality thermocouple replacement for Quadra-Fire and Heatilator Eco-Choice pellet stove models. This thermocouple measures 14″ in length .
The Thermocouple is the device that monitors the fire after start-up.
Once it reaches temperature the thermocouple allows the stove to start feeding on it's own in normal operation mode.
If your stove goes out after the initial start-up cycle, more than likely the thermocouple needs to be replaced.
*Note!!!:
This does not fit the Mt. Vernon AE or CB1200, CB1200I.
Fit For Models:
~ Original Mt. Vernon ~ Contour ~ Castile ~ Castile Fireplace Insert ~ Santa Fe B ~ Santa Fe ~ Santa Fe Fireplace Insert Fits Heatilator Eco-Choice Models: ~ PS35 ~ PS50 ~ Cab50
This thermocouple will be a direct fit for Heatilator Eco-Choice CAB50, PS35, and PS50 models in addition to the Quadra-Fire Castile Freestanding, Castile Insert, Contour, Mt Vernon OE, Santa Fe, and Santa Fe Insert models.
Heatilator Pellet
CAB50
PS35
PS50
Quadra-Fire Pellet
Castile Freestanding
Castile Insert
Contour
Mt Vernon OE
Santa Fe
Santa Fe Insert
Additional Information
| Product Dimensions | 1 x 1 x 1 inches |
|---|---|
| Item Weight | 0.48 ounces |
| Manufacturer | BGD |
| Item model number | 812-4470 PH-20154 |
| Batteries required | No |
| Brand | Bgd |
