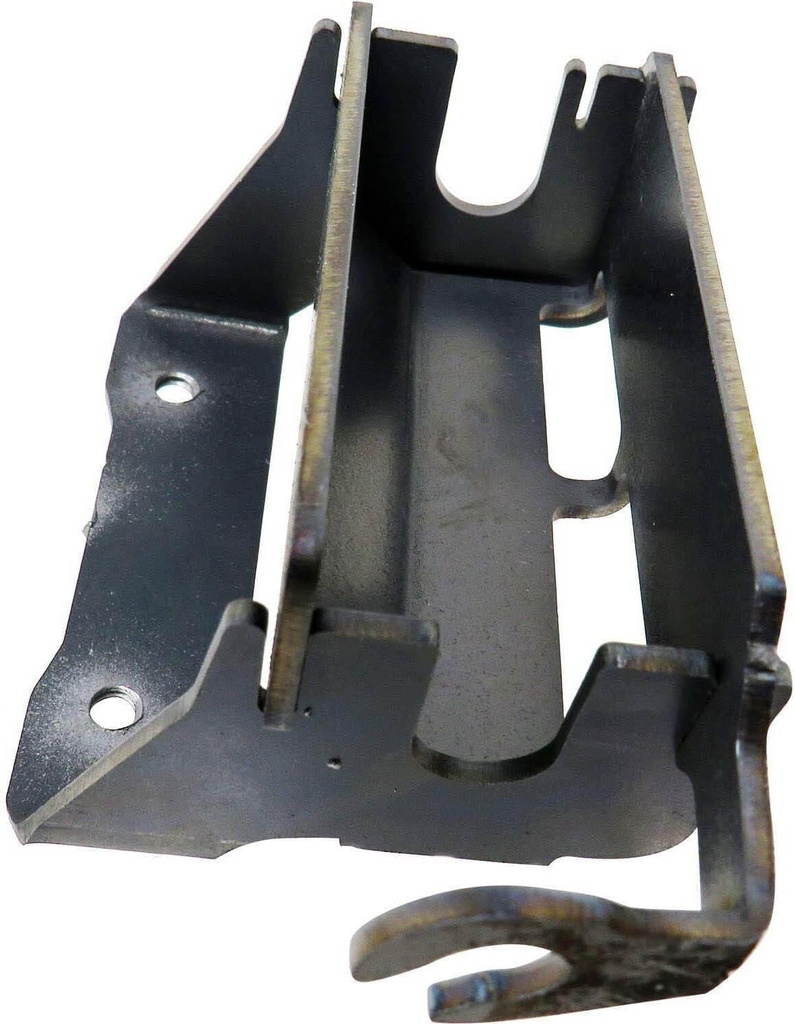

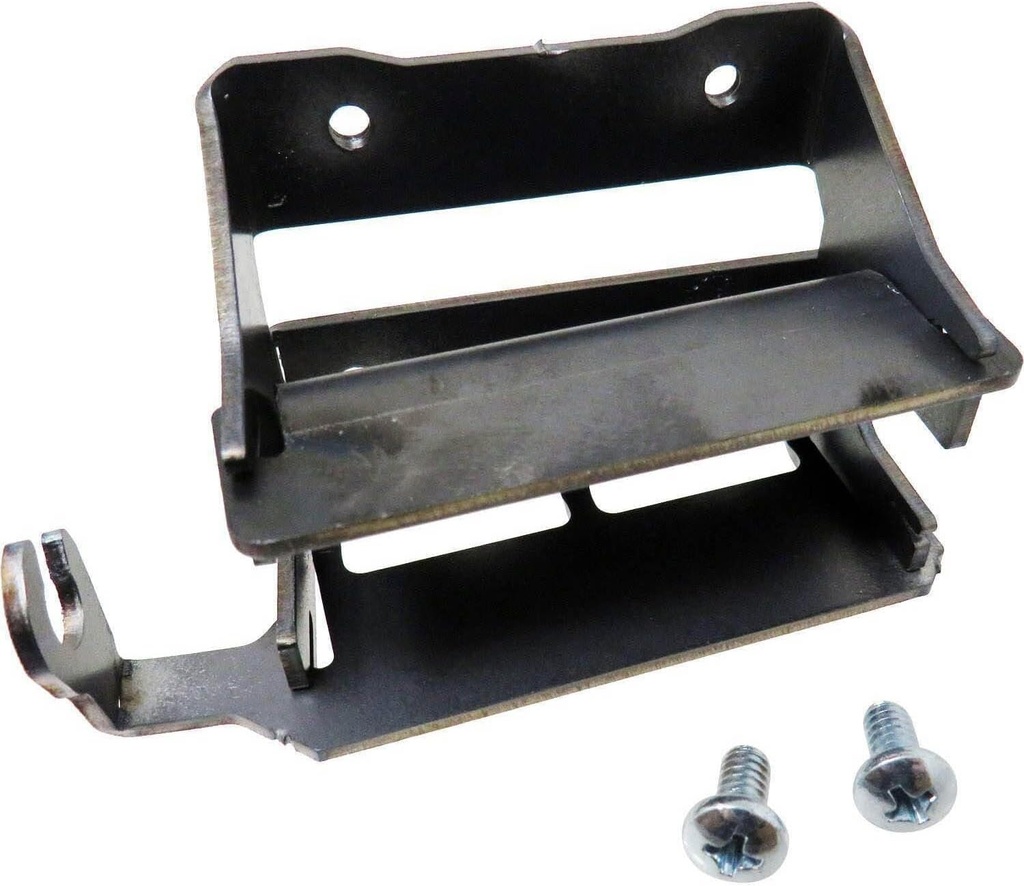

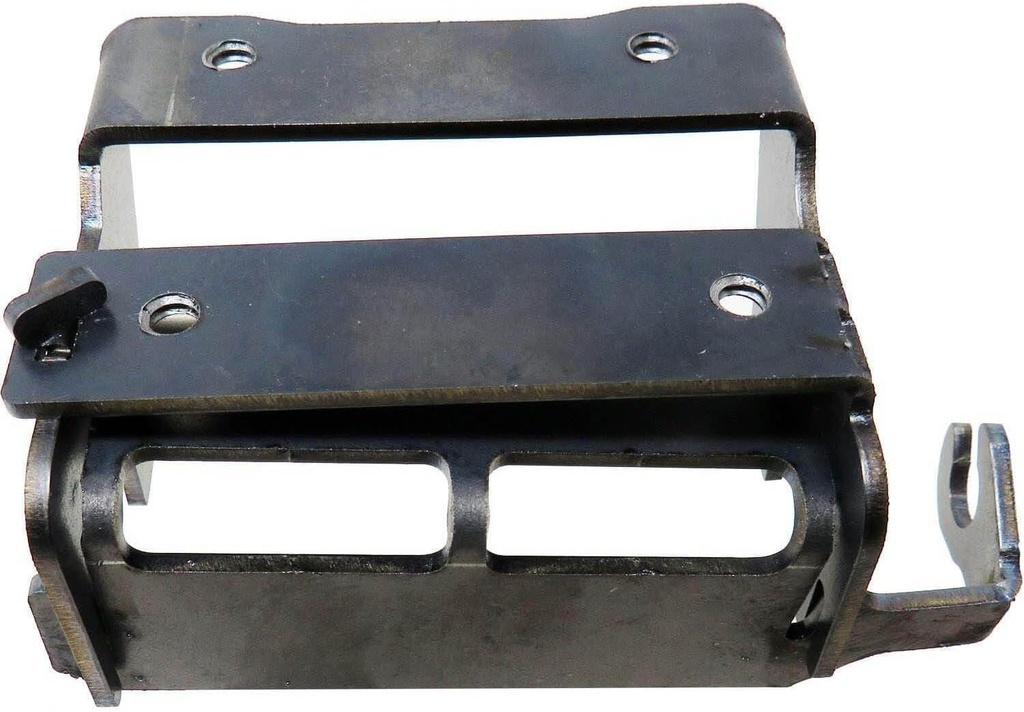

Harman Igniter Cradle (Updated): 1-00-777907-SPFL

Harman Pellet Stove Ignitor & Updated Cradle. This is the most recent design from Harman. This cradle can be used anywhere a finned igniter is used and is backward-compatible for all models with auto-ignition that previously used part # 1-00-067620, which is being phased out by Harman. This cradle is not compatible with the new style PF100 Burnpot, 1-10-73560. The additional screws that are included are installed into the lower holes on the cradle mount. These screws allow the igniter depth to be adjusted. Important: Do not overtighten the screws that press the adjustable plate against the bottom of the igniter. Overtightening these screws can cause the cradle to push away from the bottom of the burn pot, causing ignition issues. This cradle is sold without mounting hardware. Your existing screws must be reused or new screws can be purchased. Harman uses part 3-30-1101-100 for replacement screws (QTY 2). Notes: Accentra52i / Accentra52i-TC ONLY use this cradle when using burn pot 1-00-574605 Absolute 43 uses cradle part # 1-00-777906 The diagram below shows where this part is used, Fig.1.3 - Compatible with the Harman Absolute 63, Harman Accentra 52i, Harman Accentra 52i TC, Harman Accentra Cast FS, Harman Accentra Insert, Harman Advance, Harman P35i, Harman P35i-C, Harman P43, Harman P43-C, Harman P61-A, Harman P61-C, Harman P61A, Harman P68, Harman P68-C, Harman PB105, Harman PF100, Harman XXV, Harman XXV TC
