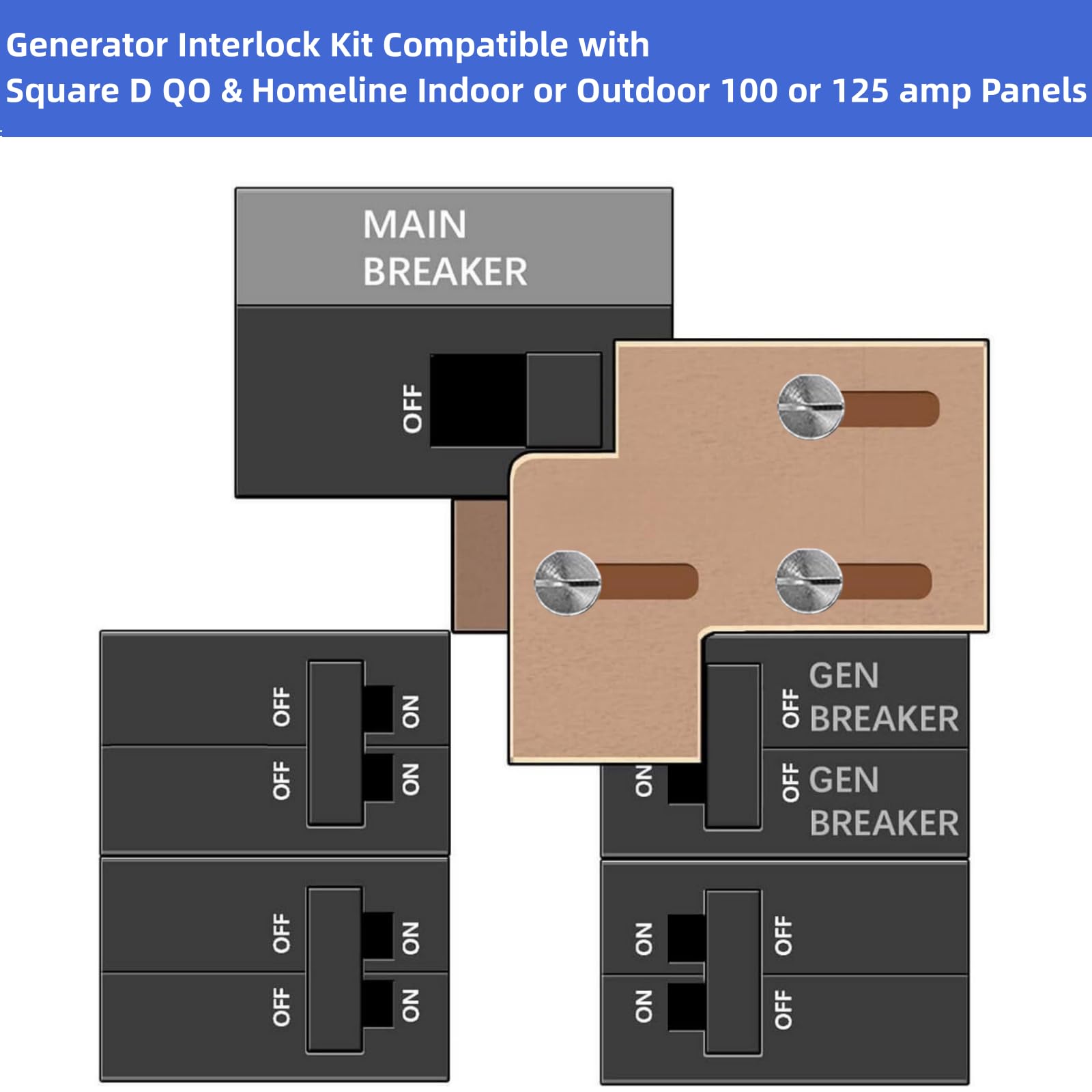

Generator Interlock Kit Compatible with Square D QO or Homeline

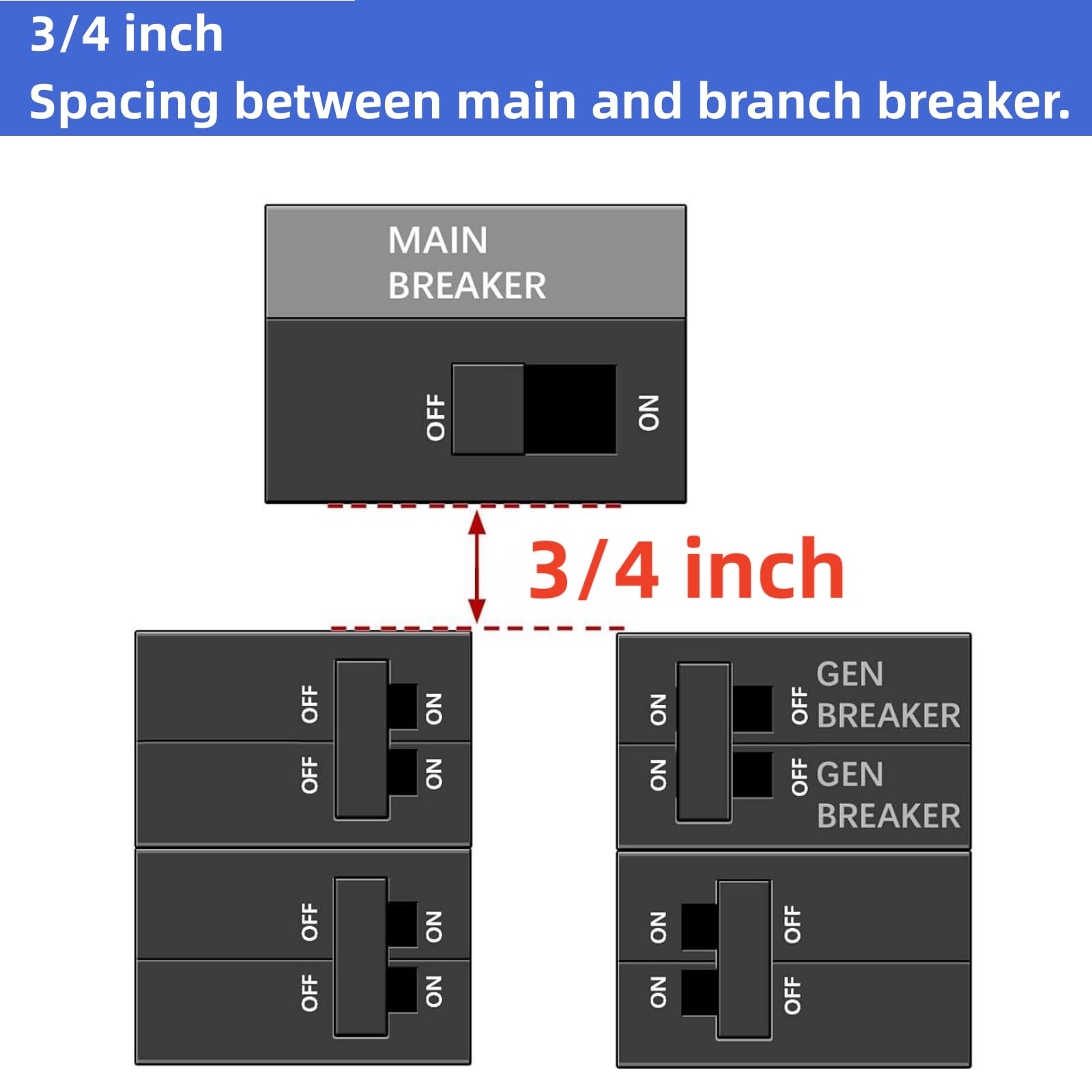

- for Square D QO or Homeline Single Throe Main 100 or 125 Amp Panels,Interval Space Required:3/4 Inch Spacing between main and branch breaker.

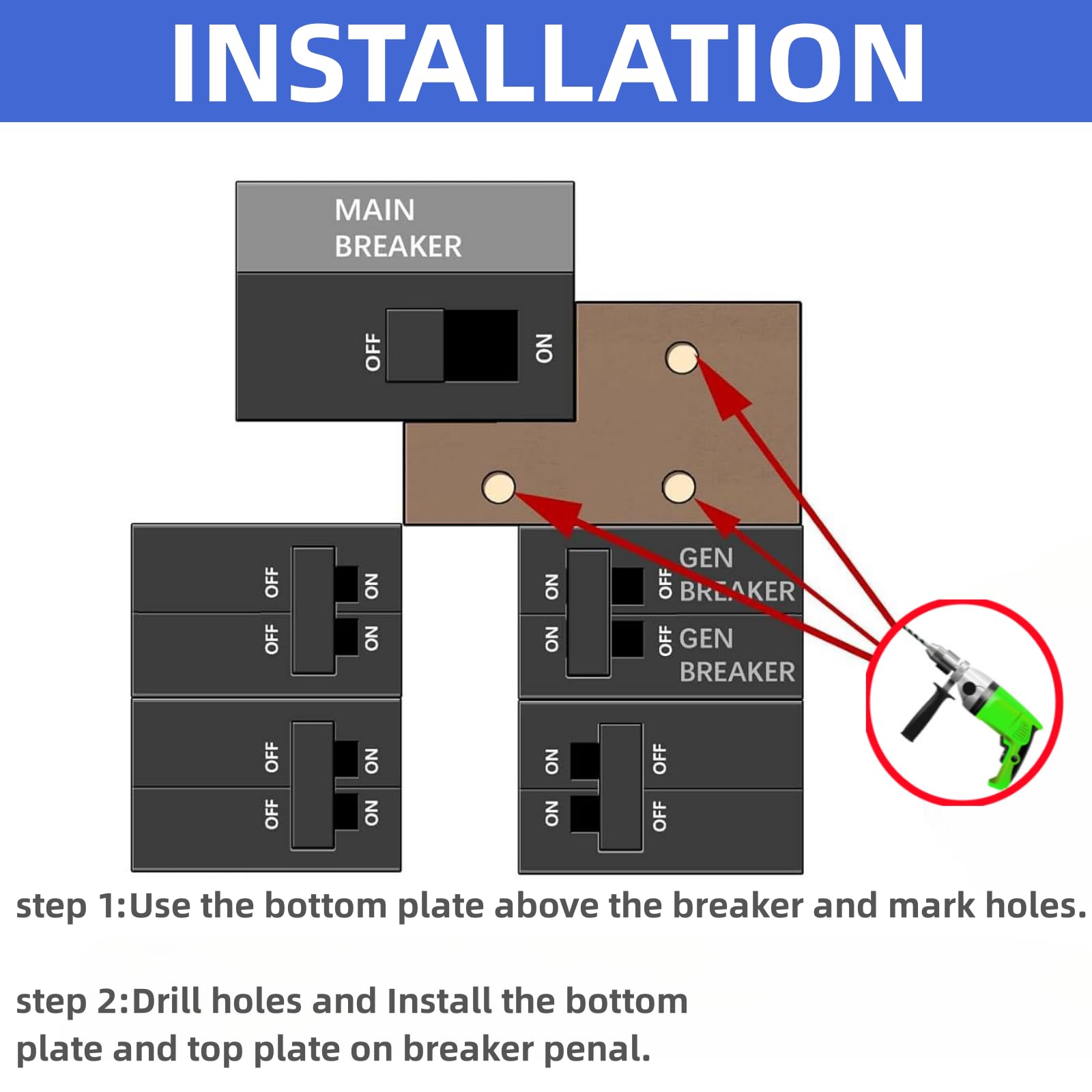

- Installation Note: Before installing the interlocking kit, Attach the screws to the interlock kit first. Let's simulate the use of the test, so that we can better align the installation position, to avoid errors in the installation position, resulting in failure to use.
- Feature:the manual transfer switch device allow portable generator safe back feeding power supply to distribution panel and home line. Prevent utility and generator supplies from being ON at the same time. Aren't putting electrician in dangerous and damage electric devices during power outages

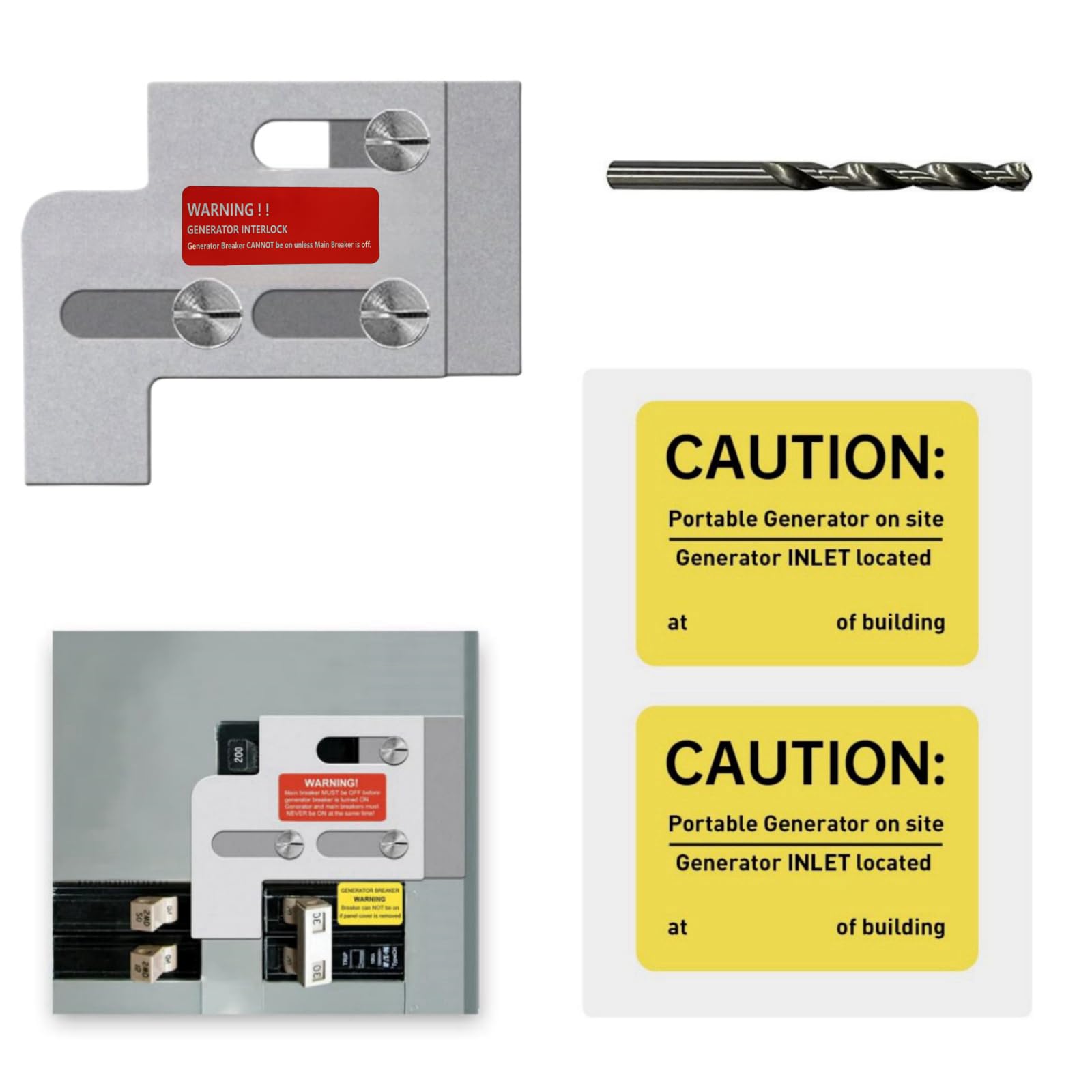

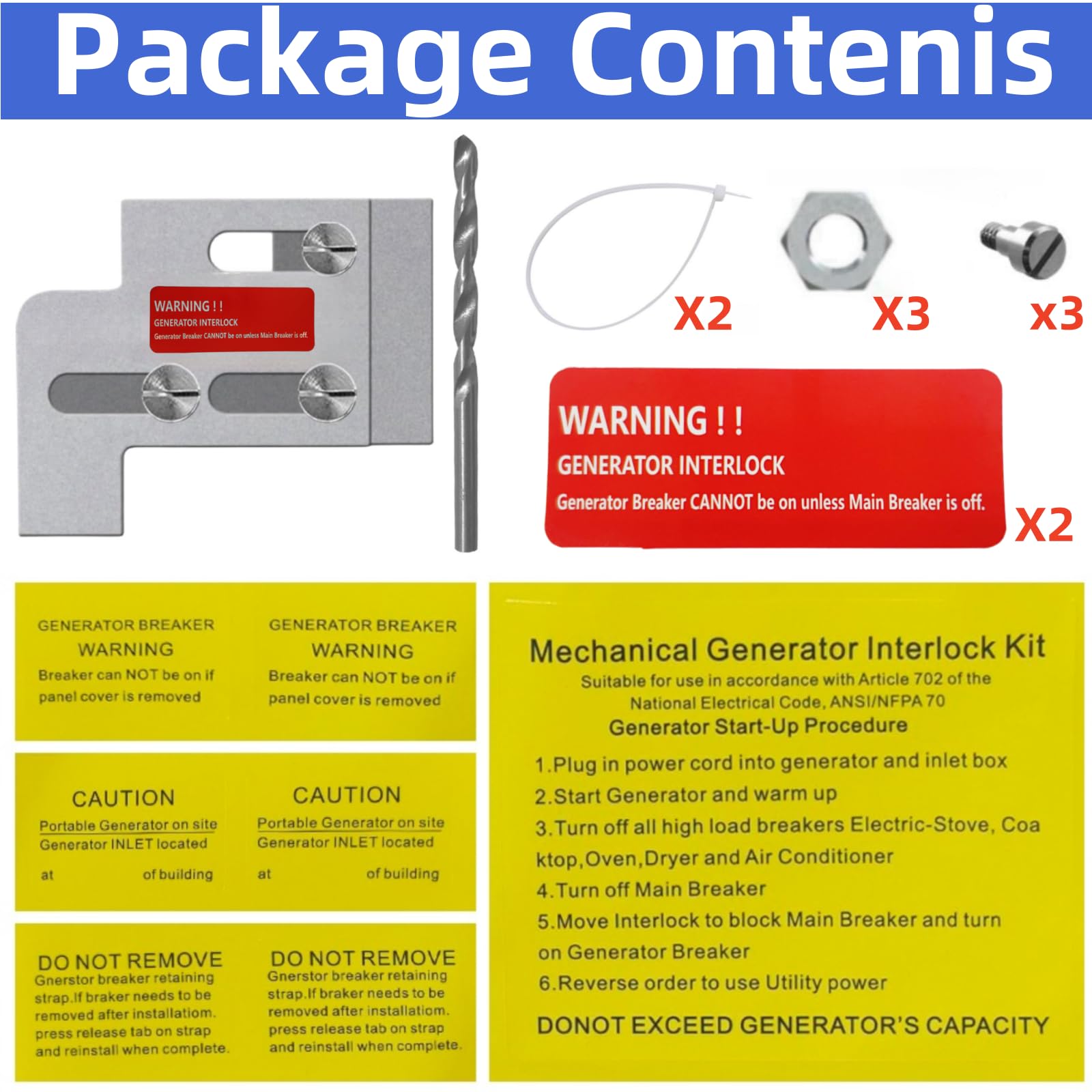

- Package:Our Generator Interlock kit include 1 × Interlock plate, 3 × Screws kit, 1 × Drill Bit, 1 × Instruction Bulletin, 2 × Generator Start-Up Procedure Label, 8 × Remind Label, 2 × Zip Ties.
- If our products are malfunctioning, please send us an email to contact us.
| Included Components | Generator Interlock kit, Screws kit, Drill Bit, Instruction Bulletin, Remind Label |
| Manufacturer | QYZZRS |
| Item dimensions L x W x H | 2"L x 2.5"W x 0.11"H |
| AC Adapter Current | 125 A |
| Brand | QYZZRS |
| UPC | 730243775549 |
| Phase Type | Single Phase |
| Product Dimensions | 2"L x 2.5"W x 0.11"H |
| Material | Stainless Steel |
| Number Of Circuits | 3 |
| Part Number | QY-100A |
| Model | QY-100A |
| Material Type | Stainless Steel |
| Number Of Items | 1 |
| Item Highlight | Single Throe Main 100 or 125 Amp Panels, 3/4 Inch Spacing Between Main and Branch Breaker, Professional and Interlock Kit |
| Product Type | Circuit Breaker Panels |
| Maximum Current | 125 A |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRAY3YCJYA4H3U |
Category |
Electrical , Breakers, Load Centers & Fuses , Circuit Breaker Panels |
Tags |
Estimated shipping
Select a product to estimate shipping.Generator Interlock Kit for Square D QO or Homeline Single Throe Main 100 or 125 Amp Panels.
With the aging electrical infrastructure and frequent severe weather,The power outage resulted in affecting thousands of homes across the country.
Aippwi's Interlock kit provides a safe and easy solution when using backup power. Our interlock kit prevents utility and generator supplies from being ON at the same time.Protect the appliances being used from being burned out due to power failure.
Aippwi Generator Interlock Kit
A reliable and economical way to meet your power needs.
The Aippwi generator interlock kit allow safe backfeeding of a home through a portable generator during power outages. It eliminates unsafe generator backfeeding situations that could potentially electrocute electric power company workers or destroy the generator.

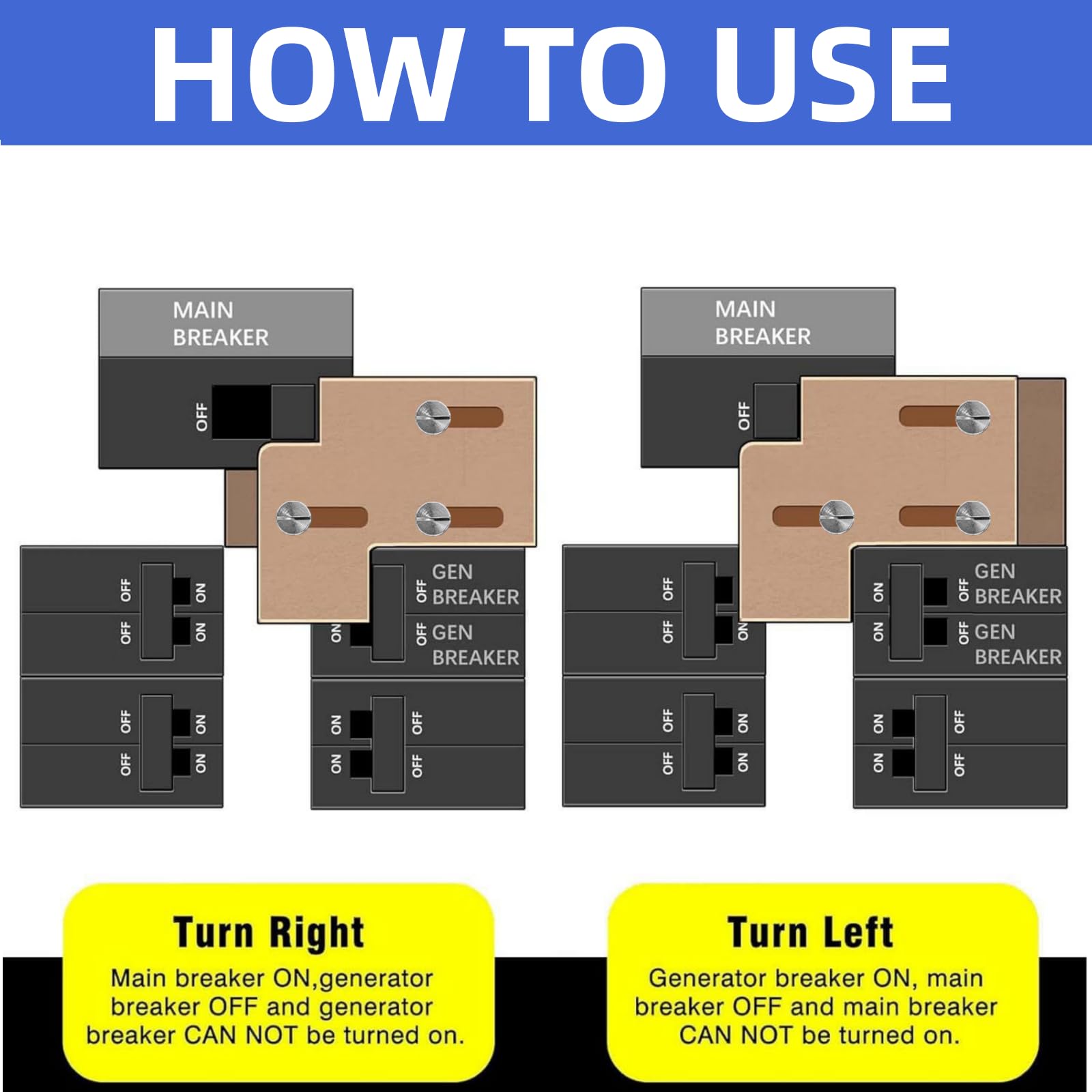

Our devices will allow only one main circuit breaker to be in the ON (I) position at any time. The bracket slides between the handle of the utility main circuit breaker and the handle of the generator supply main circuit breaker.The screws do not need to be torqued tightly, resulting in the inability to move the interlocking kit
