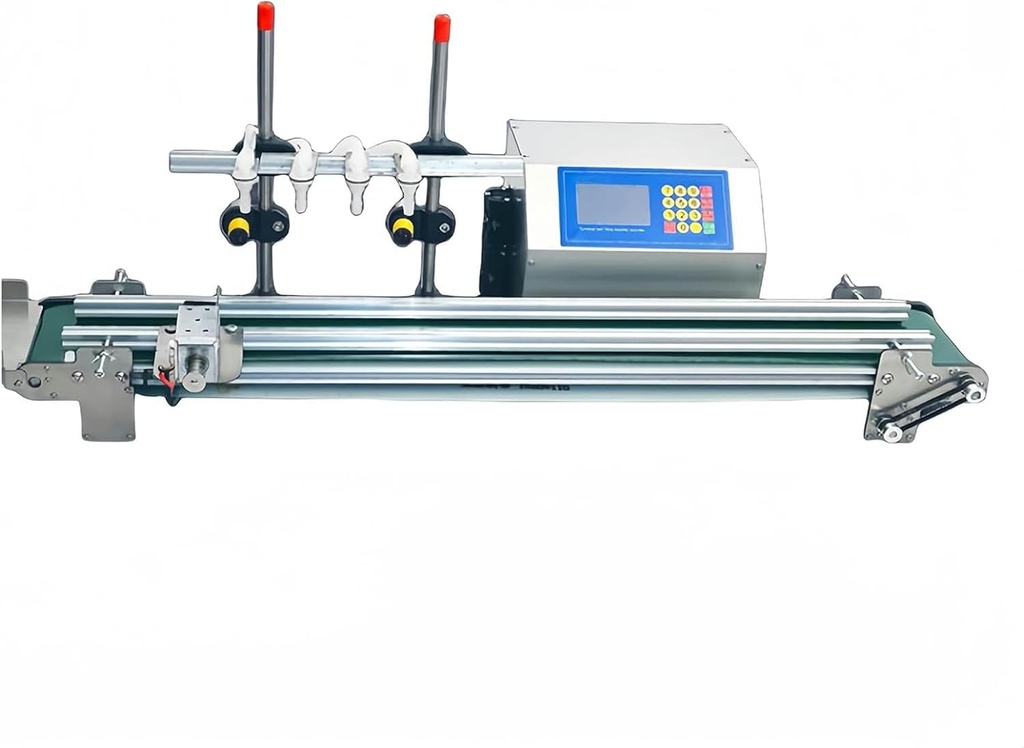

Liquid Filling Machine 4-Head, 1-500ml Bottle Filler with Belt Conveyor for Juice, Wine, Detergent - High Efficiency 4x1.2 L/MIN, Closed-Loop Version
6 sold in last 24 hours
- Closed-loop control system: Place the bottle at any interval without restrictions. The closed-loop version features an additional probe and mechanical arm that automatically halts the bottle’s movement, providing enhanced efficiency. It can also be switched to open-loop control mode, significantly reducing labor in assembly line applications.
- Ideal for thin fluids: This desktop 4-head bottle filling line is specifically designed for thin liquids, including wine, juice, milk, and cleaning detergents. It is not suitable for viscous fluids such as oil or gel, nor for chemical solutions like acetone, or fluids containing seeds or pulp.
- Bottle compatibility: The machine accommodates bottles with a diameter of 20-90mm, an inner opening diameter of 10-80mm, and a height of 40-250mm. While cylindrical bottles are preferred, please reach out for confirmation if your bottles are of a different shape.
- User-friendly operation panel: The LCD display features an intuitive human-computer interaction interface with multi-level menu options. All settings are clearly displayed, ensuring easy operation suitable for both beginners and users like the elderly and children.
- Easy tubing connection: The filling machine's exposed tubing and pump connection simplify installation and disassembly for cleaning and maintenance. Additionally, the adjustable motor speed allows you to set the conveyor speed to your preference or turn it off as needed.
Tags |
Product Features
- Error adjustment, speed adjustment, unit adjustment, and additional settings.
- Speed adjustment can be set by pressing 0-9 to enter a value within the range of 1-100.
- Conveyor belt speed is adjustable from 10 to 100.
- Language selection available in Chinese (CHN) and English (ENG).
Product Parameters
- Voltage/Power: 110V/80W
- Filling Range: 1 to 500ml
- Water Pump Type: Peristaltic pump
- Water Pump Flow: 4 x 1.2L/min
- Number of Filling Heads: 1 to 4
- Filling Head Diameter: 6mm and 3mm
- Filling Height: Adjustable from 4 to 25cm
- Water Pipe Material: Silicone
- Water Pipe Specifications: Inner diameter 6mm, outer diameter 9mm
- Water Pipe Length: 2 meters
- Host Size: 22 x 18 x 18cm
- Host Packaging: 35 x 25 x 25cm, weight 5kg
- Conveyor Size: 100 x 12 x 7cm
- Conveyor Packaging: 90 x 16 x 16cm, weight 5kg

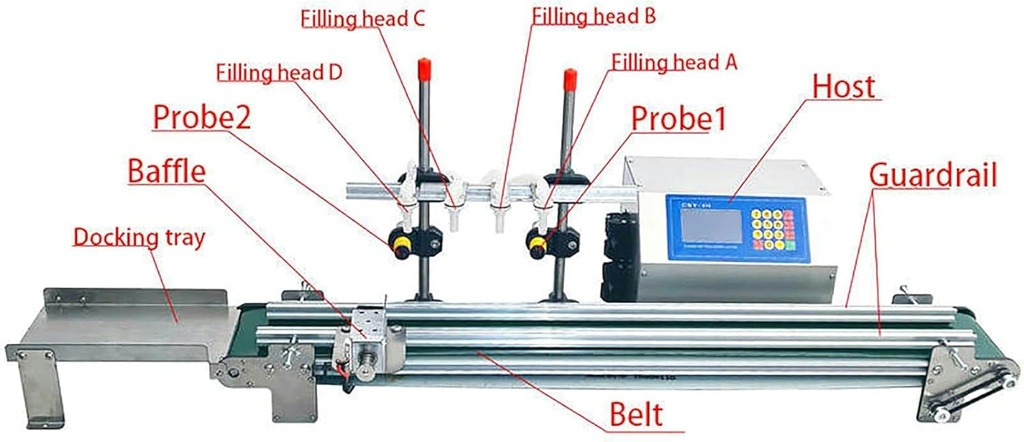

- Closed-loop version: Allows bottles to be placed at any interval. This version includes an additional probe and electric baffle for automatic bottle stopping.
Language selection is switchable between Chinese and English.
Applicable scenarios include liquid filling, essential oils, essences, liquor, and more.

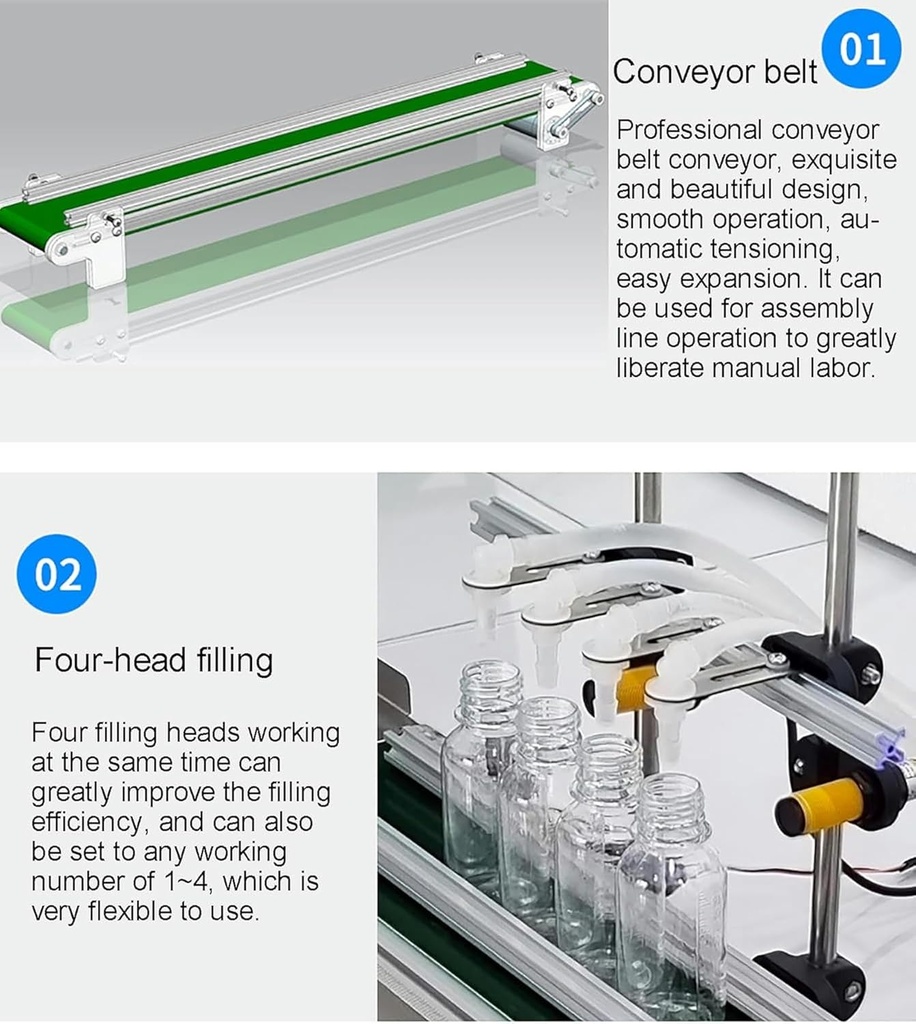

The four filling heads can operate simultaneously to significantly enhance filling efficiency, with the flexibility to set any number from 1 to 4.
Additional Information
| Manufacturer | Generic |
|---|---|
| Item model number | A-1 |
| Batteries required | No |
| Brand | Generic |
