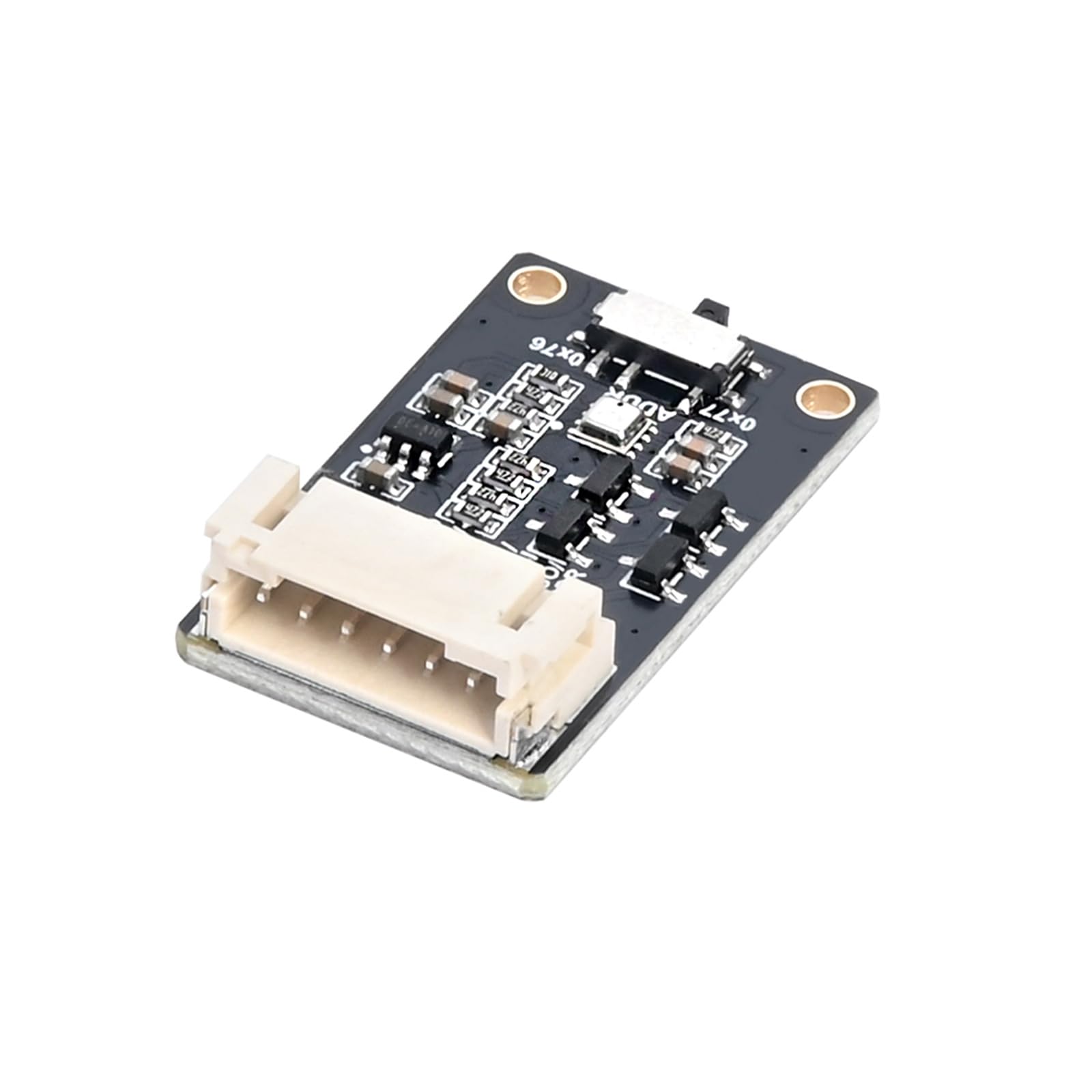

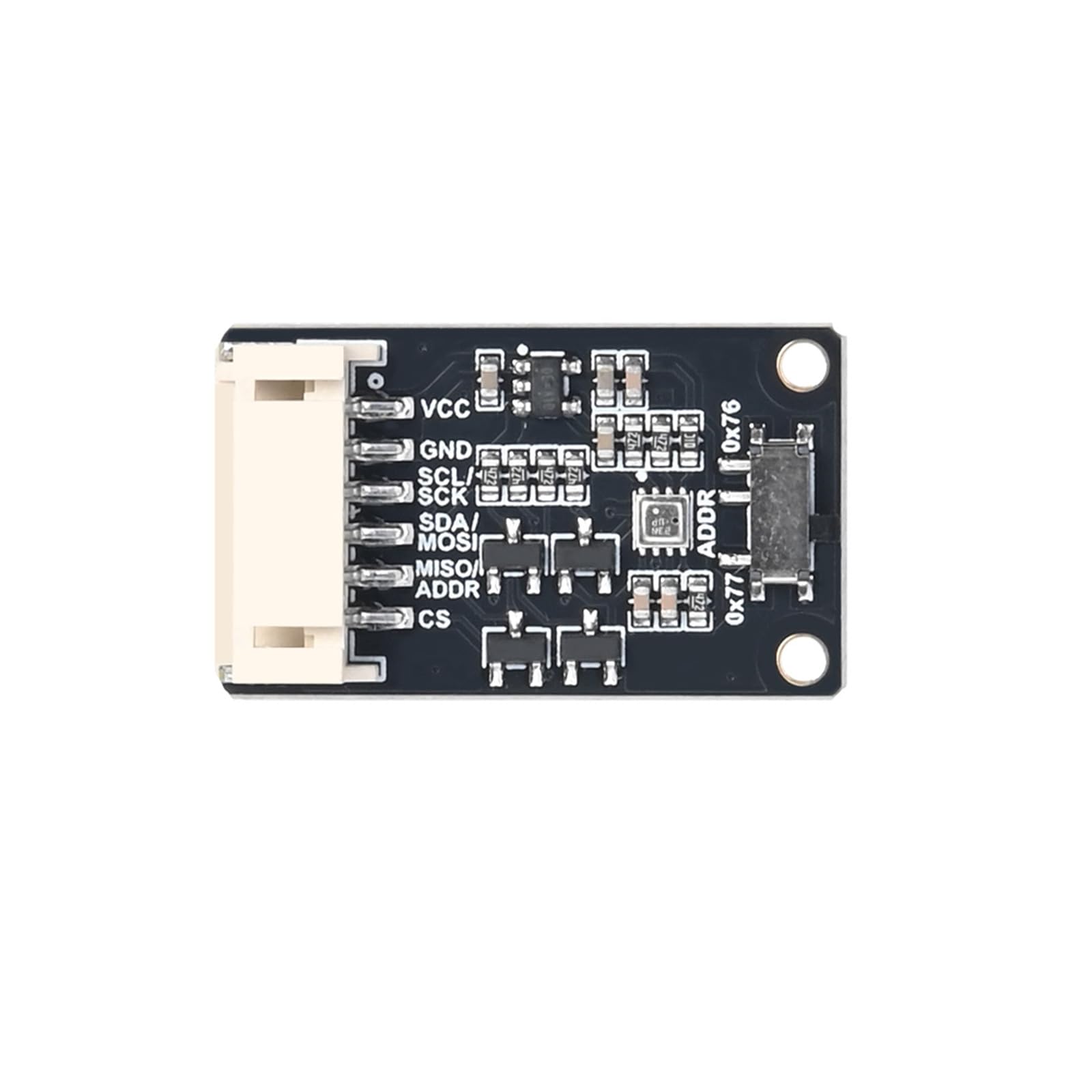

BME280 Environmental Sensor Module
- 3-in-1 Environmental Monitoring: Measures temperature (-40851), humidity (0-100%RH3%), and pressure (300-1100hPa1hPa) with high resolution of 0.01 and 0.008%RH
- Dual Interface Options: Features both I2C and SPI communication protocols with address switch capability (0x76/0x77) that enables multi-device chaining for expanded monitoring systems
- Industrial-Grade Stability: Equipped with onboard RT9193-33 voltage regulator ensuring stable performance with response time of less than 1 second for accurate real-time measurements
- Multi-Platform Compatibility: Includes plug-and-play demonstration codes for Arduino, Raspberry Pi (C and Python), and STM32 development boards for easy integration
- Compact Design with Convenient Connectivity: Features a space-saving 3018mm form factor with PH2.0 6PIN connector for simple and secure connection to development boards
| Specific Uses For Product | Environmental monitoring, temperature measurement, humidity measurement, pressure measurement |
| Measuring Range | Temperature: -40°C to +85°C, Humidity: 0-100%RH, Pressure: 300-1100hPa |
| Manufacturer | WatangTech |
| Unit Count | 1 Count |
| Item Length | 1.18 inches |
| Brand | WatangTech |
| Number of Items | 1 |
| Output Type | I2C/SPI |

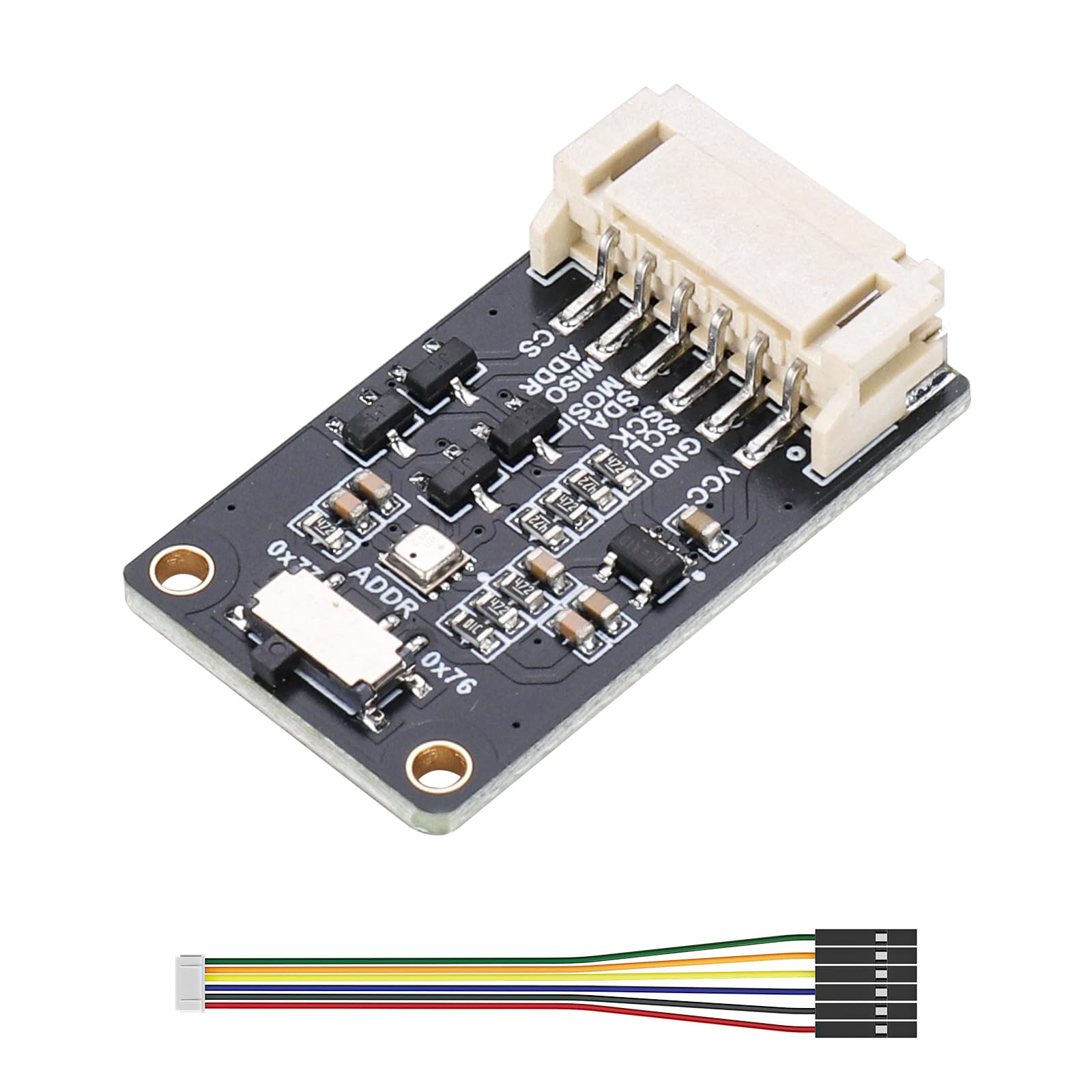

| Included Components | 1. BME280 Environmental Sensor x1 2. PH2.0 6PIN wire x1 |
| Upper Temperature Rating | 85 °C |
| Style | Industrial |
| Item Weight | 15 g |
| Response Time | 1 seconds |
| Part Number | WT-BME280 Environmental Sensor |
| Model | WT-BME280 Environmental Sensor |
| Measurement Accuracy | +/-1°C |
| Style Name | Industrial |
| Item Highlight | Temperature Humidity Pressure, High Accuracy, I2C/SPI Interface, Compatible with Arduino/Raspberry Pi/STM32 |
| Product Type | Temperature Probes & Sensors |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSREEAOAR5BYHL7 |
Category |
Test, Measure & Inspect , Temperature & Humidity , Temperature Probes & Sensors |
Tags |
Estimated shipping
Select a product to estimate shipping.Air pressure, temperature, and humidity are all in one. Compatible with Raspberry Pi/Arduino/STM32.
Professional Environmental Sensing Solution
Utilizing Bosch's industrial-grade BME280 chip, this sensor delivers precise temperature/humidity/barometric pressure data via I2C/SPI interfaces. Features built-in temperature compensation (±1°C at -40°C) and ceramic encapsulation for moisture resistance (±3%RH accuracy). Supports 3.3V/5V input with ESD protection, ideal for outdoor weather stations, smart humidifiers, and altimeters. Includes ready-to-run codes for rapid deployment in IoT projects.
Product Features
3-in-1 Environmental Monitoring: Measures temp(-40~85°C±1°C), humidity(0-100%RH±3%), pressure(300-1100hPa±1hPa) with 0.01°C/0.008%RH resolution
Dual Interface (I2C/SPI): Address switch (0x76/0x77) enables multi-device chaining
Industrial-Grade Stability: Onboard RT9193-33 regulator, <1s response time
Multi-Platform Support: Plug-and-play demo codes for Arduino/RPi(C+Python)/STM32
Wide Applications: Smart home HVAC, agricultural monitoring, drone weather stations
Compact Design: 30×18mm size with PH2.0 connector

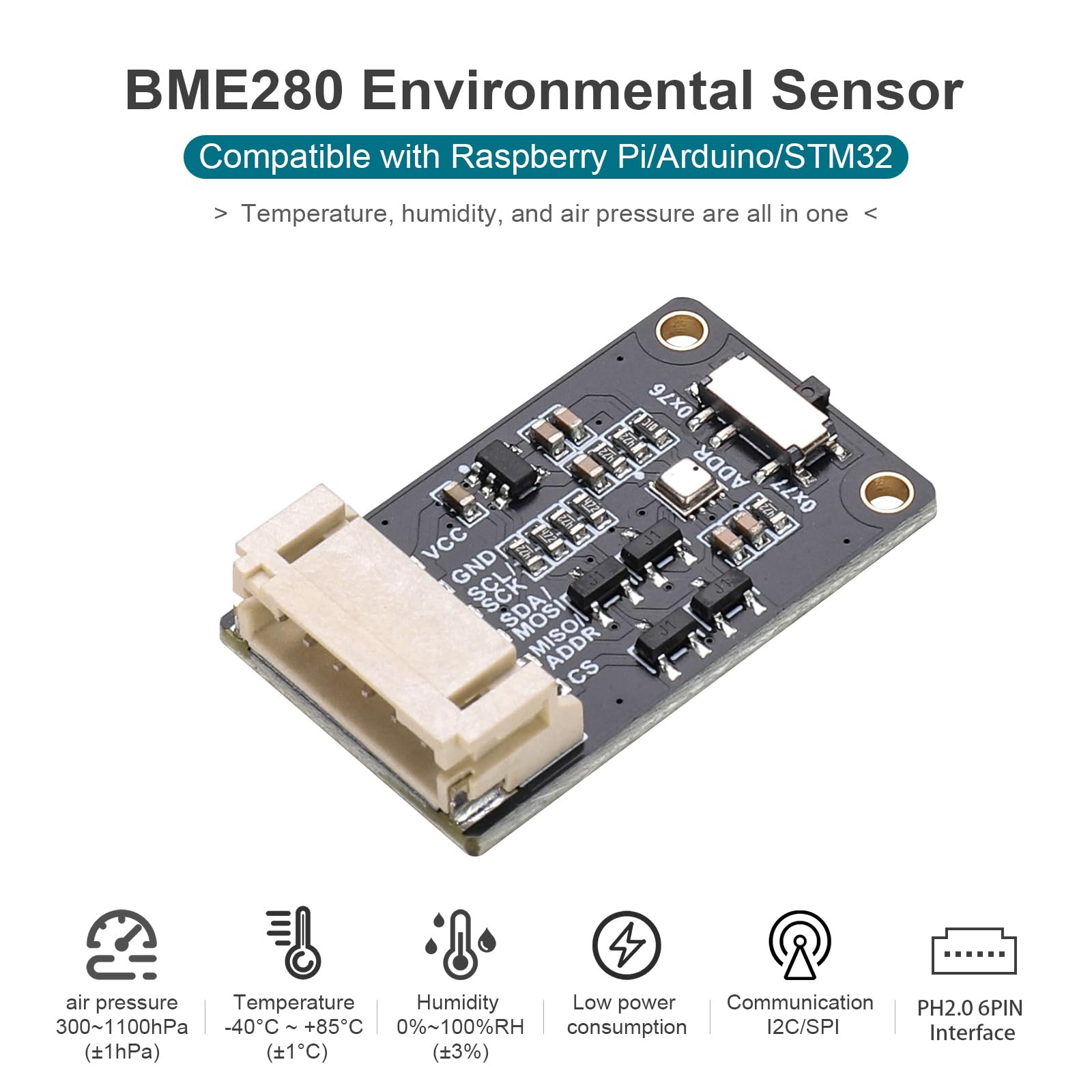

Temperature, Humidity, and Air pressure .three-in-one sensor

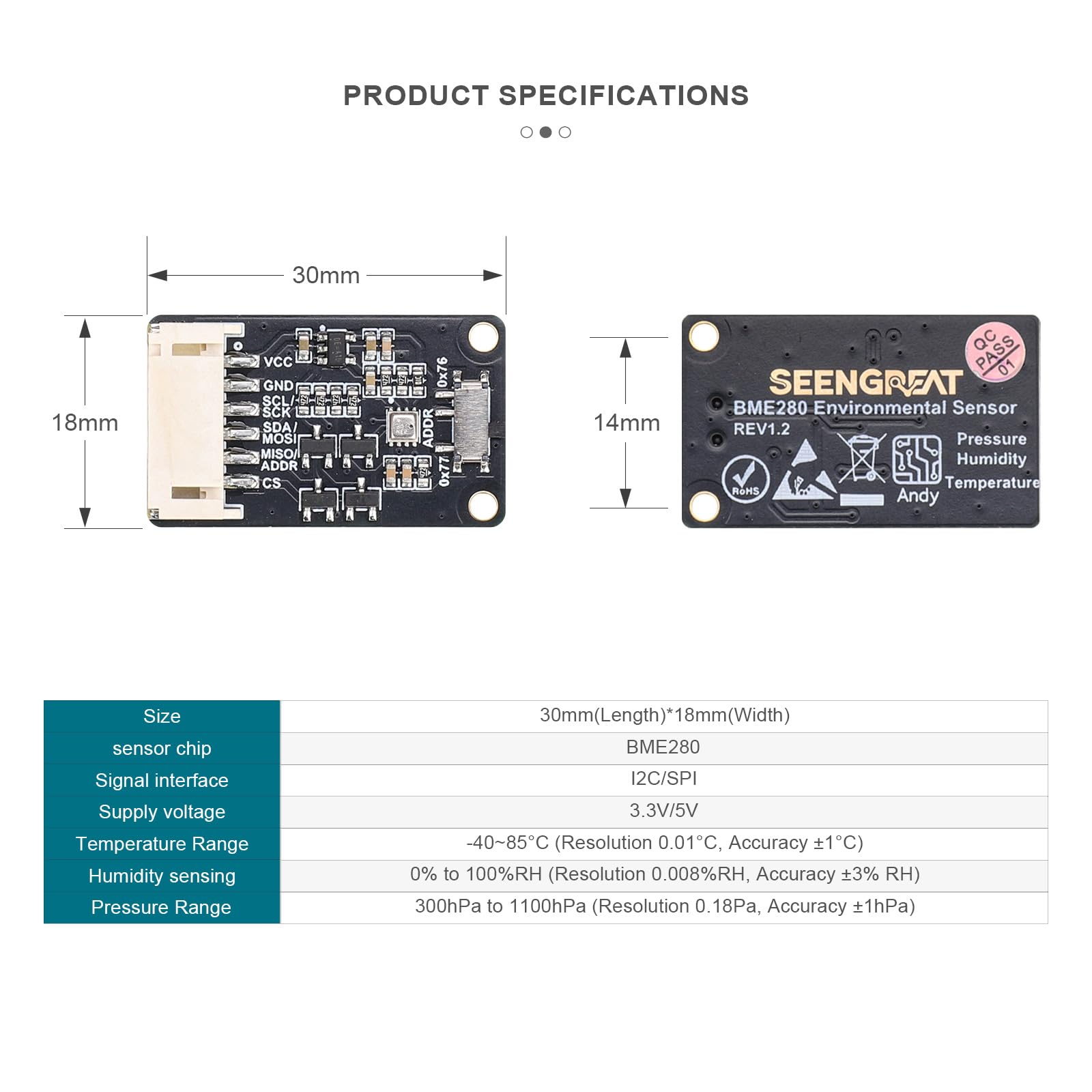

Product Specifications

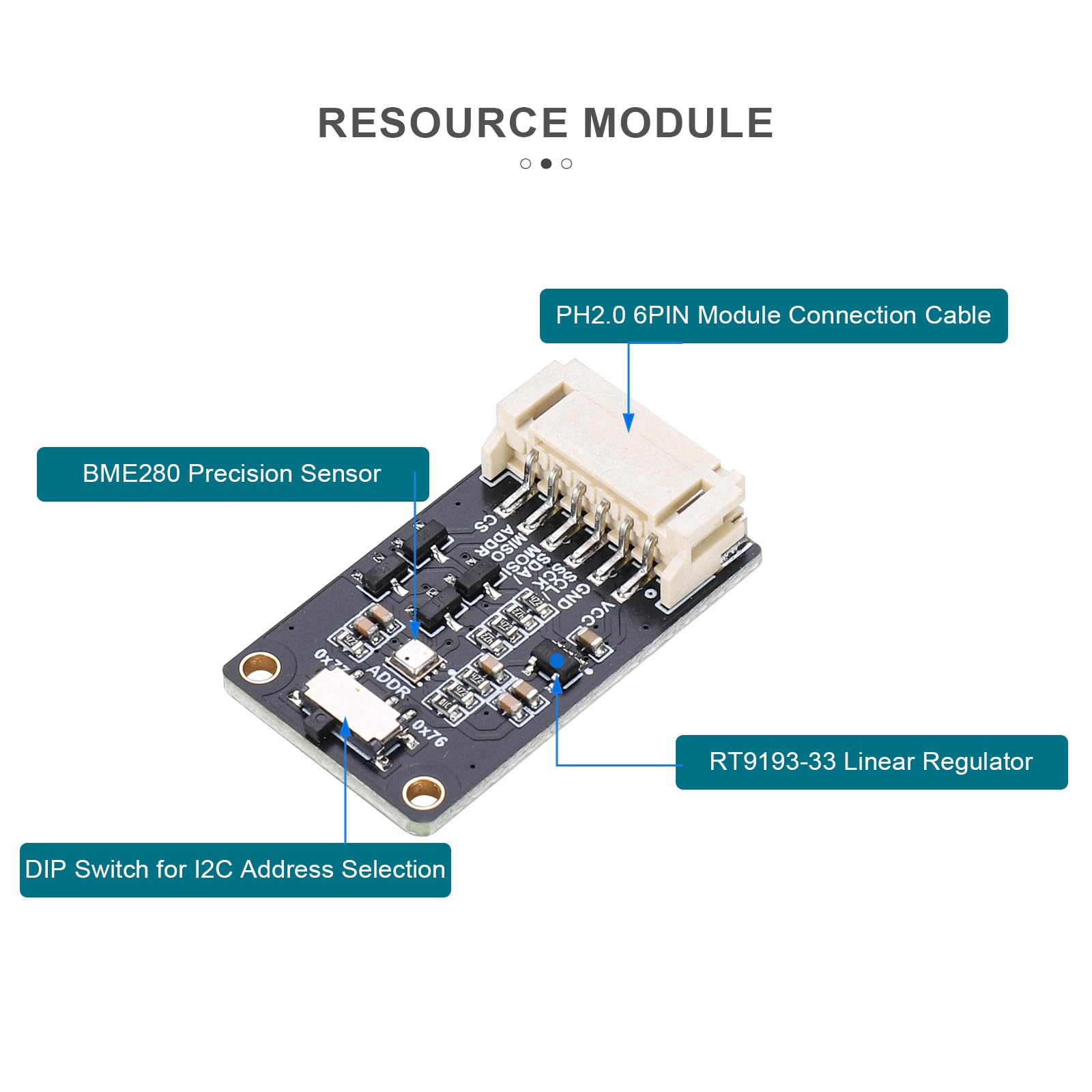

Resource Profile
PH2.0 6PIN Module Connection Cable
RT9193-33 Linear Regulator
BME280 Precision Sensor
DIP Switch for I2C Address Selection
It is suitable for meteorological stations, smart homes, agricultural monitoring and other scenarios
