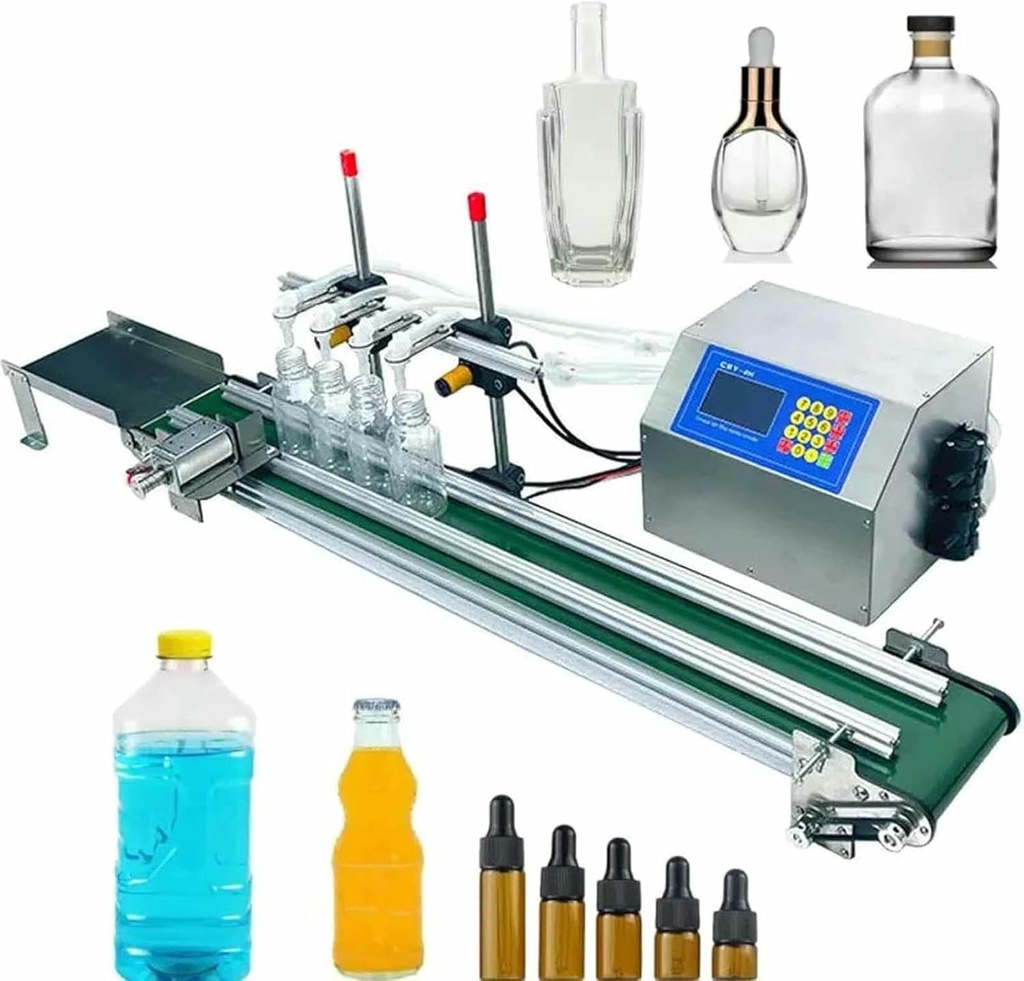

Liquid Filling Machine 4 Automatic Heads, 150W 10-500ml with Conveyor Belt, Filling Bottles for Beer/Cosmetics/Wine, Stainless Steel Diaphragm Pump, 4h1200
5 sold in last 24 hours
- ✪ (High efficiency filling) The 4 head bottles filling machine is equipped with a high -power engine of 150 W and 4 filling nozzles.The water pump flow reaches 4 x 3.2 l/min, which significantly improves the efficiency of the work and quickly complete tasks of large volumes.The stainless steel conveyor belt has adjustable speed to adapt to the rhythm of the different production lines.

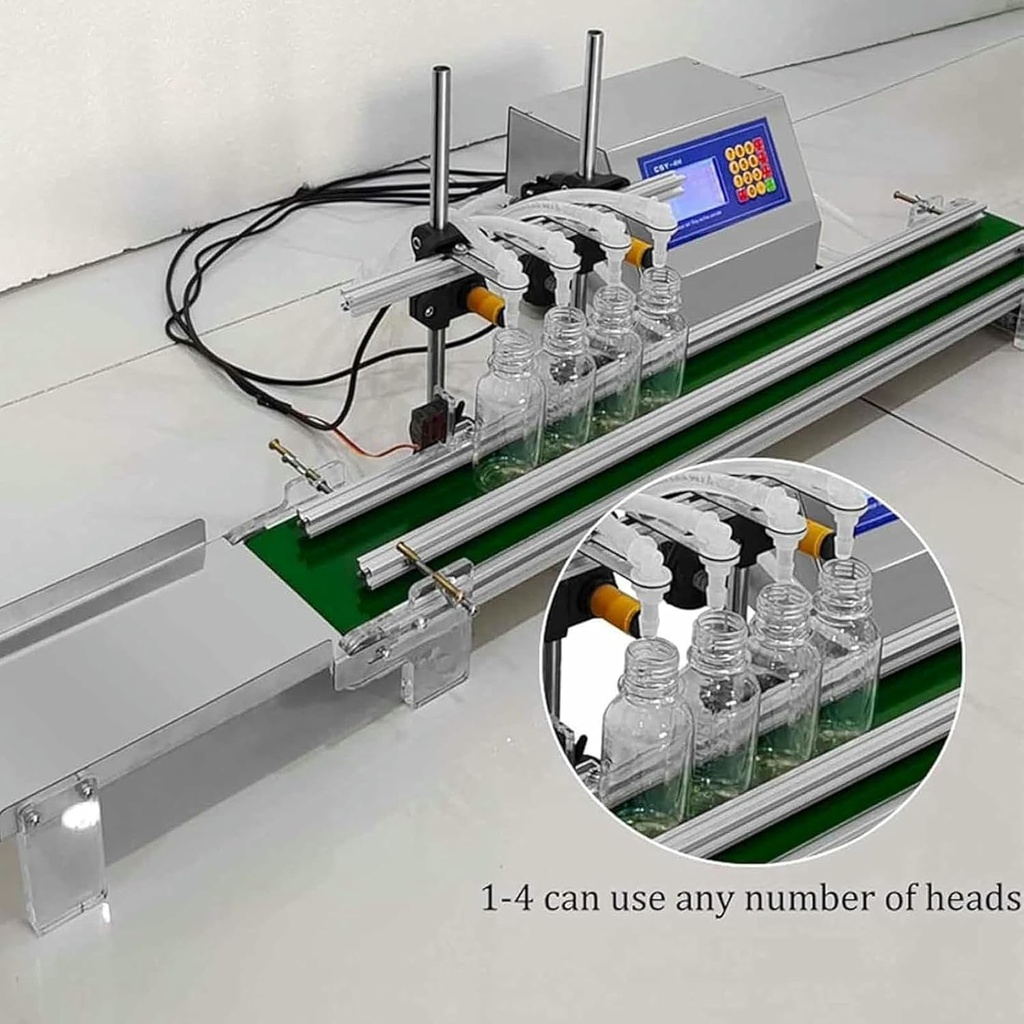

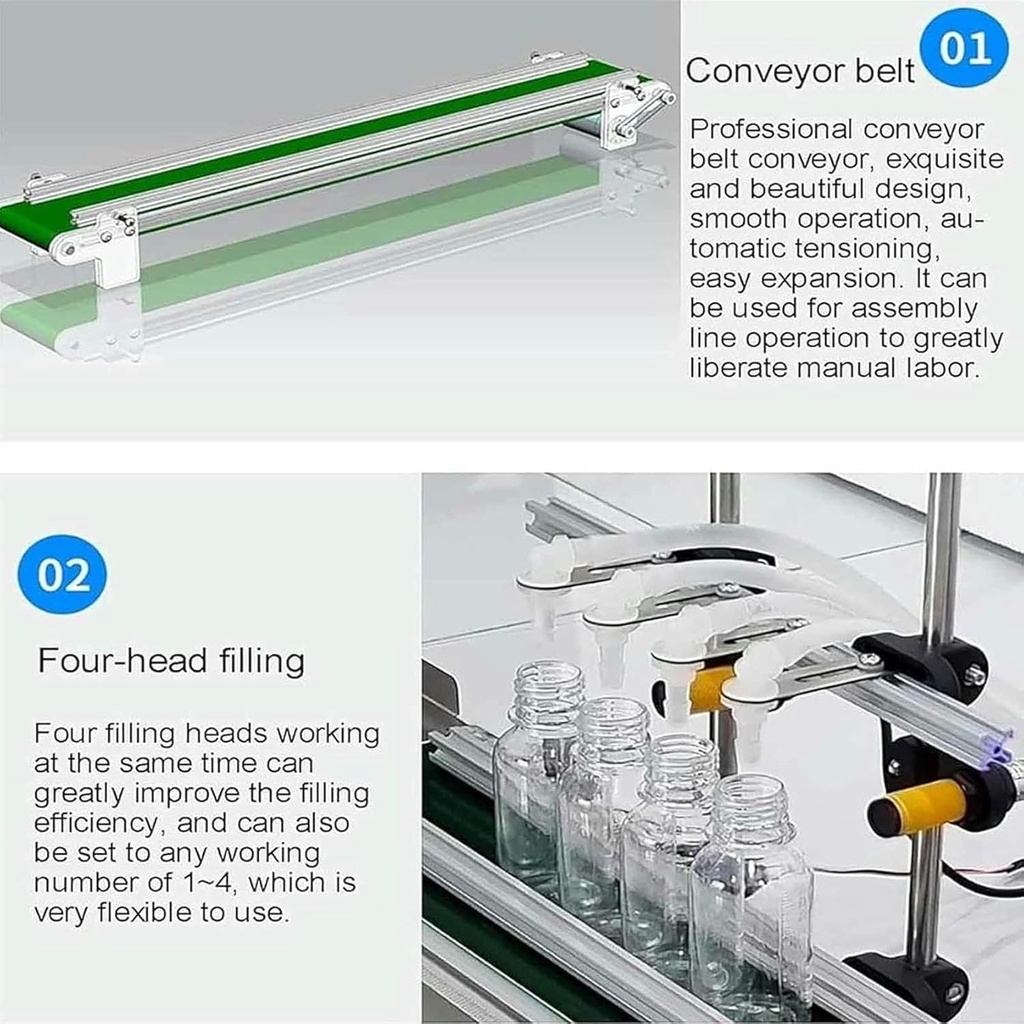

- ✪ (Flexible multi -nozzle configuration) The 4 -headed automatic filling machine is equipped with four filling nozzles.You can adjust the filling capacity (10-500 ml) and configure the number of nozzles (1-4) according to your needs.It is suitable for a variety of liquids such as wine, drinks, essences, glue, fertilizers, etc.(Available in 4h3200 and 4h1200).
- ✪ (precise quantitative filling) The capacity of 10 to 500 ml is freely adjusted, with an error of ± 1%, which guarantees the consistence of the capacity of each bottle.The design of the anti -tote nozzle prevents liquid waste and improves the professionalism of the production line.
- ✪ (Intelligent switching dual) has open/closed loop modes: Automatic detection of the position of the closed loop bottle (without the need for placement intervals), suitable for bottles with a width greater than 30 mm and resistant to overturn;Open loop manual control, suitable for thin, high, unstable bottles and prone to overturn.
- ✪ (Industrial Design) This machine filling machine, economical and efficient, incorporates an industrial degree engine with IP54 protection, allowing continuous 24 -hour operation.Equipped with emergency stop button and overload protection, it is safe and stable, ideal for the filling of beverage production lines, cosmetics, cleaners and beer.
Tags |
(◕ᴗ◕✿) Welcome to my store!
This high -performance fluid machine fills simplifies its bottling process.You can customize the configuration for a precise and uniform filling, and enjoy the comfort of adjustable nozzles and the speed of the conveyor belt.
✪ Specifications:
Model: CSY-4H3200/CSY-4H1200
Material: PVC, stainless steel, aluminum, silicone
Requires assembly: yes
Assembly type: desk
Food: with cable
Voltage: CA 220 V 50 Hz
Power: 150 w
Working room temperature: 0-50 ° C/32-122 ° F
Storage temperature: -10-60 ° C/14-140 ° F
Filling range: 10-500 ml/10-300 ml
Pump type: diaphragm pump/peristaltic pump
Water pump flow: 4 x 3.2 l/4 x 1.2 l
Filling nozzles number: 1-4 adjustable
Bottle diameter: 20-90 mm/0.79-3,54 inches
Bottle height: 40-250 mm (1.57-9,84 inches)
Filling nozzle diameter: 8 mm (6 mm + 3 mm)
Interior diameter of the water pipe: 7 mm (0.28 inches)
Outside diameter of the water pipe: 10 mm (0.39 inches)
Water inlet pipe length: 2 meters (6.56 feet)
Water output pipe length: 1 meter (3.28 feet)

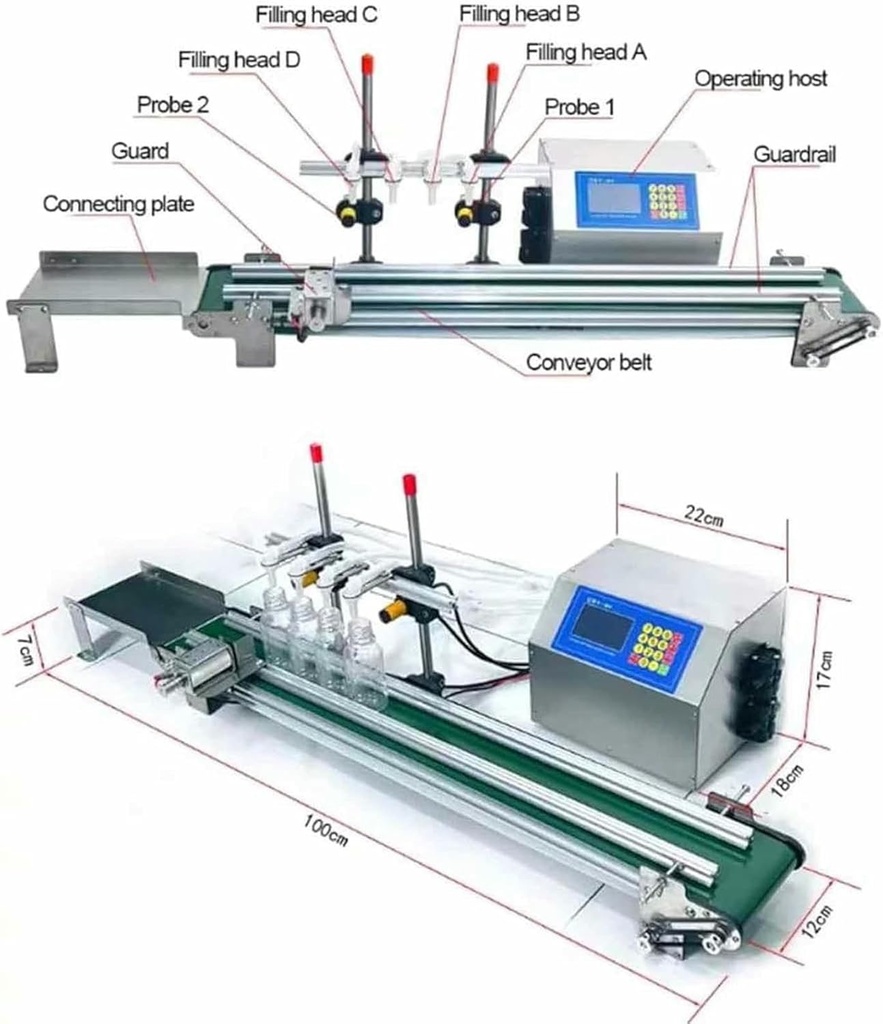

Dimensions of the conveyor belt: 100 x 12 x 7 cm (39.37 x 4.72 x 2.76 inches)
Filling machine dimensions: 22 x 18 x 18 cm (8.67 x 7.09 x 7.09 inches)
Reception tray length: 20 cm (7.87 inches)
✪ The package includes:
1* Filling machine host
1* Transport tape
| Main Specification | |
|---|---|
| Brand | Wzuopg |
| Product information | |
| Item model number | Home |
| Technical Details | |
| Manufacturer | Wzuopg |
