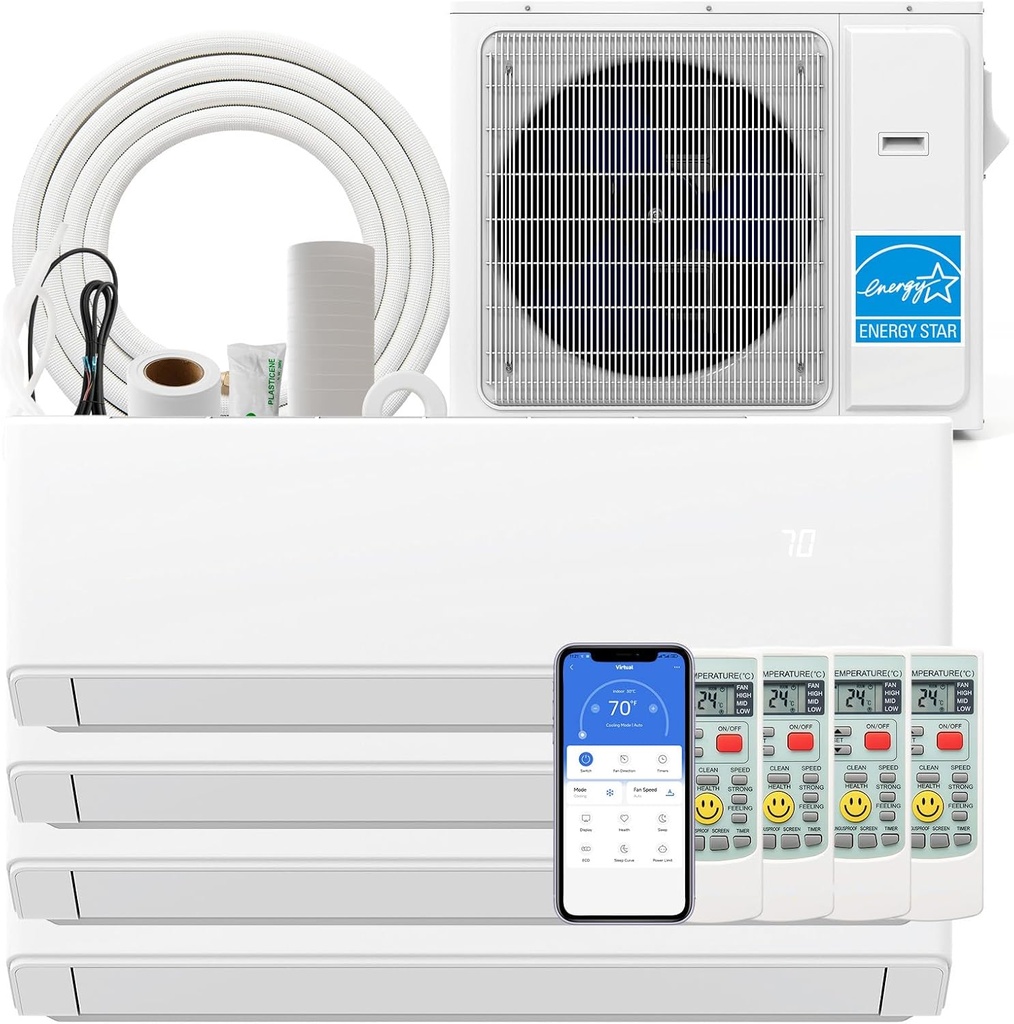

SIMOE 30000 BTU Quad 4 Zone, 23 SEER2, 7000+9000+12000+12000 BTU, Ductless, Mini Split Air Conditioner, Wifi-Enabled 208-230V, Multi Zones Mini Split AC Heat Pump Full Set, Installation Kit
7 sold in last 24 hours
- High Efficiency, Lower GWP: This ENERGY STAR - certified mini split AC sets a new standard for energy savings. Its advanced inverter technology delivers an outstanding 23 SEER2 cooling rating and 10 HSPF2 heating rating. It reduces the global warming potential, offering an eco - friendly choice for your home. The ETL and AHRI certifications further guarantee its quality and safety.
- Multi-Room Cooling Solution: This 30,000 BTU 4-zone mini split AC (7k+9k+12k+12k BTU zones) offers independent room temperature adjustment for customized comfort. With built-in chassis heating, the outdoor unit operates reliably in extreme climates (-13°F to 125°F), ensuring year-round performance. Ideal for whole-home cooling with zone-specific control.
- Versatile Modes for Personalized Comfort: Customize your indoor climate with six flexible operating modes: auto, cool, heat, dry, fan, and sleep. Five wind speed options, ranging from auto, low, mid, high to strong, provide even more control. Features like auto swing, temperature sensing, and health - focused settings ensure everyday comfort, adapting to various conditions.
- Effortless Smart Control: Take full command of your air conditioner from anywhere. The Wi - Fi enabled system allows you to adjust settings and monitor performance via your smartphone, while the included remote control offers convenient local operation. The 24 - hour timer lets you schedule the AC to match your daily routine, ensuring your home is always at the perfect temperature when you need it.
- Quiet Operation and Simple Maintenance: Enjoy peaceful nights with the quiet sleep mode and screen - off function, which minimize distractions. Maintenance is straightforward, as the filter can be easily removed and cleaned.
- Premium Warranty Protection: This wall-mounted 4-Zone mini split includes indoor unit, outdoor unit, and complete installation kit, 4 16ft copper line sets ( 1/4" & 3/8"), requiring professional HVAC technician installation. Backed by our industry-leading 5-year full unit warranty and 7-year extended compressor protection, 24-hour after-sales response, ensuring your comfort with professional service.
Tags |
4 Independent Zones: Cool/heat up to four rooms separately, adapting to individual preferences with 6 operating modes (Auto/Cool/Heat/Dry/Fan/Sleep) and 5 fan speeds (Auto/Low/Mid/High/Strong).
Extreme Climate Ready: Operates reliably in -13°F to 125°F via chassis heating and advanced inverter technology, ensuring year-round functionality.
ENERGY STAR Certified: Achieves 23 SEER2 cooling efficiency and 10 HSPF2 heating performance, reducing energy costs by up to 40% compared to non-inverter systems.
Eco-Friendly Refrigerant: Uses R32 (low GWP)
use the digital display remote (included) for on-demand control from anywhere in your home.
24-Hour Timer: Program operating schedules to align with your routine.
Whisper-Quiet Design: Indoor units operate as low as 32 dB.
Technical Specifications
Indoor Units(7K/9K BTU): 31" x 11.5" x 7.8" (LxWxH)
Indoor Units(12K BTU): 34.5" x 11.7" x 7.6" (LxWxH)
Outdoor Unit (30k BTU): 41.2" x 17.9" x 31.8" (LxWxH)
The length of the air conditioner copper pipe connection accessories is 16 feet.
Power Supply: 208-230V~60Hz/1PH (power cord not included; professional wiring required).
Dehumidification: 51 pints/day per 12K BTU zone (24 L/day total for 4 zones)

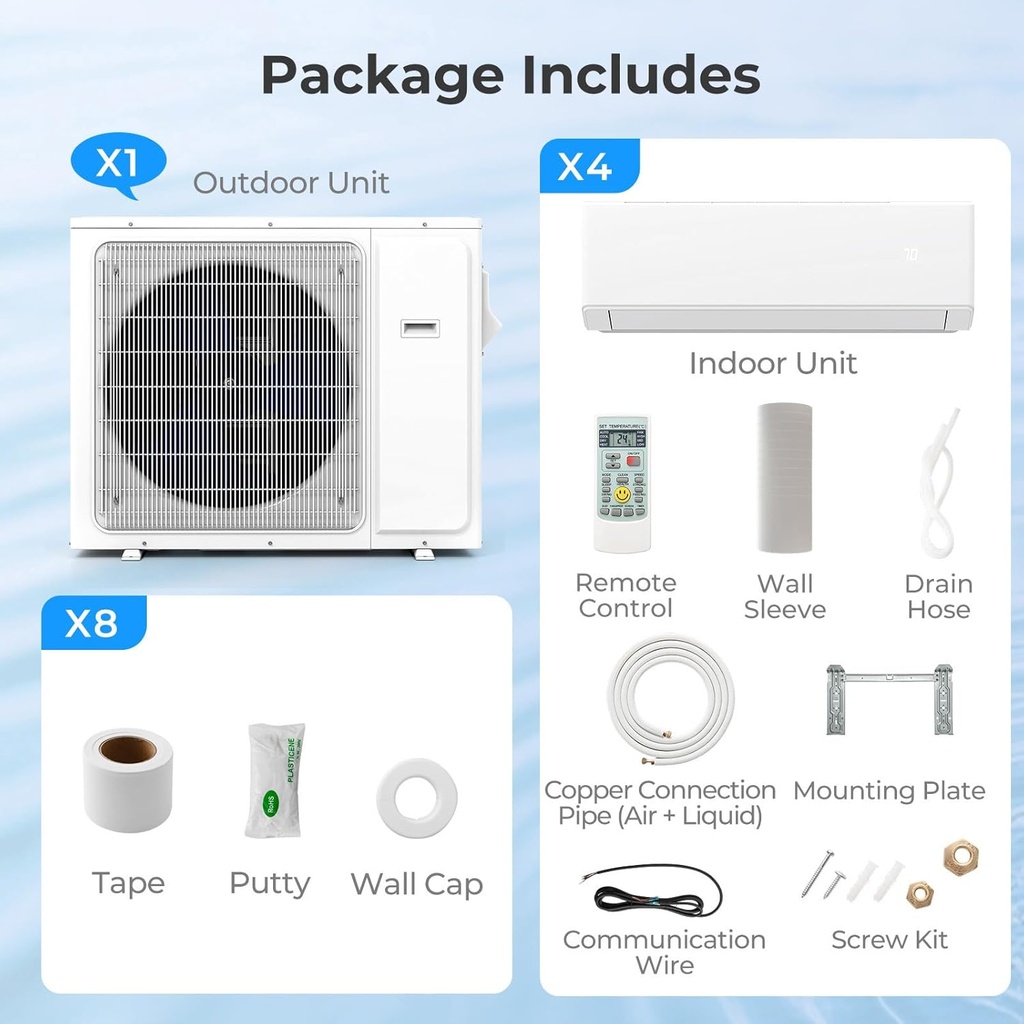

Included Components
1 x Outdoor Unit
4 x Indoor Unit
4 x Communication Wire
4 x Copper Connection Pipe (Air + Liquid)
4 x Drain Hose
4 x Remote Control
4 x Mounting Plate
4 x Wall Sleeve
8 x Wall Cap
4 x Screw Kit
8 x Putty
8 x Tape
5 x User Guide
Important Notes
Professional Installation Required: Licensed HVAC technicians must install the system to ensure safety, warranty validity, and optimal performance.
No Power Cord Included: Electrical wiring must be handled by a qualified electrician.
| Main Specification | |
|---|---|
| Brand | Simoe |
| Product information | |
| Product Dimensions | 17.9 X 41.2 X 31.8 Inches |
| Technical Details | |
| Part Number | Amse751ac-30hf-Q791212 |
| Brand Name | Simoe |
| Manufacturer | Simoe |
| Others | |
| Product Type | Air Conditioner |
