72L/MIN Liquid Filling Machine, 50g-100kg, Diaphragm Pump, Bottle Filler Machine, Digital Control for Perfume Laundry Detergent, dishwashing Liquid
10 sold in last 24 hours

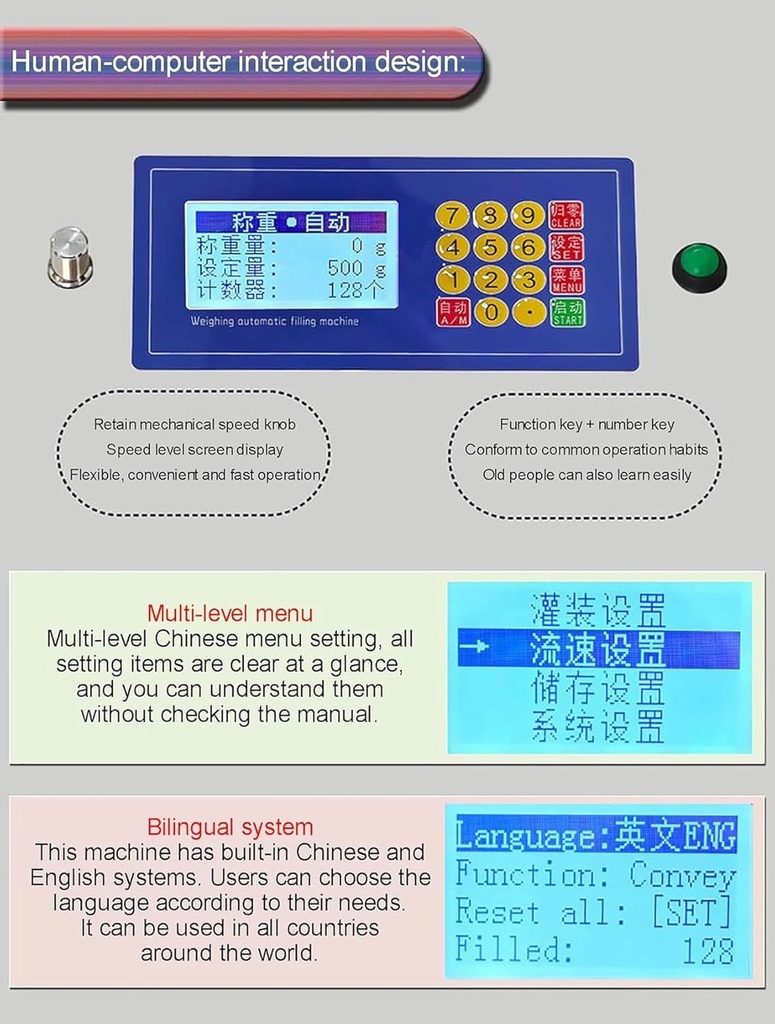

- ??Directly Enter The Value: No vague display, no complex setting program, just enter the value that you'd like to fill. This product is equipped with a flow rate adjustment knob with adjustable speed from 1 to 100, and the flow rate value is displayed on the screen.
- ??Weight-Based Filling Mode: Directly enter the weight of product you want to fill. Compared with time-based filling machine, there is no need to test and measure out complex filling time and speed any longer. No worry about the interference of different liquid's flow rate.

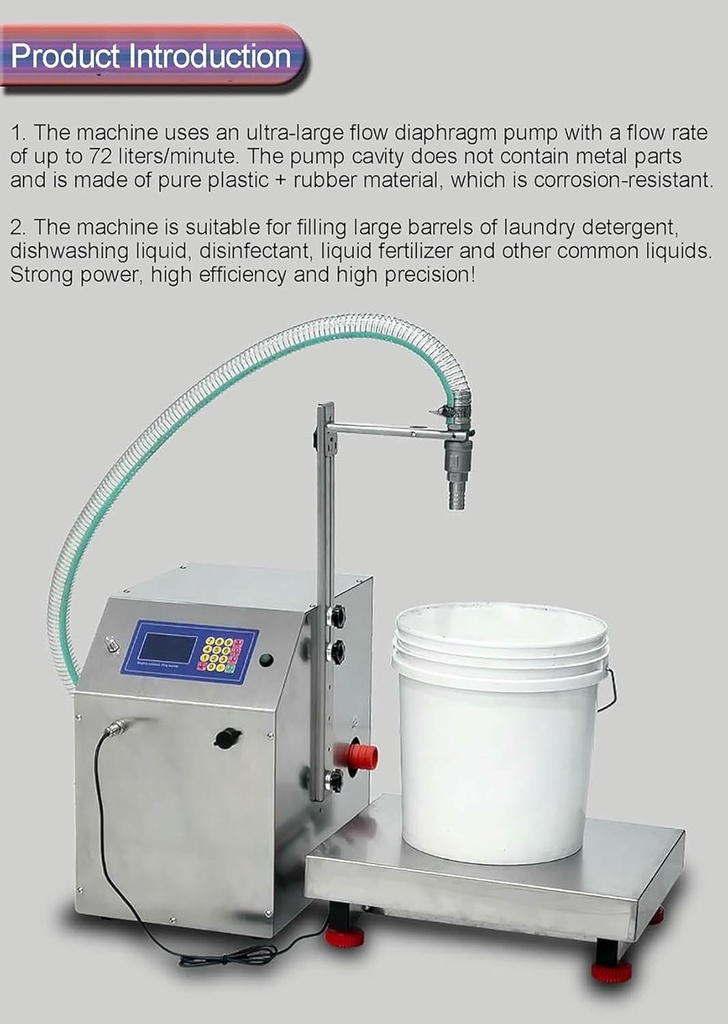

- ??Rapid High-Flow Filling: This filler machine is powered by a robust diaphragm pump. It achieves a flow rate of 72L/min for low-viscosity liquids. It handles low to medium-viscosity liquids like a breeze. From milk to vinegar and more, it's your go-to for small-batch production. Note: Thicker liquids flow a tad slower.
- ??Efficient and Easy to Use: Filling speed is faster and takes less time than similar small bottle filling machines. Simplified disassembly and cleaning. The stainless steel housing is not only corrosion-resistant but also wipes clean easily. Maintenance is a breeze, ensuring your machine stays tidy.
- ??Application: Suitable for filling pure liquids without impurities and viscosity, such as wine, perfume, essential oil chemicals, food, beverages, oils, cosmetics, milk, vinegar, soy sauce, alcohol (concentration less than 75%) and more with good performance Liquid liquid. Only the pipeline contacts the liquid, ensuring that every transfer is clean and pollution-free.
Tags |
Manufacturer:
Functional characteristics: real-time weighing, overload alarm, weighing filling, pricing filling, timed filling, automatic triggering, automatic peeling, automatic speed change, automatic counting, data storage, language selection and other functions.
Protection system: This machine has overheat protection, overcurrent protection, overload protection and other functions.
Product Parameters
Voltage/power: 220V/600W
Filling range: 50g~100kg
Weighing range: 100kg
Weighing division value: 10g
Water pump type: diaphragm pump
Water pump flow: 72L/minute
Comprehensive error:
Filling head specification: 20mm filling head
Filling height: 0~70cm adjustable
Water pipe material: PVC steel wire hose
Water pipe specification: inner diameter 32*outer diameter 38mm
Water inlet pipe length: 2 meters
Water outlet pipe length: 1 meter

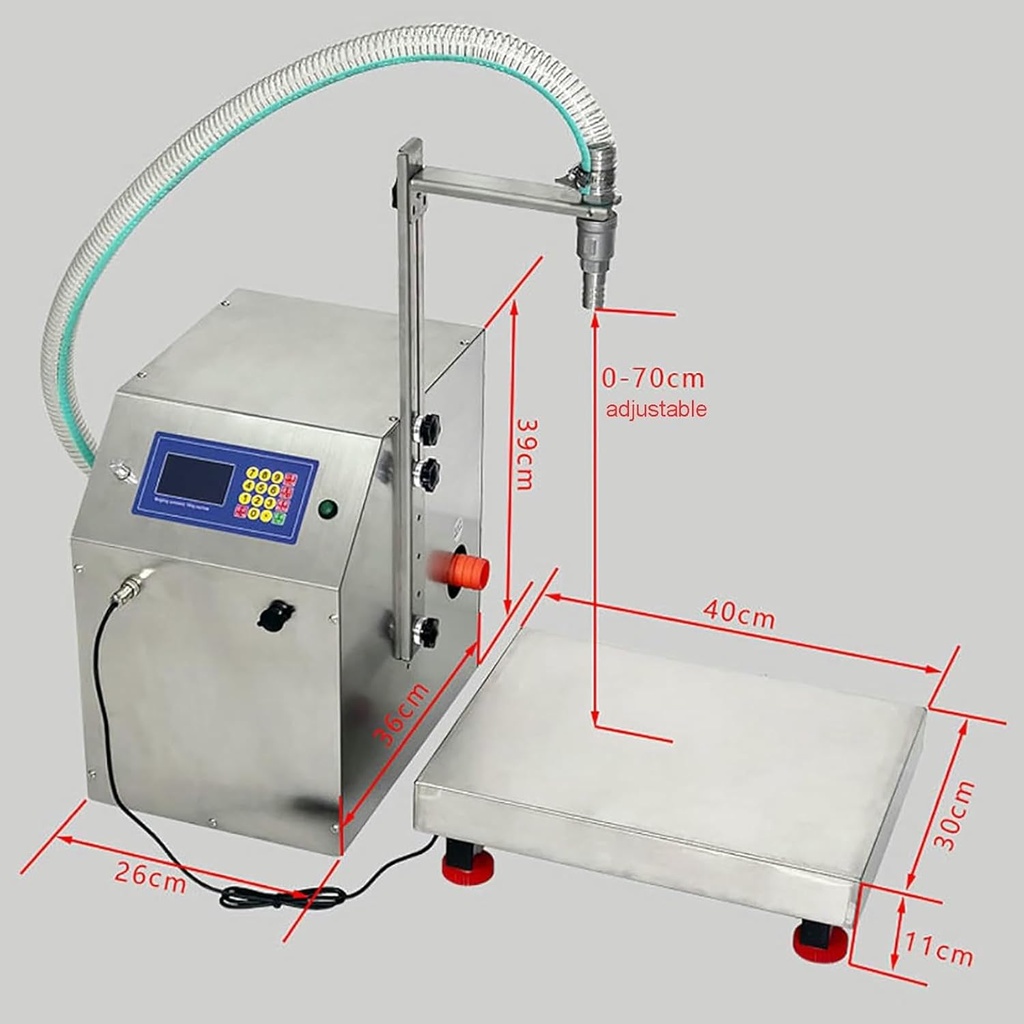

Host size: 36*26*39cm
Packaging size: 50*45*45cm
Packaging weight: 23kg
Language selection: switchable between Chinese and English
Applicable scenarios: liquid filling, Laundry detergent, dishwashing liquid, essential oil, essence, liquor, Edible oil, glass water, Beverages, etc.
Initial flow rate: The same data as the flow rate value adjusted by the speed knob.
Final flow rate: The flow rate level at the end of filling, usually adjusted to the minimum level that allows flow.
Additional Information
| Manufacturer | ZDJZMGZ |
|---|
| Brand | Zdjzmgz |
