9" Sliding Patio Glass Door Handle Set with 3-1/2 in. Hole Spacing, White Diecast with Wood Handle, Hook Style, Internal Lock
9 sold in last 24 hours
- Non-handed for left or right sliding patio doors

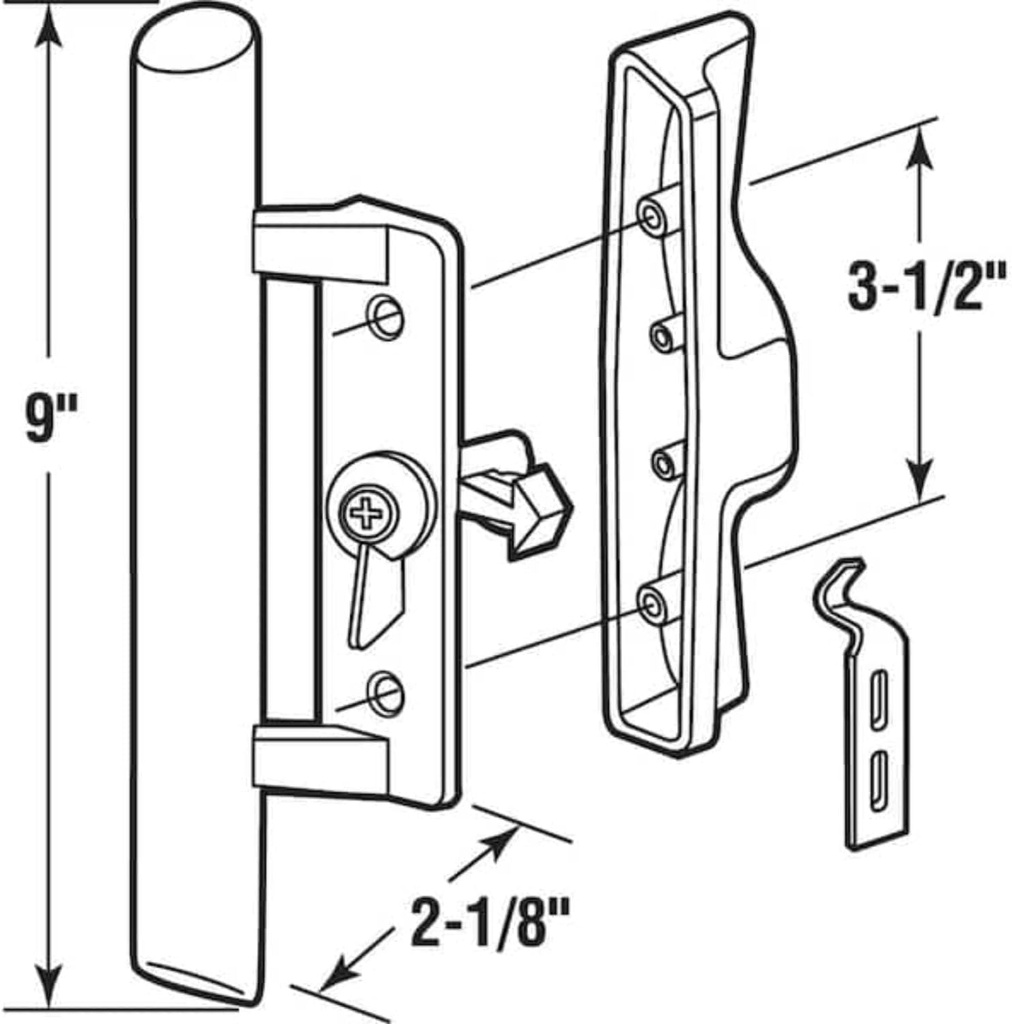

- Mounting holes are 3-1/2 inch on center
- White diecast with wood pull (color of wood can vary)
- 9 inch hardwood handle
- Mounting hardware included and a Phillips head screwdriver is required for installation
Tags |
This handle is a white Internal style latching patio door handle found on Viking as well as a variety of other sliding patio door manufacturers. Being one of the most common internal style latch it can be used on either right or left-handed doors. The handle body is diecast steel with a wood handle attached. The wood finish may vary slightly. Included is a matching outside handle and keeper. The mounting holes are 3-1/2 inch on center. When the latch is installed into the door frame through an inside access hole, the connected lever is held in place by a flat spring as it operates the latch up and down to engage the keeper. Found on a majority of Viking sliding patio doors. Used on select 1 inch thick doors with 3-1/2 inch on center mounting holes. Non-handed handle design for left or right handed doors. Diecast construction painted white with wood handle (wood finish can vary). All the necessary mounting hardware is included for a quick and easy installation.
Technical Details
| Brand | Easy Fix Hardware |
|---|---|
| Color | White |
| Product Dimensions | 9"L x 2.13"W |
| Specific Uses For Product | Sliding Patio Internal Door |
| Theme | Modern |
| Item Weight | 16 ounces, 1 pounds |
| Center To Center Spacing | 3.5 Inches |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Manufacturer | Easy Fix Hardware |
| Part Number | DH-106X-WHITE |
| Item model number | DH-106X-WHITE |
| Size | 9'' |
| Item Package Quantity | 1 |
| Main Specification | |
|---|---|
| Specific Uses For Product | Sliding Patio Internal Door |
| Brand | Easy Fix Hardware |
| Product Dimensions | 9"L X 2.13"W |
| Theme | Modern |
| Color | White |
| Others | |
| Product Type | Hardware Handle |
