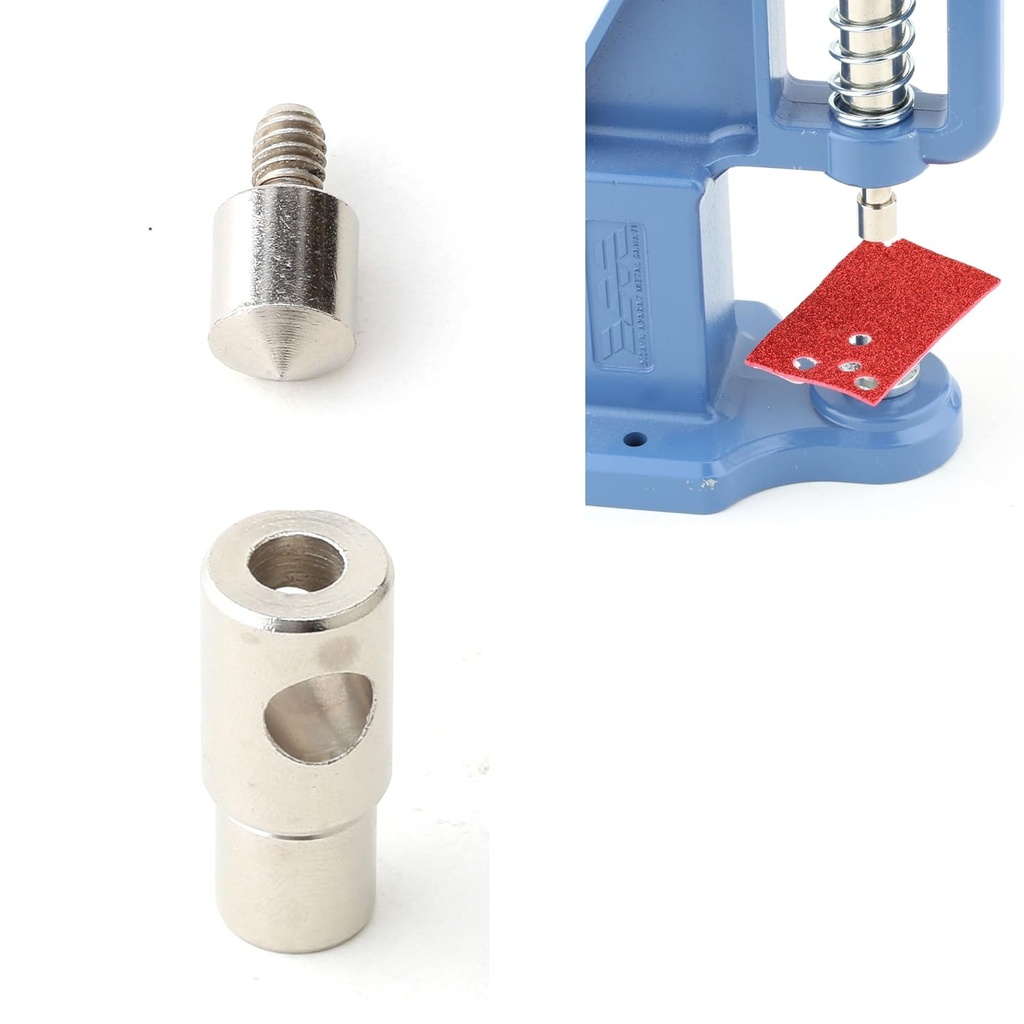

$ 43.54Punching Die for Hand Press Machine Eyelet Grommet Hole Punch Tool (4,5 mm (11/64 inch))
3 sold in last 24 hours

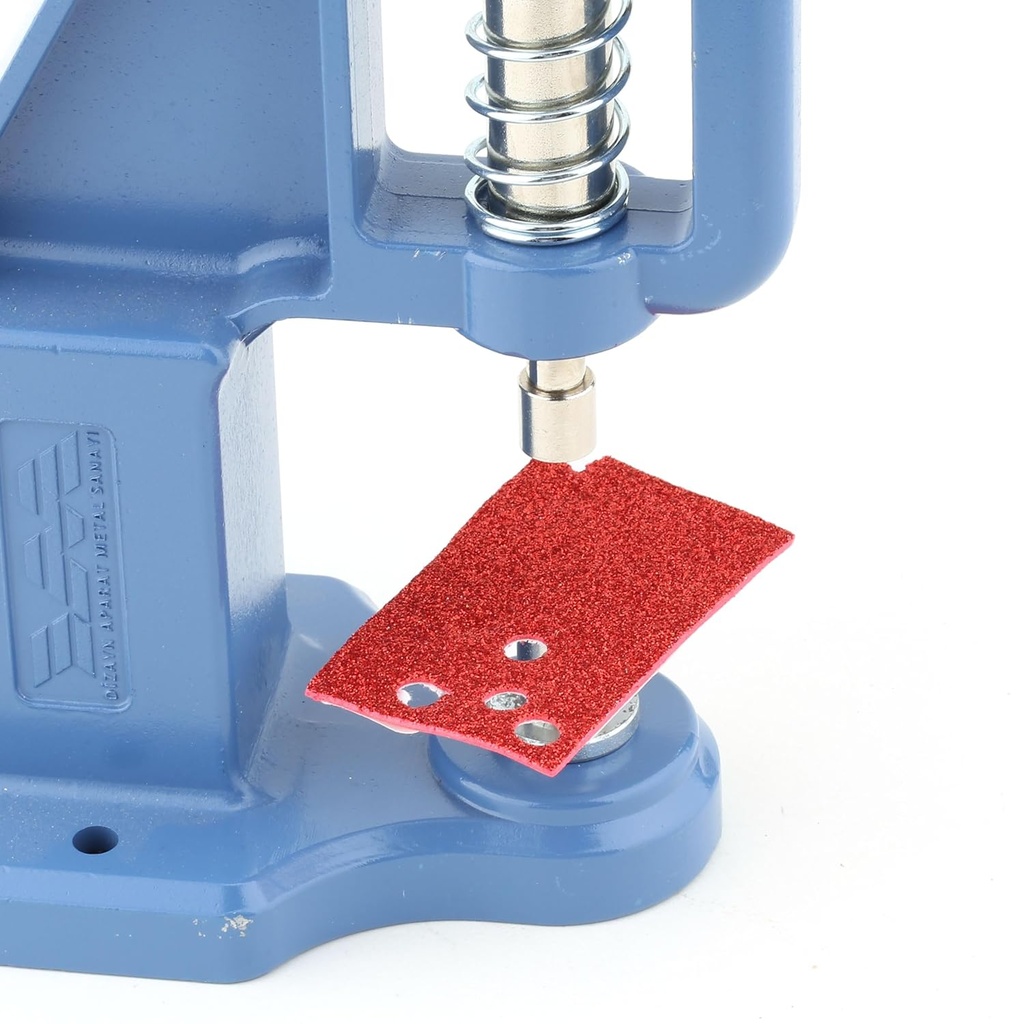

- You can use this to punch hole dies for snaps, rivets, and eyelets on things like leather, rubber, vinly, paper, cardboard, belts, curtains, tarps, shoes, hats, bags, and clothes. It gives the best performance for single-layer products with a thickness of 1-9 mm.
- It has different sizes, from 1.5mm up to 10mm, so you can find the right fit for your project. Just pick the size that works best for what you're making.
- It's made from steel, so it's super strong and will last a long time, even if you use it a lot. Easy to use, so you can quickly put metal eyelets on belts, shoes, and other stuff without any hassle. Suitable for everyone – pros, beginners, and people who just enjoy crafting.

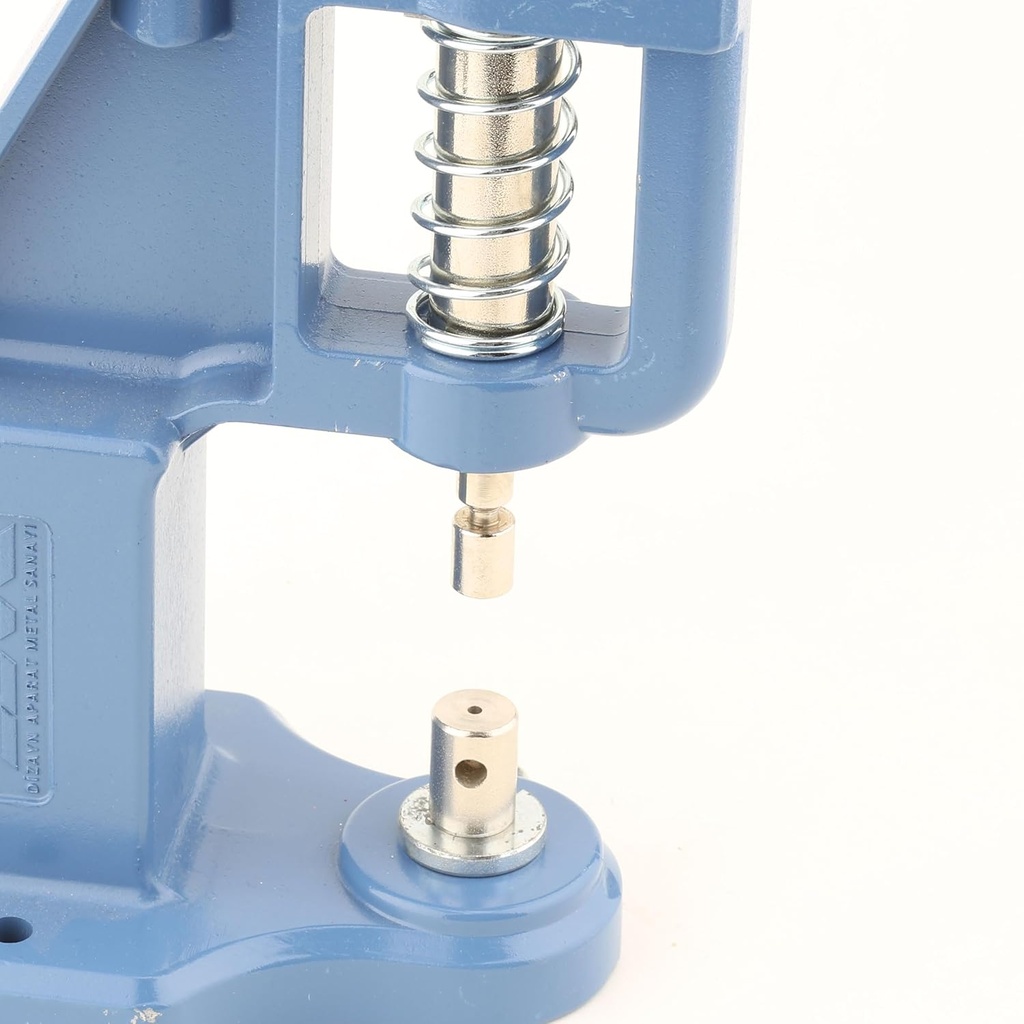

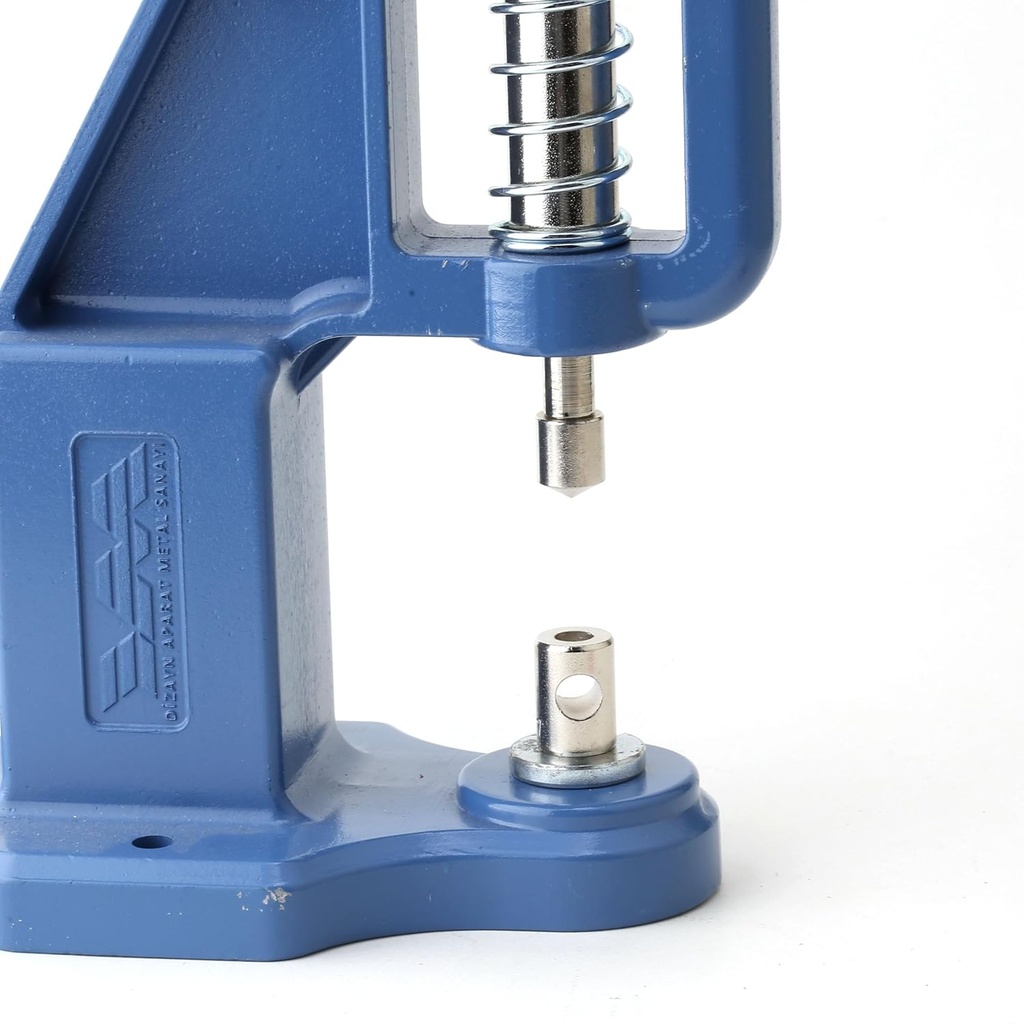

- You'll need a press machine to use this, it doesn't come with one. Also, the dies won't work on their own without a grommet press.
- The top screw part of this hole puncher die is 1/4 inch. The bottom round part is 1/2 inch. If you have YF Store or DZNTOOLS hand press machine this'll fit. Otherwise make sure your press machine can fit these sizes before you buy it!
- These dies are only for punching holes. You must also purchase a suitable die for eyelet grommet.
Tags |

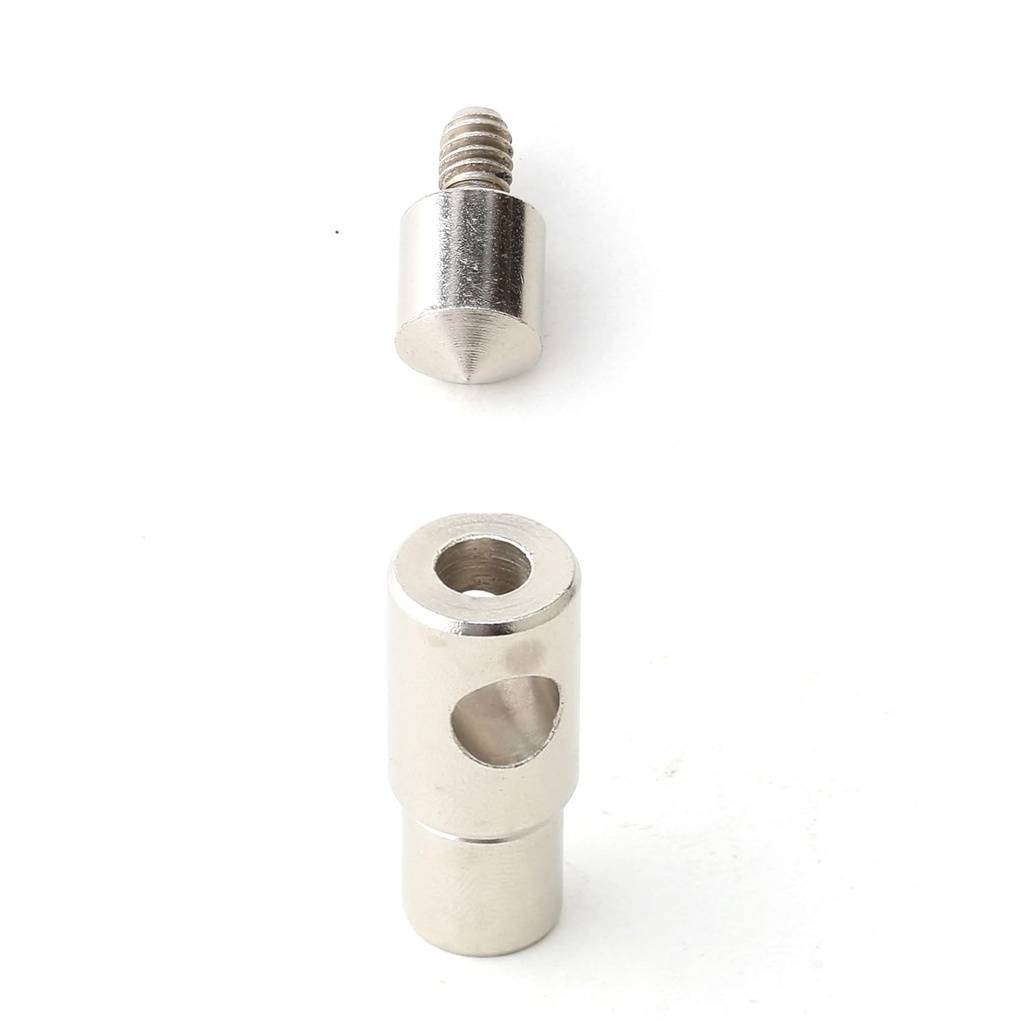

Pointed head punching dies for the 1-9 mm thickness materials. The dimensions specified in the title refer to the diameter of the drilled hole.
1,5 mm (≈1/17 inch = 0.059”) : Used for general purpose punching of 1.5 mm diameter holes.
2,5 mm (≈3/32 inch 0.098”) : Used for punching holes for 15 mm and 12,5 mm snap buttons.
3,5 mm (≈9/64 inch = 0.138"): Used for punching holes for 1.7 no eyelet-grommet
4,5 mm (≈11/64 inch = 0.177") : Used for punching holes for 2 no eyelet-grommet
5 mm (≈13/64 inch = 0.197") : Used for punching holes for 3 no eyelet-grommet
6 mm (≈15/64 inch = 0.236") : Used for punching holes for 4 no eyelet-grommet
7 mm (≈9/32 inch = 0.276") : Used for punching holes for 5 no eyelet-grommet
10 mm (≈25/64 inch =0.394") : Used for punching holes for 24 no eyelet-grommet
For really stretchy stuff: The hole you make should be about 3 to 4 millimeters smaller than the inside of the eyelet.
For stuff that stretches a little: Make the hole about 0.5 to 1 millimeter smaller than the eyelet's inside.
For stuff that doesn't stretch at all: The hole should be the exact same size as the inside of the eyelet.

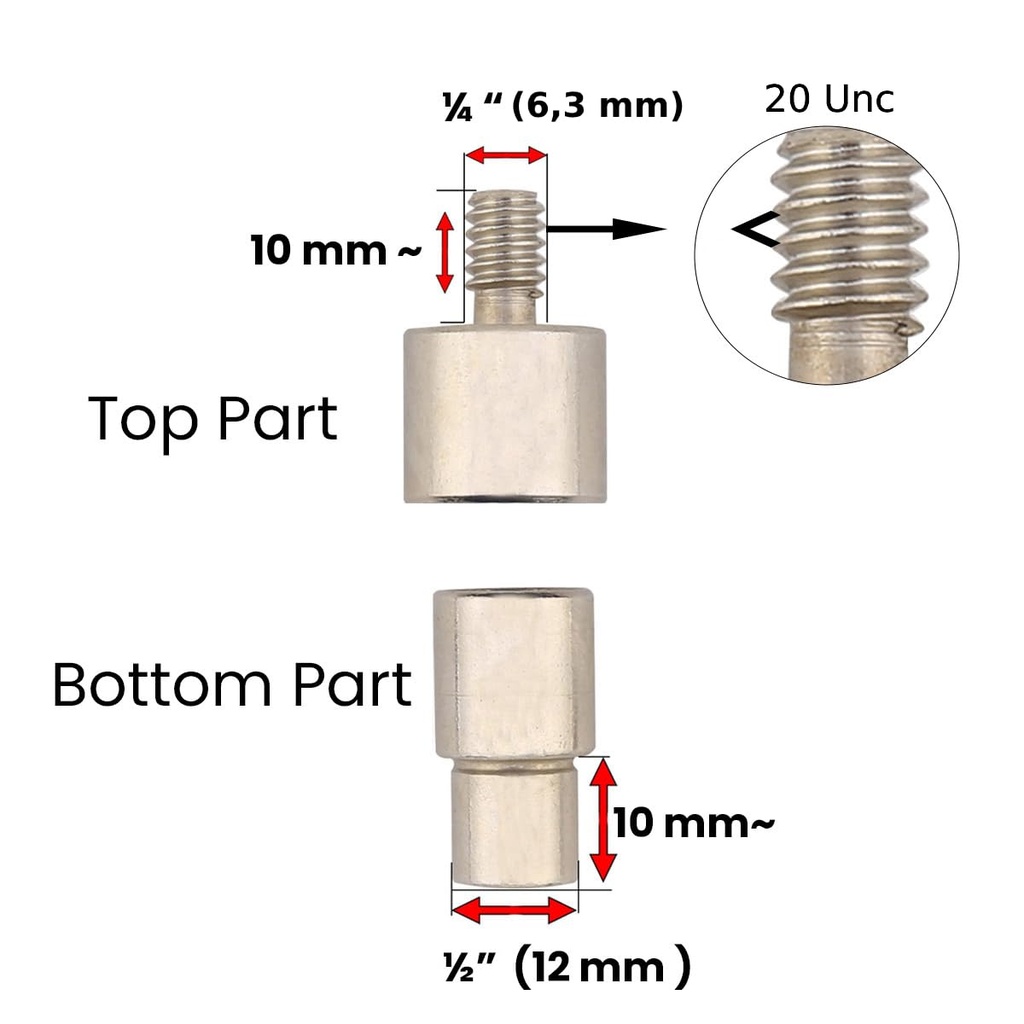

Die specifications: Dies top screw thread size of 6.3 mm (1/4 inch), bottom die slot diameter size of 11.9 mm (1/2 inch) and are compatible with our hand press machine. If you have a different hand press, please check your hand press measurements to ensure they match the requirements of your machine.
Package Dimensions
2 x 2 x 1 inches; 1.6 ounces
Product details
| Package Dimensions | 2 x 2 x 1 inches; 1.6 ounces |
|---|---|
| Item model number | sakul-main |
| Manufacturer | YF STORE |
| Main Specification | |
|---|---|
| Manufacturer | Yf Store |
| Brand | Yf Store |
| UPC | 789637182296 |
| Technical Details | |
| Item Weight | 1.6 Ounces |
| Others | |
| Product Type | Hole Punch |
