Programmable DC Electronic Load 120W, 0~150V, 0~20A, 0.1~999.9 ohm,Support CC(Constant Current), CV(Constant Voltage), CR (Constant Resistance), CP(Constant Power) Mode

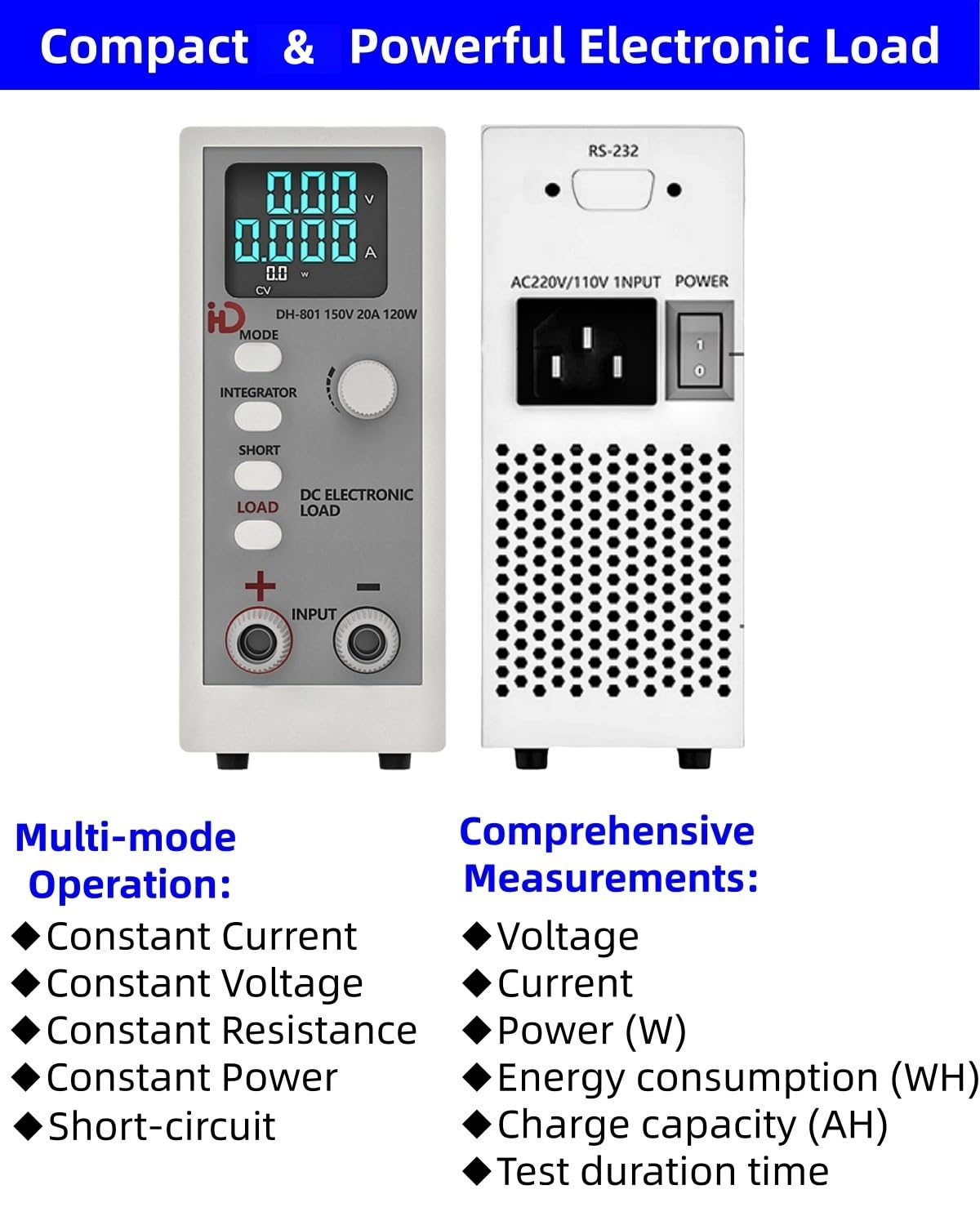

- MULTIPLE MODES: Features Constant Current(CC), Constant Voltage(CV), Constant Resistance(CR), Constant Power(CP) and Short-circuit testing modes for versatile electronic load testing
- WIDE TESTING RANGE: Supports voltage range of 0-150V, current range of 0-20A, resistance range of 0.1-999.9 ohm, with maximum power handling of 120W
- MEASUREMENT FUNCTIONS: Includes integral timing capability for measuring watt-hours (WH) and amp-hours (AH), perfect for battery and power supply testing
- DIGITAL DISPLAY: Clear LED screen shows real-time voltage and current readings with precise measurements for accurate testing results
- CONTROL INTERFACE: User-friendly front panel with dedicated mode selection buttons, adjustment knobs, and input terminals for easy operation
| Specification Met | Rohs, Ce |

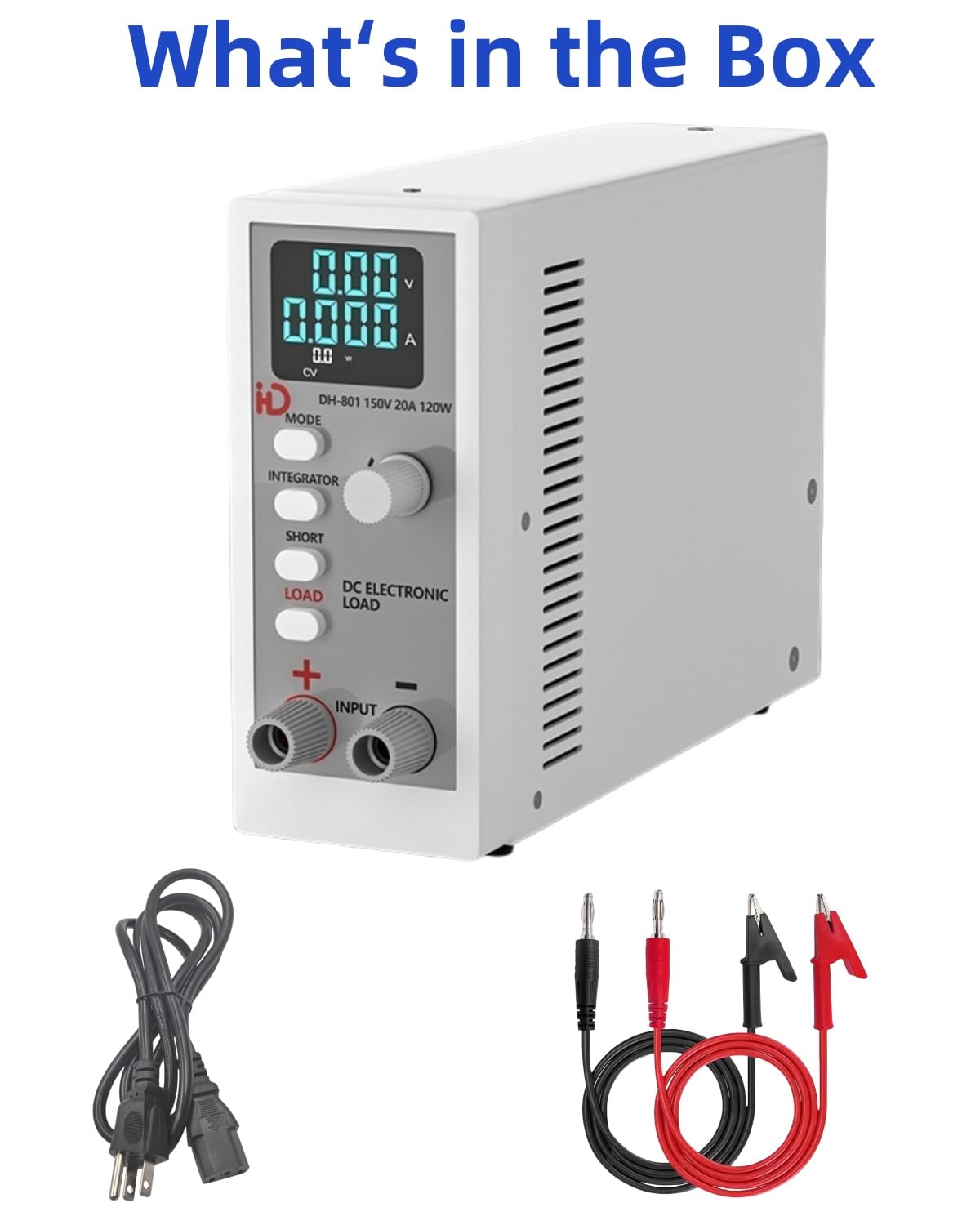

| Included Components | Power Cable, Dc Electronic Load Tester, Test Cable |
| Compatible Devices | batteries, Power supplies, DC Power Sources |
| Manufacturer | MUXWELL |
| Unit Count | 1 Count |
| Brand | MUXWELL |
| Number of Items | 1 |
| Power Source | Ac |
| Upper Temperature Rating | 40 °C |
| Colour | White |
| Style | Desktop |
| Item Weight | 2 Pounds |
| Measurement Type | Voltage, Current, Power, Resistance |
| Part Number | DH-801 |
| Model | DH-801 |
| Maximum Operating Voltage | 150 Volts |
| Style Name | Desktop |
| Item Dimensions | 7.48 x 2.17 x 5.12 inches |
| Product Type | Multi Testers |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSREZY6AFYWC2DG |
Category |
Electrical , Testers , Multi Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.This versatile DC Electronic Load device is an essential tool for electronics testing and development.
With a robust 120W capacity and broad operating ranges of 0-150V and 0-20A, it offers precision control for various testing scenarios.
The unit features multiple operation modes including Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR) ranging from 0.1 to 999.9 ohm, and Constant Power (CP).
What sets this device apart is its advanced integral timing function, enabling accurate measurements of watt-hours (WH) and amp-hours (AH).
The clear LED display shows real-time measurements, while intuitive controls allow for quick parameter adjustments.
Perfect for DIY enthusiasts and electronics professionals alike, this programmable load can simulate various electrical loads for testing power supplies, batteries, and other DC power sources. The compact, well-ventilated design ensures reliable operation, while the professional-grade construction provides stable and accurate readings.
Whether you're developing new circuits, testing power supplies, or conducting battery discharge tests, this electronic load provides the precision and flexibility needed for accurate results.

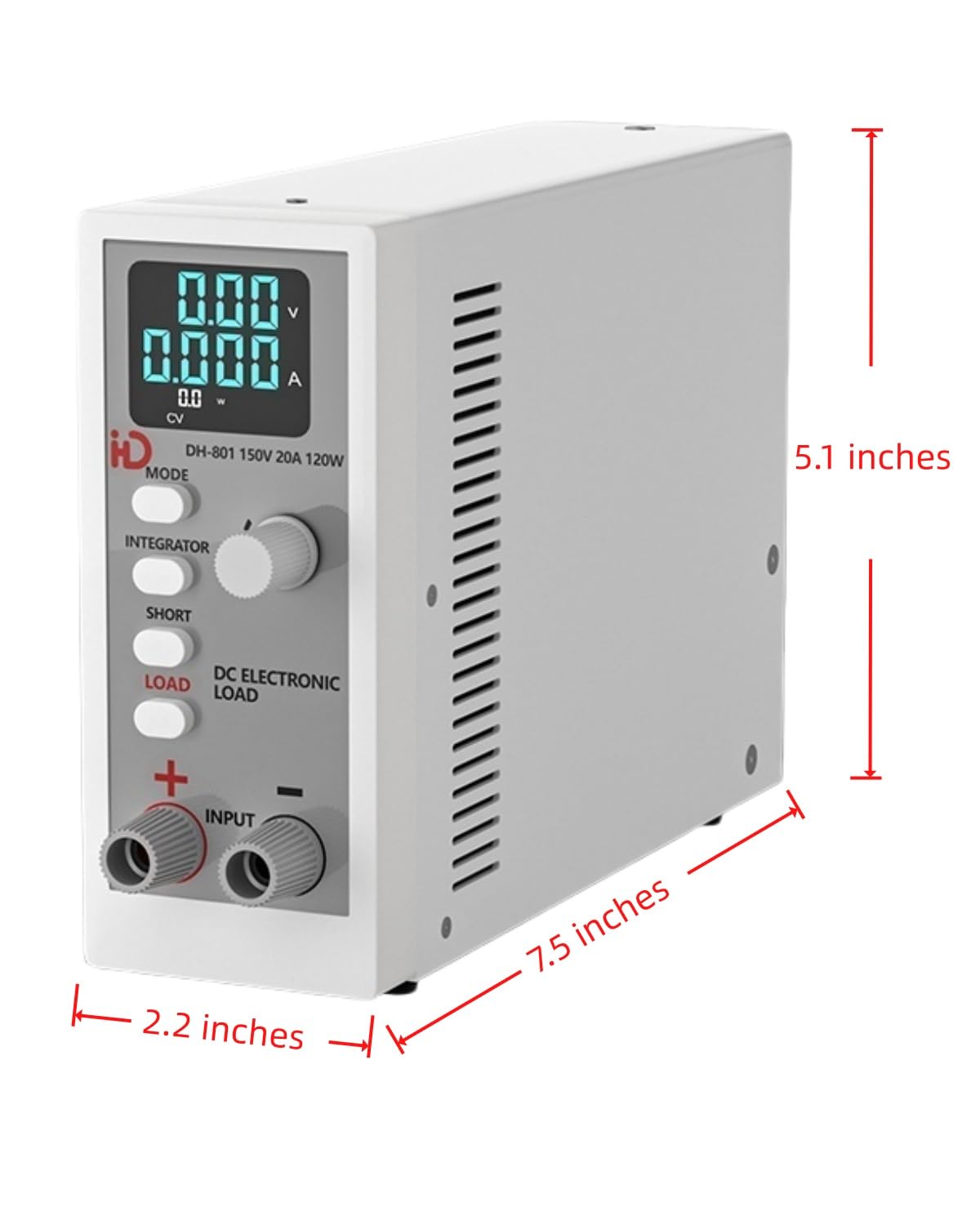

Compact Size
Width: 2.2 inches;
Height: 5.1 inches;
Deepth: 7.5 inches
Intuitive Operation
4 function keys and 1 rotary knob only.
User-friendly front panel with dedicated mode selection buttons, adjustment knobs, and input terminals for easy operation
Superior Brightness & Contrast Display
LED pixels deliver exceptional brightness and true blacks for stunning visuals even in bright environments.
Far better than the regular LCD display of competitors.

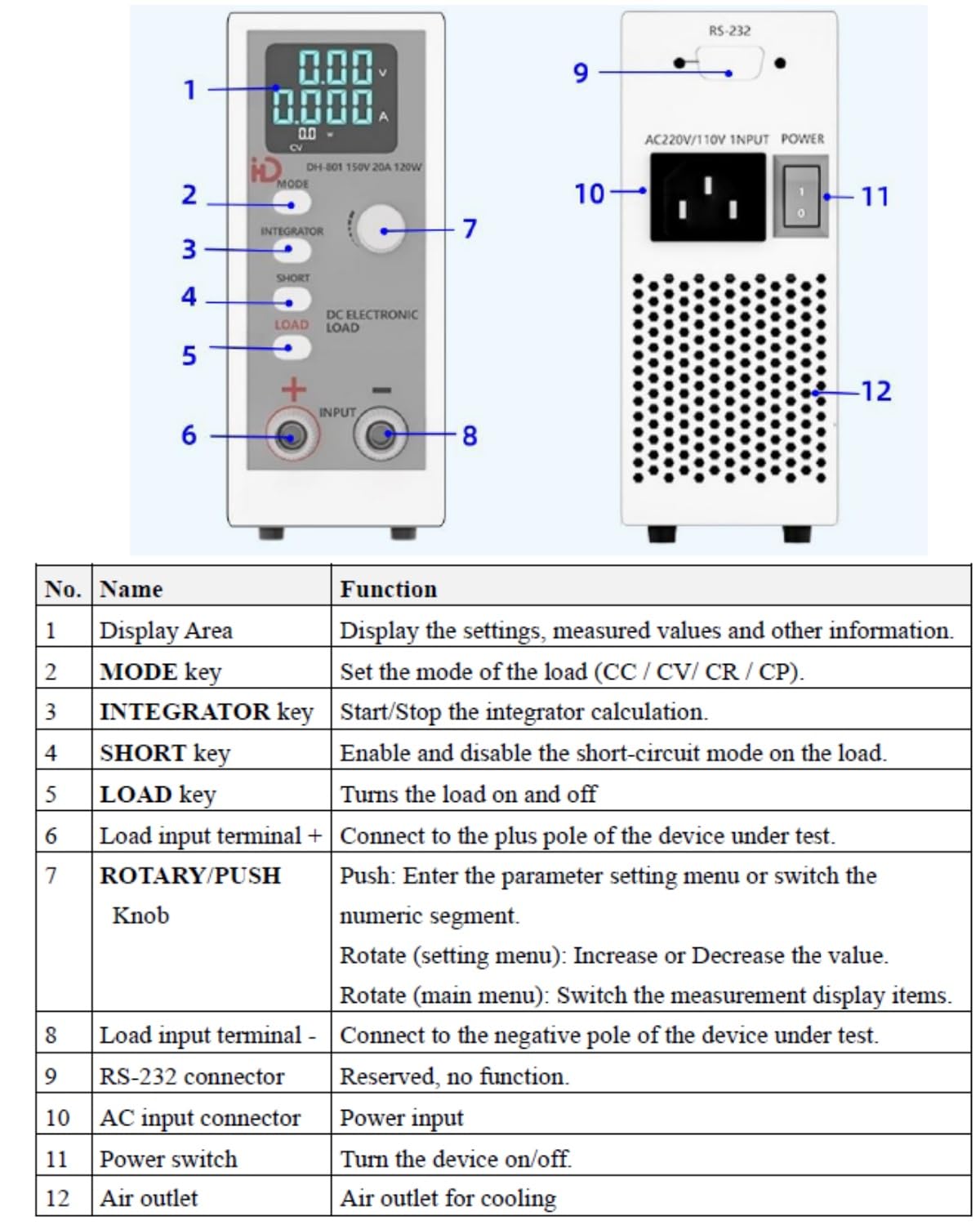

Operation Guide
1-Display Area: Display the settings, measured values and other information.
2-MODE key: Set the mode of the load (CC / CV/ CR / CP).
3-INTEGRATOR key: Start/Stop the integrator calculation.
4-SHORT key: Enable and disable the short-circuit mode on the load.
5-LOAD key: Turns the load on and off
6-Load input terminal +: Connect to the plus pole of the device under test.
7-ROTARY/PUSH Knob:
Push: Enter the parameter setting menu or switch the numeric segment.
Rotate (setting menu): Increase or Decrease the value.
Rotate (main menu): Switch the measurement display items.
8-Load input terminal -: Connect to the negative pole of the device under test.

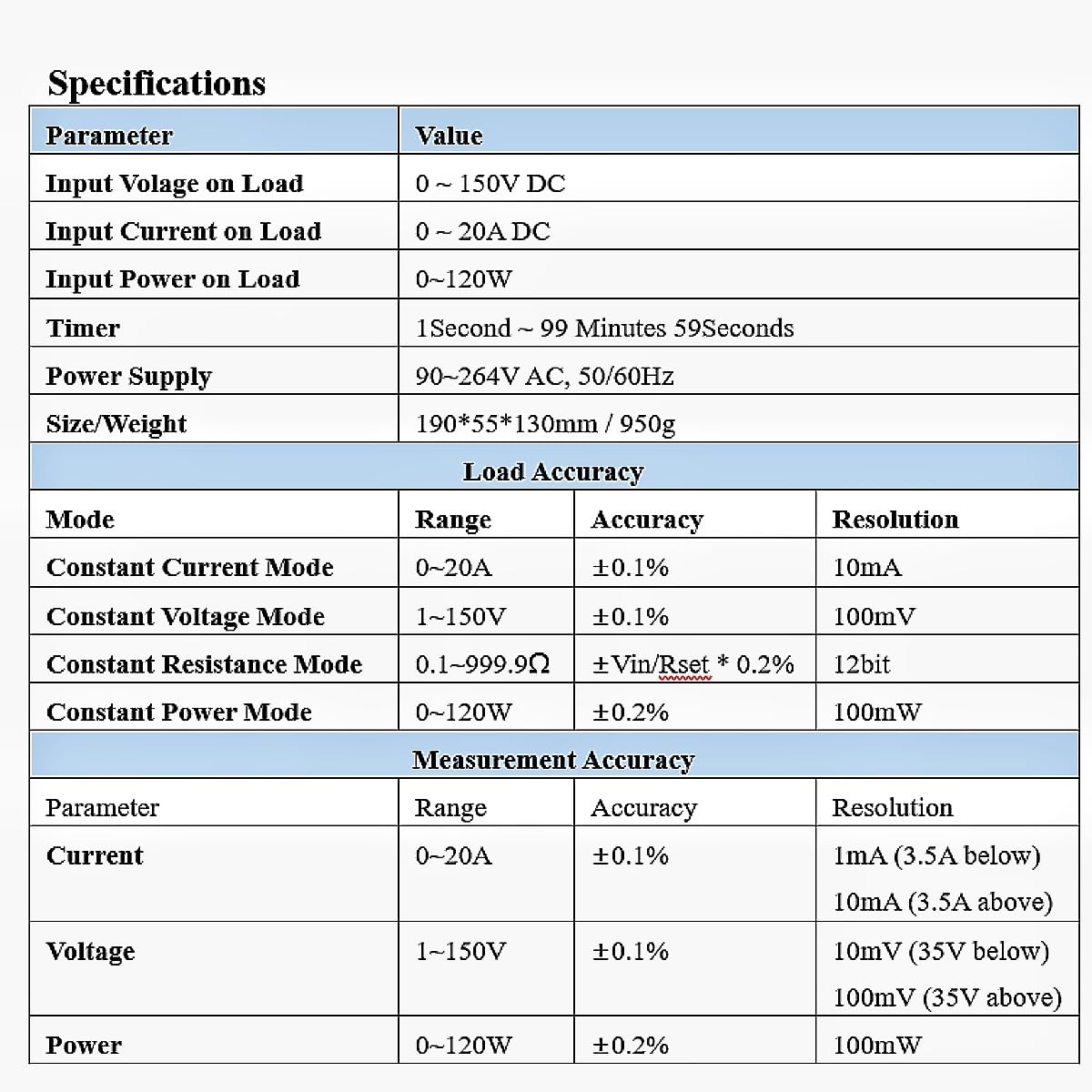

Specifications
