NPT 3/8" Air Compressor Water Separator Filter Pressure Regulator

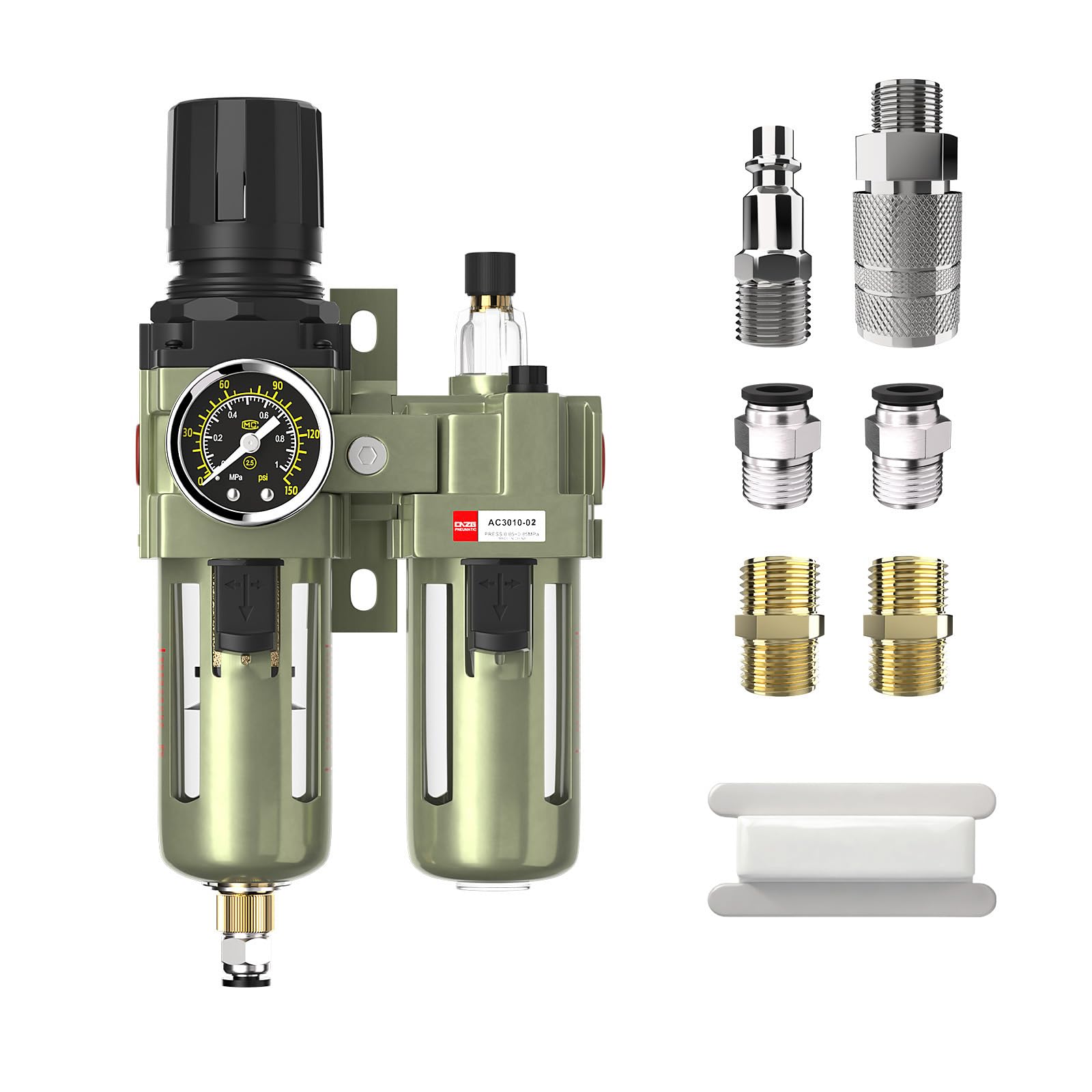

- PACKING : NPT AC3010-03+US(SMPM3/8")+2x NPT Brass 3/8"+2x PC 3/8"-3/8 NPT+1x PC 1/4"-1/8 BSP+1xTeflon Tape

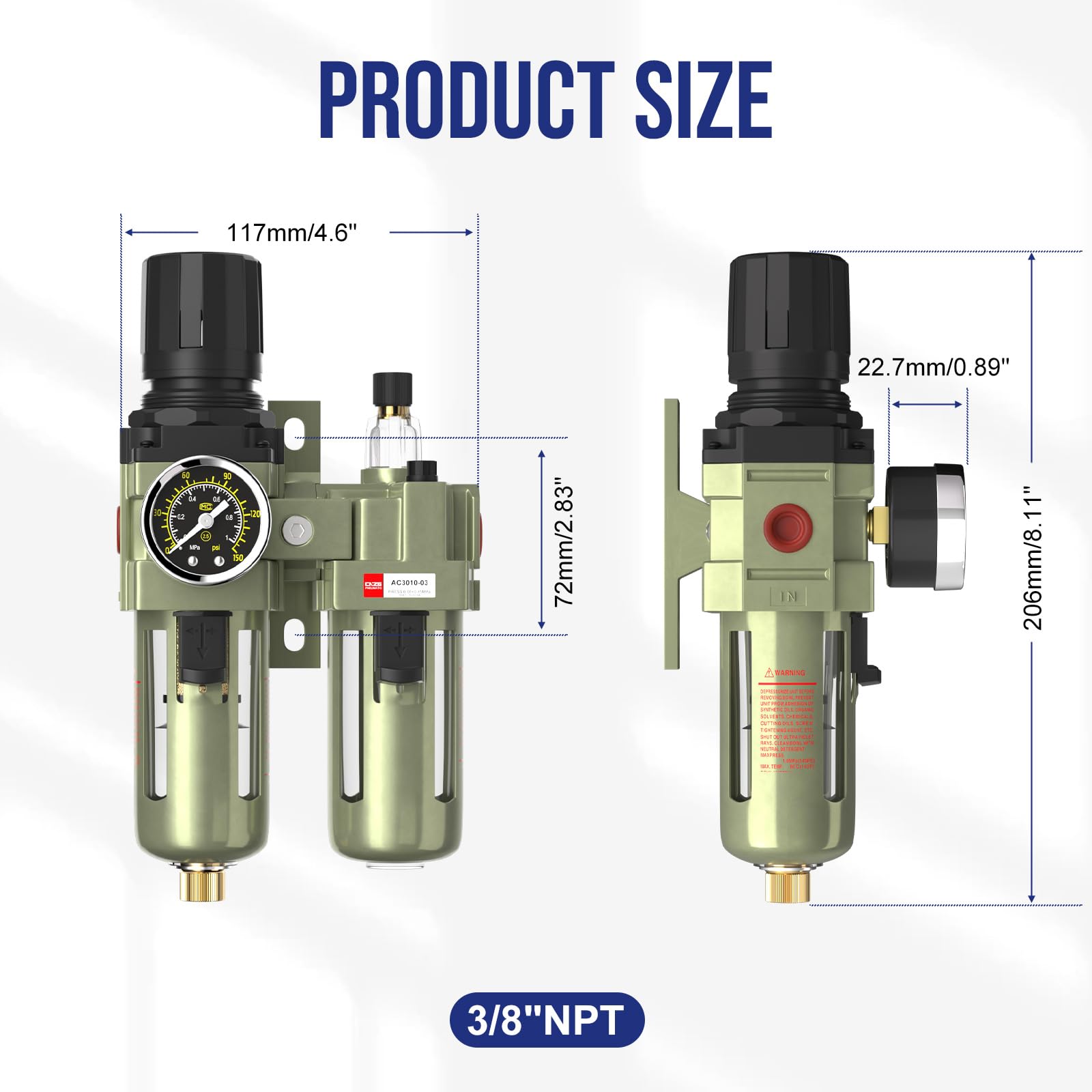

- SIZE : Air Compressor Water Separator Port Size:3/8" NPT,Gauge Port Size:1/8“PT≈9.7mm
- USEAGE ENVIRONMENT : Air Compressor Filter Maximum Pressure:150PSI,Recommended Pressure Adjustment Range:0-135PSI. Suggest Using A Temperature of 41-140 °F
- PRODUCTS : Filter Cup Made of Transparent Polycarbonate, A High-Performance Engineering Plastic with High Transparency, Strong Impact Resistance, Sound Insulation, Heat Insulation, Flame Resistance and Aging Resistance. Filter Material Uses Brass Filter Element for Corrosion Resistance and Cleaner Air Filtration, Extending Equipment Service Life. Oil Mist Cup Provides Lubrication for Externally Connected Equipment for Smoother and More Durable Operation
- ADVANTAGE : Air Pressure Regulator Converts Elastic Energy of Compressed Air Into Kinetic Energy Via Gas Pressure or Expansion. Structure Is Simple, Lightweight, Easy To Install And Maintain. Air Medium Is Less Flammable Than Hydraulic Medium, Ensuring Safe Use. Suitable for oil water separator for machine tools Air Compressor, Paint Sprayer, Pneumatic Cylinder, And Badger Airbrush
| Manufacturer | CNZG PNEU |
| Unit Count | 1 Count |
| Brand | CNZG PNEU |
| Number of Items | 1 |
| Recommended Uses For Product | Filter |
| Model Name | AC3010-03 Water Trap for Air compressor |
| Included Components | Fittings+Filter |
| Power Source | Battery Powered |
| Colour | Semi-auto Drain Kit |
| Style | Semi-Auto Drain Kit |
| Special Feature | Filter |
| Number of Packs | 1 |
| Manufacturer Part Number | SMC-3010 |
| Maximum Pressure | 150 |
| Model Number | AC3010-03 |
| Additional Features | Filter |
| Product Type | filter, Regulator & Lubricator Combos |
| Item Highlight | AC3010-03, Pneumatic Compressed With Gauger Accessories, Lubricator Two Units Combo Frl, 0-150 psi, Oil catcher Trap |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSREZYEAV6GYFLD |
Category |
Filtration , Compressed Air Treatment , Filters, Regulators & Lubricators , Filter, Regulator & Lubricator Combos |
Tags |
Estimated shipping
Select a product to estimate shipping.AC3010-03

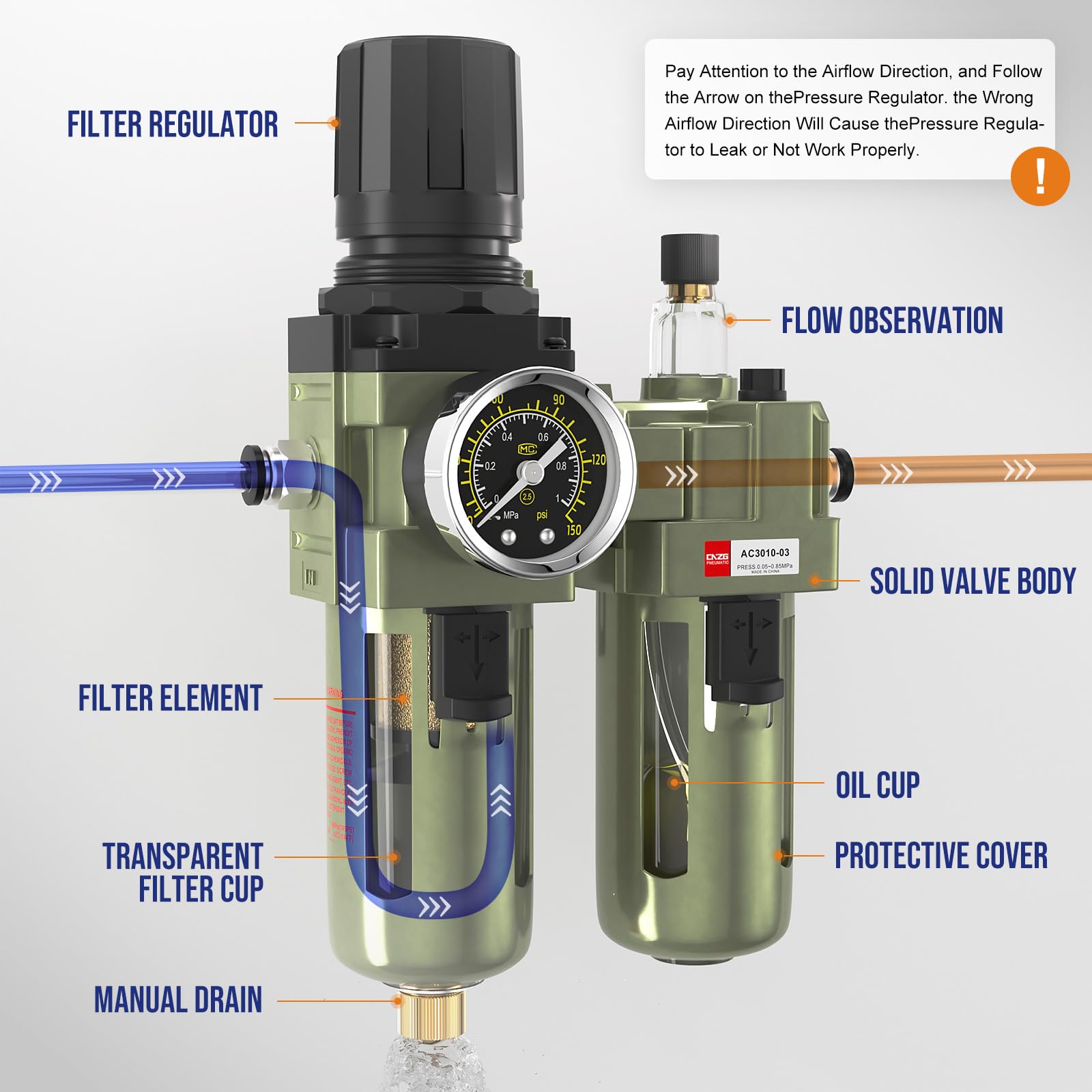

It Can Effectively Filter Impurities, Dust, Moisture and Particles in the Air Regulating
Function: With Pressures Ranging from 0 to 140 PSI, You Can Pull the Button on the Filter and Rotate It to Reduce the Pressure.
AC3010-03 Air Filter Pressure Regulator
Air Port Size: 3/8" NPT;Gauge Port Size:1/8“NPT
Flow:2000 L /Minute
Max Working Pressure: 145PSI(10.3BAR)
Operating Temperature Range: 40-140F(5-60°C)
Drain Type: Manual
Precision Pressure Gauge
The Pressure Gauge with Purple Copper Core is More Accurate to the Pressure Induction, and the Metal Shell is Resistant to Impact.

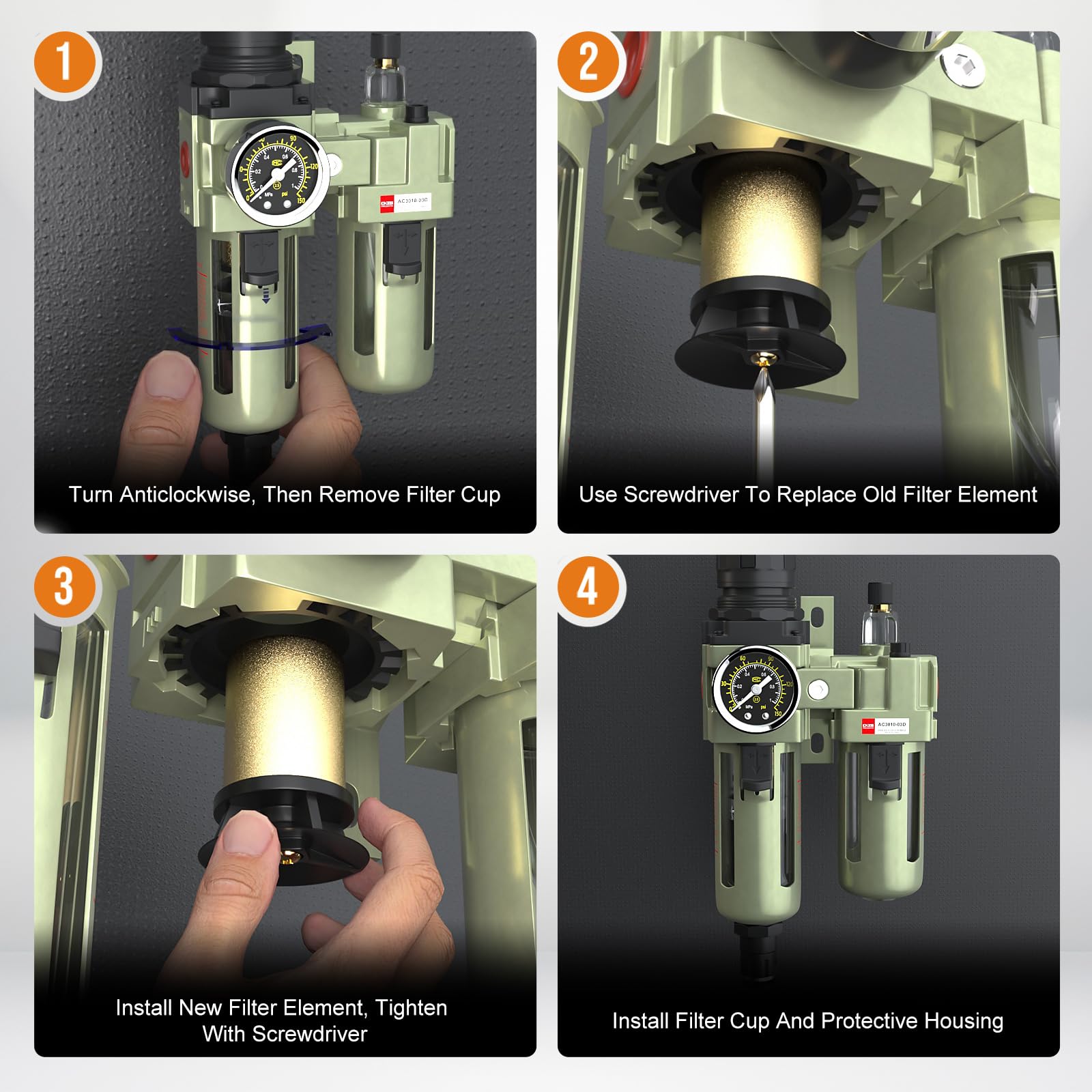

Fiber Filter Element
The Filter Element is Made of Fiber. the Filtration Capacity Can Reach 40um, Which Can Effectively Filter Particles/Water/Oil in the Air.
Transparent Filter Cup
Transparent Filter Cup Allows You to See the Volume of Water and Oil in the Glass.
The Capacity of the Cup Must Not Exceed 80%.
