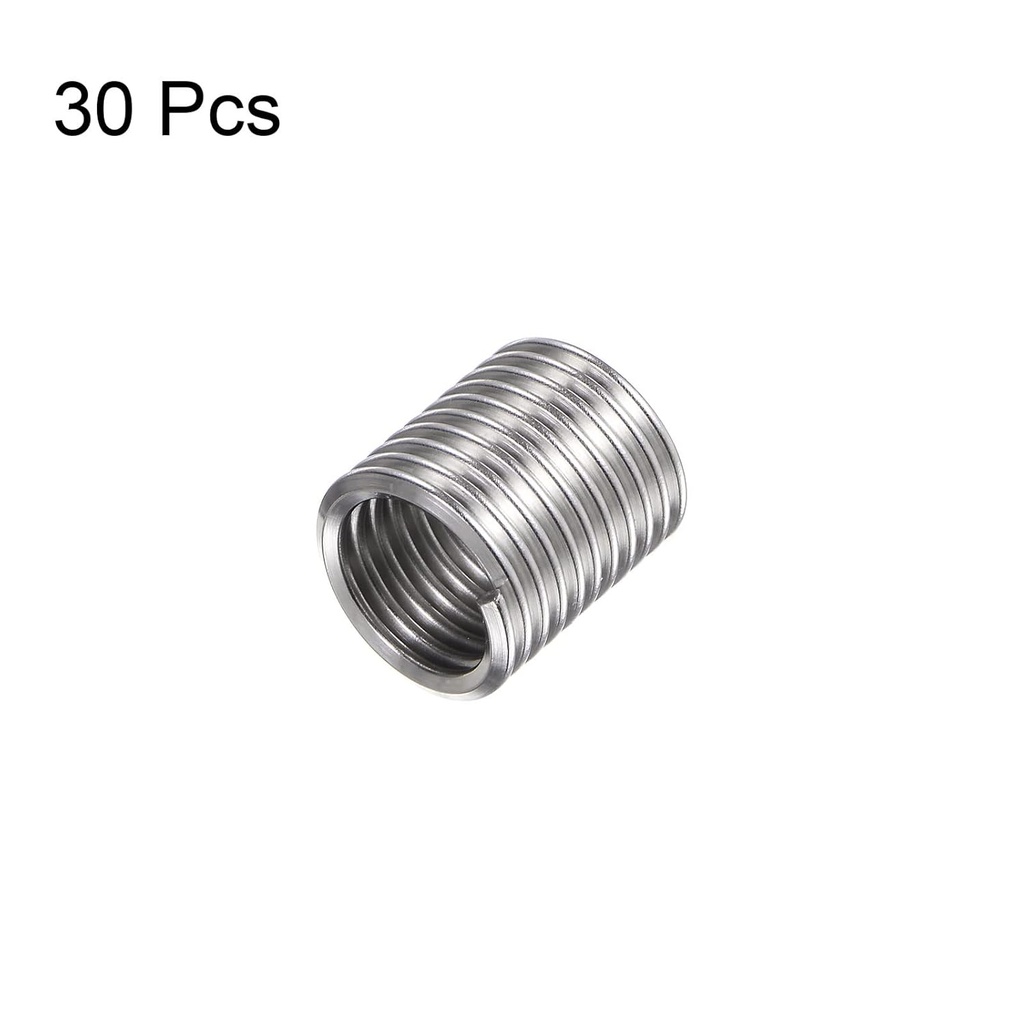

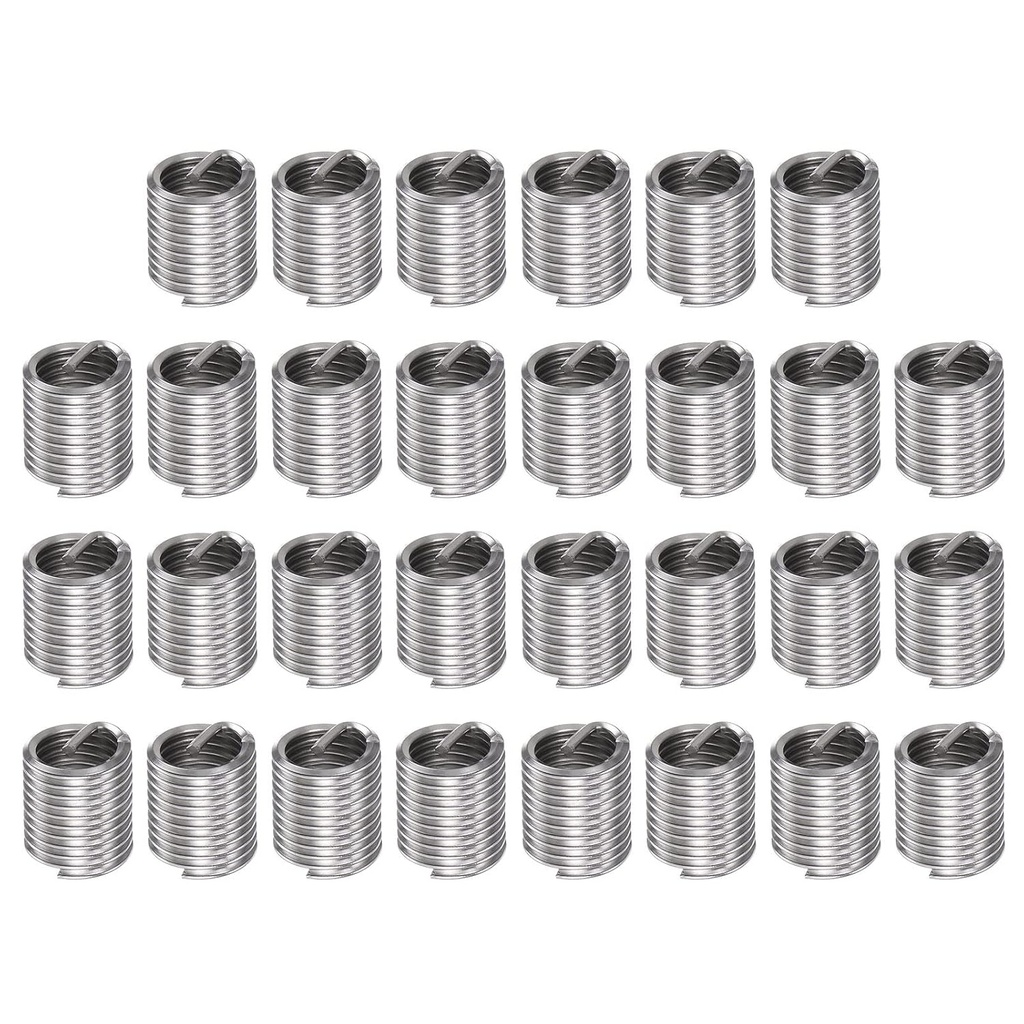

HARFINGTON 30pcs Wire Threaded Inserts 7/16-14 UNC 2D 22.2mm 304 Stainless Steel Helical Coiled Wire Thread Sleeve
13 sold in last 24 hours

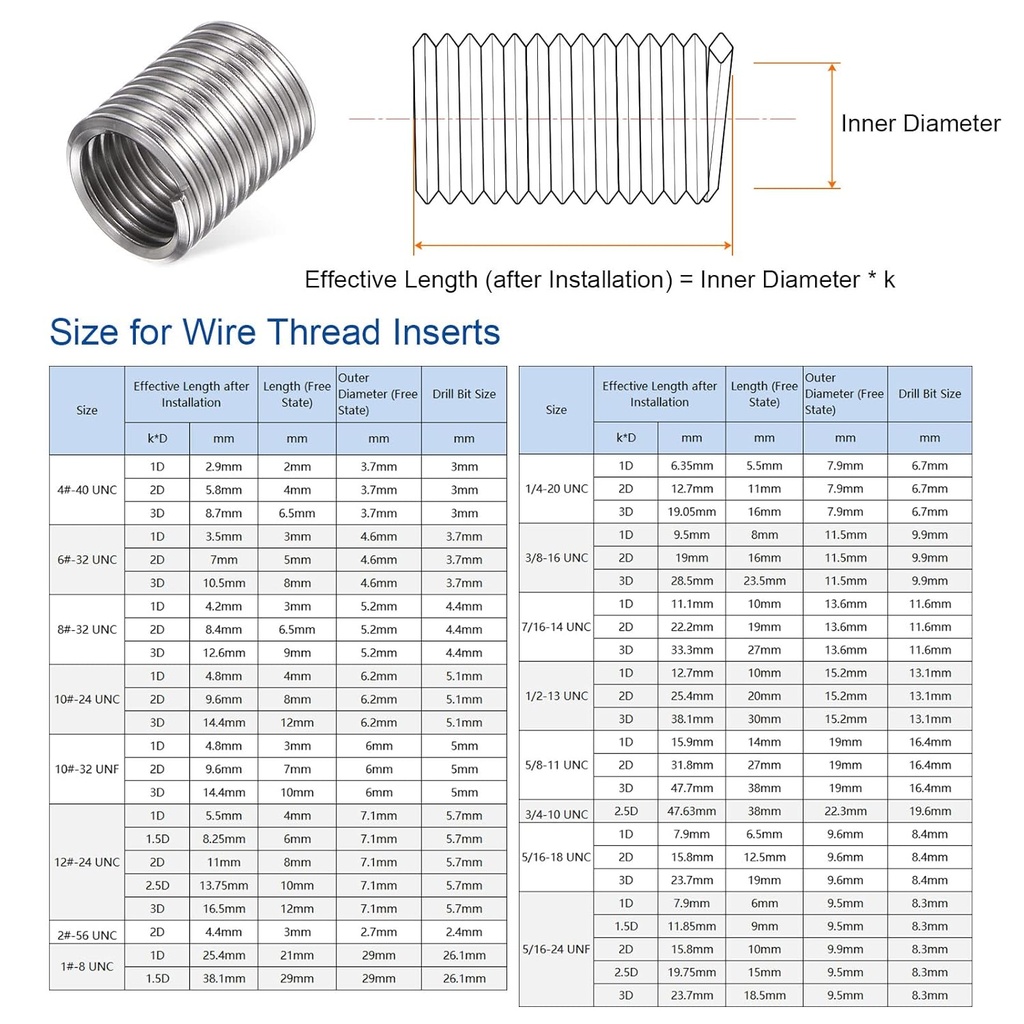

- Size - Thread size: 7/16-14 UNC; effective length (after Installation): 2D = 22.2mm / 0.87"; free state length: 19mm / 0.75"; free state outer diameter: 13.6mm / 0.54"; type: helical; surface treatment: white washing.

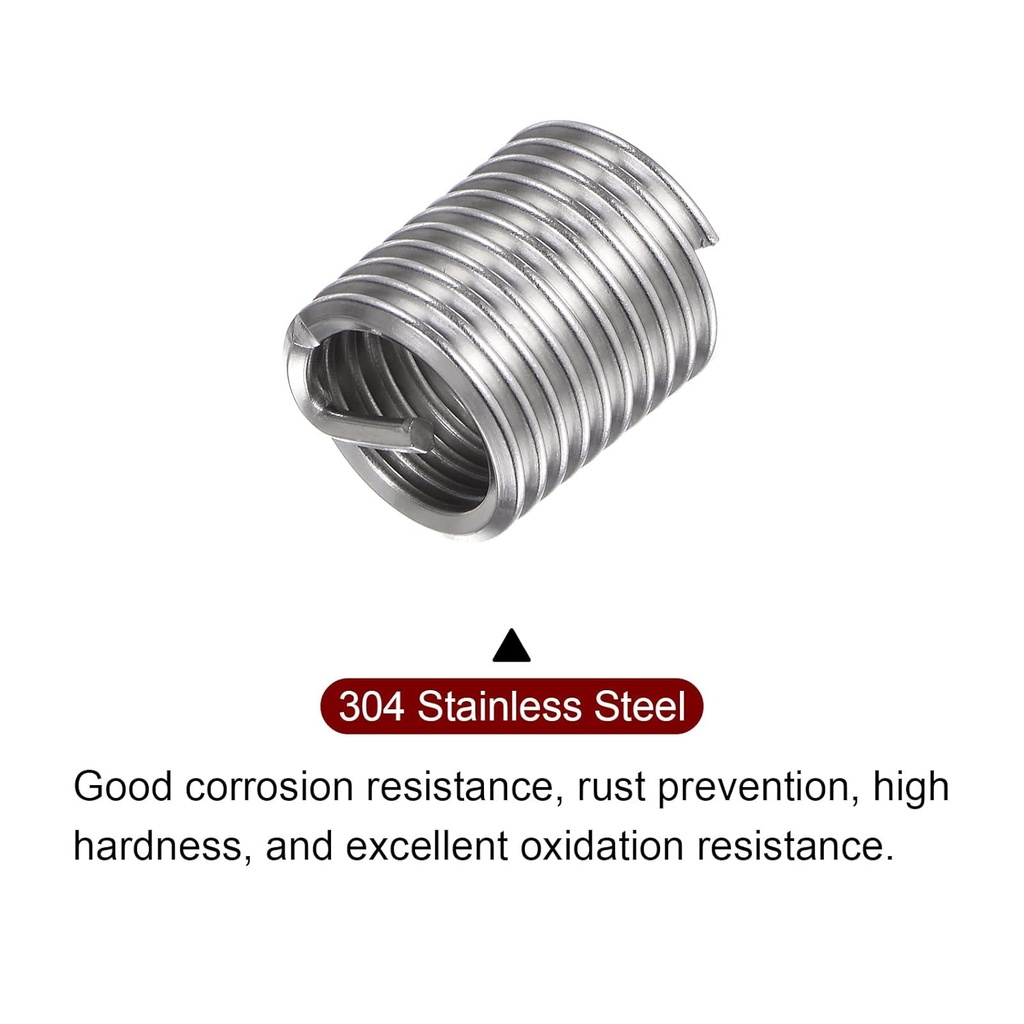

- Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.
- Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.

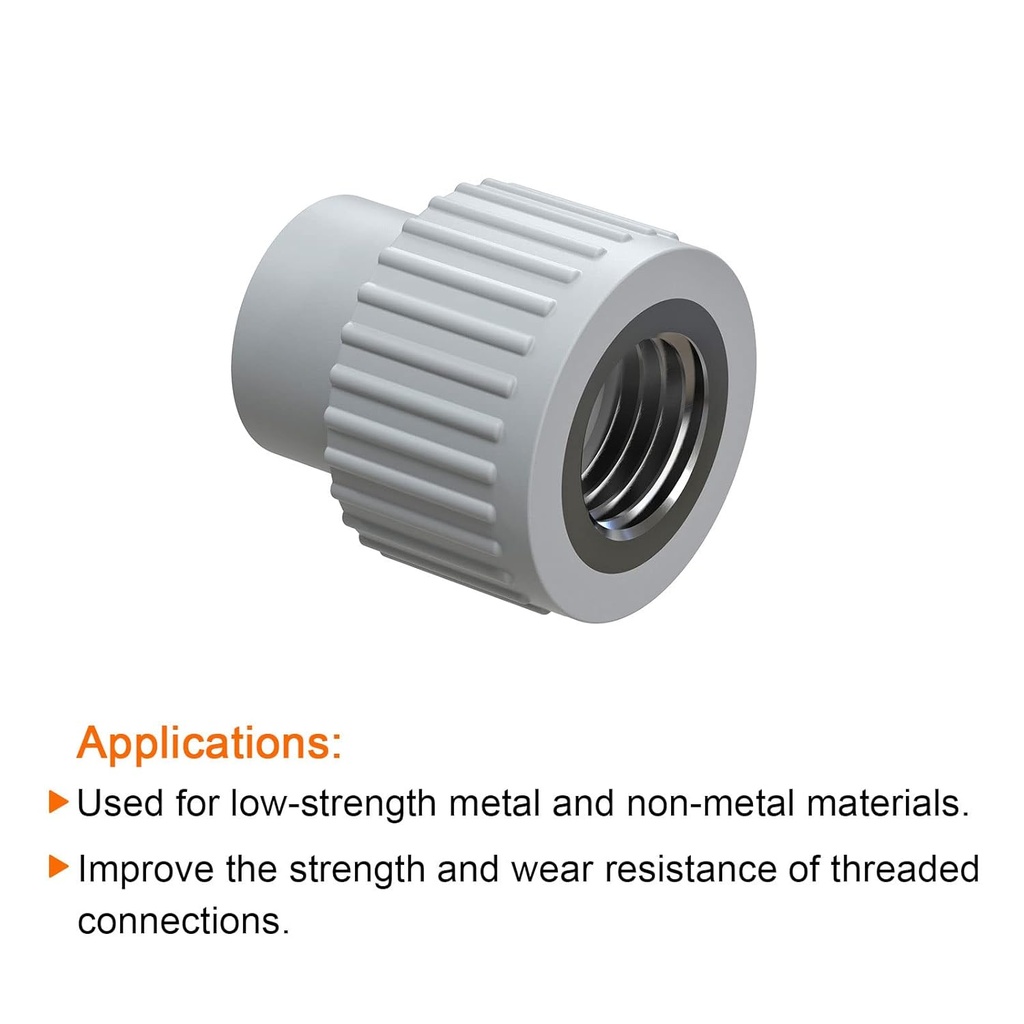

- Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage
- Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
Product Dimensions
5.51 x 3.94 x 0.59 inches; 6.74 ounces
| Main Specification | |
|---|---|
| Item dimensions L x W x H | 5.51 X 3.94 X 0.59 Inches |
| Technical Details | |
| Color | Silver |
| Material | Stainless Steel 304 |
| Size | 7/16-14 Unc |
| Brand | Harfington |
| Others | |
| Product Type | Mechanical Fasteners |
