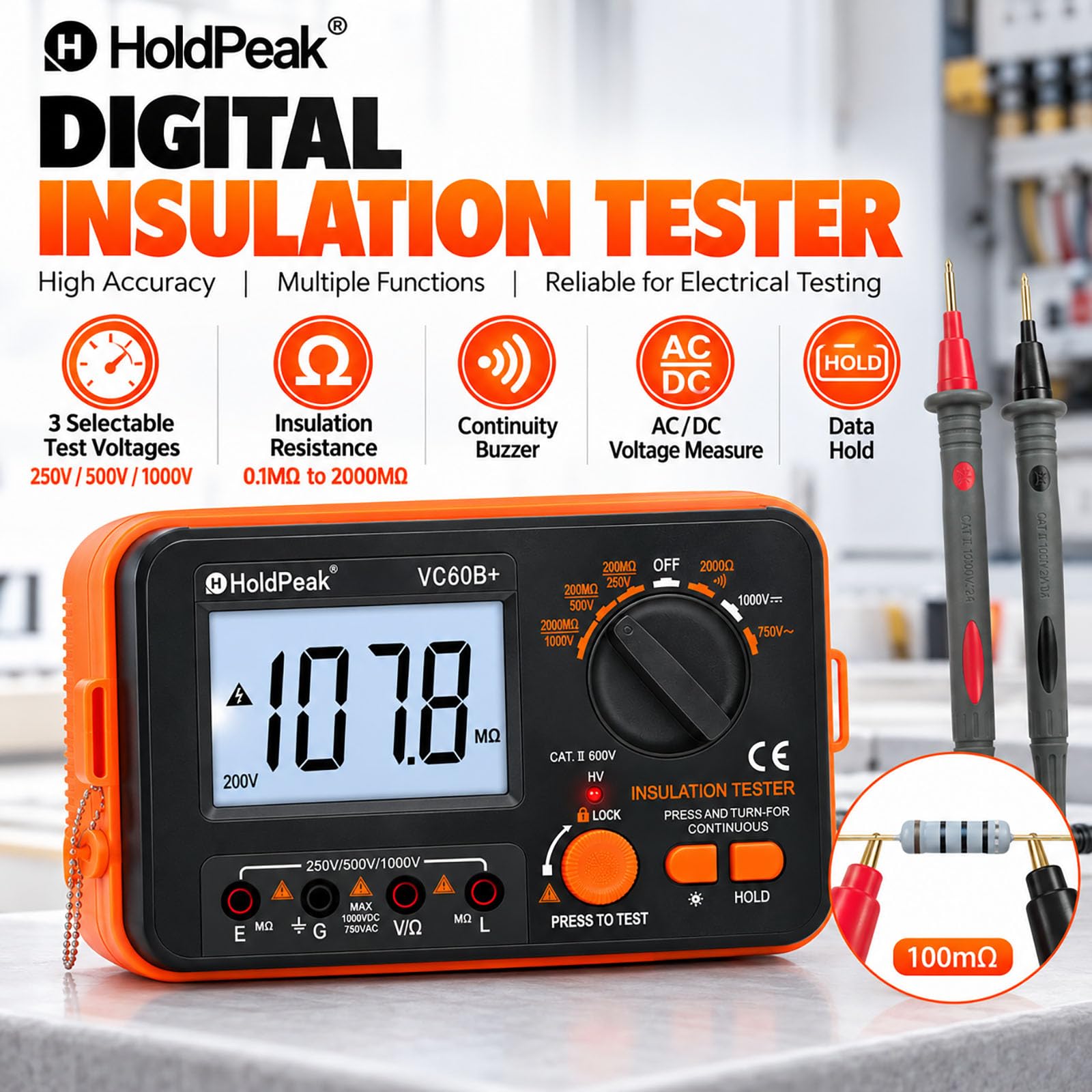

2000MΩ Insulation Resistance Tester, 250V/500V/1000V Megohmmeter

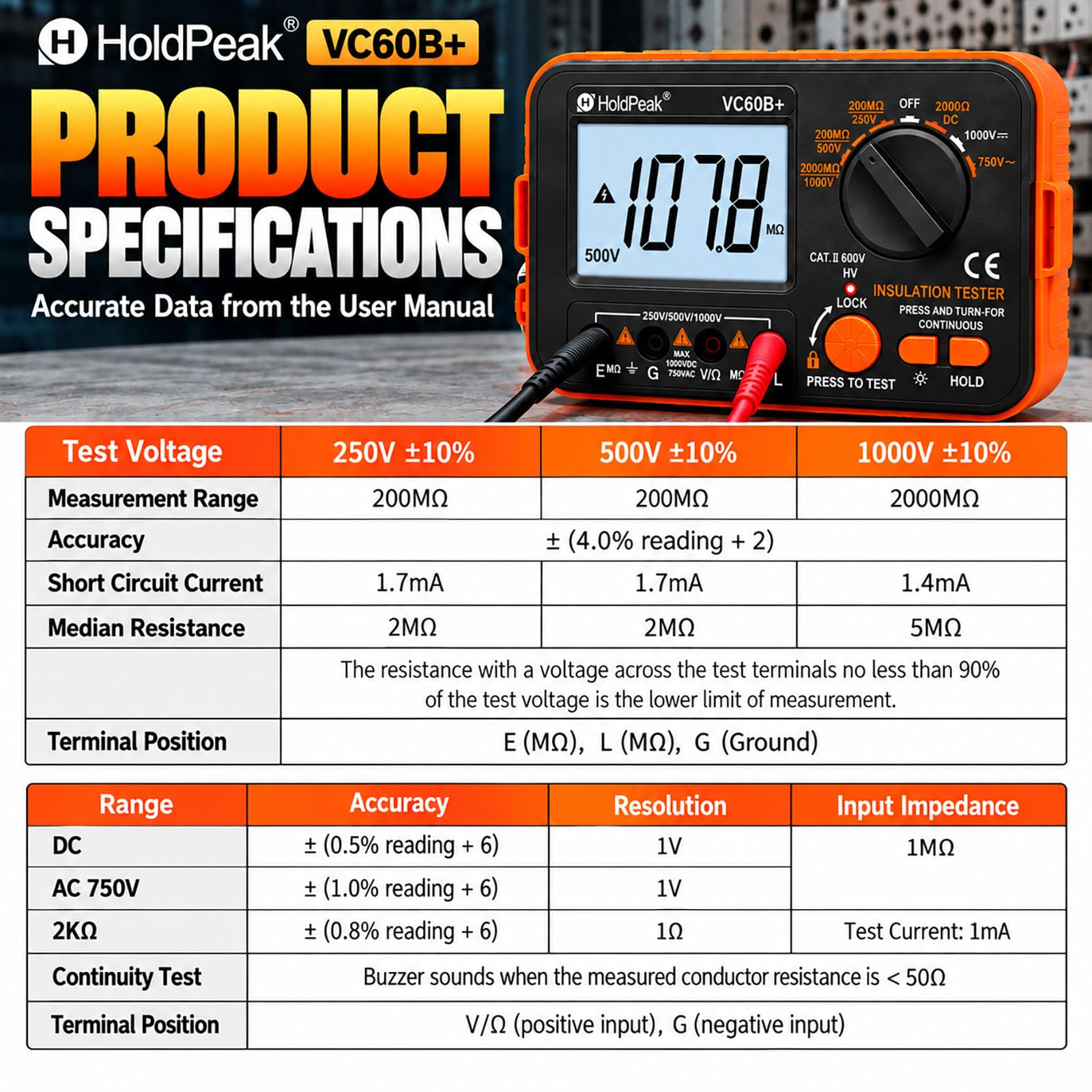

- 250V/500V/1000V INSULATION TESTING: Choose from three DC test voltages for different insulation testing needs. Measures up to 200MΩ at 250V/500V and up to 2000MΩ at 1000V for testing motors, cables and electrical equipment.

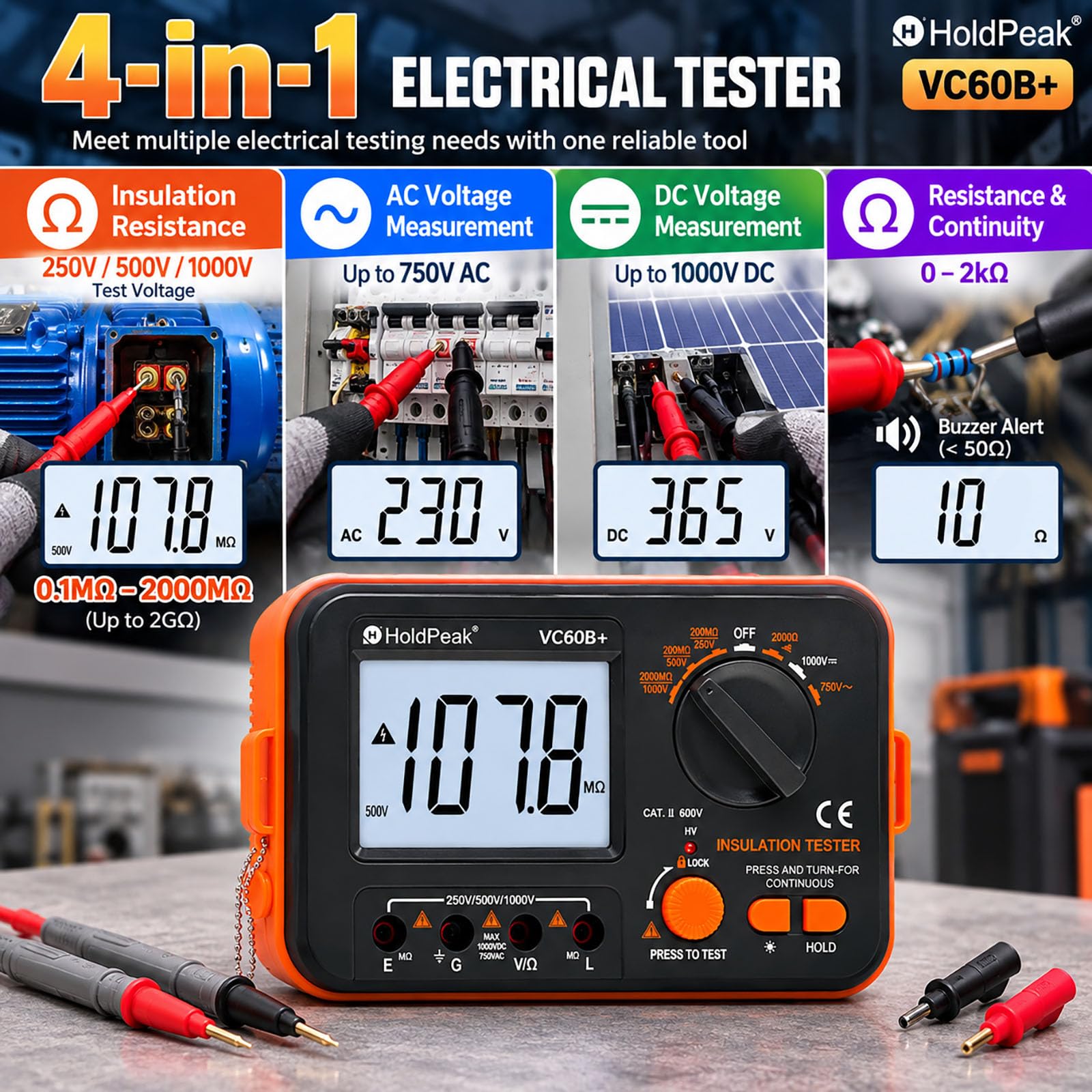

- 4-IN-1 ELECTRICAL TESTER: More than a digital megohmmeter, the VC60B+ measures insulation resistance, AC voltage up to 750V, DC voltage up to 1000V and resistance up to 2kΩ, plus an audible continuity test below 50Ω.

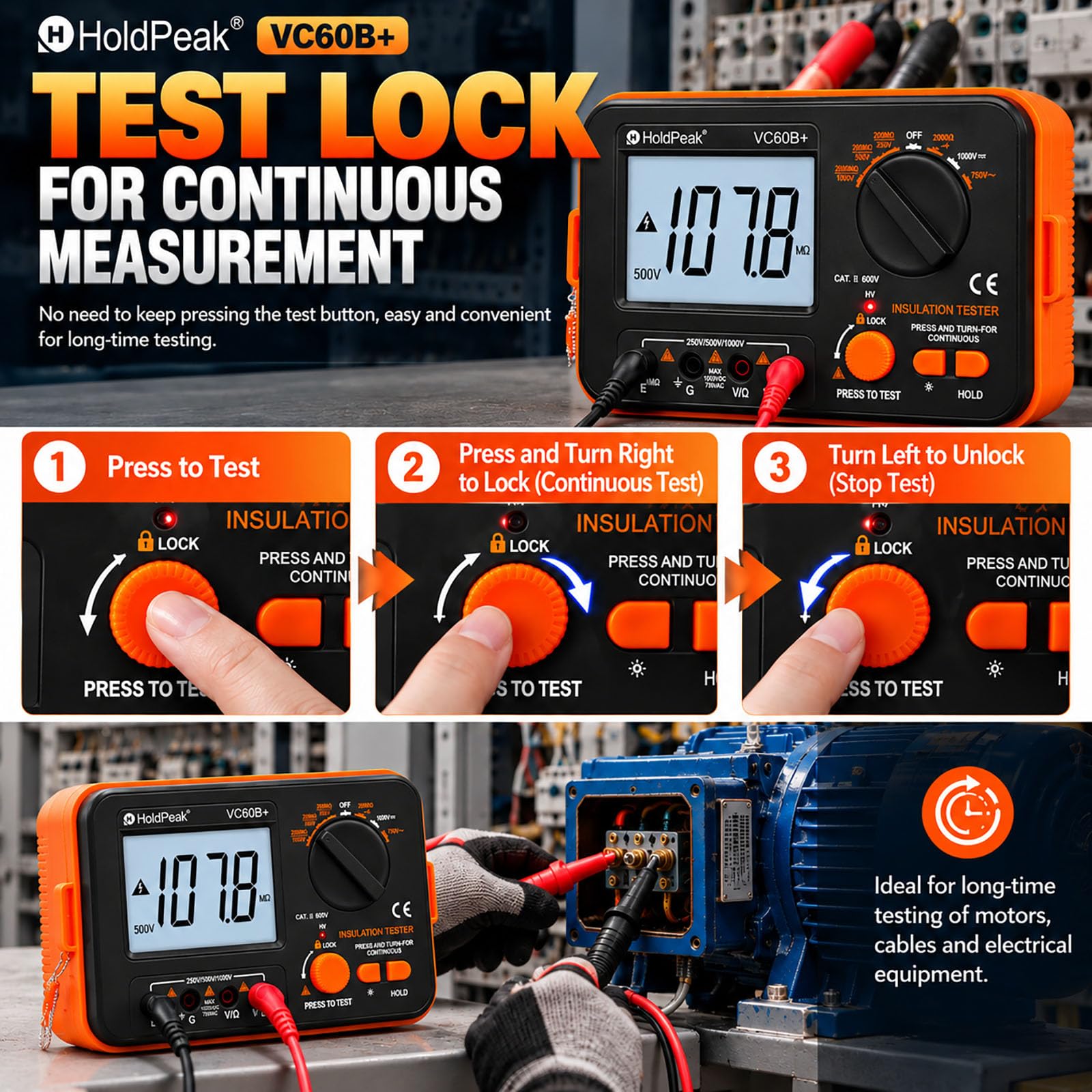

- TEST LOCK & DATA HOLD: Lock the TEST control for continuous insulation resistance testing without holding the button. Data Hold freezes the reading during voltage and resistance measurements for easier viewing and recording.

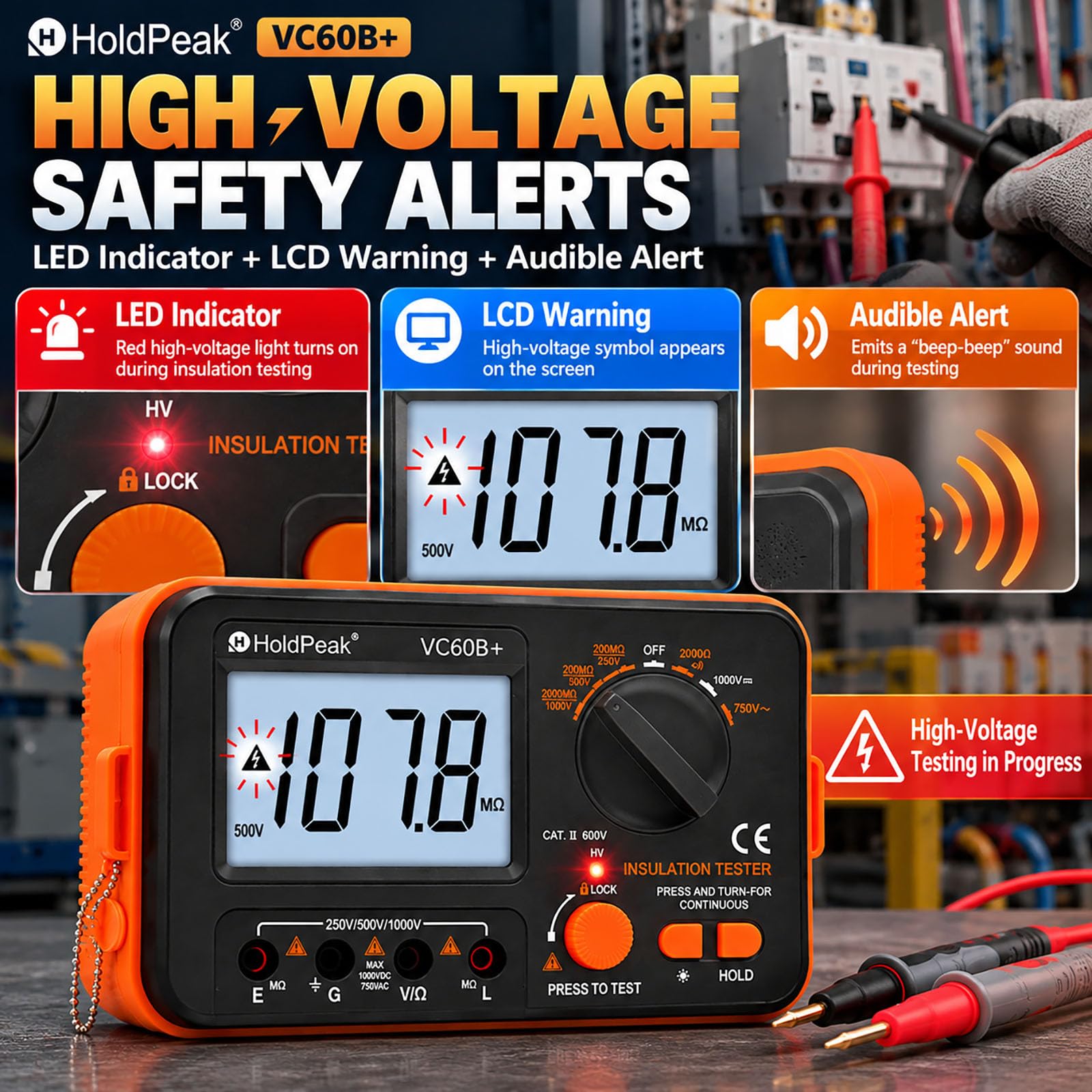

- CLEAR LCD & SAFETY ALERTS: The large backlit LCD provides clear readings in dim work areas. During insulation testing, a red LED, LCD warning symbol and audible signal indicate high voltage, while a continuous alarm warns of a short circuit or very low insulation resistance.

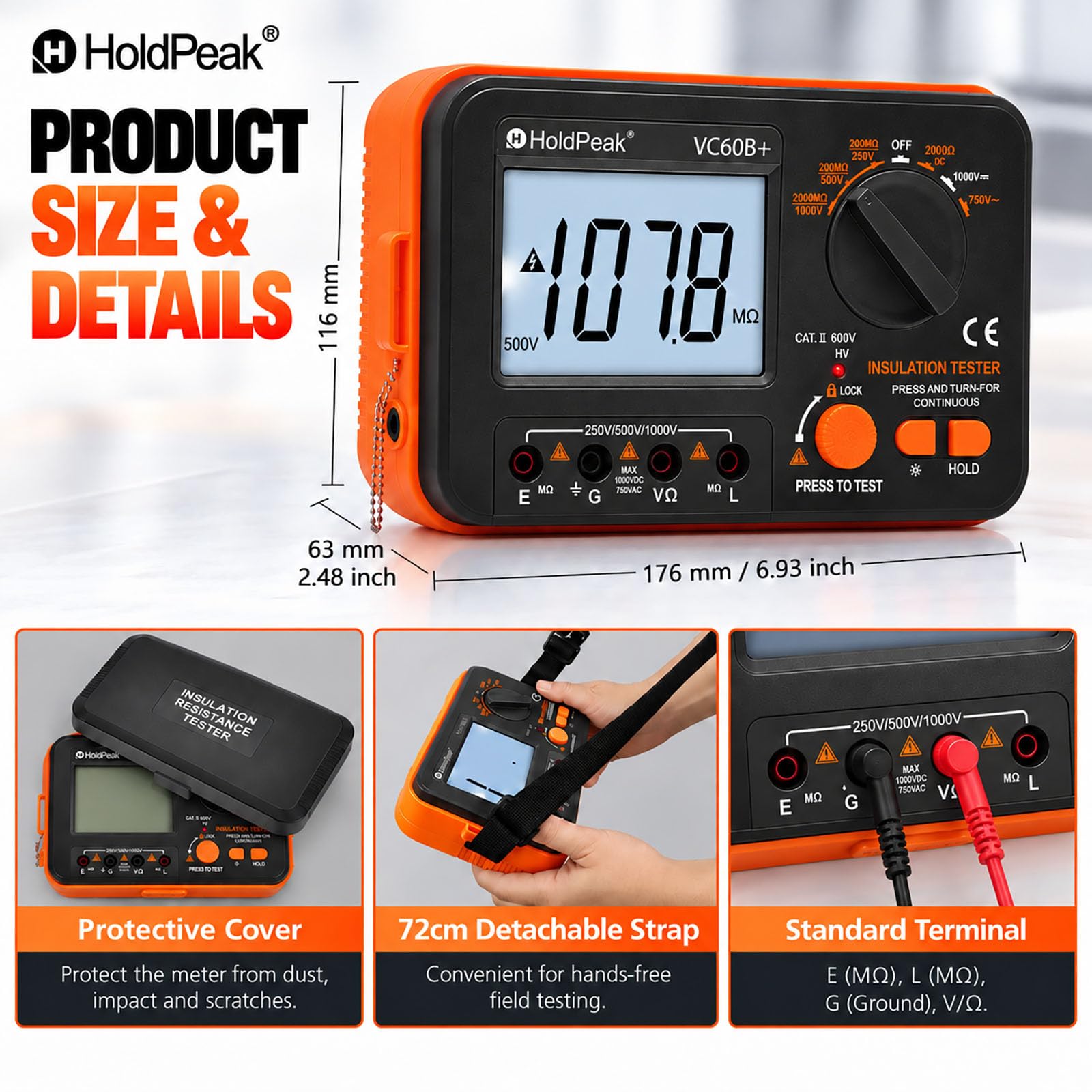

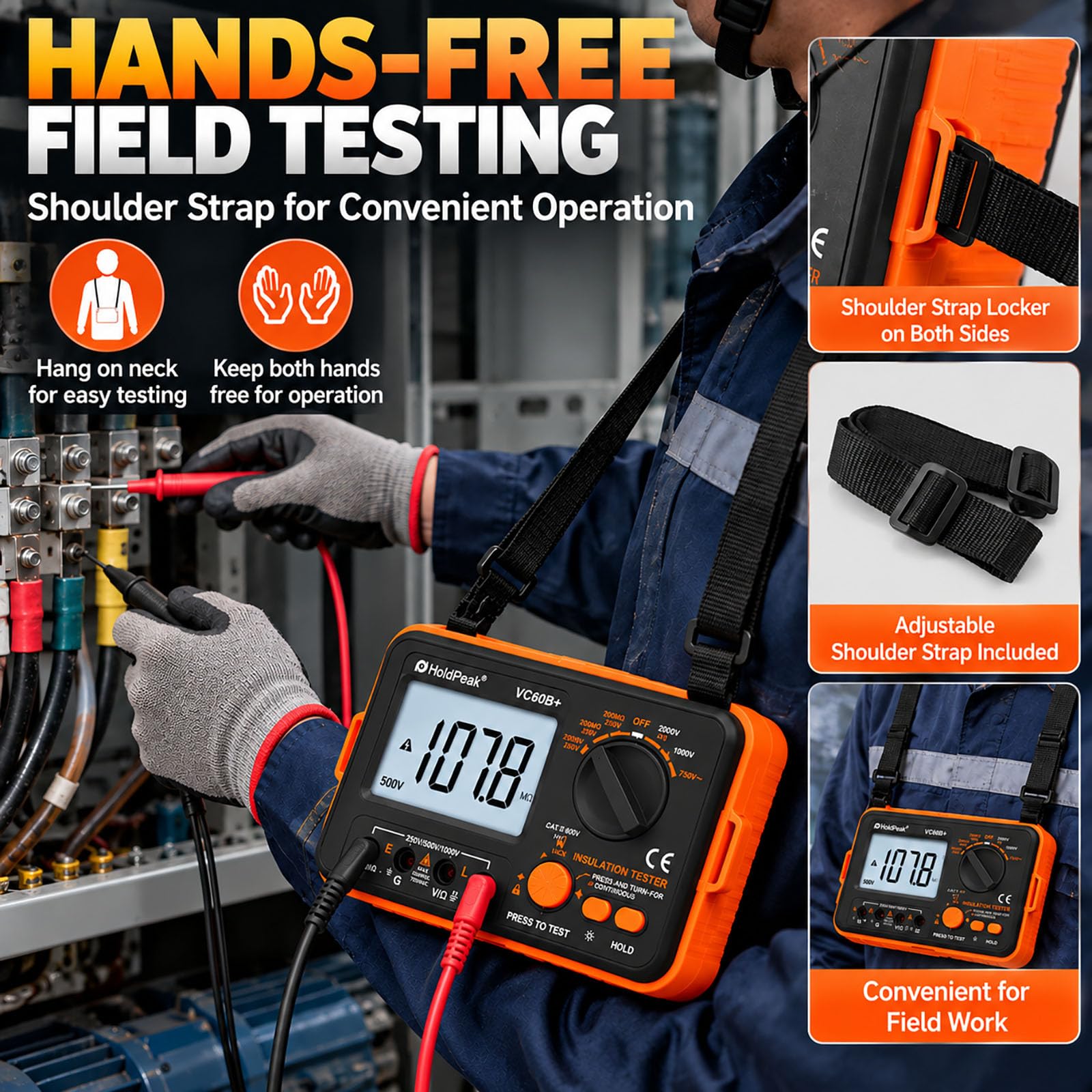

- BUILT FOR ELECTRICAL MAINTENANCE: Designed for insulation testing on motors, cables and electrical equipment. The detachable shoulder strap supports hands-free operation, while the included test leads and alligator clips make field testing more convenient.
| Specification Met | Rohs, Ce |
| Compatible Devices | Insulation Resistance Tester, Matching Probes, Crocodile Clip |
| Manufacturer | H HOLDPEAK |
| Unit Count | 1 Count |
| Brand | H HOLDPEAK |
| Number of Items | 1 |
| Min. Operating Voltage | 1 volts |

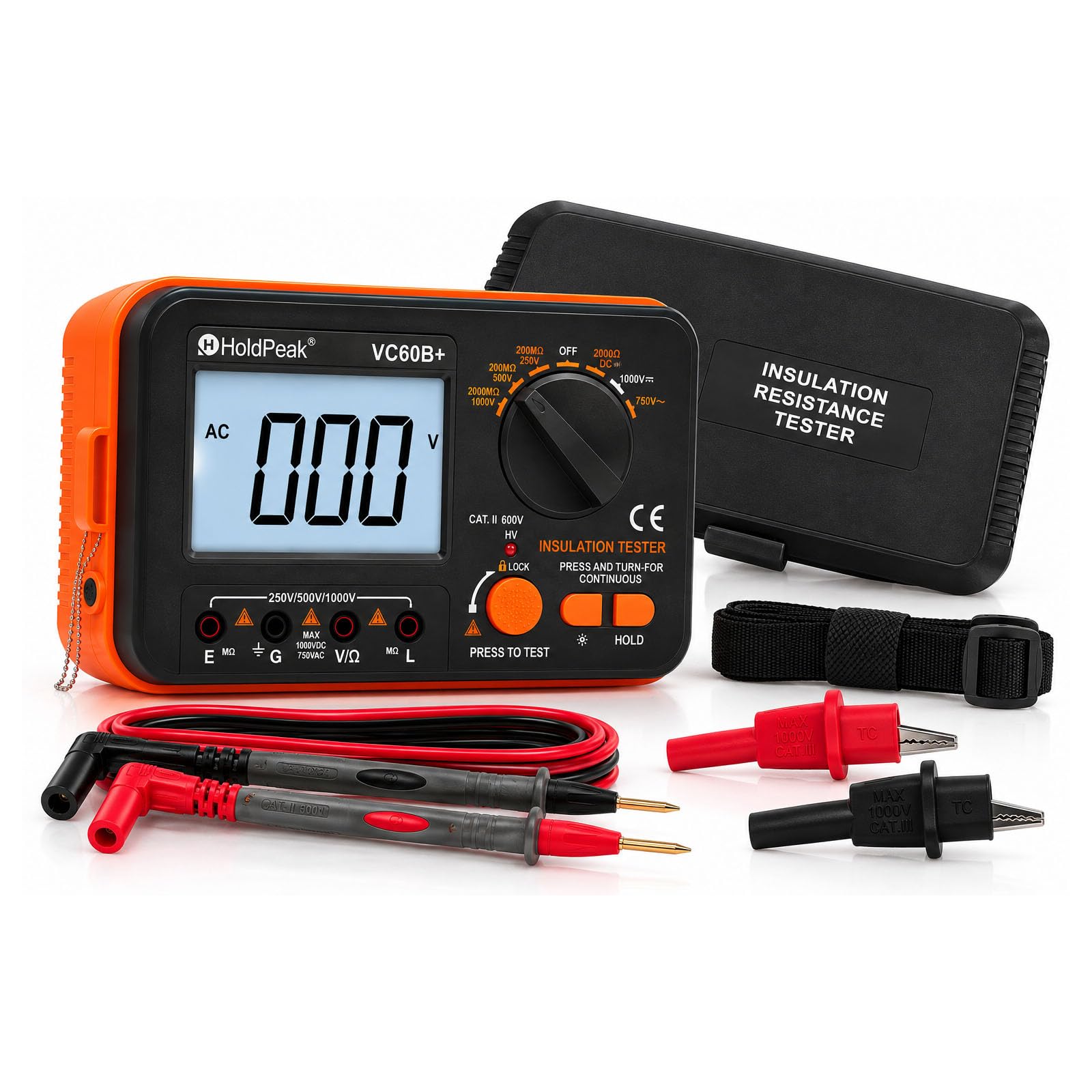

| Included Components | User Manual |
| Power Source | Battery Powered |
| Colour | Black |
| Style | Classic |
| Number of Packs | 1 |
| Part Number | EUHP-T6-VC60B |
| Model | T6-VC60B |
| Style Name | Classic |
| Item Highlight | AC/DC Voltage, continuity buzzer, data hold and test lock for motors, cables, wiring and electrical maintenance. |
| Product Type | Insulation Resistance Meters |
| Minimum Operating Voltage | 1 Volts |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMBIBAUFQAF3O |
Category |
Test, Measure & Inspect , Electrical Testing , Capacitance & Resistance Meters , Insulation Resistance Meters |
Tags |
Estimated shipping
Select a product to estimate shipping.What can this insulation resistance tester be used for?
It can be used to test insulation resistance on motors, cables, electrical equipment and power installations — ideal for electrical maintenance and troubleshooting.
What insulation test voltages are available?
It offers three selectable DC test voltages: 250V, 500V and 1000V.
What is the insulation resistance range?
It measures up to 200MΩ at 250V/500V and up to 2000MΩ at 1000V.
Does it provide warnings during insulation testing?
Yes. A red LED, LCD warning symbol and audible signal indicate high voltage. A continuous alarm sounds for a short circuit or very low insulation resistance.
Does the data hold work during insulation testing?
Data hold works on the voltage and resistance ranges, but not during insulation testing — that's normal for this type of meter. On insulation tests you read the value while the TEST button is held or locked on.
