BTMETER AC/DC 1000A Clamp Multimeter, 4000 Counts Digital Clamp-on Meter with Data Logging Measure Amp Volt Ohm Capacitance Frequency Temperature Continuity, Electrical Tester 570T-APP
- ⚡【DC AC Current Clamp Multimeter】This multifuctional clamp-on meter can accurately measures AC DC current with 400A/1000A ranges, 100mA/1A resolution;AC and DC Voltage to 1000V, Resistance to 60M ohms; Capacitor to 200μ farad; Frequency to 9.999m Hz; Temperarture -4~1832°F (°C/°F Optional), Test voltage 4V, can measure light-emitting diodes, and continuity test.
- ⚡【Sensitive Hall Effect Clamp Sensor】Engineered with hall effect sensor to ensure high precision measurement on DC/AC amperage testing. Built with big jaw caliber size 1.77 inches (45mm), allows you non-contact measuring multiple wires at the same time. ❗Please separate the hot and neutral conductors or they will cancel each other out and give zero amp reading, just clamp on the LIVE line for accurate amperage testing❗
- ⚡【Electrical Data Logger】Get rid of hand-written notes or complicated maths. With this intelligent clamp amp meter, all electric measurements will be displayed on your phone or tablet, auto graph a trend chart, support to sharing out in Excel, TXT format. This clamp-on ammeter is reliable on remotely troubleshoot electrical problems in HVAC, household, commercial, etc.
- ⚡【Clamp Meter with Temp Test】 Comes with thermocouple probe for high temperature measurement with range of -4 ~ 1832°F(°C/°F optional). Designed with tough edge cover to withstand jobsite drops. Qualified with electrical IEC 61010-1, CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety standards.
- ⚡【Easy to Use】With loads of functions to help you get the jobs done all in this one versatile digital clamp multitester. Data Hold to freeze reading for easy reading; Large backlight display ensures clear visibility in dark conditions; REL to zero out reading before measuring; Max/Min/Average value recording, etc. 12 months quality warranty and life-time technical support!
| Specification Met | IEC 61010-1, Cat IV 600v, Cat III 1000v, class 2, double Insulation |
| Compatible Devices | Smartphone, Tablet |
| Manufacturer | BTMETER |
| Brand | BTMETER |
| Number of Items | 1 |
| Included Components | User Manuel |
| Power Source | Battery Powered |
| Upper Temperature Rating | 1832 °F |
| Colour | 1000A Smart Clamp Ammeter |
| Style | Compact or Classic |
| Item Weight | 11.68 ounces |
| Measurement Type | Ammeter, Multimeter |
| Part Number | BT-570T-APP |
| Model | BT-570T-APP |
| Style Name | Compact or Classic |
| Item Dimensions | 9 x 3.9 x 1.5 inches |
| Product Type | Multi Testers |
| Minimum Operating Voltage | 400 Millivolts |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMBQOBYDRQFY4 |
Category |
Electrical , Testers , Multi Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.What's in the box:
BTMETER AC DC Clamp-on Meter BT-570T-APP
(1 pair) test leads
1pcs temperature thermocouple
1pcs multimeter carrying case
45mm Jaw
Auto Range
Data Hold
Duty Cycle
°C / °F Switchable

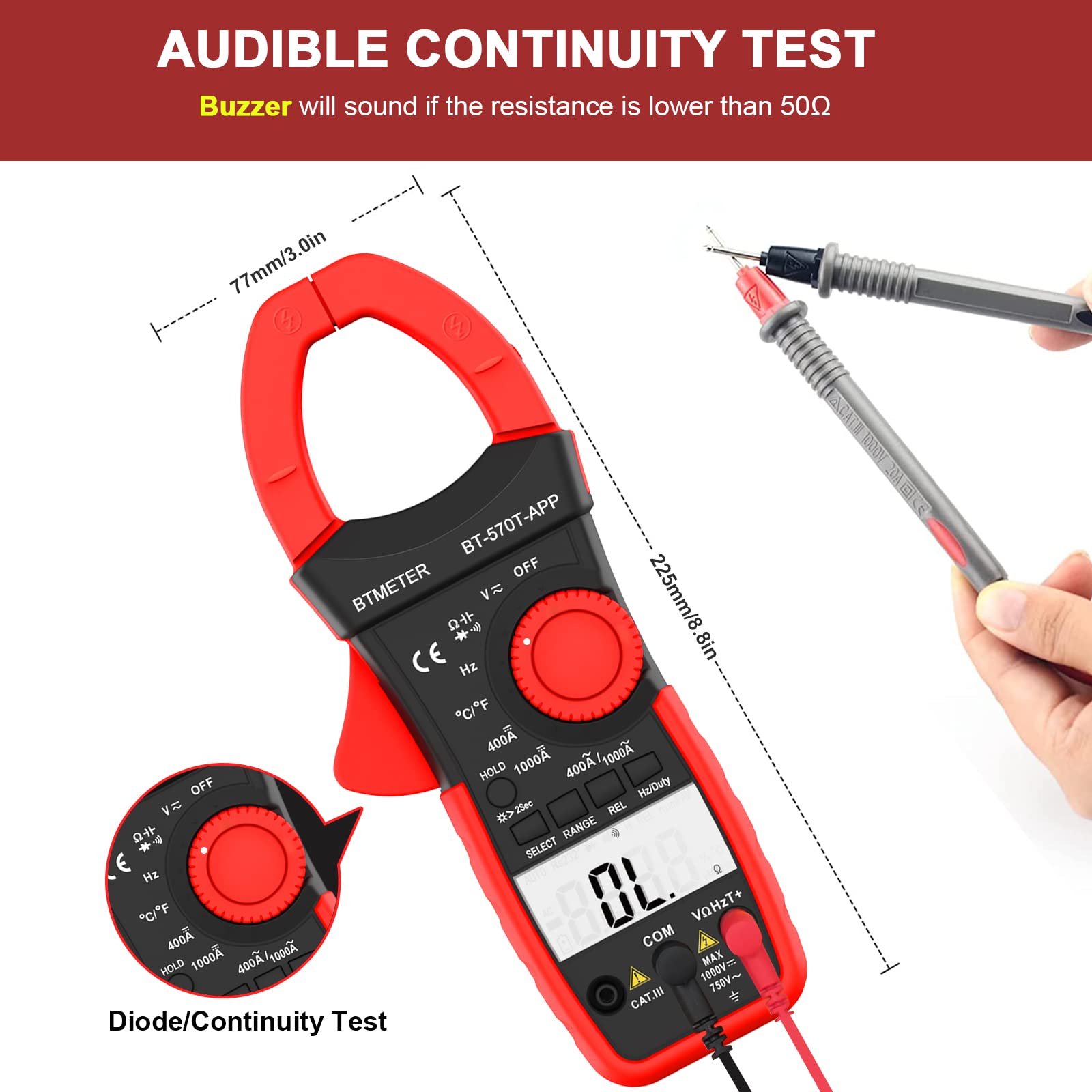

Continuity Buzzer
Low Power Indicator
Overload Indicator & Protection
BTMETER BT-570T-APP Smart AC DC Clamp Amp Multimeter DMM
Data Logging & Share, 1000A AC/DC Current Measurement, 4000 Counts Display

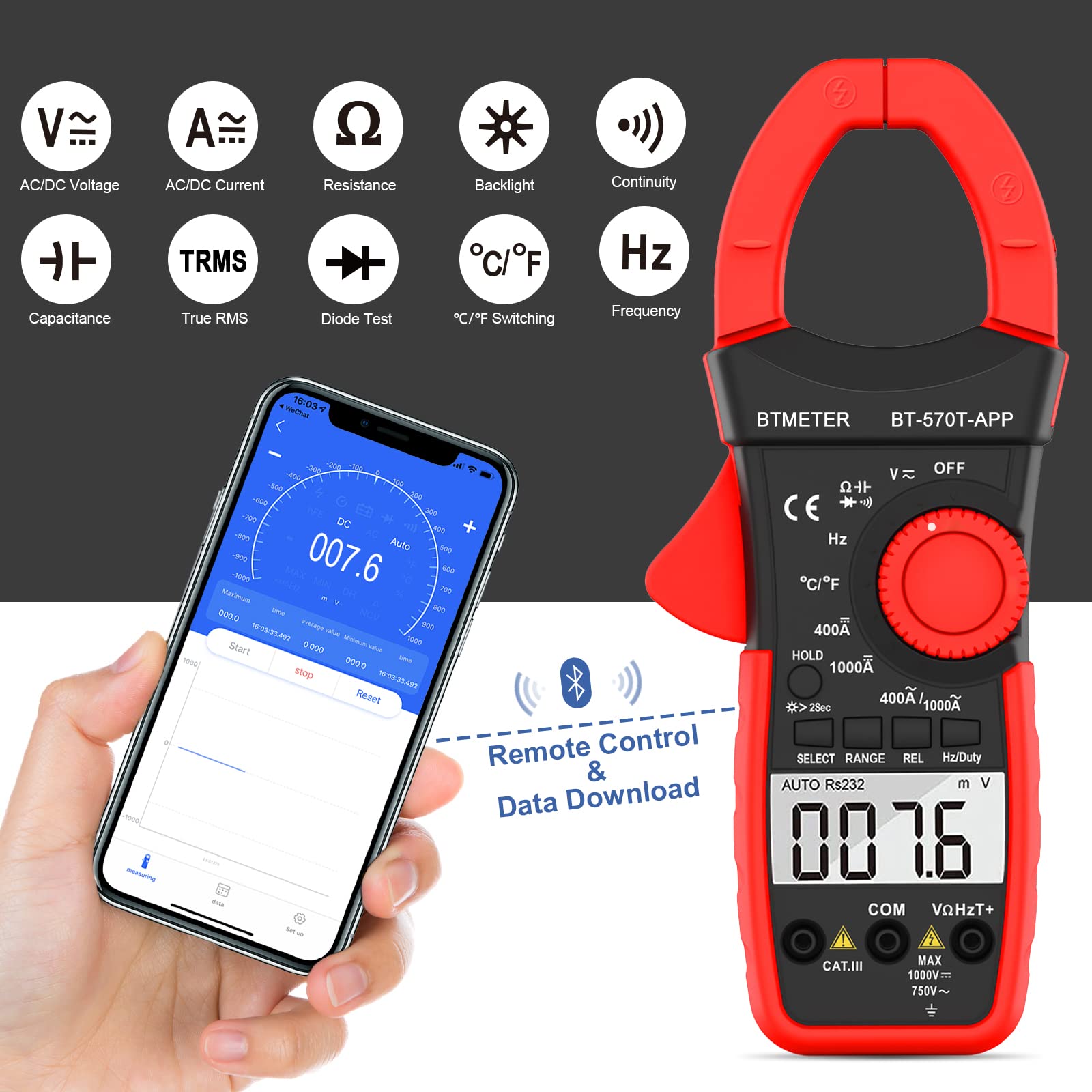

The BT-570T-APP clamp ammeter is capable to measure AC/DC current, voltage, resistance, capacitance, contact temperature, frequency,duty cycle, continuity and diode test. Equipped with Bluetooth module, this smart electrical tester can be connected with your smart mobile phone/table for remote control/monitor and data logging & sharing.
Range & Accuracy:
DC & AC Current: 400A/1000A ±(2.5%/ 3.0% +10 digits)
AC Voltage:4V/40V/400V/750V ±(1%~1.5% +3 digits)
DC Voltage: 400mV/4V/40V//400V/1000V ±( 0.5%~ 0.8% + 2 digits)
Resistance: 400Ω/4 kΩ/40 KΩ/400 KΩ/4 MΩ/40 MΩ
Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF
Frequency: 9.999Hz~9.999mHz
LiquidTemperature Test: -20 °C to 1000 °C (-4 °F to 1832 °F),thermocouple included.

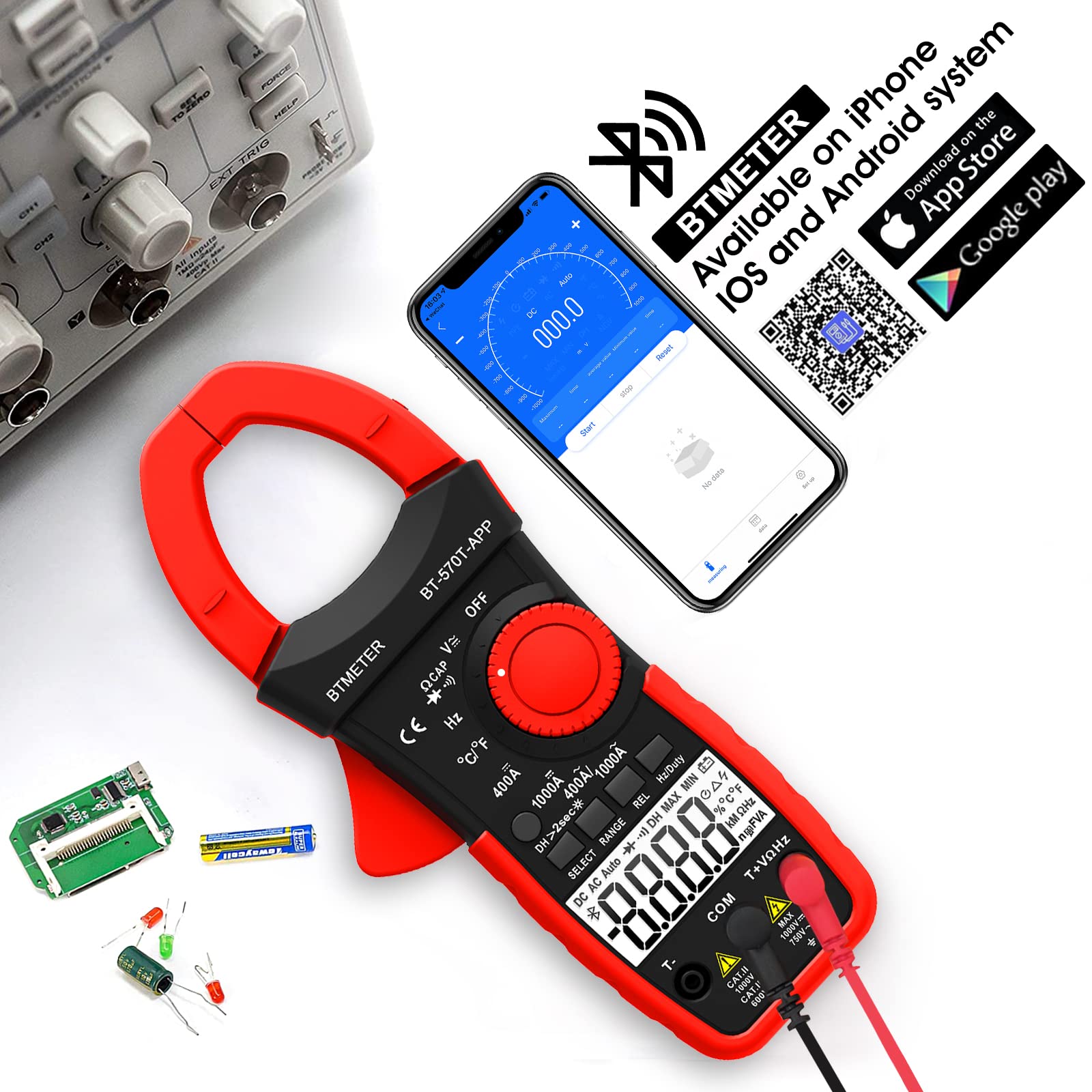

Bluetooth Connectivity
BTMETER clamp meter BT-570TAPP is equipped with pro Bluetooth module, allowing for seamless connection to your smartphone or tablet.This enables remote monitoring, data logging, and electrical data sharing in txt format, making it a perfect tool for professionals who need to maintain a record or present data to clients.
AC/DC Current Measurement
No need to break or contact the electrical wire to measure AC/DC current up to 1000A amp, reducing the risk of electrical shocks.
Note: Please clamp only one conductor. Offset or multi-clamp conductors will result in a misreading of zeros.
Handheld Multi Tester
Not just an digital clamp on ammeter, but also an professional electric tester. Comes with test leads, then plugg in and then available to test AC/DC current, voltage, resistance, frequency, continuity and capacitance as normal multimeter DMM.
