Megohmmeter, Insulation Resistance Tester, 50V-1000V Up to 100GΩ
- Combined Megohmmeter and Multimeter into One: This megohmmeter measure insulation up to 100GΩ with frequency measurement, low voltage test and test voltages: 50V, 100V, 250V, 500V and 1000V suitable for measurement of transformer, motor, generator, cable, electrical equipment and insulating materials.
- PI (polarity index) /DAR (dielectric absorption ratio) function for more accurate of insulation condition.
- Auto discharge for capacitive load and compare function for high accuracy and safety.
- Safety Rating:EN61010-1 and CATIII 600V to guarantee you are well protected on the jobsite.
- Package includes: test leads, alligator clip, 4xAA batteries, detailed user manual.
| Included Components | test leads, alligator clip, megohemeter, 4xAA batteries, detailed user manual |
| Manufacturer | Ayitam |
| Unit Count | 1 Count |
| Specification Met | Ce |
| Brand | Ayitam |
| Number of Items | 1 |
| Power Source | Battery Powered |
| Compatible Devices | Electrical equipment (transformers, motors, generators, cables, etc.) |
| Colour | Orange+black |
| Style | Compact |
| Item Weight | 818 g |
| Part Number | PM1508 |
| Model | pm1508 |
| Measurement Type | Ohmmeter |
| Style Name | compact |
| Item Highlight | Frequency, Digital Megohmmeter, Multimeter, 50V/100V/250V/500V/1000V, Resistance Up to 100GΩ with PI, DAR, Low Voltage Test |
| Product Type | Insulation Resistance Meters |
| Minimum Operating Voltage | 50 volts |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMCY3AQCWAEQU |
Category |
Test, Measure & Inspect , Electrical Testing , Capacitance & Resistance Meters , Insulation Resistance Meters |
Tags |
Estimated shipping
Select a product to estimate shipping.Insulation Digital Megohmmeter

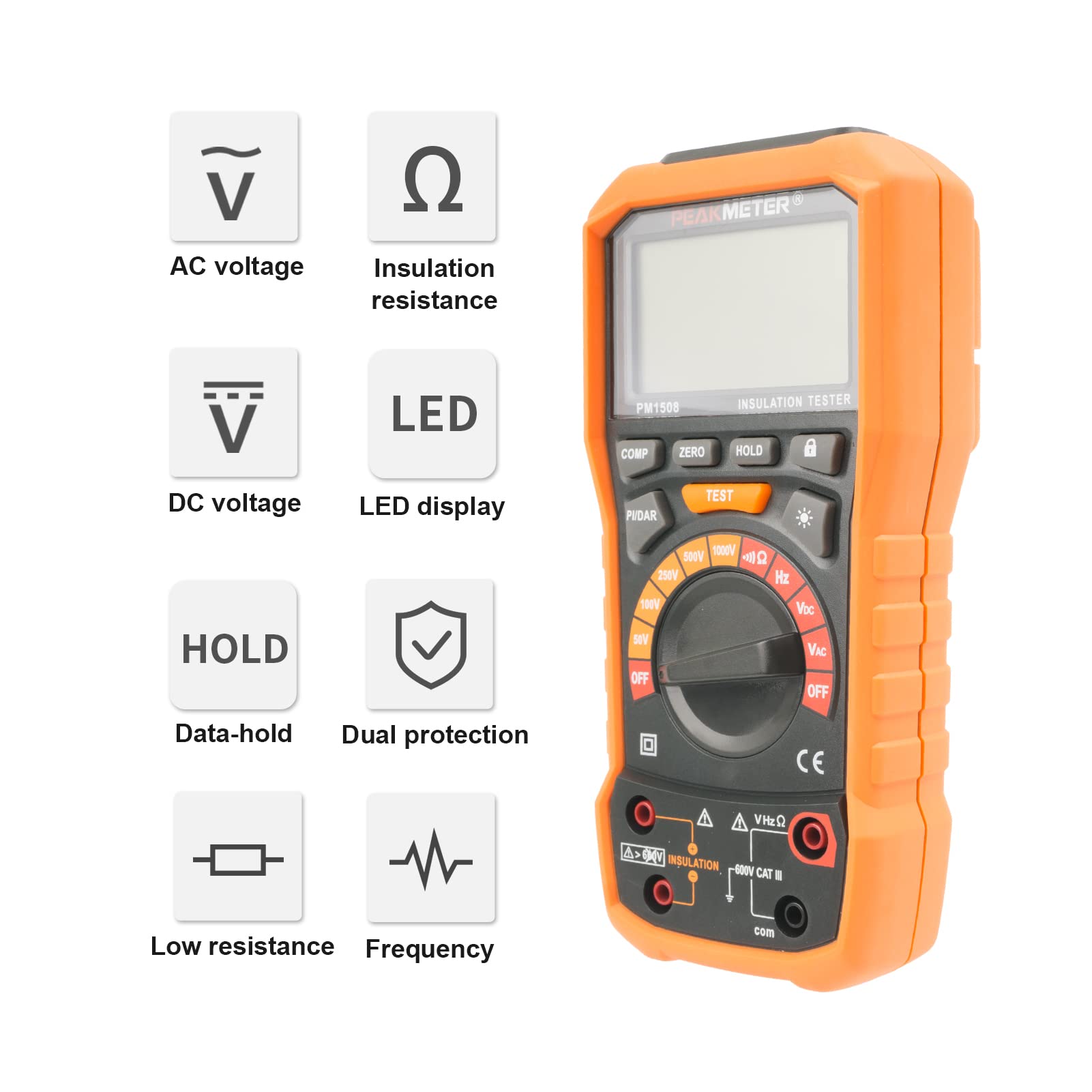

PM1508 is a battery powered digital insulation resistance tester. It is equipped with a microprocessor chip and has high precision, stability and reliability. There are five levels of test voltage output in insulation resistance measurement (50V, 100V, 250V, 500V, 1000V). The maximum insulation resistance measurement is 100GΩ (the measurement range is from 0.00MΩ to 100GΩ), and the basic accuracy can reach + 1.5%, which can meet more test demands of test work. In addition to insulation measurement, PM1508 can also measure ACV/DCV (AC/DC voltage) and frequency, and conduct low resistance measurement. It is mainly applied on insulation resistance measurement of various electrical equipment and insulating materials, such as transformers, motors, generators, cables.
100GΩ digital insulation resistance tester

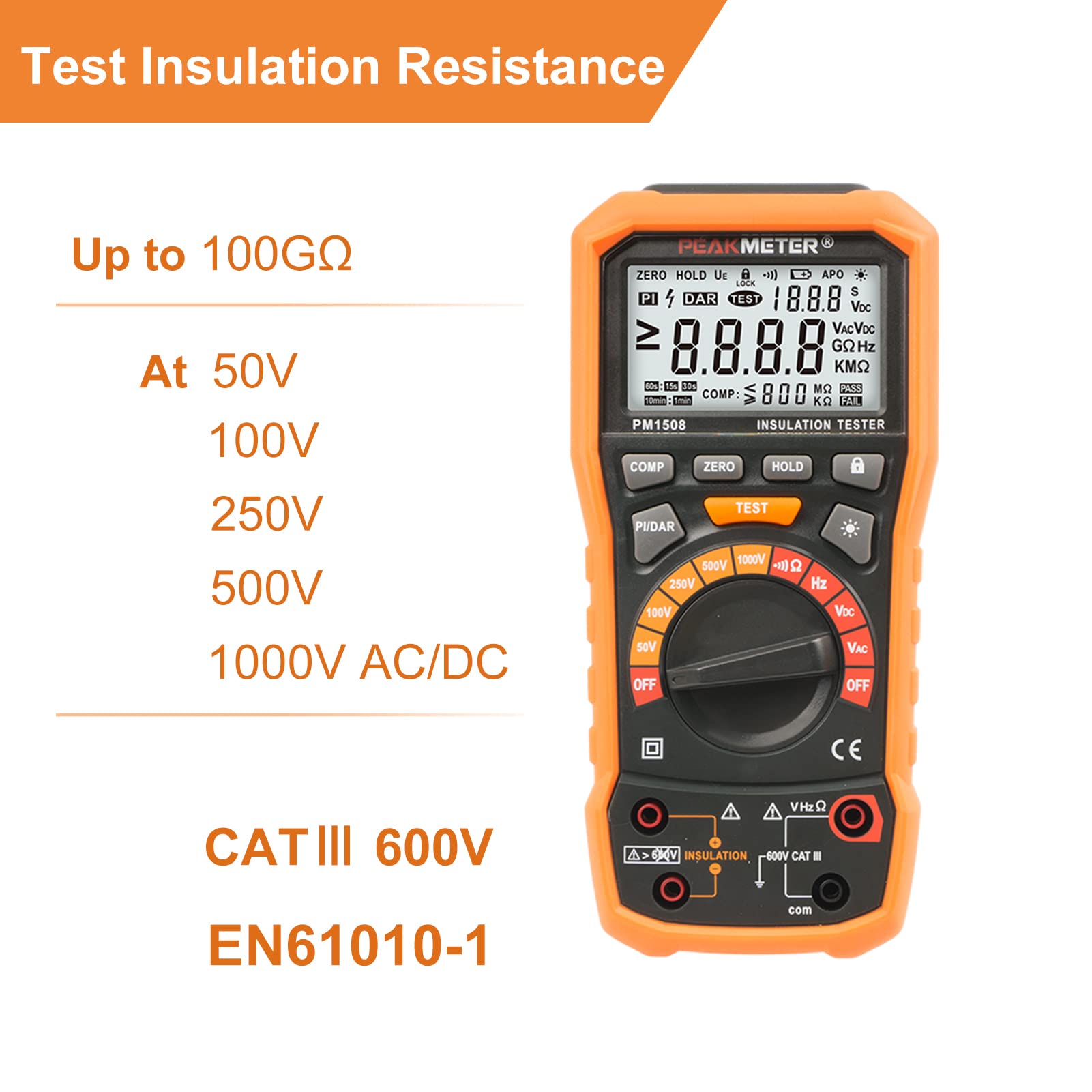

Insulation Testing PM1508 can test insulation at voltages up to 1KV and measure insulation resistance up to 100GΩ.
Package Content
Package includes: test leads, alligator clip, 4xAA batteries, detailed user manual.
Compact and reliable
This fast-to-use tester features a sensitive ohmmeter for checking the resistance of the motor windings.
PM1508 Insulation Tester
