2Pcs Refrigerator Door Light Switch 2 Feet Compatible for GE Whirlpool, Maytag, Admiral, Amana, Kenmore, KitchenAid, Magic Chef Freezer Momentary Fridge Switch 2Pin NC AC 250V 2A-2.5A
3 sold in last 24 hours
- Specification: As long as the appearance of the same size, basically can be universal. Generic Refrigerator Door Light Switch 2 Feet. Quantity: 2pcs. Brass contact feet, long life time of this press switch. Rated Voltage: 125V/250V AC. Rated Current: 2.5A 250V/ 6.0A 125V. Contact type: NC (most refrigerator control type).

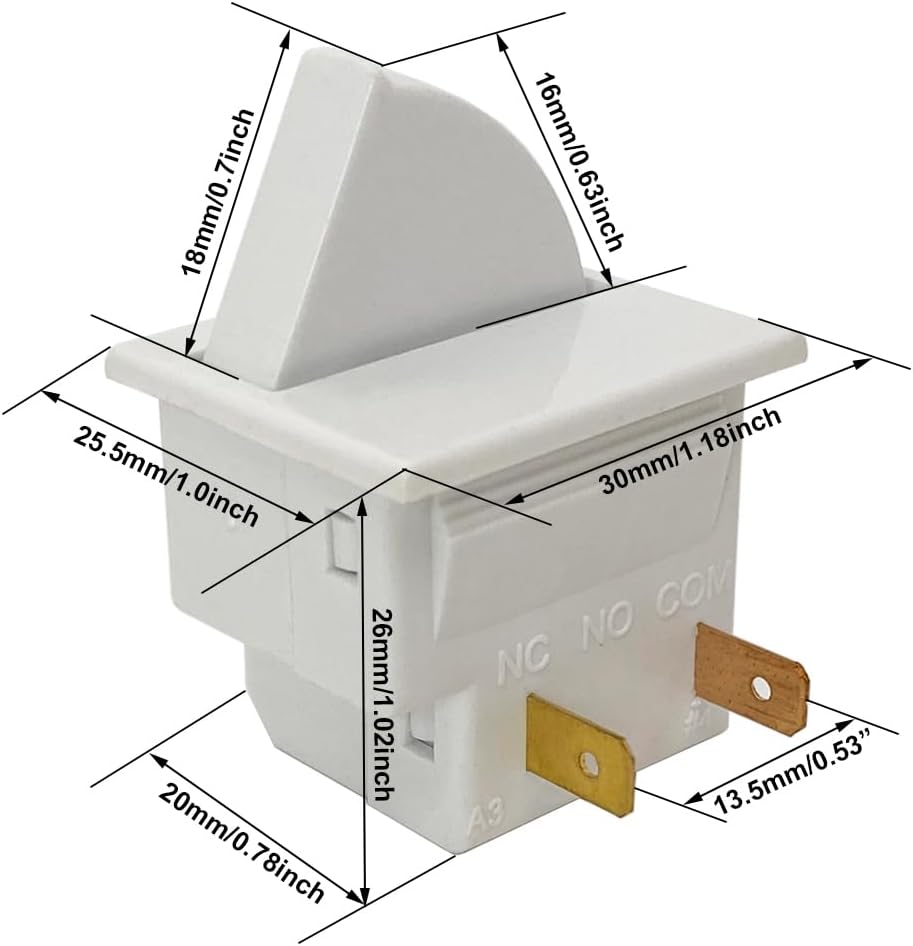

- Dimension: Panel size: 30 x 25.5mm/1.18" x 1.0"(LxW), Height: 26mm/1.02" (Without buttons and pins); Number of pins: 2 Pin; Connect pin size: 0.31"x0.19"x0.02"(LxWxThickness). Enclosure structure to reduce cold air release and durable. NOTE: Available in white and grey, shipped randomly. Since it is installed internally, color can be ignored.
- Compatible: This light switch is single-pole and snap-in installation; Universal compatible design, replacement for most Whirlpool, GE, Kenmore, Maytag, KitchenAid, Admiral, Amana, Crosley, Jenn-Air, Magic Chef refrigerators' door light switch. (Note: Not all models are universal.)
- Application: These momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well. NC: Normally Closed, when refrigerator's door open it is close and light will be on.
- Use Attention: Please be careful when installing this refrigerator switch and pay attention to the direction of the sensor rod; Usually the correct direction is that the door is pressed on the pole, and the pole will be pressed down; You can press its pole down by your hand to test this switch OK or not as do one simple conformation during your repairing.
Technical Details
| Manufacturer | XFYBZN |
|---|---|
| Part Number | DoorSwitch-2Pin |
| Item Weight | 0.704 ounces |
| Item model number | DoorSwitch-2Pin |
| Material | Metal, Plastic |
| Shape | Trapezoid |
| Power Source | Electric |
| Voltage | 125 Volts (AC) |
| Installation Method | Panel Mount |
| Handle/Lever Placement | Top |
| Number of Handles | 1 |
| Cutting Diameter | 1 Inches |
| Mounting Type | Embedded |
| Special Features | Refrigerator Use |
| Usage | Refrigerator |
| Included Components | 2x Refrigerator Door Switches |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | Manufacturer warranty for 90 days from date of purchase. |
| Assembled Diameter | 1 Inches |
| Brand | Xfybzn |
