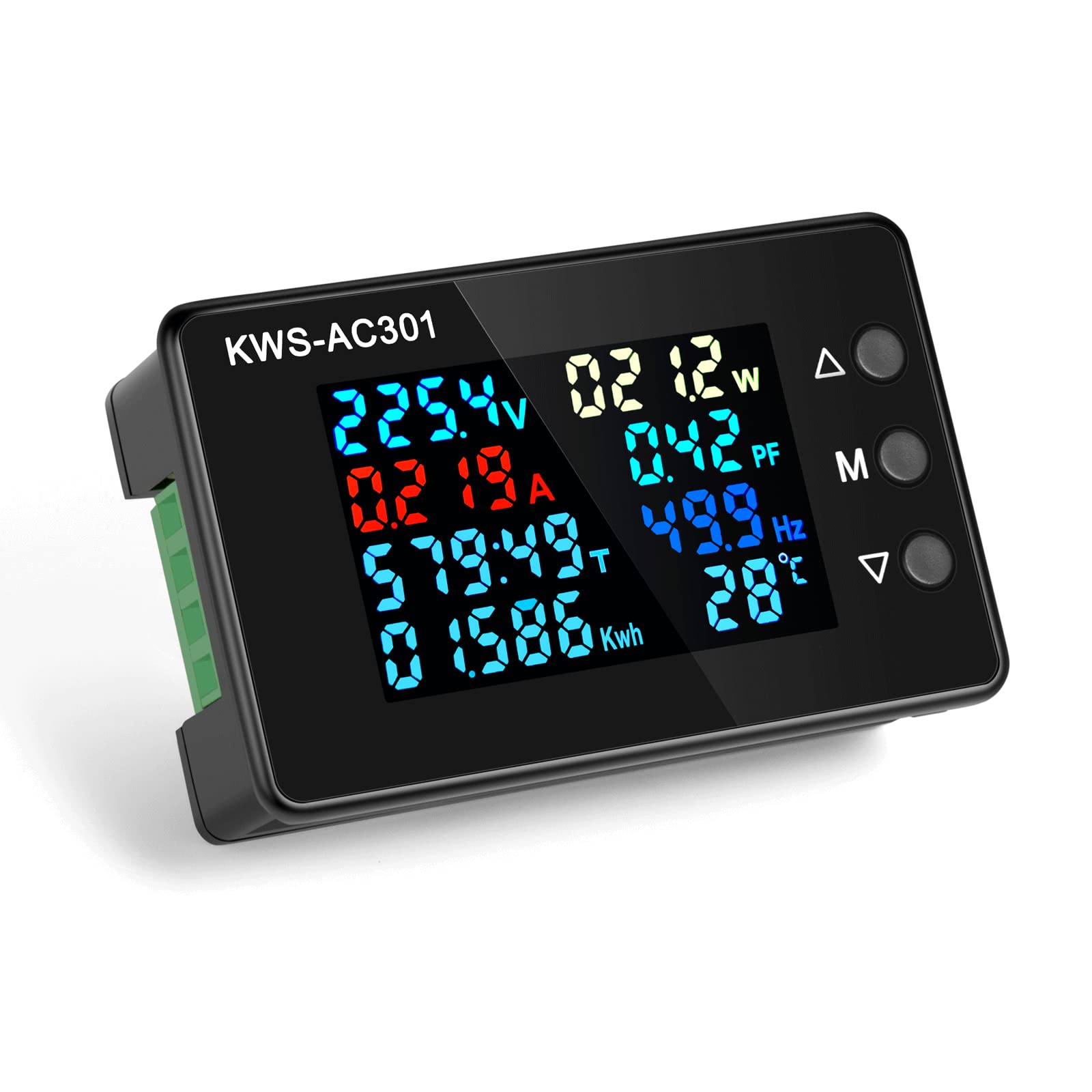

Digital Display AC Multimeter 50-300V 0-100A Current Voltmeter with Open Transformer 110V 220V 8 in 1 Multifunction Electric Meter Power Detector LCD Digital Display Tester Gauge Monitor
- 【Digital AC Multimeter】This 8 in 1 energy meter simultaneously measures and displays voltage, current, power, electrical energy, timing, temperature, frequency and power factor, equipped with split current transformer,no need to buy another, can be installed on anywhere flexibly.
- 【Easy to Read】 The LCD HD color display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience.
- 【Overload Alarm Function】The voltmeter will make a sound and the numerical unit will flash simultaneously to give an alarm when exceeding the preset value.You can preset numerical limits as your need.
- 【Electric Energy and Timing Clearing Method】 press the △ button for 3 seconds and the timing flashes, click the M button to clear the timing, double-click the M button to wrap to the electric energy, and click the M button to clear.
- 【Warranty】 Please rest assured to buy, if you have any questions, please feel free to contact us, we will give you satisfactory service.
| Specification Met | Rohs, Fcc, Ul, Ce |
| Manufacturer | AITIAO |
| Unit Count | 1 Count |
| Brand | AITIAO |
| UPC | 701715542983 |
| Number of Items | 1 |
| Min. Operating Voltage | 50 volts |
| Included Components | Others |
| Power Source | Corded Electric |
| Upper Temperature Rating | 150 °C |
| Colour | 100A with Open Current Transformer |
| Style | Industrial |
| Number of Packs | 1 |
| Measurement Type | Ammeter, Multimeter, Voltmeter |
| Part Number | 00816-100A |
| Model | AC301-100A |
| Style Name | Industrial |
| Product Type | Voltage Testers |
| Minimum Operating Voltage | 50 volts |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMFIRCIORYCDH |
Category |
Electrical , Testers , Voltage Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.Three Digital AC Multimeter You Can Choose
AC Voltmeter Ammeter AC 50-300V 0-100A with Closed Current Transformer
AC Voltmeter Ammeter AC 50-300V 0-100A with Open Current Transformer
AC Voltmeter Ammeter AC 50-300V 0-20A
AITIAO AC Voltmeter Ammeter AC 50-300V 20A 100A 8 In 1 Digital AC Multimeter
Specification:
Model:AC301-100A/AC301-20A
Voltage: AC50-300V
Current: 0-100A/0-20A
Shunt way: External
Power: 0-22KW/0-4.4KW
Capacity: 0.01-99999Kwh
Timing: 0-999
Temperature: -20 ° C to 150 ° C
Frequency:50-60HZ
Power Factor:0.01-1PF
8 in 1 AC Multi-Function Meter: This digital current voltage meter simultaneously measures voltage, current, power, electrical energy, timing, temperature, frequency and power factor, which is practical and can meet your various work needs.

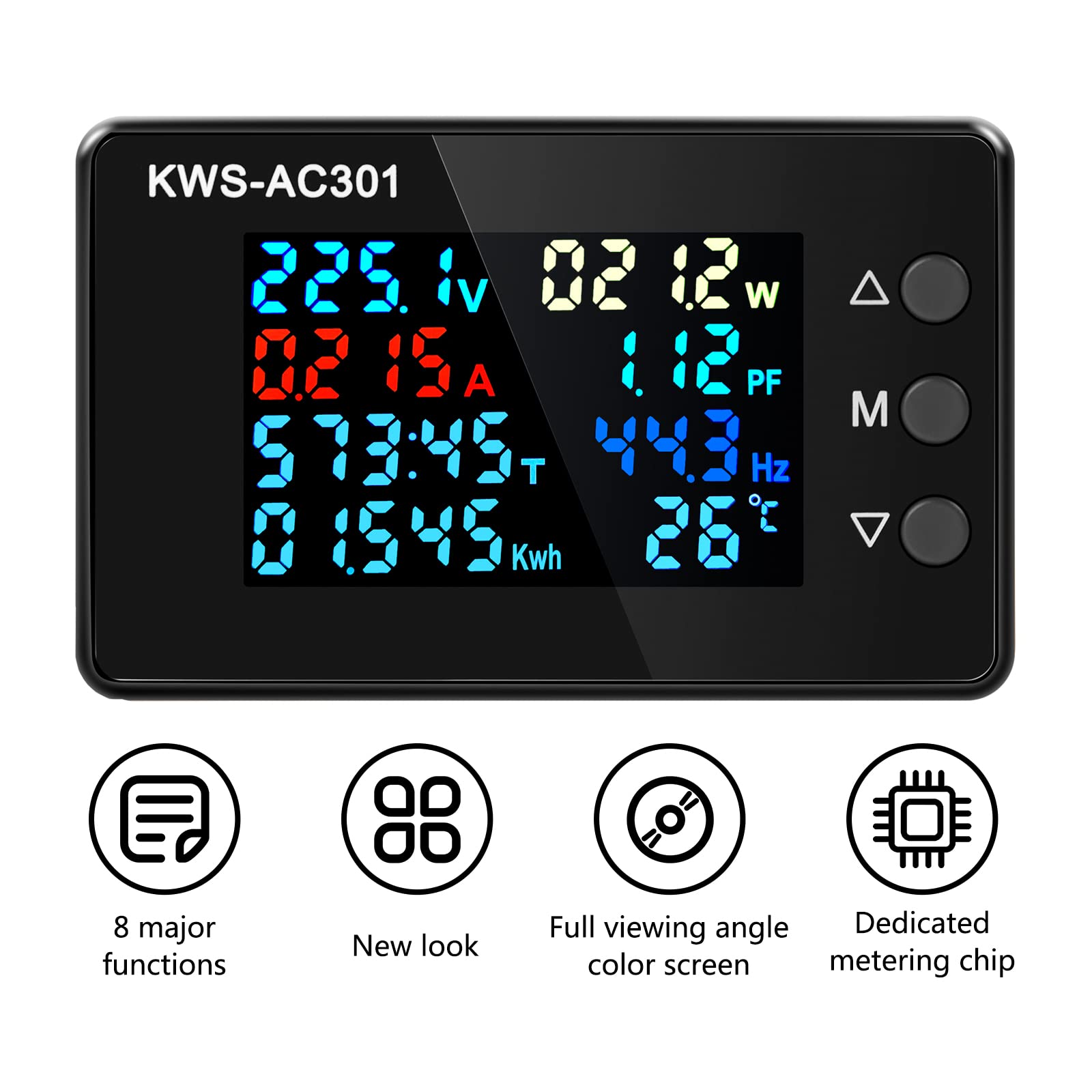

Easy to Read: The HD color LCD display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience.
Open type transformer: High accuracy, with snap for easy disassembly and installation
Closed type transformer: Need to string wires from the center of the transformer circle
Separated with the multimeter, can be installed on anywhere flexibly
Safe & Accurate Measurement: High-precision chip control, all-round buckle design, stable installation. The data is accurate, efficient and stable.

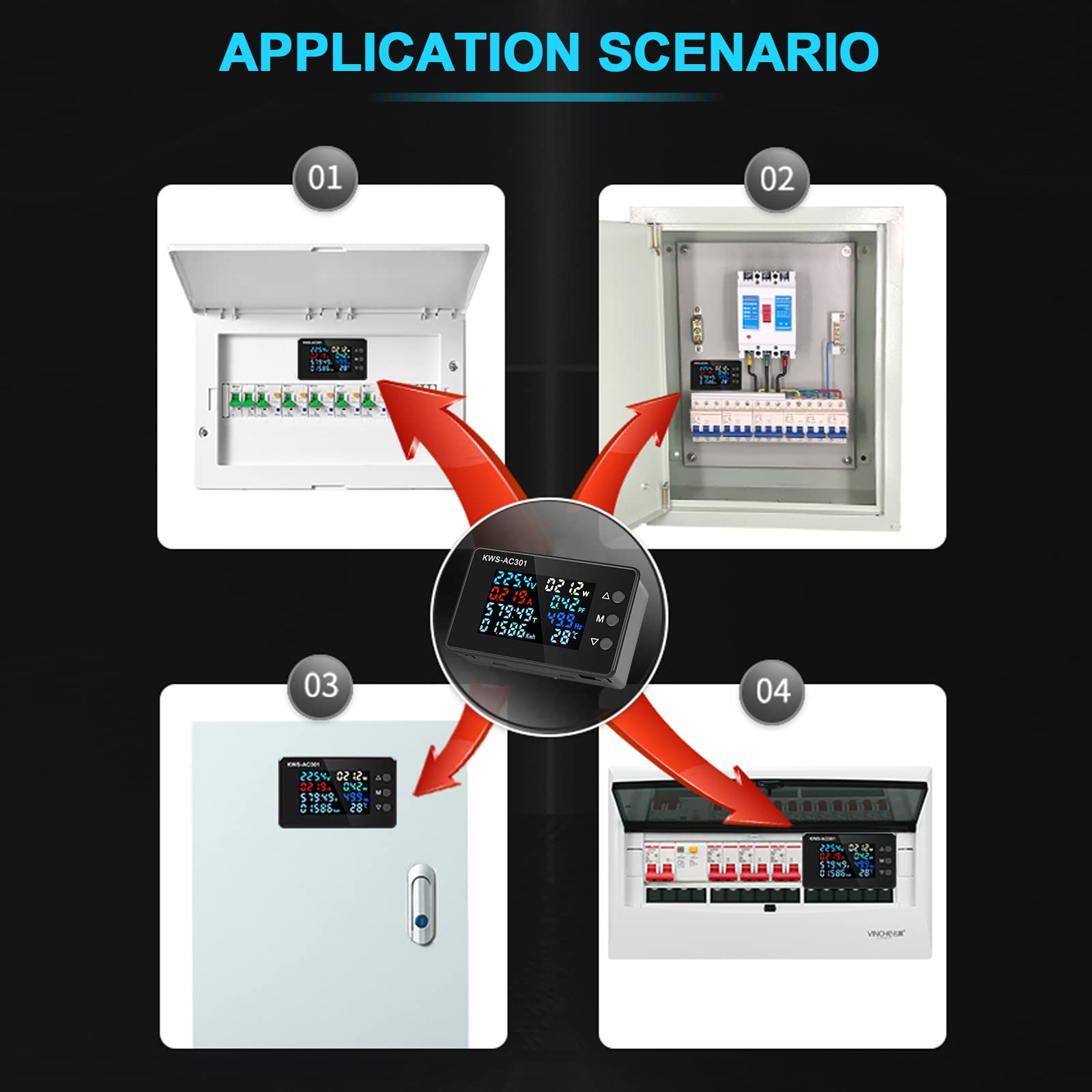

Wide Application: The Digital AC Voltmeter Ammeter can be applied in home appliances, high and low power distribution cabinets, inverter power supplies, electrical maintenance, industrial assembly line testing and photovoltaic systems.
Operation Instructions:
△ UP key, ▽ Down key, M Function key.
Long press the M key for three seconds to enter the settings, double-click the M key to swith, and click the M key to shift.
Alarm prompt setting, when the value is set, press and hold the M button for 3 seconds to save.The alarm prompt will appear only when the actual test value is greater than or equal to the set value. When the instrument has an alarm, it will make a sound, and the numerical unit will flash on the screen.
Turn off the alarm prompt method: Set the alarm value to be larger than the actual value or set all alarm values to 0.
Electric energy and timing reset method: Long Press the △ button for 3 seconds, when the timer flashes, click the M key to reset the timer, double-click the M key to swith to the electric energy, and click the M key to reset it.
Restore factory settings: Press the ▽ key, and then turn on the power,after the meter emits a sound, it means that the factory settings are resetted successfully. The factory default voltage warning value is 275V, others are 0.
