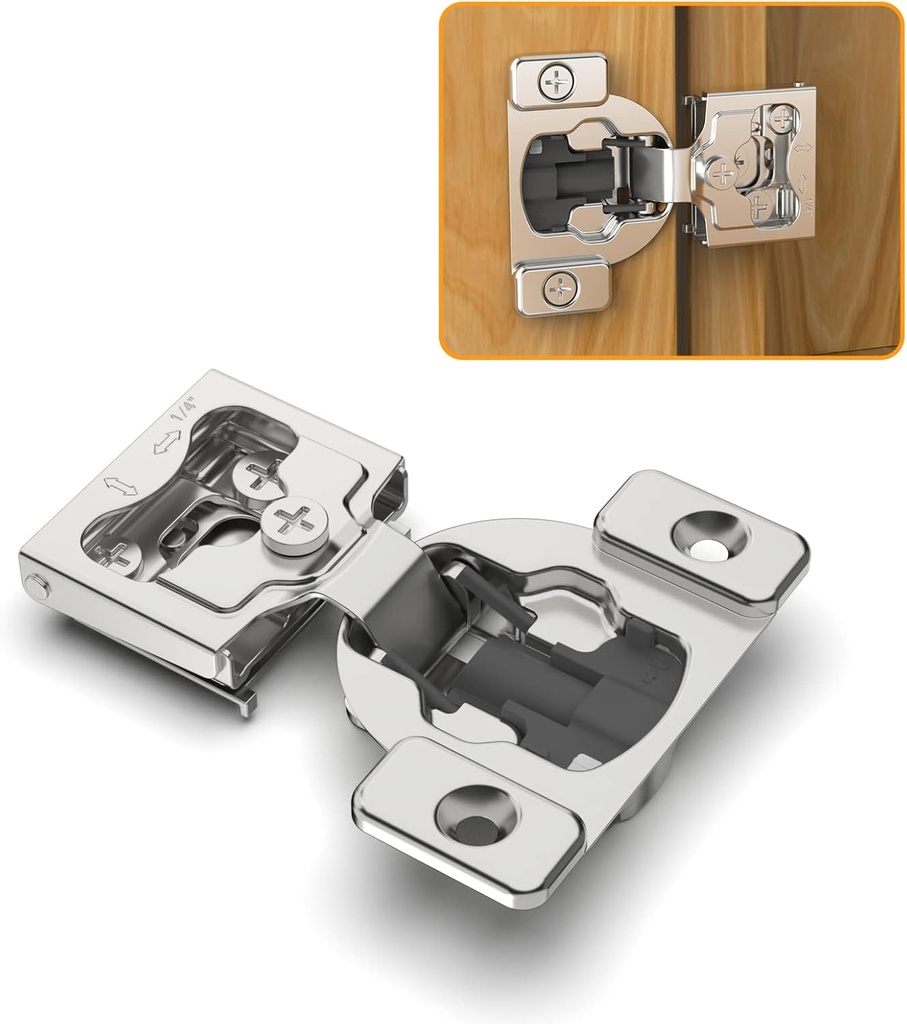

Chibery 50 Pack 1/4" Small Overlay 4D Concealed Hinges for Face Frame Door, Soft Close On/Off Switch, Self Closing, 105° Open Angle Concealed Stainless Steel Hinges for Framed Cabinet, Satin Nickel
10 sold in last 24 hours

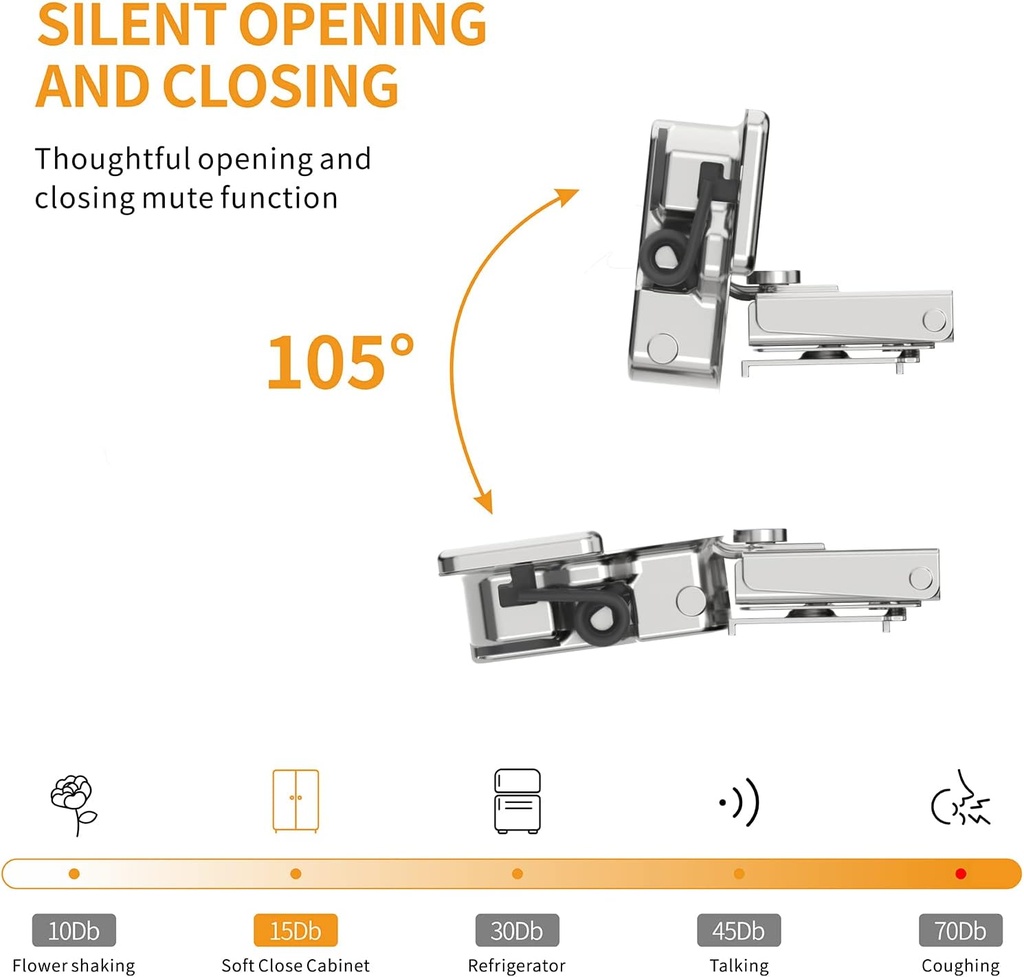

- Installation Specification: Cup diameter is 35mm; Cup depth is 11.5mm, Screw holes distance is 45mm; Opening angle is 105 degrees, suitable for most cabinet door styles. Each cabinet hinge comes with 2 easy-on dowels and 3 self-tapping wooden screws to ensure a perfect fit.

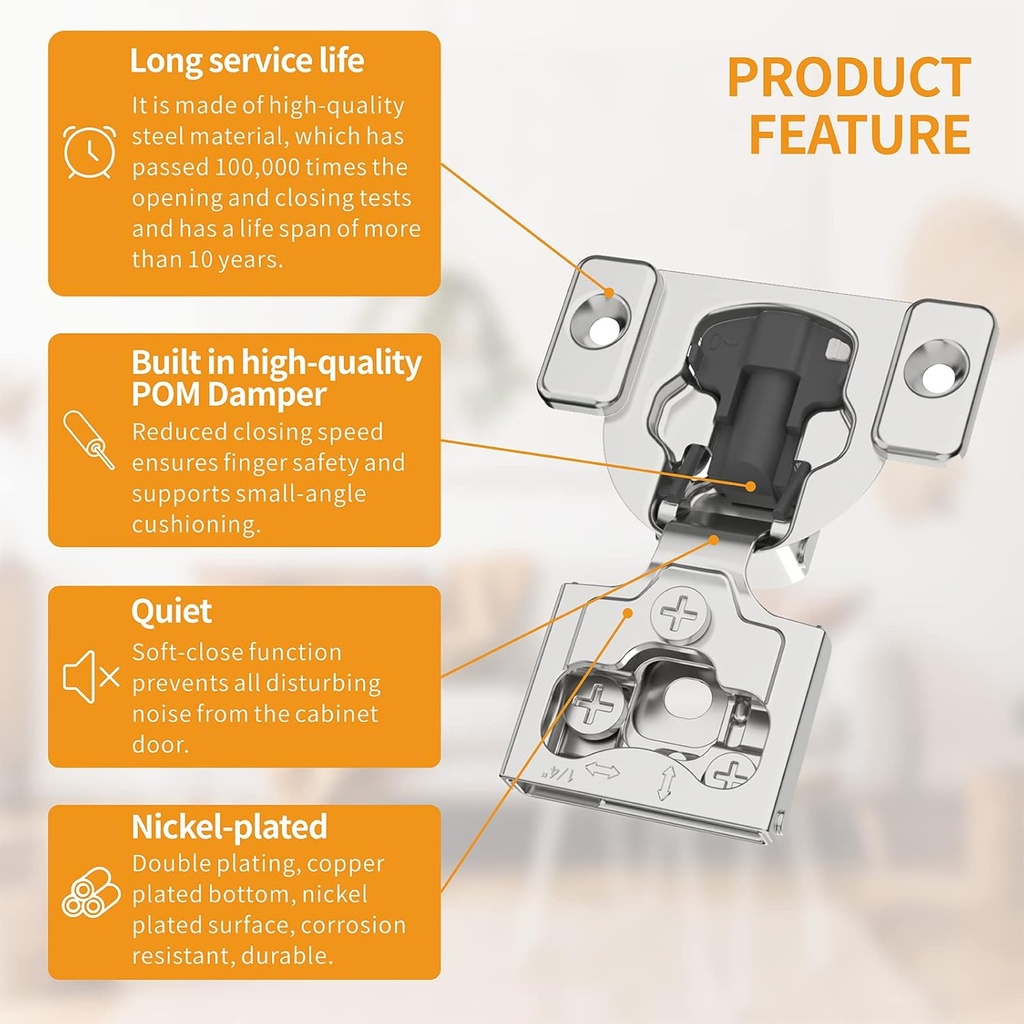

- SOFT CLOSE CABINET HINGE: Each overlay concealed cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.
- Double Electroplated: The material of our overlay cabinet hinges is high quality steel and nickel plated finish and brass plated bottom, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections.

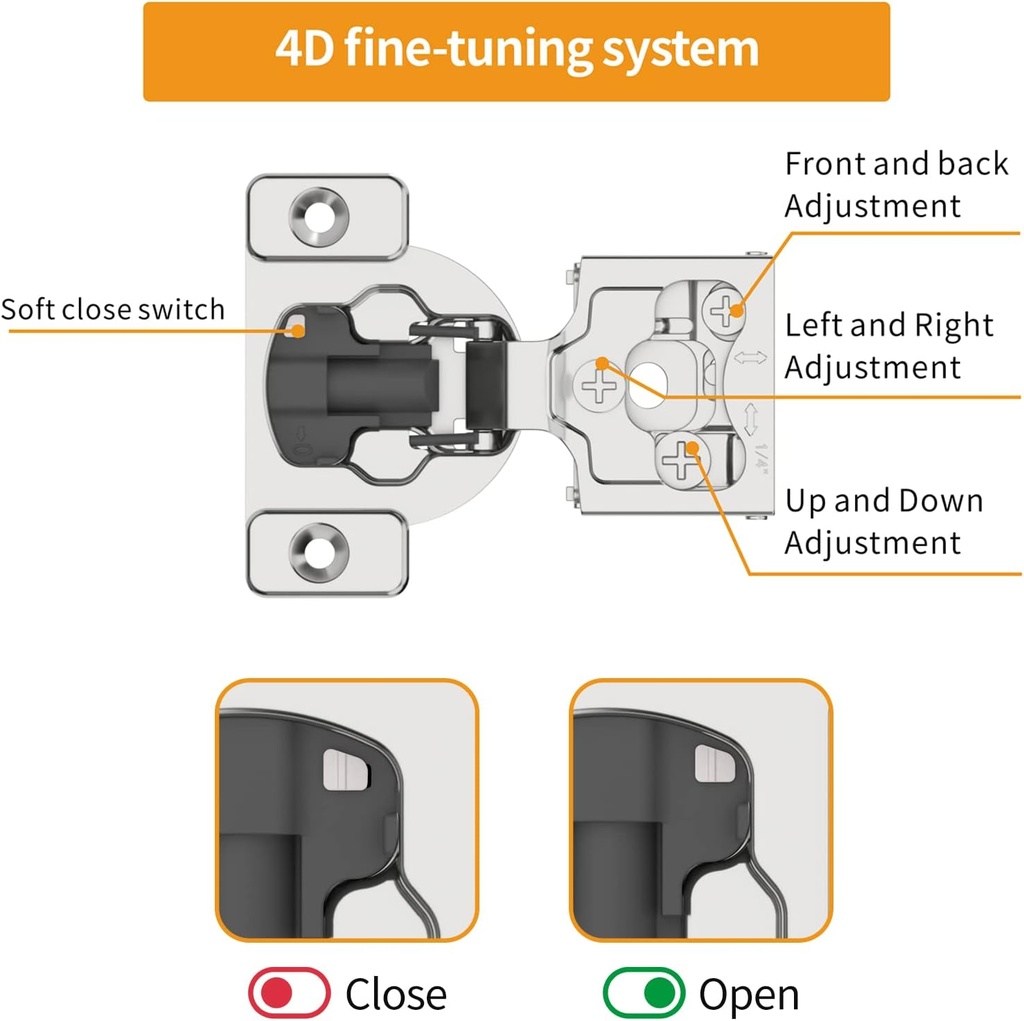

- 4D Adjustable Upgrade: 4D hinges can be easily adjusted for cabinet doors (vertical, horizontal, depth) with a simple turn of a screwdriver, ensuring that your new bespoke cabinet doors will not sag and are perfectly aligned, with a smooth and quiet open and close. In addition, the on/off switch for the soft-close function provides you with the flexibility to customize the hinge for your specific needs. Upgrade your cabinets today and experience the ultimate in adjustability and convenience!"
- Buy with Confidence: Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.
Tags |
Technical Details
| Material | Nickel, Steel |
|---|---|
| Brand | Chibery |
| Finish Type | Nickel, Satin Nickel |
| Mounting Type | Door Mount,Face |
| Hole Count | 3 |
| Unit Count | 50.0 Count |
| Color | 50 Pack |
| Manufacturer | Chibery |
| Item Weight | 5.9 ounces |
| Package Dimensions | 11.81 x 9.76 x 4.09 inches |
| Item model number | Chibery 4D |

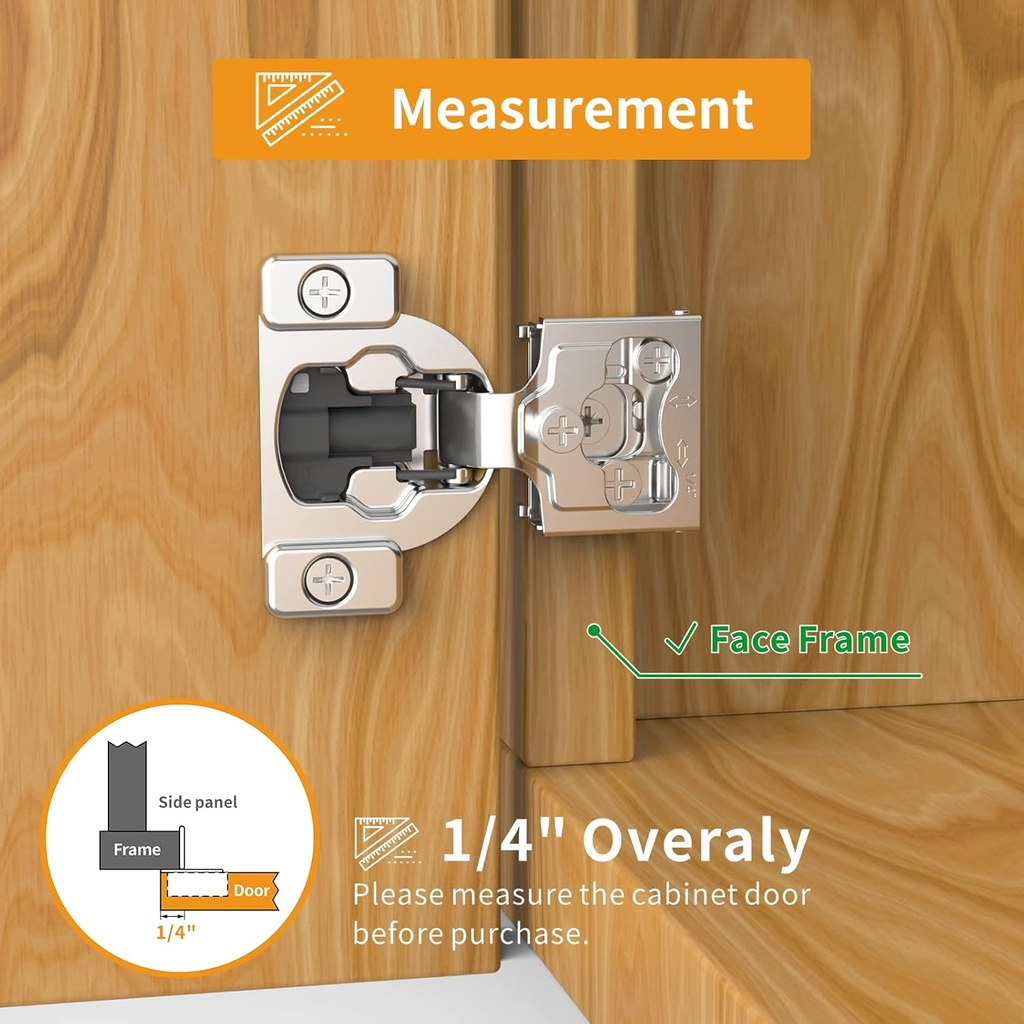

| Size | 1/4" Overlay |
| Style | Self Closing, Soft Close, Soft Close On/Off Switch |
| Finish | Nickel, Satin Nickel |
| Number Of Pieces | 50 |
| Usage | ALL OVERLAY FACE FRAME - type cabinet doors. Such as Kitchen cabinet doors, Bathroom cabinet doors, Wardrobes, TV cabinets, Bookcases, Wine cabinets, and other Luxury door connections. |
| Included Components | 1/4" Small Overlay Hinges X 50, Screw Accessories Kit |
| Batteries Included? | No |
| Batteries Required? | No |
| Main Specification | |
|---|---|
| Material | Steel or Nickel |
| Finish Type | Satin Nickel or nickel |
| Mounting Type | Door Mount or Face |
| Manufacturer | Chibery |
| Unit Count | 50.0 Count |
| Hole Count | 3 |
| Brand | Chibery |
| Color | 50 Pack |
| Others | |
| Product Type | Hardware Hinge |
