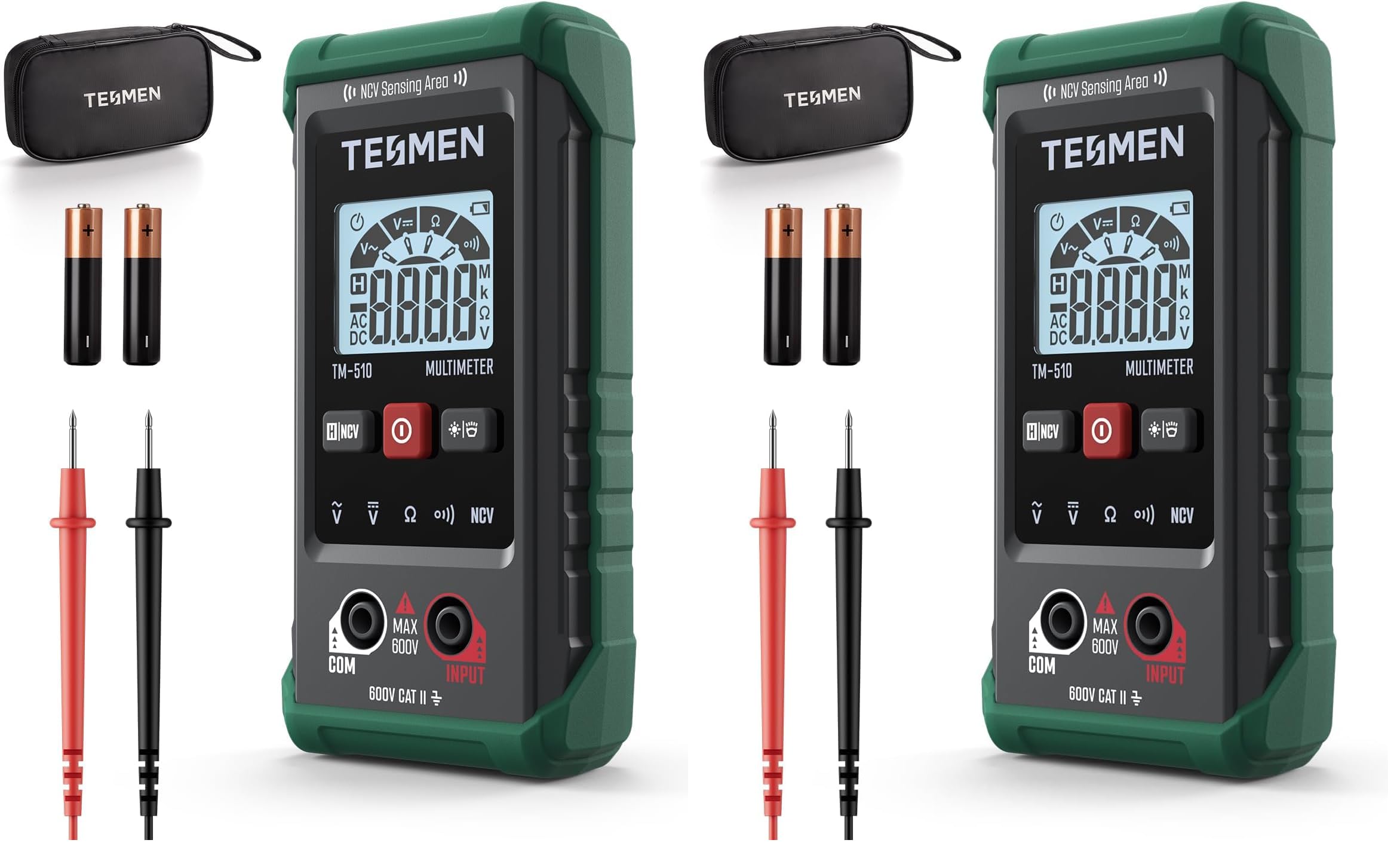

TM-510 Digital Multimeter, 4000 Counts, Smart Measurement, Auto-Ranging Voltmeter; Voltage Tester with Non-Contact Voltage Function, Measures AC/DC Voltage, Resistance, Continuity – Green
- Smart Digital Multimeter: Thanks to its Smart Auto Mode, TESMEN TM-510 4000 counts smart digital multimeter allows you to quickly switch between all measurement tasks, including AC/DC voltage, resistance, and continuity, without selecting a mode or range. It makes measuring work easy, fast, and accurate
- Non-contact: Completely safe Non-Contact Voltage test with a visual and audible alarm; a time-saving and safe feature. You can measure the voltage on the AC wire without having to connect the wire, which makes troubleshooting the line much easier
- Safety Guarantee: CAT II 600V, CE, and RoHS certified. Overload protection measures are used inside the instrument to improve the product's safety performance and maximise users' safety. The outer silicone cover protects the multimeter from damage and potential electric shock
- User Friendly: Supports Data Hold, Automatic Shutdown, Low battery indicator, Backlight display, and Flashlight. All these convenience features make the instrument more than enough for daily use by amateurs, car owners, and homeowners. Easy to use, enjoy endless DIY fun
- About TM-510: In auto mode, if the detected battery voltage is below 0.8V, the device will automatically measure the resistance. Package includes a digital multimeter, 2 test leads, a storage bag, 2 AAA batteries, and a user manual
| Included Components | 1*user Manual, 2*Aaa Batteries, 1*storage Bag, 1*TM-510 Multimeter, 2*Test Leads |
| Manufacturer | TESMEN |
| Specification Met | Rohs |
| Brand | TESMEN |
| Number of Items | 1 |
| Power Source | Battery Powered |
| Compatible Devices | Test Leads |
| Upper Temperature Rating | 40 °C |
| Colour | Green |
| Style | TM-510 Smart Digital Multimeter |
| Item Weight | 0.1 kg |
| Measurement Type | Multimeter, Voltmeter |
| Part Number | TM-510 |
| Model | TM-510 |
| Maximum Operating Voltage | 600 Volts |
| Style Name | TM-510 Smart Digital Multimeter |
| Product Type | Multi Testers |
| Minimum Operating Voltage | 0.8 volts |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMHQTOQHBU23V |
Category |
Electrical , Testers , Multi Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.Automatic Shutdown
If there is no operation in 15 minutes when the meter is on, the meter will automatically turn off to save electricity.
Data Hold
Press the data Save button and the screen will display the H symbol when the function is activated.
LOW BATTERY INDICATOR
When the battery voltage is lower than the operating voltage, the Low battery icon is displayed in the upper right corner of the display.
Continuity Test
Connect the contacts at both ends of the test lead, and it will automatically switch to the continuity mode. The buzzer will sound and the indicator light will glow green.
High-Quality Battery
The multimeter is equipped with high-quality batteries to enhance user experience.
Multimeter Protector
This digital multimeter has a protective cover to protect the multimeter from physical damage.
Compact Design
This voltage tester is compact and doesn't take up much space.
Storage Bag
It is equipped with a sturdy storage bag for easy carrying and storing of the multimeter and test leads.
Easy to use
Step 1. Please remove the rubber sleeve behind the multimeter, open the battery back cover, and put 2 AAA batteries into the battery compartment according to their polarity marks. Place the battery cover back on.
Step 2. Turn on the multimeter, insert the test leads according to the prompts, and enter the test after the two ends of the test leads are in contact with each other for calibration.
Step 3. To measure AC/DC voltage, resistance, or continuity. Insert the test leads into the multimeter and connect them to both ends of the measured object. The multimeter measures automatically without user selection.
Note: No need to use test leads if you want to use the NCV function.
About AUTO mode: In Auto mode, if the detected battery voltage is below 0.8V, the device will automatically measure the resistance .
