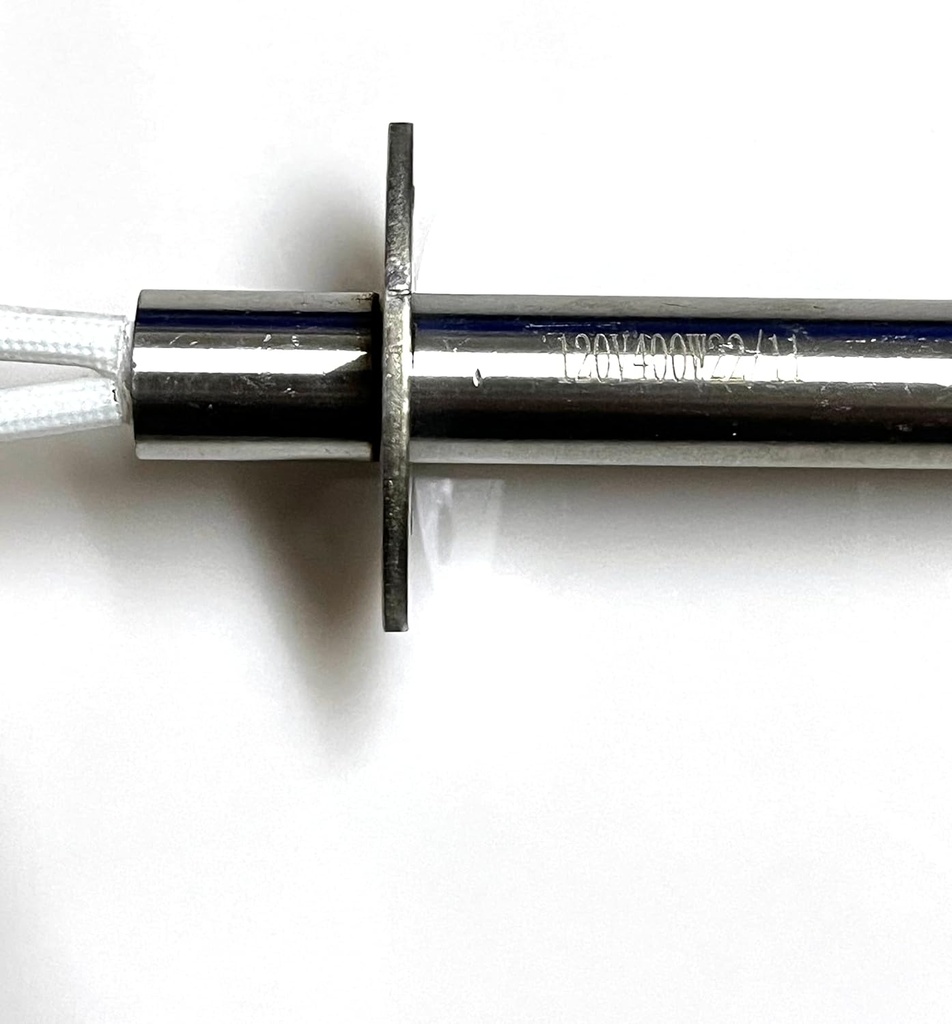

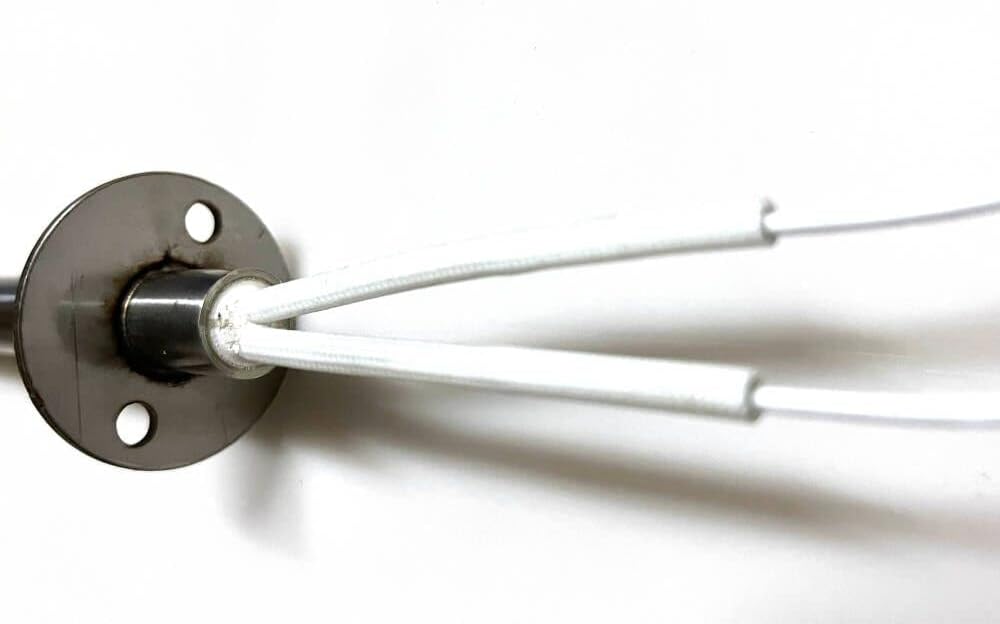

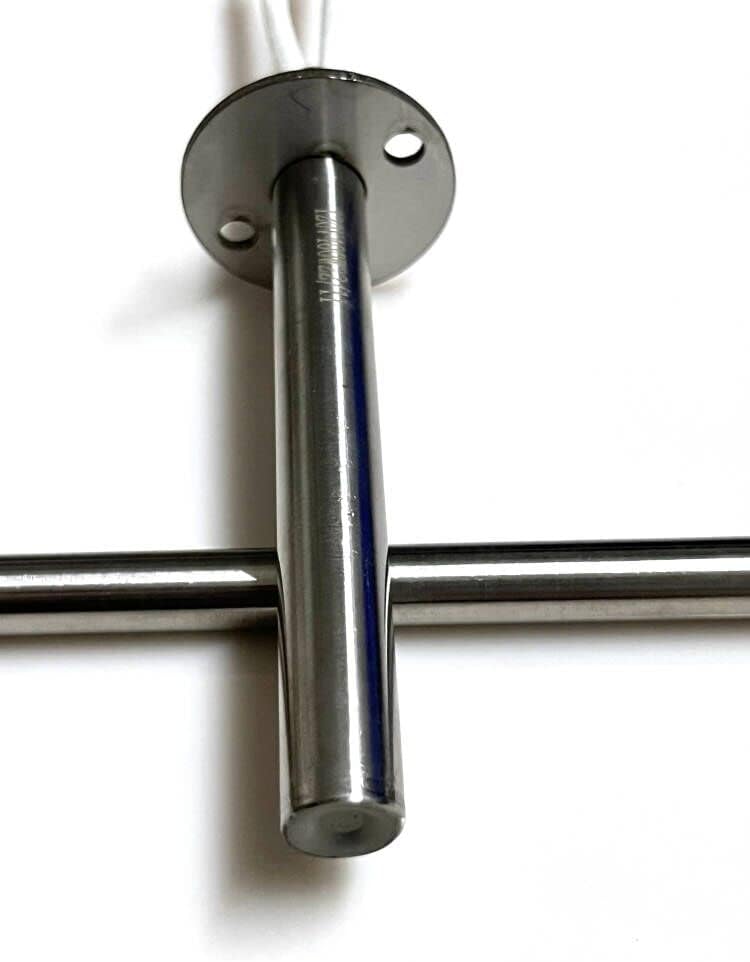

$ 1,502.0450-619 & 20-022 Igniter Upgrade For Enviro, Vista Flame, Mini, Milan, EF5 - ENV400, Windsor, Empress FS & INS Pellet Stove Igniter
5 sold in last 24 hours
- High Quality Replacement Igniter Element
- Part 50-619. Replaces part 20-022. Replacement for Enviro 400W Ignitor 115V.
- 50-619 Igniter compatible with Enviro - EF5, Empress FS, Empress Insert, Milan, Mini, Windsor, and Vista Flame Pellet Stove: VF Windsor.
- Watts: 400, Length: 4 5/8", Width: 3/8", Connectors: Female Spades.
- High Temperature Wire - Fiberglass insulation (Fiberglass woven glass strands provides good insulation for use in high temperature process heating applications) over stranded Grade "A" nickel wire. (840o F / 450o C) Heat Shrink used on solder joints to prevent breaking.
Specifications:
Watts: 400W
Length: 4.6"
Width: 3/8"
Connectors: Female Spades
Replaces part numbers: 50-619 & 20-022.
Compatible with Enviro & Vistaflame Pellet Stoves:
Enviro Pellet Stoves:
EF5
Empress FS
Empress Insert
Milan
Mini
Windsor
Vistaflame Pellet Stoves:
VF Windsor
Troubleshooting Igniters:
Igniter failure can be verified on one of three ways.
1. start your stove and visually look for the orange glow;
2. physically feel around in the burn pot after the stove has been on for a few minutes to “feel” for heat being generated.
3. Use a DMM (Digital Multi-Meter). Gain access to the igniter and remove it from the stove or insert. With the igniter removed from the stove, you will need to look over the part to find the rated watts.
If your Ohms reading is within 10%, more or less than the rating (46Ω +/-10%), it's good. If the igniter has a "contained short or a short" within itself and not grounding out, your Ohms reading will be very low...usually in the single digits. Generally, you cannot have a faulty igniter with too high of a resistance reading unless an igniter is installed that is way out of spec. It's usually good to look at the part itself for the watts rating.
| Main Specification | |
|---|---|
| Efficiency | High Efficiency |
| Brand | Duheri |
| Assembly Required | No |
| Fuel Type | Pellet |
| Product information | |
| Package Dimensions | 1 X 1 X 1 Inches |
| Ventilation Type | Vent Free |
| Color | Black |
| Color | Black |
| Technical Details | |
| Item Weight | 9.07 G or 0.32 Ounces |
| Material | Stainless Steel |
| Material | Stainless Steel |
| Mounting Type | Freestanding |
| Others | |
| Product Type | Heating Stove |
