UYGALAXY Linear Actuator 4 Inch Stroke with Mounting Bracket, DC12V 900N(200lbs) IP65 Waterproof 12mm/s Quiet Low Noise Motor for DIY Chicken Coop Electric Recliner Lift Massage Bed Sofa (4")
- Spec: 12VDC Linear Actuator Stroke Length= 4inch(100mm); Travel speed= 0.47 inch/sec (12 mm/s), 900N(200lbs), IP65 waterproof for outdoors.
- Special low noise as designed: level under 45dB, it has been carefully considered for the ears of your family and neighbours.
- Easy install: linear actuator solutions are able to fit in almost any industrial machine or piece of automated machinery. Easy to install and integrate into most control systems, like Arduino, control boxes or any other Microcontroller kit.
- Widely used: In DIY pet feeder,Marine,Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
- Easy set up & Safe: Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. Package included 1 linear actuator and 2 bracket sets.
| Manufacturer | UYGALAXY |
| Brand | UYGALAXY |
| Item Weight | 2.72 pounds |
| Package Dimensions | 10.16 x 3.43 x 2.13 inches |
| Date First Available | 2022, July 13 |
| Product Type | Linear Motion Actuators |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSRMZQLOZ6BMYDG |
Category |
Power Transmission Products , Linear Motion Products , Linear Motion Actuators |
Tags |
Estimated shipping
Select a product to estimate shipping.UYGALAXY Linear Actuator for up and down, which is used for your home, such as home automation, like cabinet door, drawer, shutter, TV lift.
And also used for your DIY project, such as pet feeder valve, robot arms, toys, fish tank cover lifter.
Great for electric open chicken coop/pigeon/rabbit cage/pet nest door.

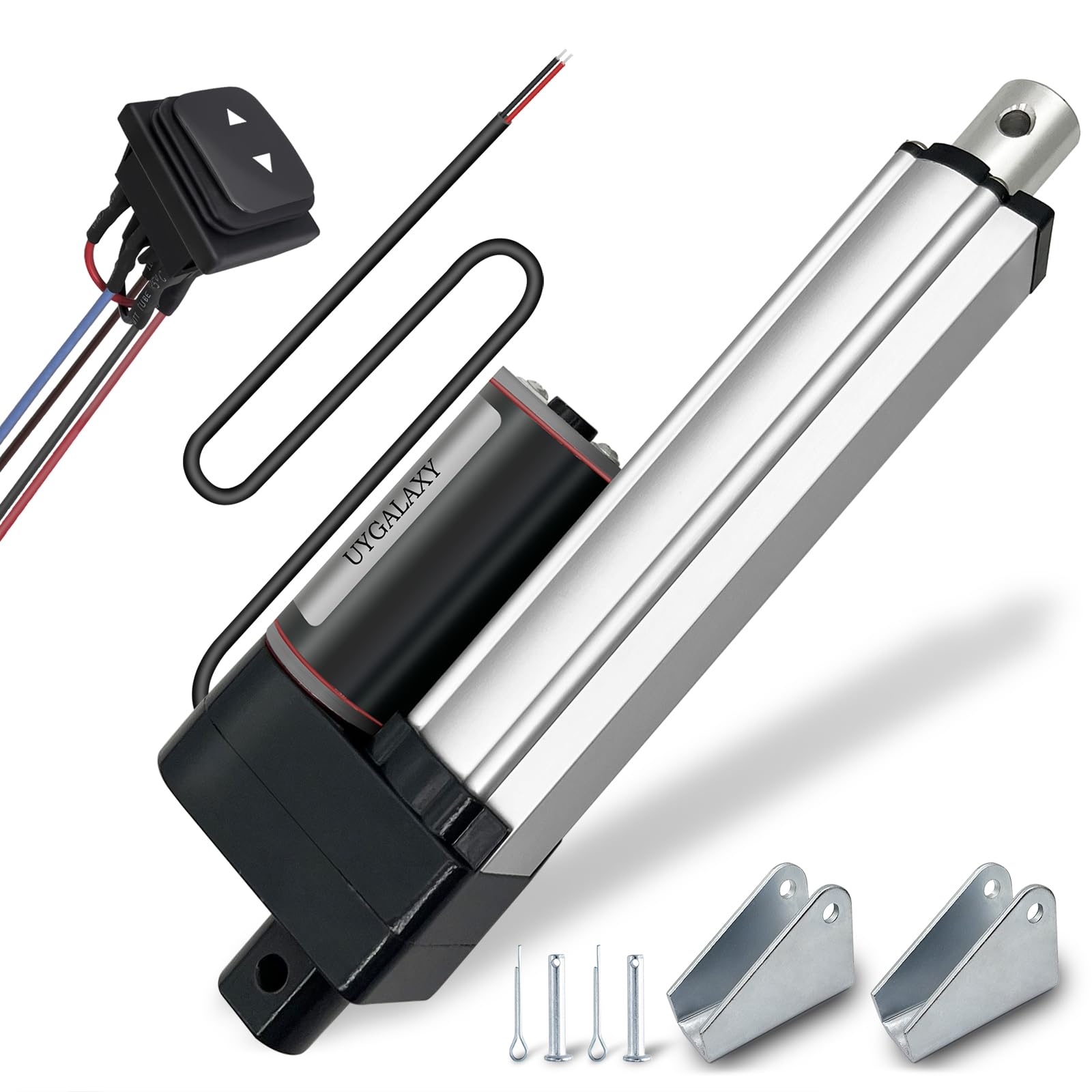

Package Included:
1 x Linear Actuator
2 x Mounting Brackets
Waterproof Protection: IP65
Duty cycle: 20%
Working Temperature: -13°F~+140°F
Built-in limit switches
UYGALAXY Linear Actuator
Specification
Input Voltage: 12VDC
No-load Current: 0.5A
Working Current: 1.2A

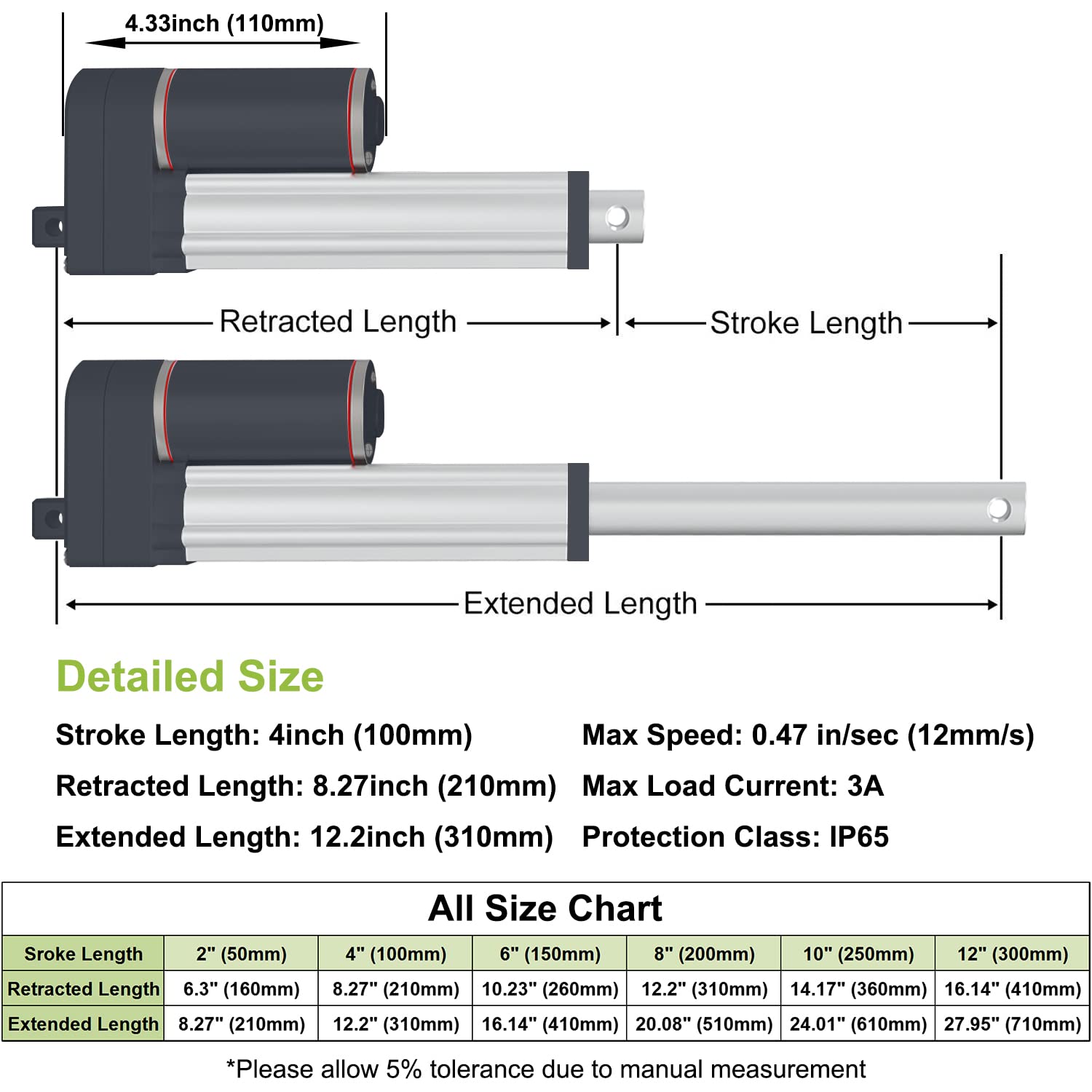

Stroke Length: 4in/100mm
Retracted Length = 210 mm( 8.27”)
Extended Length = 310 mm( 12.2”)
Material: Aluminum alloy/Iron
Load capacity: 200lbs/900N
Speed: 0.47"/sec(12mm/s)
Color: Steel Gray
Please allow color difference due to light condition and different displayer
*Please allow ±5% tolerance due to manual measurement
Features:
Low noise design, noise level less than 50 dB.
Compact size and lightweight, easy to install with mounting bracket.
Made of high quality aluminum, more safe & well constructed for long-term use.
How to protect your actuator?
The actual load does not exceed the rated load. Please use the 12V DC power battery, max 13.5V DC. If using smaller voltage, the product cannot work well, use bigger voltage maybe will damage to the product.
It should be noted that the linear actuator has been in extreme operating conditions for a long time will reduce product life.
Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
Built-in limit switch that it will turn off power when the device reaches the end of stroke to protect motor. If the actuator doesn't reach to limit switch ends, and it will burn if hook up to power all the time, please set LRA (Locked-rotor Amps) as 3.0A.
Agriculture Spreader / Spray
Control the flow of the spreader for your seeds and fertilizer, try to open & close the chute from the tractor cockpit.
Greenhouse/RV Window
Automated venting work in an RV, yacht or greenhouse.
Lift Table
DIY lift table, please be aware of it's not synchronous, 1 linear actuator would be best.
Robotic Arm/Gripper
Give the robot project an arm or gripper, nod the head of the robot.
