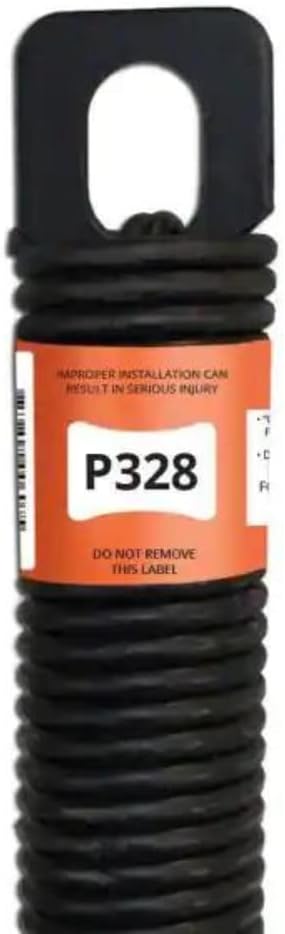

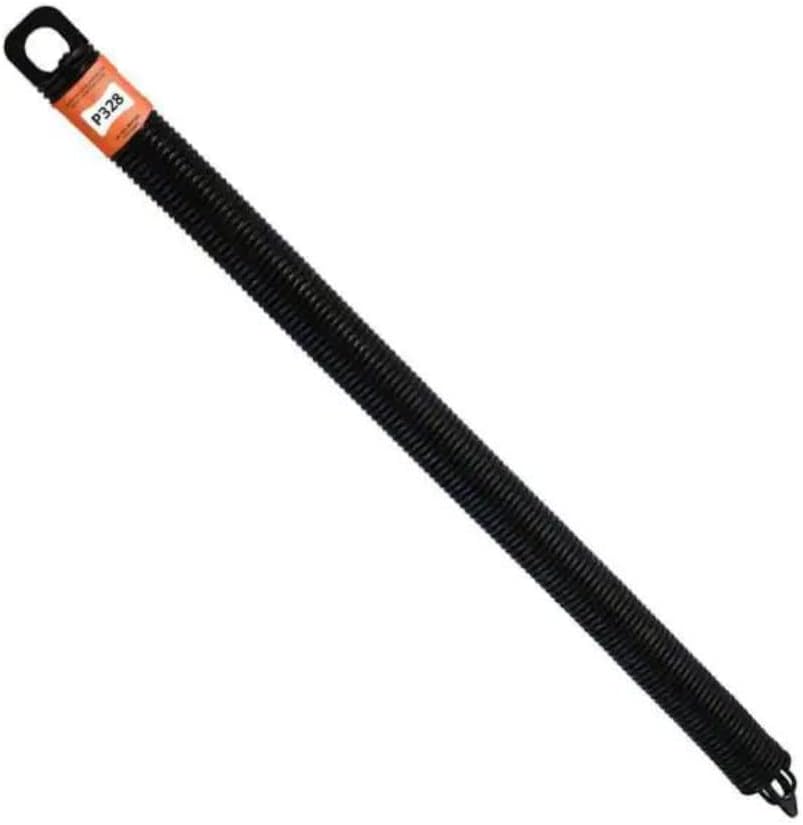

P328 - 28 in. Garage Door Plug-End Extension Spring (0.244 in. No. 3 Wire) (Pack of 1)
9 sold in last 24 hours
- Description: 28 in. Plug-End Extension Spring (0.244 in. No. 3 Wire)
- CATEGORY: Garage Door Extension Springs
- MATERIAL: Fabricated with high-grade steel.

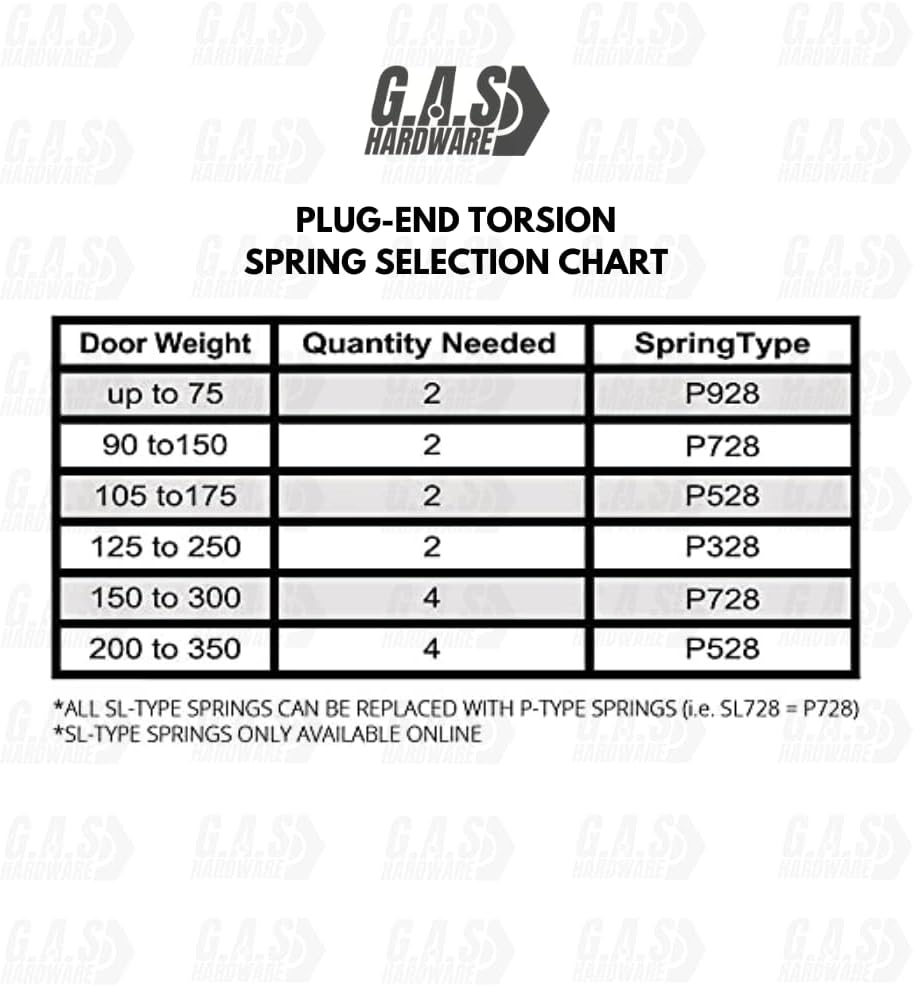

- EXECUTION FACTORS: 2 x P328 springs support a 125 lbs. to 250 lbs. garage door.
- CONE TYPE: Plug-end extension spring with safety containment rod.
- INCLUDES: Pack of 1 Plug-End Extension Springs.
- OVERVIEW: P328 28 in. Plug-End Extension Spring is a Holmes spring replacement for heavier 1-piece / tilt-up / canopy-style garage doors. Two springs - one on each side of the door - can handle a 125 lbs. to 250 lbs. door, with an initial tension of 165 lbs. to 185 lbs. A c-hook (sold separately) is required to connect spring to jamb hardware.
Tags |
GAS Hardware Garage and Sliding Doors Hardware Product Description Description : 28 in. PlugEnd Extension Spring (0.244 in. No. 3 Wire) Category : Garage Door Extension Springs Material : Fabricated with highgrade steel. Execution Factors: 2 x P328 springs support a 125 lbs. to 250 lbs. garage door. Cone Type: Plugend extension spring with safety containment rod. Includes: Pack of 1 PlugEnd Extension Springs. P328 28 in. PlugEnd Extension Spring is a Holmes spring replacement for heavier 1piece / tiltup / canopystyle garage doors. Two springs one on each side of the door can handle a 125 lbs. to 250 lbs. door, with an initial tension of 165 lbs. to 185 lbs. A chook (sold separately) is required to connect spring to jamb hardware. Length over coils: 28 in. Outside diameter: 2 in. Wire gauge: 0.244 in. (no. 3 wire) Initial tension: 165 lbs. 185 lbs. Maximum allowable stretch: 18.5 in. From Distributor With over 10 years of experience, GAS Hardware stands itself as a top provider of highquality parts for sliding and garage doors. The expertise on the service of these kinds of doors allows the company to be a reliable part supplier in Florida, United States, recognized in the home improvement industry. The quality and satisfaction towards our customers on our services expands as a sliding and garage door 100% OEM authorized supplier. Renovate your home with GAS Hardware.
| Main Specification | |
|---|---|
| Brand | Alcan |
| UPC | 655457582908 |
| Assembly Required | No |
| Item Package Quantity | 1 |
| Product information | |
| Item model number | P328-One-Spring |
| Product Dimensions | 32 X 4 X 4 Inches |
| Color | Black |
| Style | Classic |
| Material | Steel |
| Manufacturer | Garage And Sliding Door Hardware |
| Technical Details | |
| Item Weight | 8.8 Pounds |
| Part Number | P328-One-Spring |
| Material | Steel |
| Item details | |
| Included Components | Plug-End Extension Spring |
| Others | |
| Product Type | Door |
