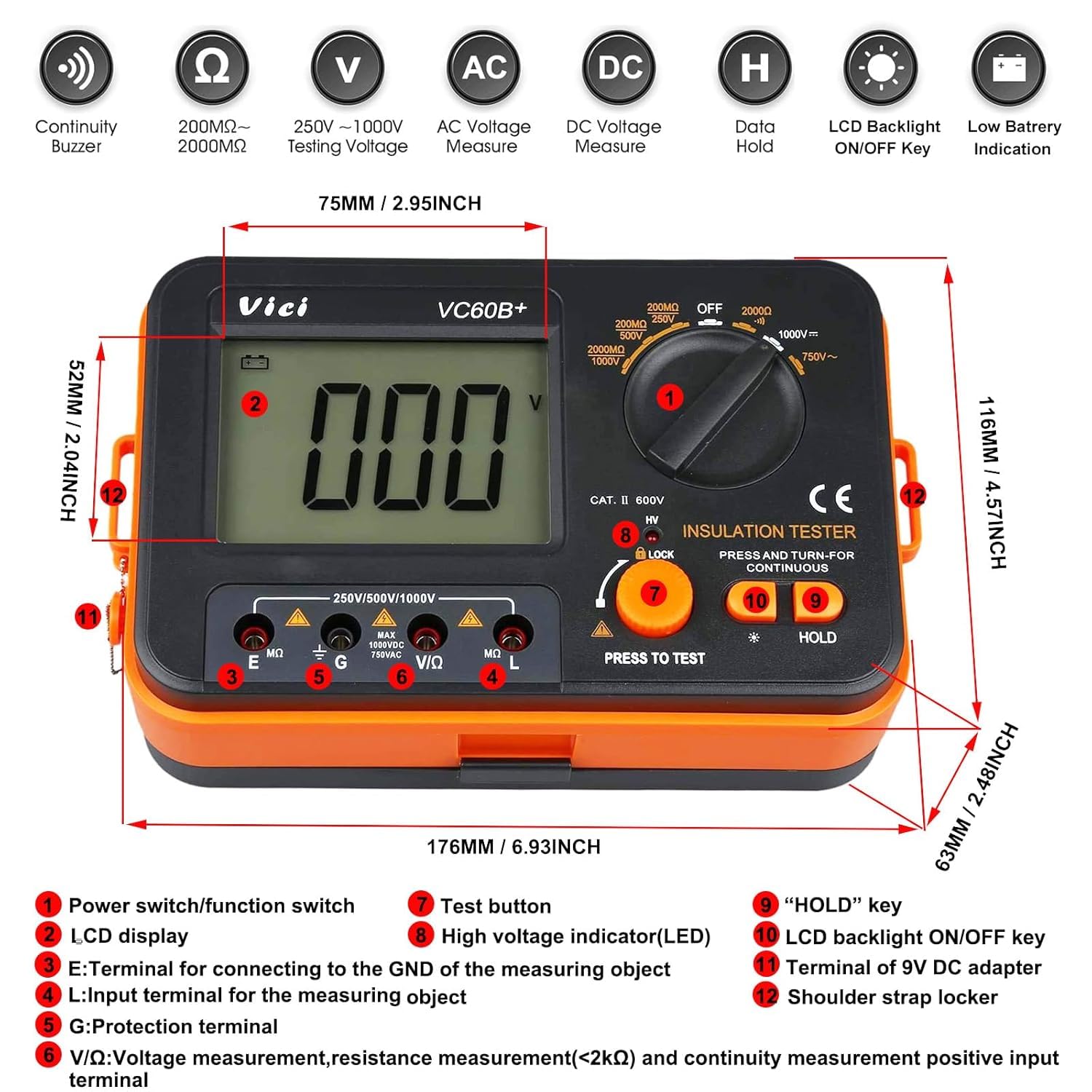

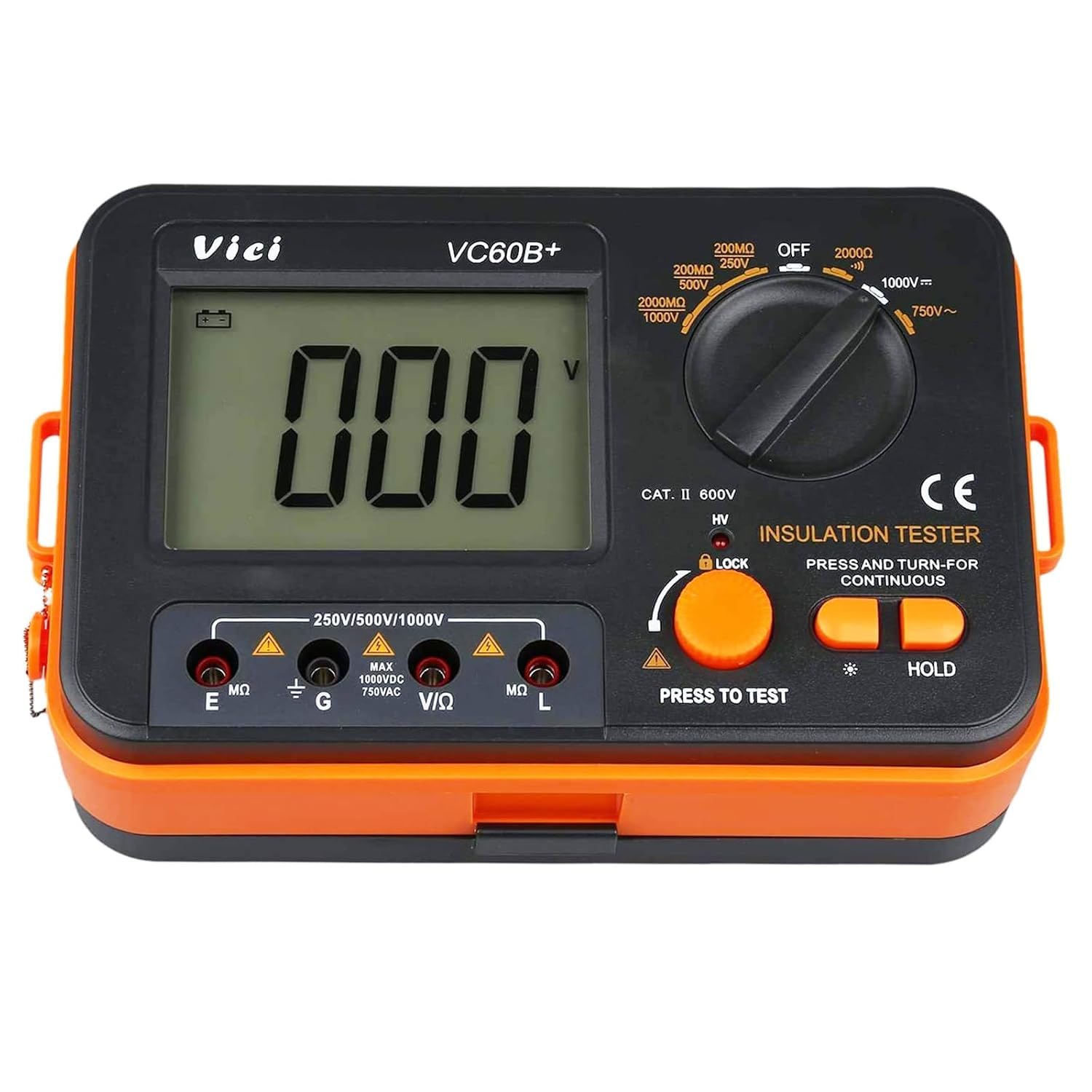

VC60B+ Digital Insulation Resistance Tester Megohm Meter
- 【Multi-functional】The VC60B+ Insulation Resistance Tester in addition to measuring insulation resistance,it also features a continuity test function that can check for open circuits and short circuits,and has the ability to measure AC voltage up to 750V and DC voltage up to 1000V.with backlight HD LCD screen and data hold button,make it easy to read and record the electric measurements.
- 【Features】An accurate,reliable and easy-to-use insulation tester.It provides accurate insulation resistance readings up to 2000MΩ,ensuring reliable and precise results.Strong anti-magnetic and anti-jamming function,full function protection,anti high voltage circuit design.Sound and light double alarm,display returns to zero when high voltage and a short-cut resistance occured.1.5V AA battery x6pcs or external DC 9V double power source(both not included),low battery indication.

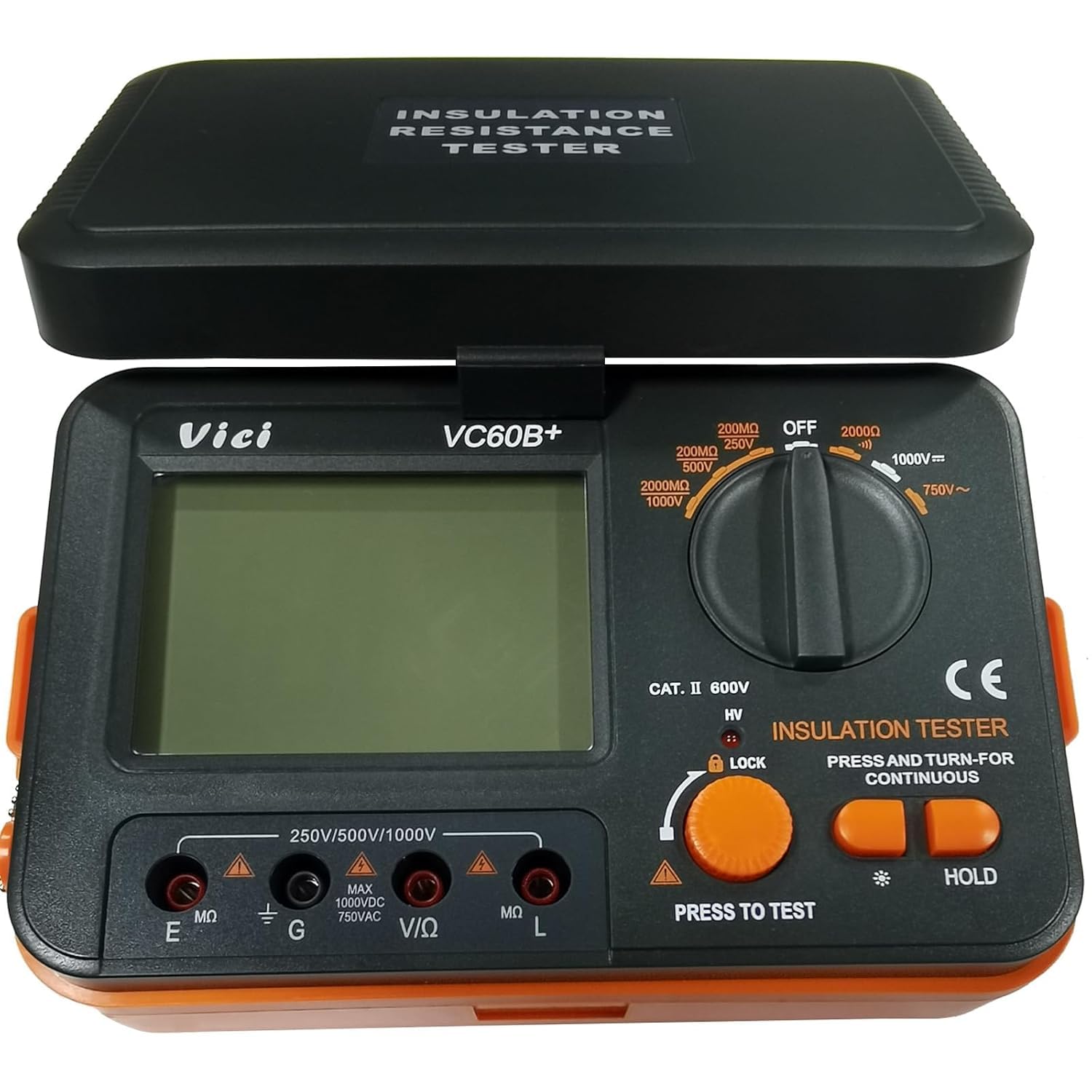

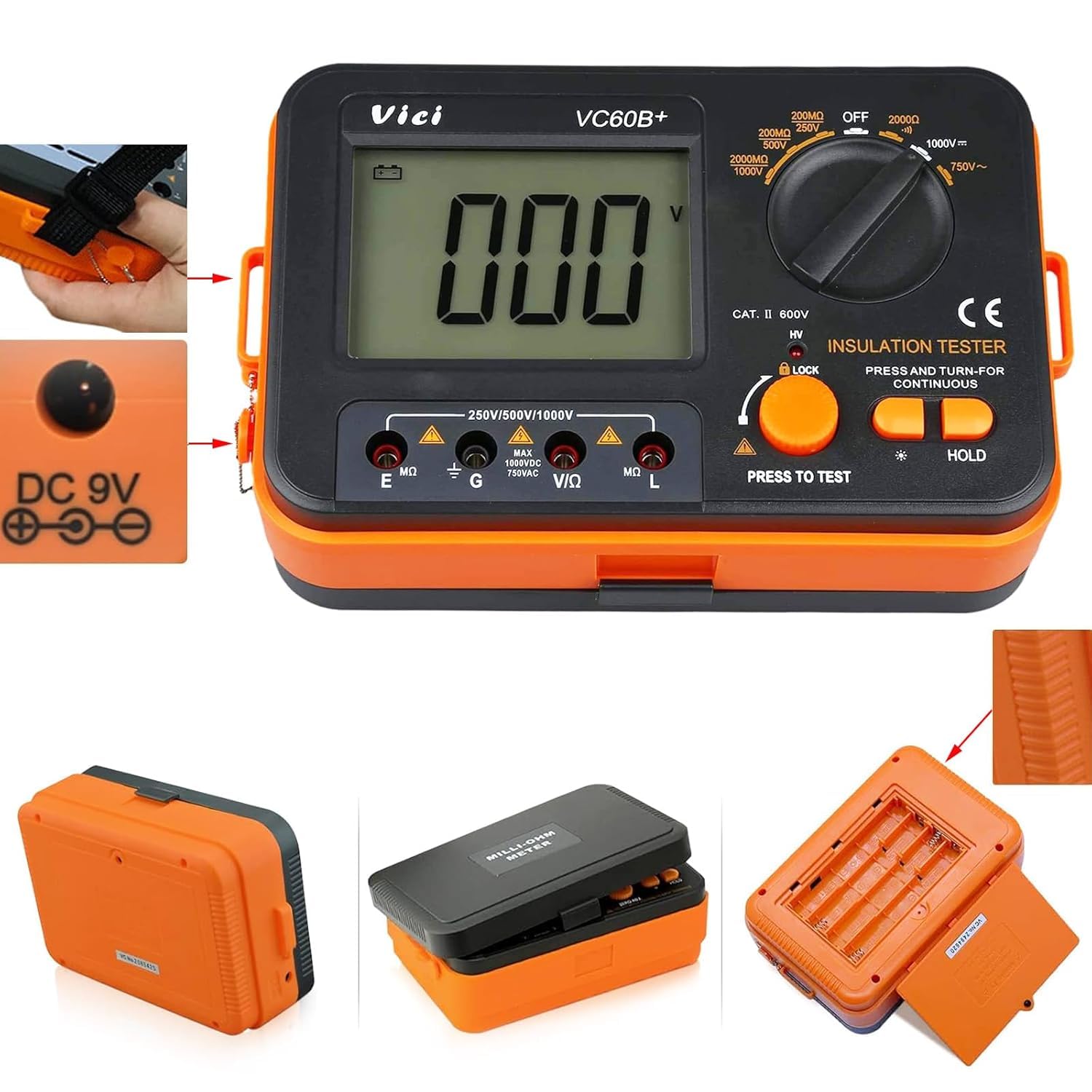

- 【Humanized design】The Megohmmeter with a protective cover design to protect the tester from drops,scratches and bumps.Feature with 72cm adjustable shoulder strap design,make you can operate both by two hands,easy to carry and prevent the device from accidentally falling.Featuring with 3.5" backlight HD LCD screen and data hold button,make it easy to read and record the electric measurements even in low-light conditions.
- 【Easy to use】Extra large and clear 3.5 inch LCD display and LCD backlight ON/OFF key,easy to read,unit symbol display,easy to use.With automatic range selection function allows the user to obtain accurate readings more quickly and easily,making testing simpler and more efficient.Compact and exquisite,easy to carry and store,it is a convenient tool for professionals and hobbyists who need to perform insulation resistance tests in different locations.

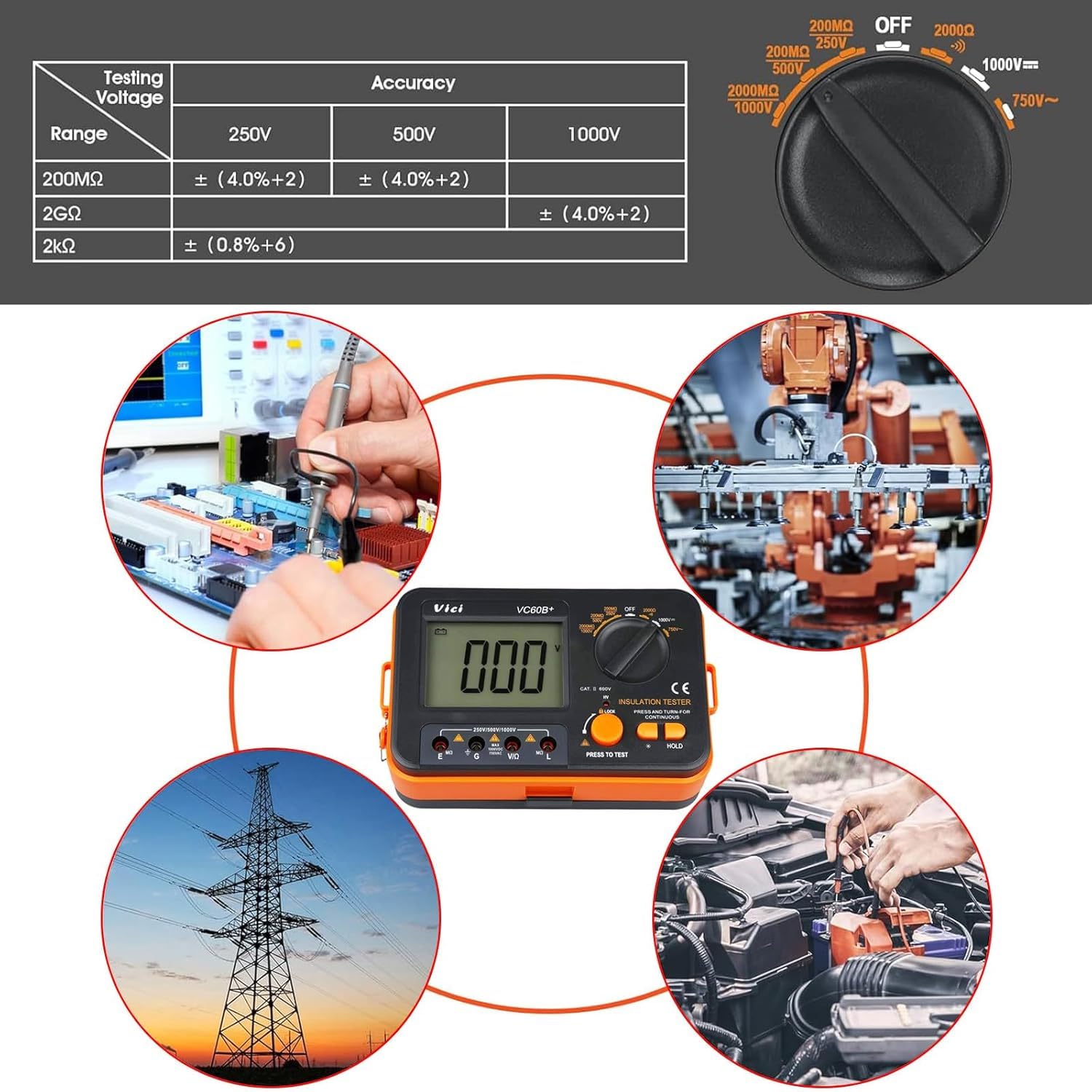

- 【Widely application】This multimeter suitable for testing a variety of electrical systems and equipment,insulation resistance measurement,resistance and continuity measurement,DVC measurement,AVC measurement.offer a more wider range of test voltages from 250V to 1000V,resistance up to 2000MΩ,DC voltage range from 0~1000V,and AC voltage range from 0~750V.widely used in electric machines,cables,electronic equipment,electric facilities,etc.
- ❤ 【WARM PROMPT】This OHM Meter is a precision instrument, in order to avoid damage and injury caused by incorrect operation, please read the operation manual carefully before operation.And pay attention to safety and take safety precautions.
| Specification Met | Rohs, Ul, Ce |
| Manufacturer | JUNLIXN |
| Unit Count | 1 Count |
| Item dimensions L x W x H | 6.93 x 4.57 x 2.48 inches |
| Brand | JUNLIXN |
| UPC | 749877635334 |
| Number of Items | 1 |

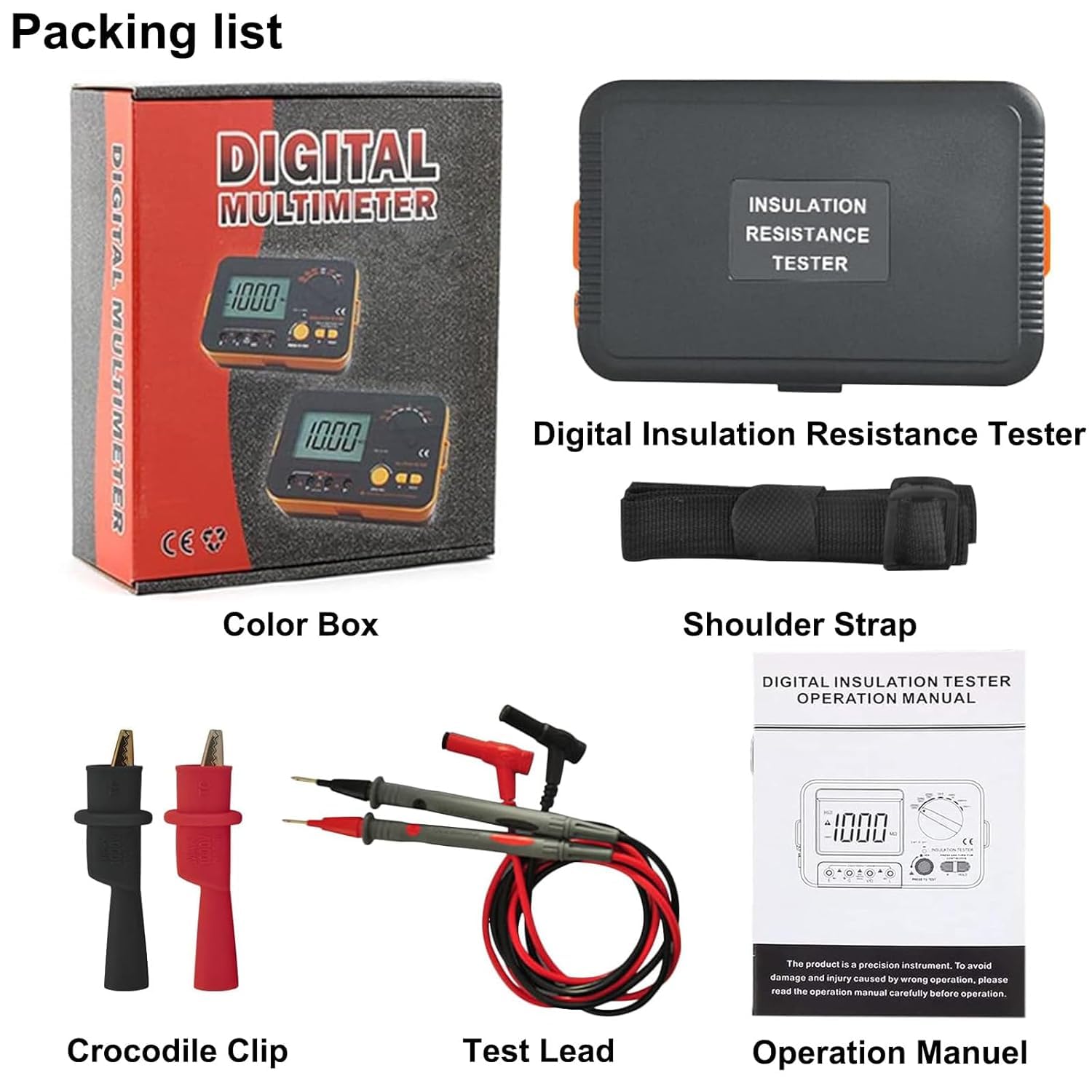

| Included Components | 1pc VC60B+ digital insulation resistance tester megohm meter. |
| Power Source | 1.5v Aa Battery X6pcs Or External Dc 9v Double Power Source |
| Colour | Black |
| Style | Digital Insulation Resistance Tester |
| Number of Packs | 1 |
| Part Number | VC60B+ |
| Model | VC60B+ |
| Measurement Type | Multimeter |
| Style Name | Digital Insulation Resistance Tester |
| Item Dimensions | 6.93 x 4.57 x 2.48 inches |
| Item Highlight | continuity tester, 250V/500V/1000V Test Voltage Testing Insulation Resistance IR 0.1MΩ~2GΩ, Measure AC DC Volt Ohm |
| Product Type | Insulation Resistance Meters |
| Minimum Operating Voltage | 1.5 volts_of_direct_current |
-
