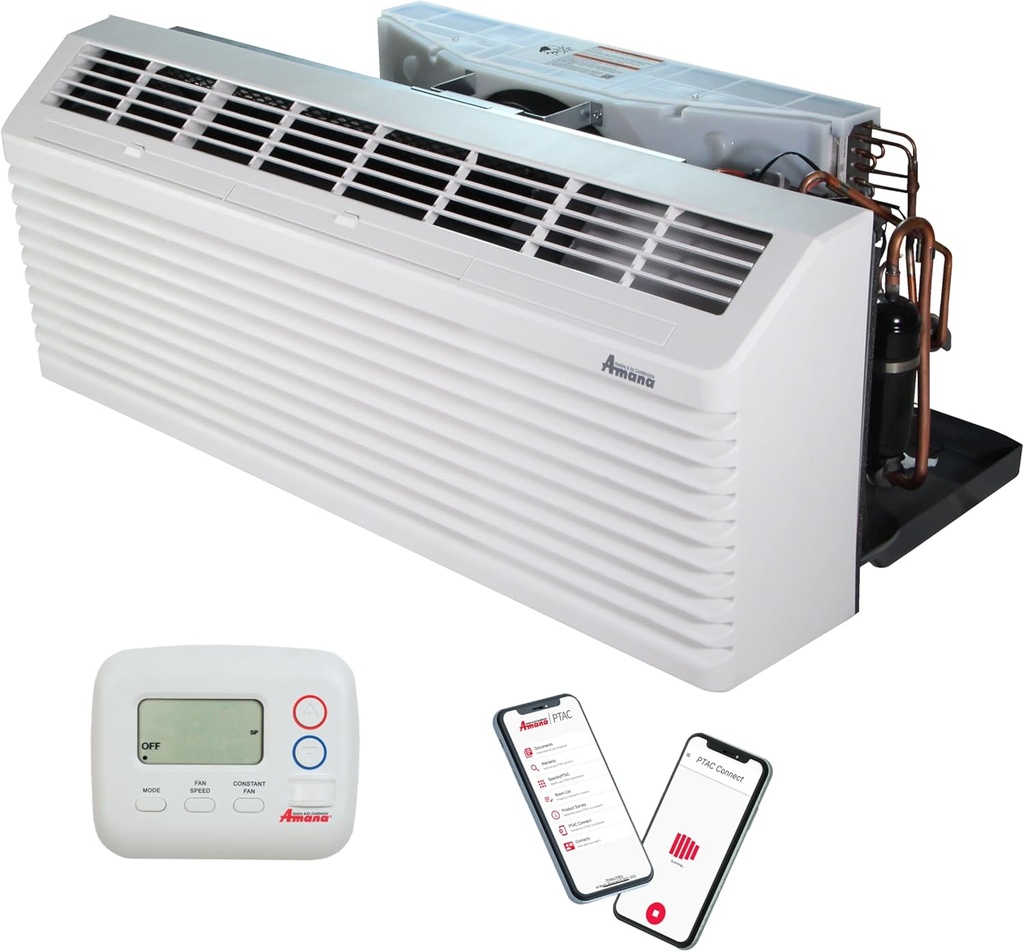

14,800 BTU PTAC Wall Air Conditioner with 3.5 kW Heater with, 58 inches power cord 20 amp plug. (NEMA 6-20P configuration) in Quiet White
3 sold in last 24 hours
- Our whisper-quiet PTAC is now redesigned to be our quietest model ever, featuring two fan motors (indoor/outdoor), an indoor tangential fan for silent operation, and a remarkable Sound Transmission Class (STC) of 29, creating a peaceful haven for sleep-filled nights.
- When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater
- The PTC153J35AXXX is a 230/208 volt unit, with 20 amp max overcurrent protection. The power cord is 58 inches in length, and the plug is configured to match NEMA 6-20P outlets
- This listing is for a single PTC153J35AXXX ptac unit, and thermostat. Please be advised that brand-new installs may require a separate purchase of a wall sleeve (part number WS900QW), Outdoor Grille (part number SGK01QW), and condensate drain kit (part number DK900QW)

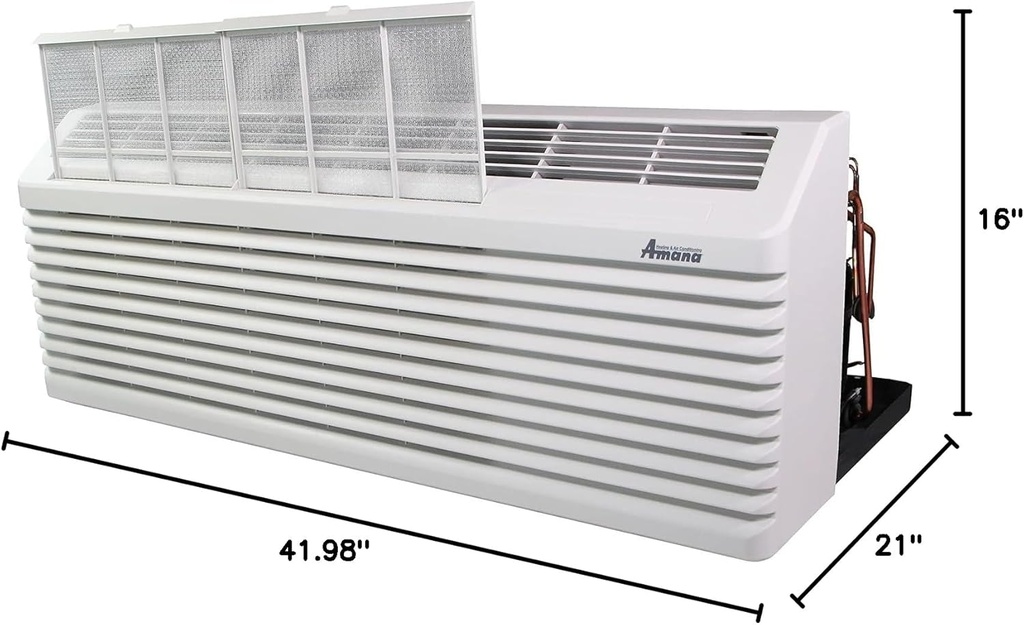

- The PTC153J35AXXX meets the industry standard for PTAC Dimensions at 16 1/16 inches high, 42 inches wide with a standard depth of 21 inches and will fit a 14 1/8 inch deep wall sleeve. This unit has been tested and certified for performance, AHRI Certificate number 210540030
Tags |
The Amana PTC153J35AXXX is a versatile heating and cooling solution suitable for both residential and commercial use, compatible with 208/230-volt electricity. This unit offers efficient cooling with 14,900/14,800 BTUs and features a 3.5 kW electric heater, providing approximately 9,900/12,000 BTUs of electric backup heat. The package includes a 20 amp power cord for convenient setup. A part of the new series of Amana PTACs, this unit comes equipped with RF and Bluetooth connectivity, requiring a wall thermostat for operation. The Amana PTC153J35AXXX PTAC boasts an EER of 10.4/10.3 and is designed to cool spaces ranging from 450 to 575 sq. ft. The "J" Series units in the Amana line use R32 refrigerant. With an STC (Sound Transmission Class) of 29, these units minimize operational noises, providing a quieter environment for you and your guests. Amana PTAC units are built for durability, made in the United States.
Technical Details
| Brand Name | Generic |
|---|---|
| Model Info | PTC153J35AXXX,DSAN020 |
| Item Weight | 117 pounds |
| Product Dimensions | 21 x 41.98 x 16 inches |
| Item model number | PTC153J35AXXX,DSAN020 |
| Capacity | 1.24 Tons |
| Annual Energy Consumption | 21900 Kilowatts |
| Noise | 63 Decibels |
| Installation Type | Packaged |
| Part Number | PTC153J35AXXX,DSAN020 |
| Special Features | Dehumidifier, Heating And Cooling Function, Remote Controlled |
| Color | White |
| Voltage | 230 Volts |
| Wattage | 1080 watts |
| Material Type | Metal, Plastic |
| Included Components | 1 PTAC Air Conditioner, 1 Wireless Thermostat |
| Main Specification | |
|---|---|
| Special Feature | Heating And Cooling Function or Remote Controlled or Dehumidifier |
| Cooling Power | 14900 British Thermal Units |
| BEE Star Rating | No |
| Noise Level | 63 Decibels |
| Refrigerant | R-32 |
| Brand | Generic |
| Capacity | 1.24 Tons |
| Product Dimensions | 21"D X 41.98"W X 16"H |
| Voltage | 230 Volts |
| Color | White |
| Others | |
| Product Type | Air Conditioner |
